Belden 1523R Series 11 14 AWG Coax CATV Cable - Black - 500 Foot

Name: Belden 1523R Series 11 14 AWG Coax CATV Cable - Black - 500 Foot
Brand: Belden
SKU: BL-1523R-500
Price: 229.59 USD
Availability: PreSale

ITEM #: BL-1523R-500 MFG #: 1523R 010500

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$269.20

Our Price:

$229.59

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1523R 010500 - Overview

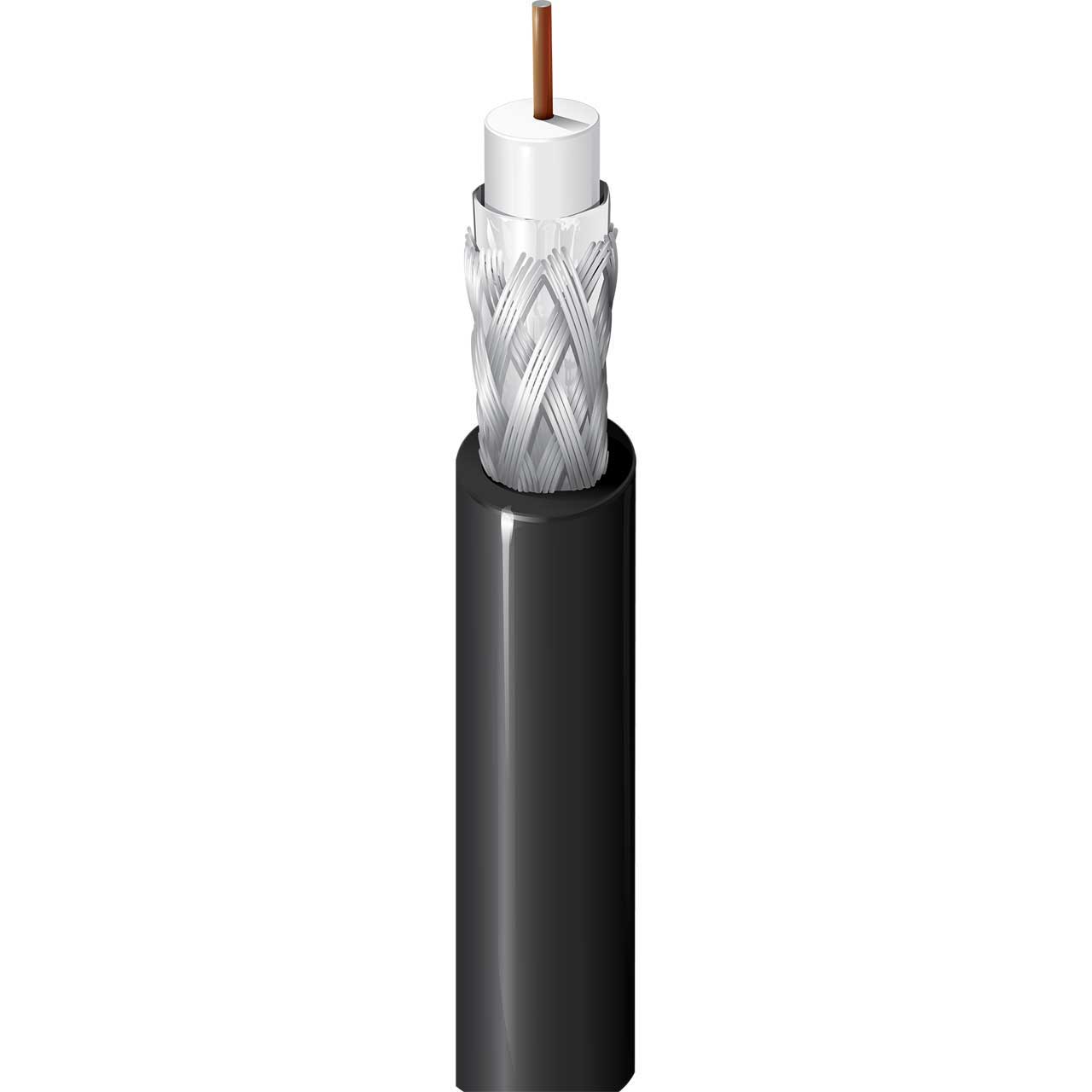

Belden 1523R Broadband Coax, Series 11, 14 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CMR. Suitable for Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas applications.

Specifications:
- Series Type: 11
- AWG: 14
- Stranding: Solid
- Nom Diameter: 0.064 in
- Material: BCCS - Bare Copper Covered Steel
- Frequency [MHz]: 5 - 1000 MHz
- Min. Structural Return Loss [dB]: 20 dB
- Nom. Conductor DCR: 12 Ohm/1000ft
- Nom. Outer Shield DCR: 4.1 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 16.3 pF/ft
- Nom. Impedence: 75 Ohm
- Nom. Velocity: 83%
- UL Voltage Rating: 300 V (CMR, CMG)
- Bulk Cable Weight: 60 lbs/1000ft
- Max. Pull Tension: 199 lbs
- Environmental Suitability: Indoor - Riser, Indoor, Sunlight Resistance
- Sustainability: CA Prop 65
- Flammability / Fire Resistance: UL1666 Vertical Riser
- NEC / UL Compliance: CMR, CATVR
GTIN:
0612825117124

1523R 010500 - Recommended Accessories

Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

1523R 010500 - Reviews

1523R 010500 - Attachments

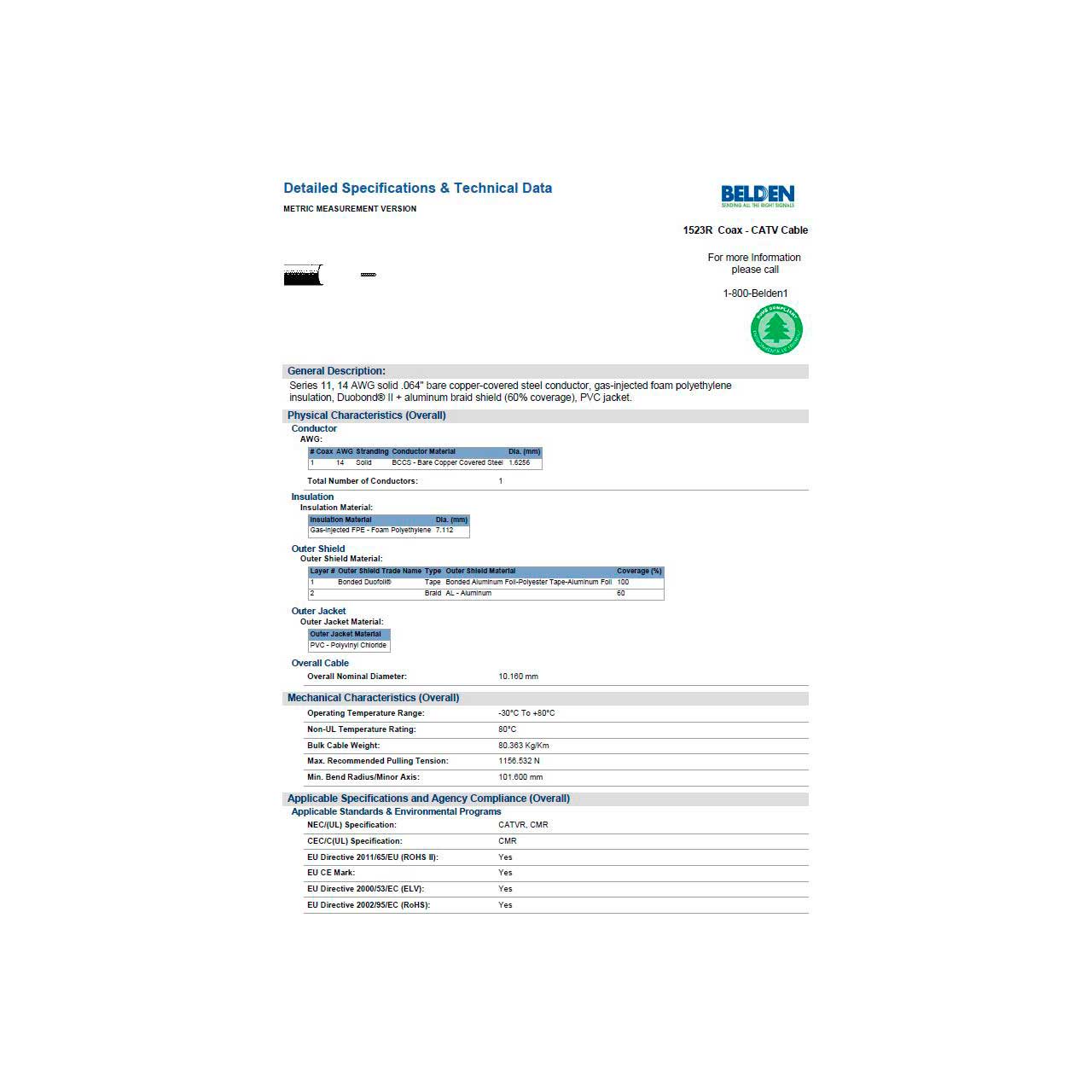

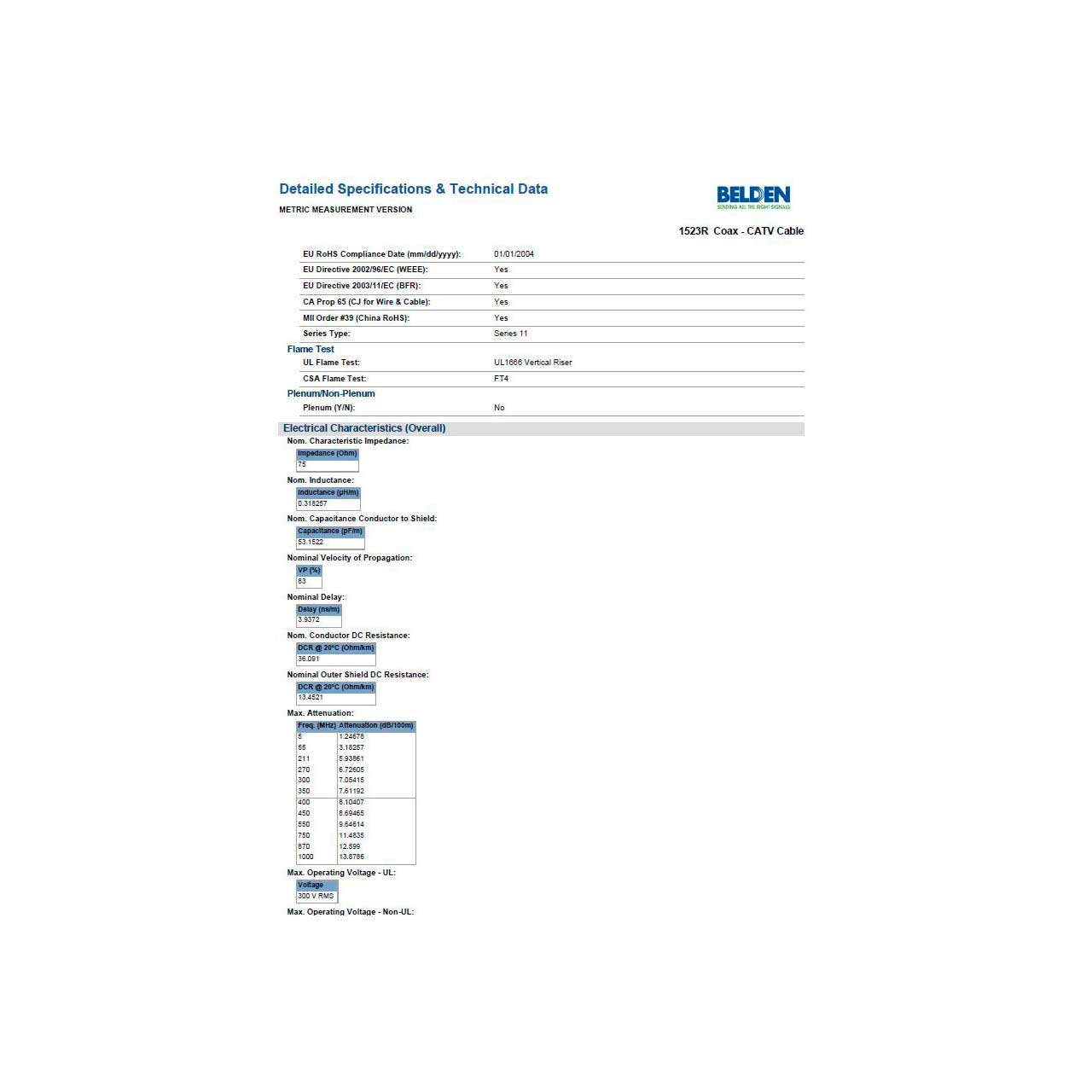

See Belden 1523R010500 Specifications (PDF)
