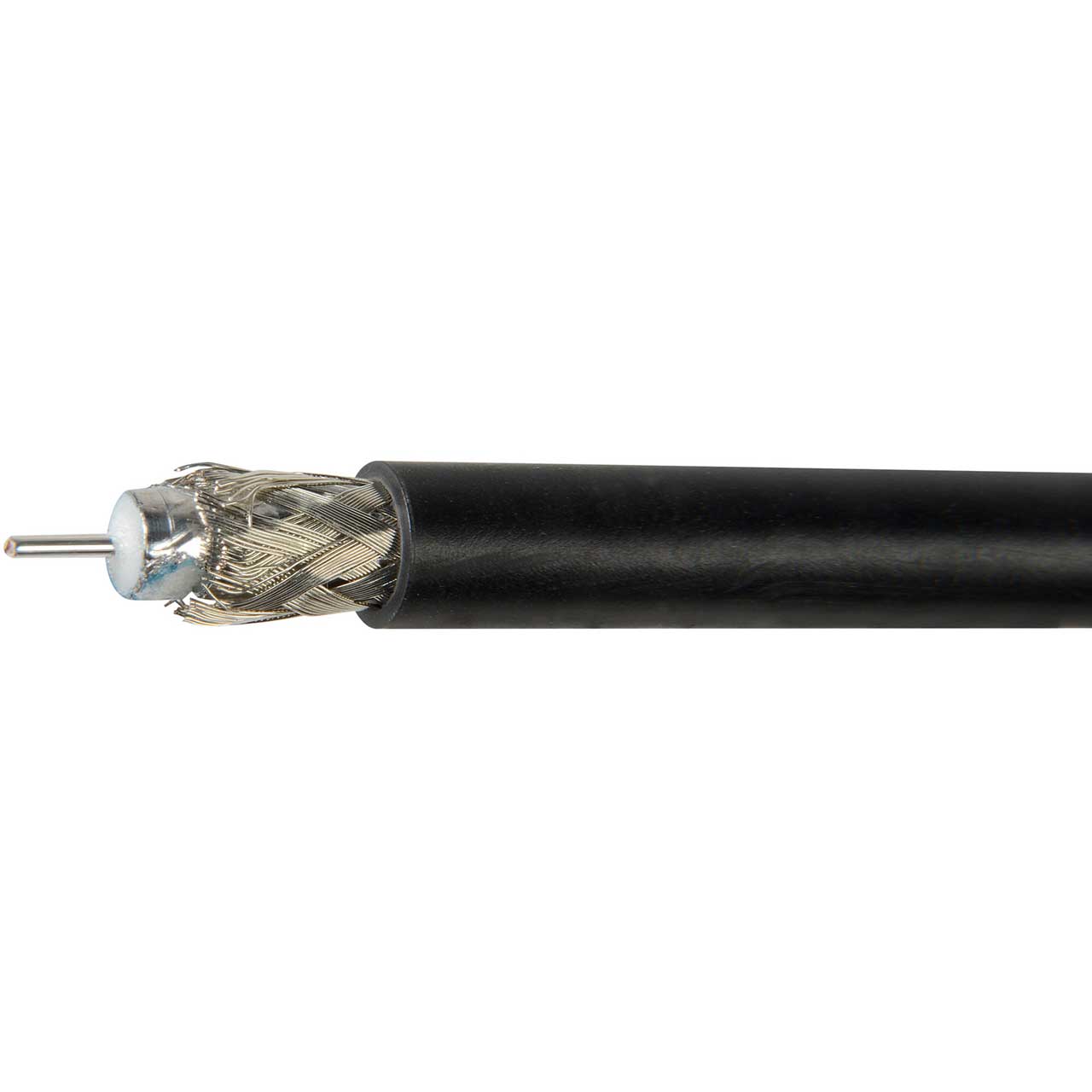

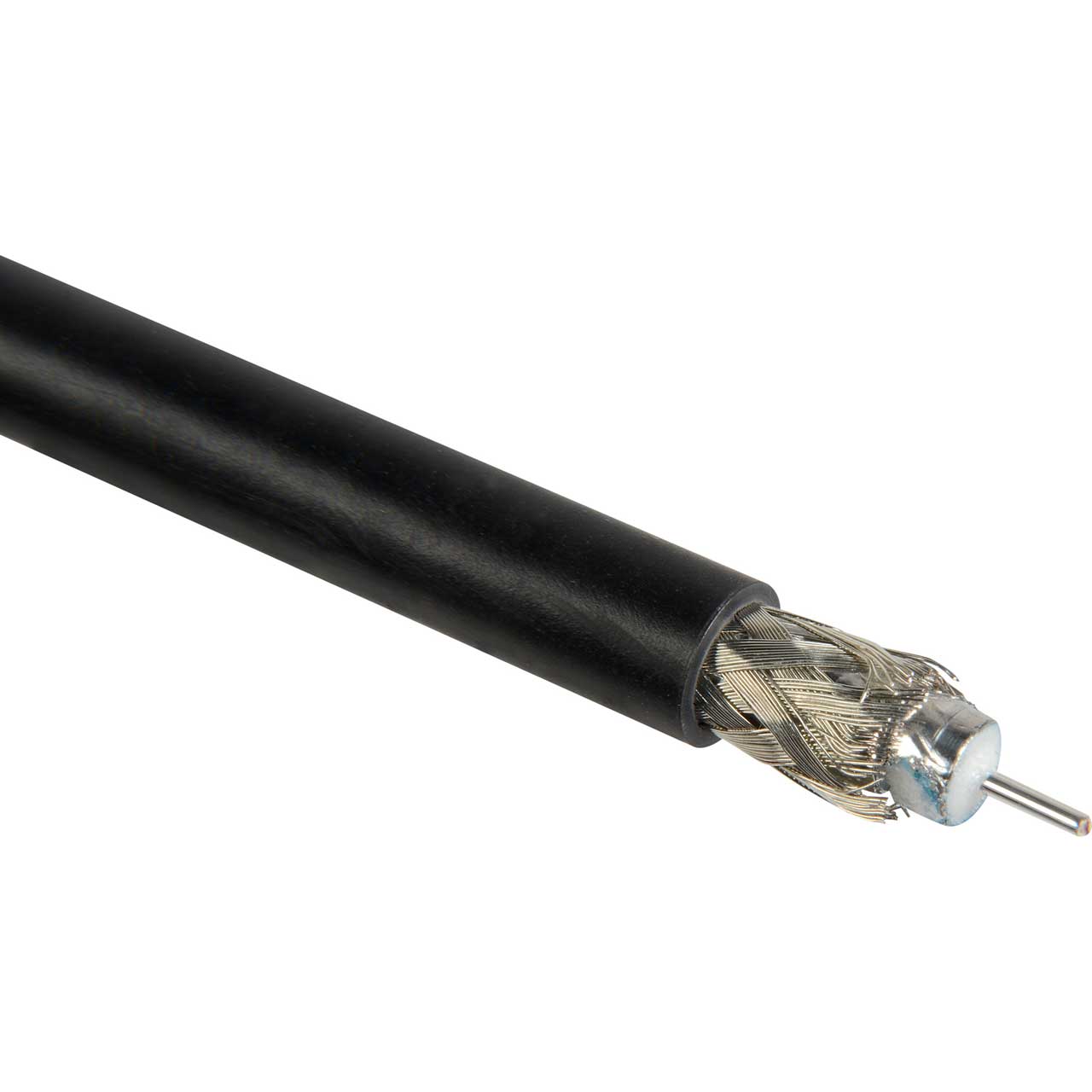

Belden 4694R CMR Rated 12G-SDI 75 Ohm 4K UHD RG-6 Coax Video Cable 18 AWG- Black - Per Foot

4694R 0101000-FT - Overview

• Features:

  • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
  • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
  • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
  • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


• Specifications:

  • Type: RG6
  • # Coax: 1
  • AWG: 18
  • Stranding: Solid
  • Conductor Material: Silver Plated Copper
  • Conductor Dia. (in.): 0.040
  • Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Insulation Diameter (in.): .180
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Overall Nominal Diameter: 0.274 in.
  • Impedance (Ohm): 75
  • Inductance (µH/ft): 0.106
  • Capacitance (pF/ft): 15.900
  • Nominal Velocity of Propagation (%): 84.500
  • Nominal Delay (ns/ft): 1.200
  • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 6.4
  • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 2.800
  • Max. Operating Voltage - UL: 300 V RMS
  • Operating Temperature Range: -30°C To +75°C
  • Bulk Cable Weight: 41 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 69 lbs.
  • Min. Bend Radius/Minor Axis: 2.750 in.

    Electrical Characteristics
  • Return Loss
  • Frequency [MHz]     Minimum Return (RL)
  • 5 MHz - 1600 MHz    23 dB
  • 1600 MHz - 4500 MHz   21 dB
  • 4500 MHz - 12000 MHz  15 dB

    Attenuation
  • Frequency [MHz]   Nom. Attenuation
  • 1 MHz         0.23 dB/100ft
  • 3.58 MHz        0.44 dB/100ft
  • 5 MHz          0.51 dB/100ft
  • 6 MHz          0.56 dB/100ft
  • 7 MHz          0.59 dB/100ft
  • 10 MHz         0.70 dB/100ft
  • 12 MHz         0.75 dB/100ft
  • 25 MHz         1.04 dB/100ft
  • 55 MHz         1.45 dB/100ft
  • 67.5 MHz       1.58 dB/100ft
  • 71.5 MHz       1.62 dB/100ft
  • 88.5 MHz       1.78 dB/100ft
  • 100 MHz        1.89 dB/100ft
  • 135 MHz        2.10 dB/100ft
  • 143 MHz        2.16 dB/100ft
  • 180 MHz        2.44 dB/100ft
  • 270 MHz        2.97 dB/100ft
  • 360 MHz        3.45 dB/100ft
  • 540 MHz        4.30 dB/100ft
  • 720 MHz        5.00 dB/100ft
  • 750 MHz        5.10 dB/100ft
  • 1000 MHz        5.90 dB/100ft
  • 1500 MHz        7.30 dB/100ft
  • 2000 MHz        8.50 dB/100ft
  • 2250 MHz        9.10 dB/100ft
  • 3000 MHz        10.6 dB/100ft
  • 4500 MHz        13.2 dB/100ft
  • 6000 MHz        15.5 dB/100ft
  • 12000 MHz       23.0 dB/100ft


• Item Includes:

  • 4694R - Black - Per Foot


• Warranty:

  • Limited 10 Year Warranty
