Belden 4694RBUHD3 12G-SDI 3-Piece UHD BNC Crimp Connector for 4694R/RG6 Cable - Green Band - 50 Pack

ITEM #: BL-4694RBUHD3B50 MFG #: 4694RBUHD3 B50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Belden
Free Shipping with $49 Minimum Order

List Price:

$179.00

Our Price:

$145.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4694RBUHD3 B50 - Overview

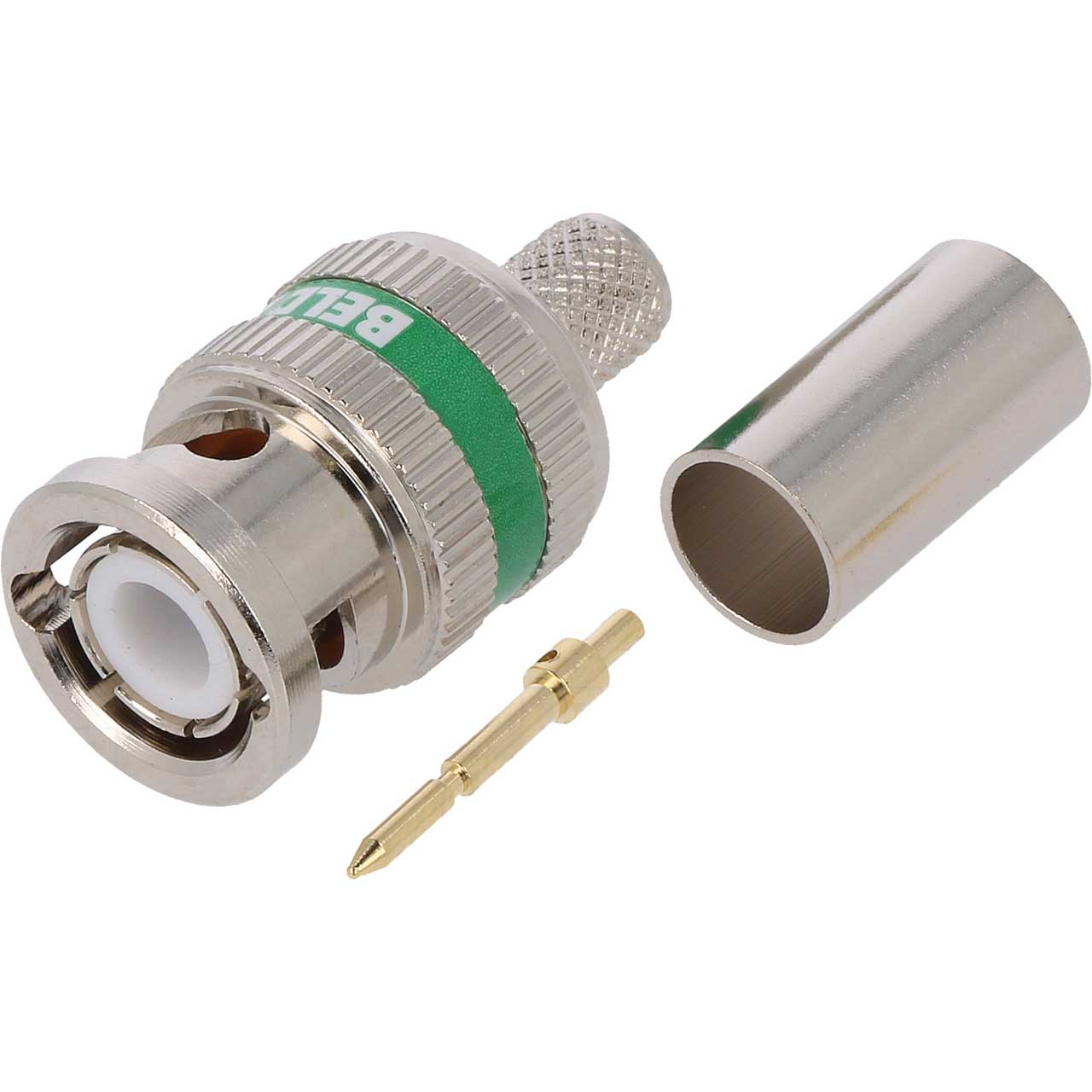

The Belden 4694RBUHD3 is a 12G-SDI, 3-Piece, 75 Ohm UHD Male BNC Crimp Connector, Green Band, for 4694R and other RG6 Cable in a 50 pack.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 6 GHz and 12 GHz broadcast applications, one-piece and three-piece connector types are available. The connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
HD-SDI
UHD-SDI
Video
Digital Video
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • Easy identification with colored connector bands
    • Better gripping with patented design
    • Properly seated center conductor with non-blind entry
    • Excellent holding strength with internal 360 compression rings


  • Specifications:

    • Trim Code 3-661-1: A = 0.624"/ B = 0.312" / C = 0.155"
    • Center Pin Crimp Size: 0.046"
    • Center Pin Crimp Cavity: 0.042"
    • Ferrule Crimp Size: 0.278"
    • Ferrule Crimp Cavity: 0.178
    • AWG Size: 18
    • Packaging: 50 Pack
    • Number of Pieces: 3
    • Nominal Characteristic Impedance: 75Ω
    • Return Loss Frequency [MHz]: 5-1485 Minimum Return (RL) 15 dB
    • Return Loss Frequency [MHz]: 1485-3000 Minimum Return (RL) 10 dB
    • Return Loss Frequency [MHz]: 3000-6000 Minimum Return (RL) 7 dB
    • Return Loss Frequency [MHz]: 6000-12000 Minimum Return (RL) 4 dB
    • Electrical Characteristics Notes: SMPTE 2082-1 Return Loss or better
    • Cable Dielectric Diameter Limits: 0.1771 - 0.1850 in
    • Cable Center Conductor Diameter Limits: 0.3740 - 0.0401 in
    • Cable Outer Jacket Diameter Limits: 0.2657 - 0.2854 in
    • Environmental Space: Indoor
    • Nut: Polished Nickel
    • Body: Polished Nickel
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • Footprint/Type: Coax
    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Connector Series Name: UHD
    • Color Band: Green
    • Locking: No
    • Termination Type: Crimp


  • Item Includes:

    • 4694RBUHD3 12G-SDI BNC Crimp Connector for 4694R/RG6 Cable - Green Band - 50 Pack


  • Warranty:

    • Limited Lifetime Connector Warranty when partnered with Belden Cable


  • GTIN:

    0845671005547
