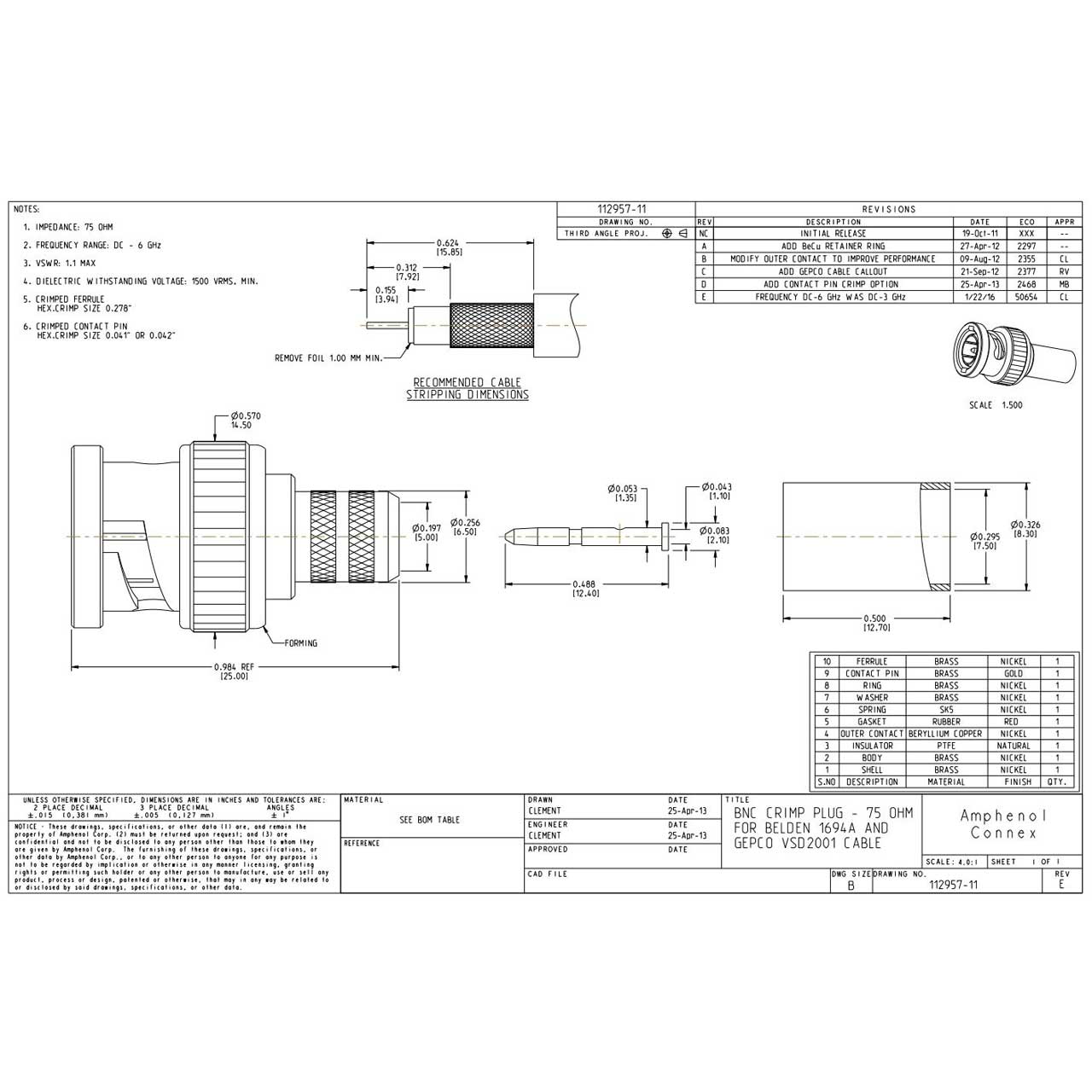

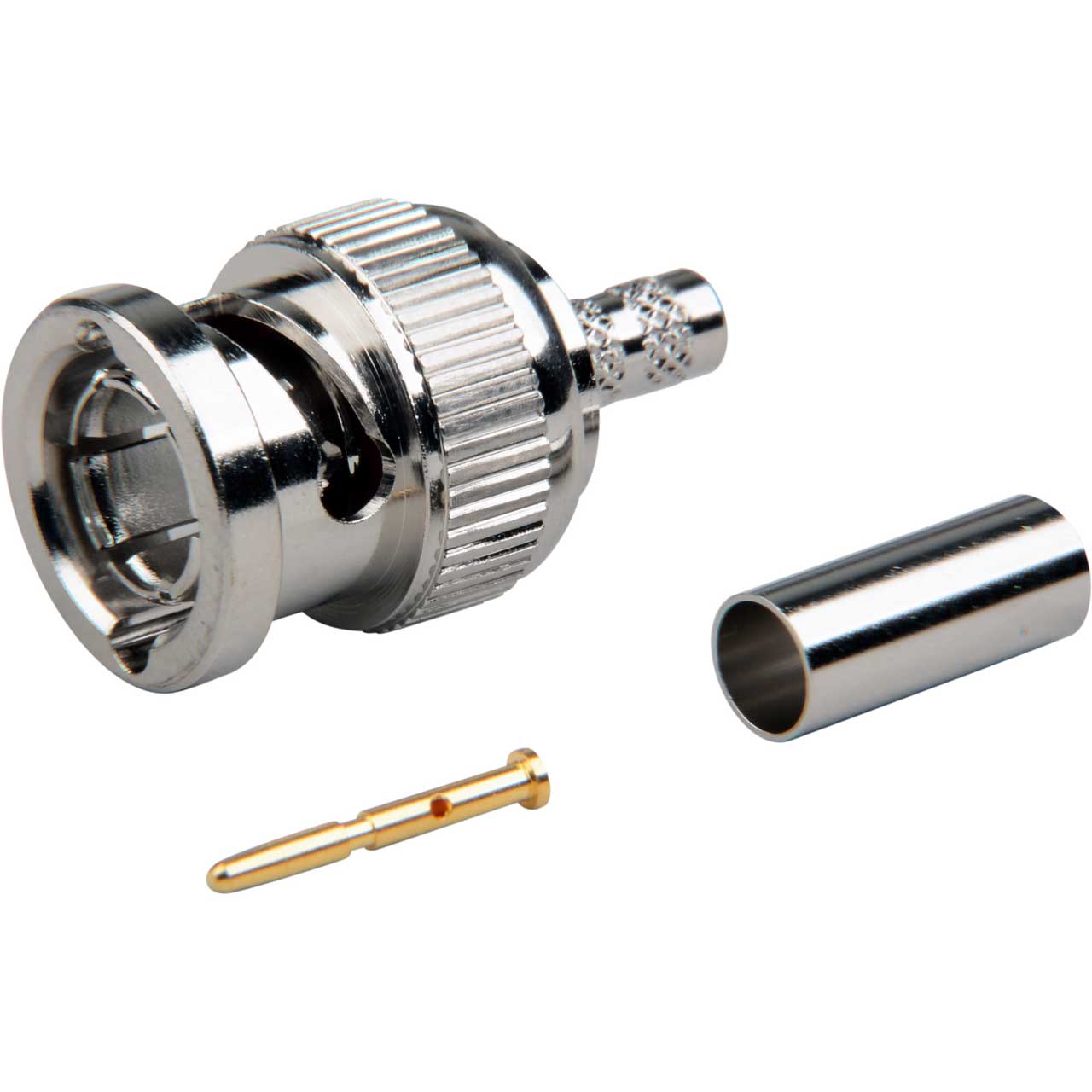

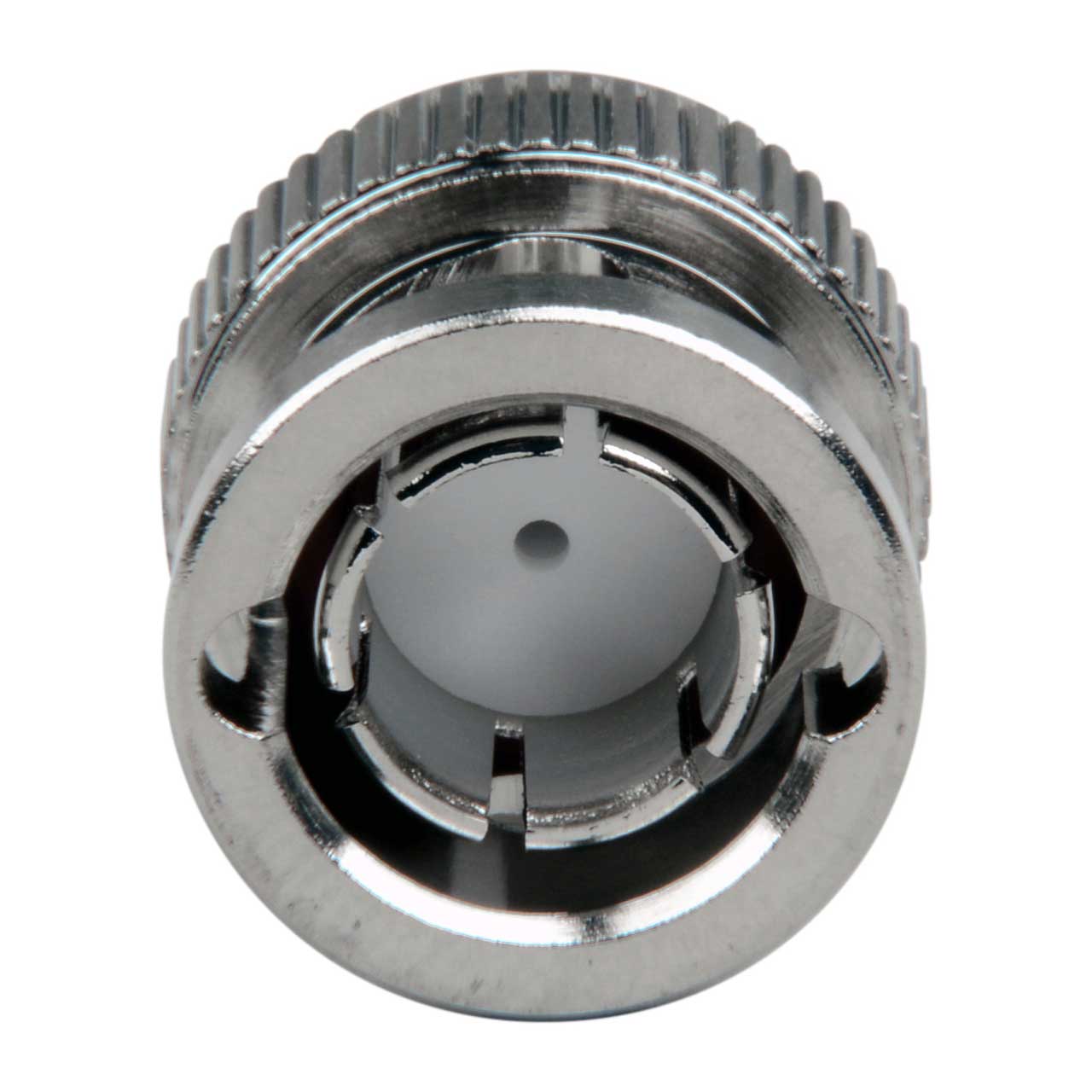

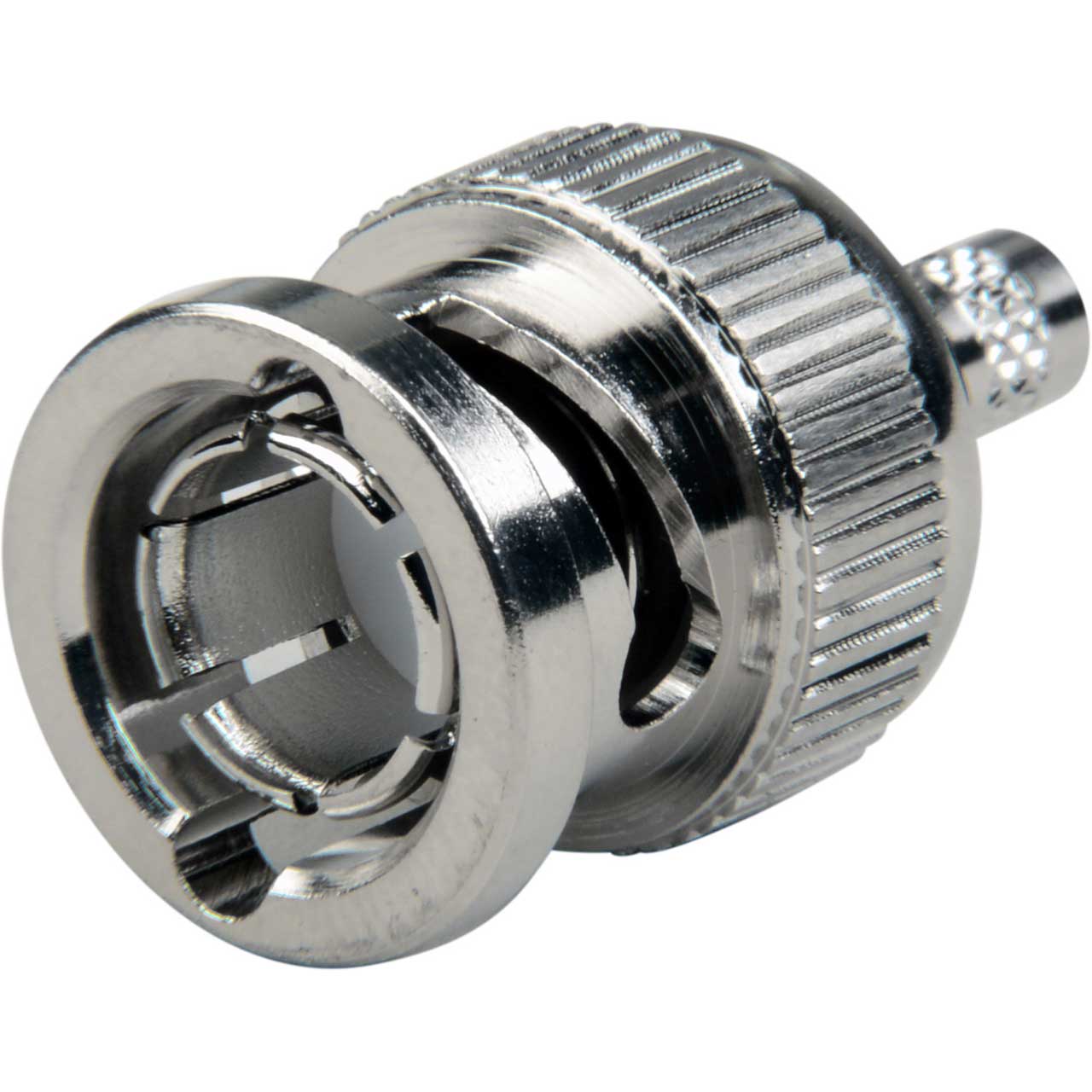

Amphenol 112957-11 75-Ohm 6G BNC Male Crimp Connector for Belden 1694 Coax

112957-11 - Overview

• Features:

  • Bayonet coupling mechanism provides positive, quick mating and un-mating
  • 75 ohm impedance designs allow customers to match impedance to system requirements
  • Connectors are available for military, industrial and commercial applications


• Specifications:

  • Body Finish: Nickel
  • Body Material: Brass
  • Cable Type (Terminates to): Belden 1694A, Belden 4694R, Belden 9248
  • Contact Finish: Gold
  • Contact Material: Brass
  • Contact Termination: Crimp
  • Coupling Mechanism: Bayonet
  • Export Control Classification Number: EAR99
  • Frequency (Max GHz): 6
  • Gender: Plug
  • IP Rating: Not Rated
  • Impedance (Ohms): 75
  • Insulator Material: PTFE
  • Isolated: No
  • Low PIM: No
  • Mil Qualified: No
  • Non Magnetic: No
  • Orientation: Straight
  • Panel Mounting Feature: Not Applicable
  • Ports: 1 (Single Port)
  • Size Category: Miniature
  • Temp (Max Degrees Celsius): 165
  • Temp (Min Degrees Celsius): -65
  • Termination Style: Cable - Crimp
