West Penn 6450 RG6/U 12Ghz HD-SDI CMR Rated Coaxial Video Cable Shielded/Solid/SC 18AWG - 1000 Foot - Black

Name: West Penn 6450 RG6/U 12Ghz HD-SDI CMR Rated Coaxial Video Cable Shielded/Solid/SC 18AWG - 1000 Foot - Black
Brand: West Penn Wire Corp
SKU: WP-6450-1000-BK
Price: 1054.75 USD
Availability: PreSale

ITEM #: WP-6450-1000-BK MFG #: 6450BK1000

West Penn Wire Corp

Our Price:

$1,054.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

6450BK1000 - Overview

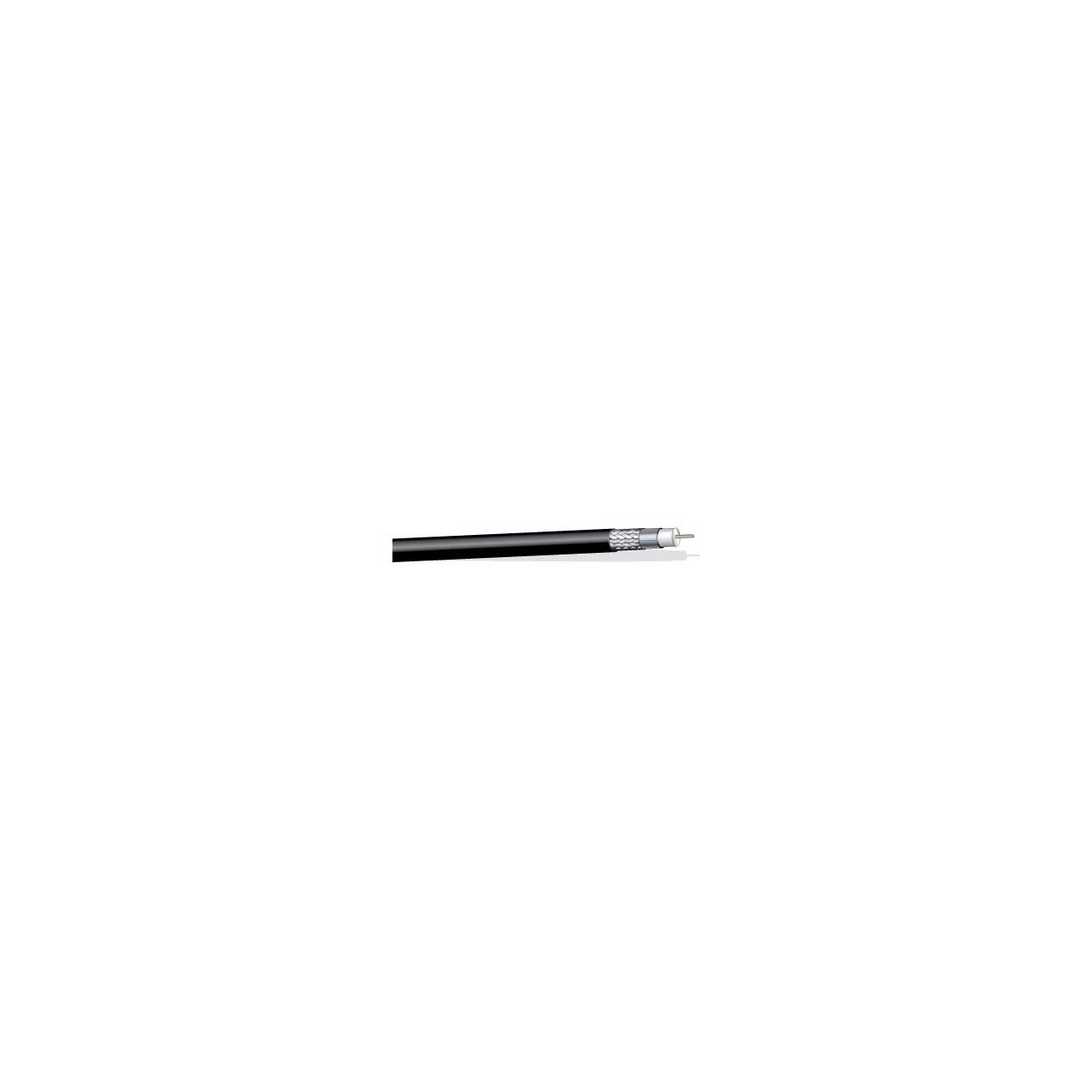

West Penn 6450 is a Single Conductor, RG6/U, 12Ghz, HD-SDI, CMR Riser Rated, 75 Ohm Coaxial Video Cable. It features an 18AWG Solid, Silver Copper conductor with PE - Polyethylene (Foam) insulation and 100% Tape Tri-Laminate (Alum+Poly+Alum) and 95% Tinned Copper Braid shield.

Specifications:
- CONDUCTOR PARAMETER
- Number of Conductors: 1
- AWG Size: 18
- Conductor Stranding: Solid
- Conductor Type: SC - Silver Copper
- Nominal DCR:: 6.4 Ohm/1000ft
- RG Size RG6/U
- INSULATION PARAMETER
- Insulation Type: PE - Polyethylene (Foam)
- Insulation Thickness: 0.18
- SHIELDING PARAMETER
- Shield Type 1: 100% Tape Tri-Laminate (Alum+Poly+Alum)
- Shield Type 2: 95% Tinned Copper Braid
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 75 Ohm
- Nom. Cap. Between Conductors: 15.9pf/ft
- Nom. Vel. Of Prop: 85%
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Nominal Cable O.D.: 0.274
- Plenum: No
- NEC UL Rating: CMR
- RoHS Compliant: Yes
- Pull Tension: 69bs/f
- Bend Radius: 2.7 Inches
- Cable Weight: 41 lbs
