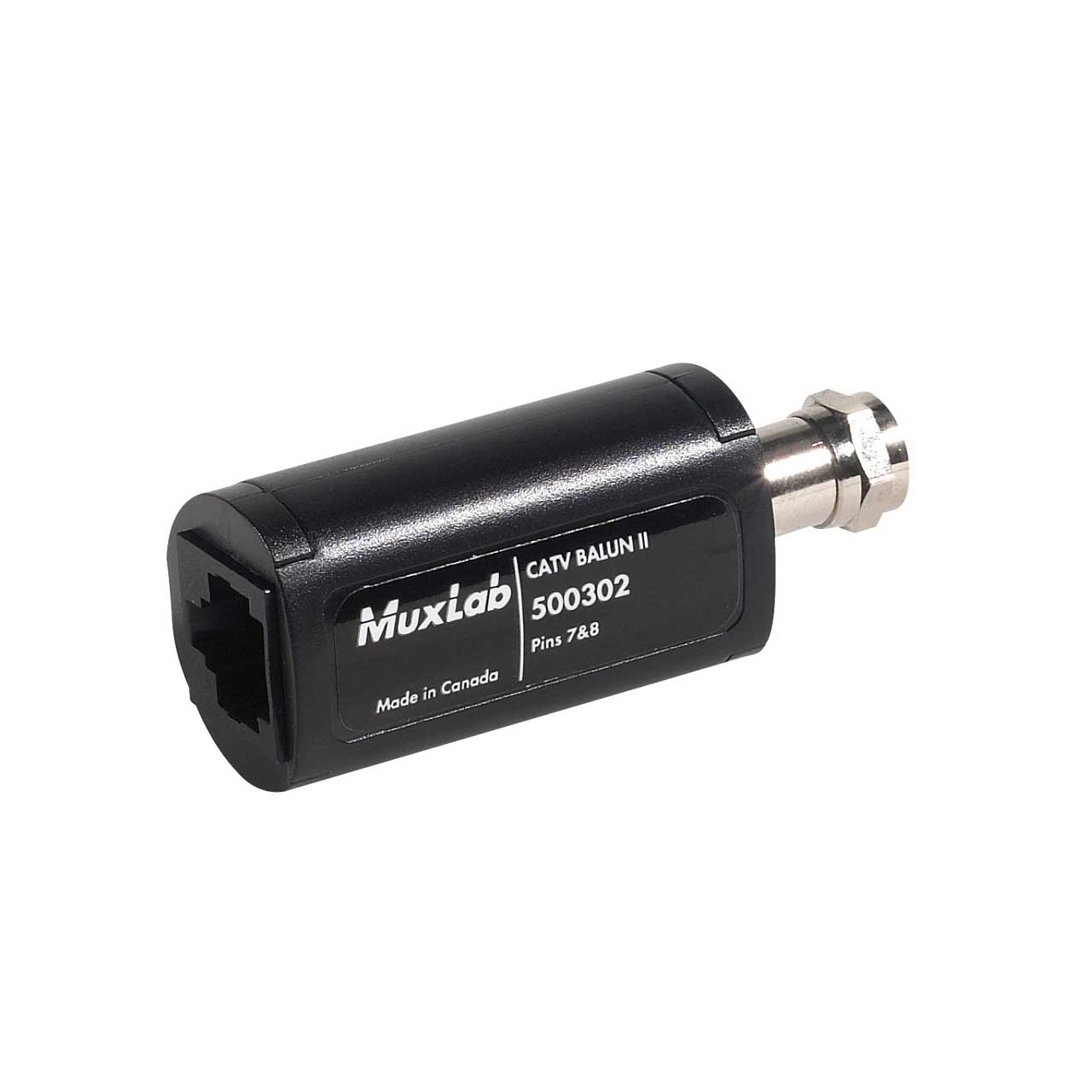

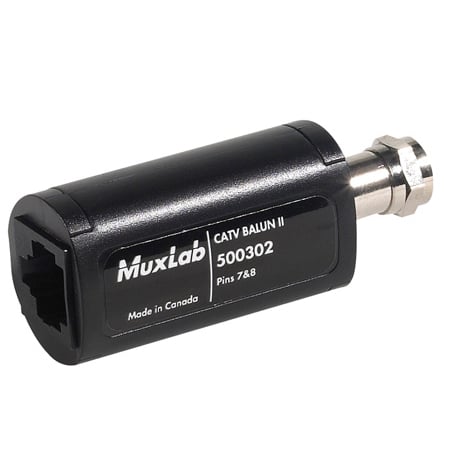

MuxLab 500302 CATV Balun II 75ohm Coax VideoEase CAT5 Balun

500302 - Overview

• Features:

  • Supports broadband RF, CATV, VHF and FM.
  • Supports channels CATV 2-77, VHF 2-13, FM broadcast band.

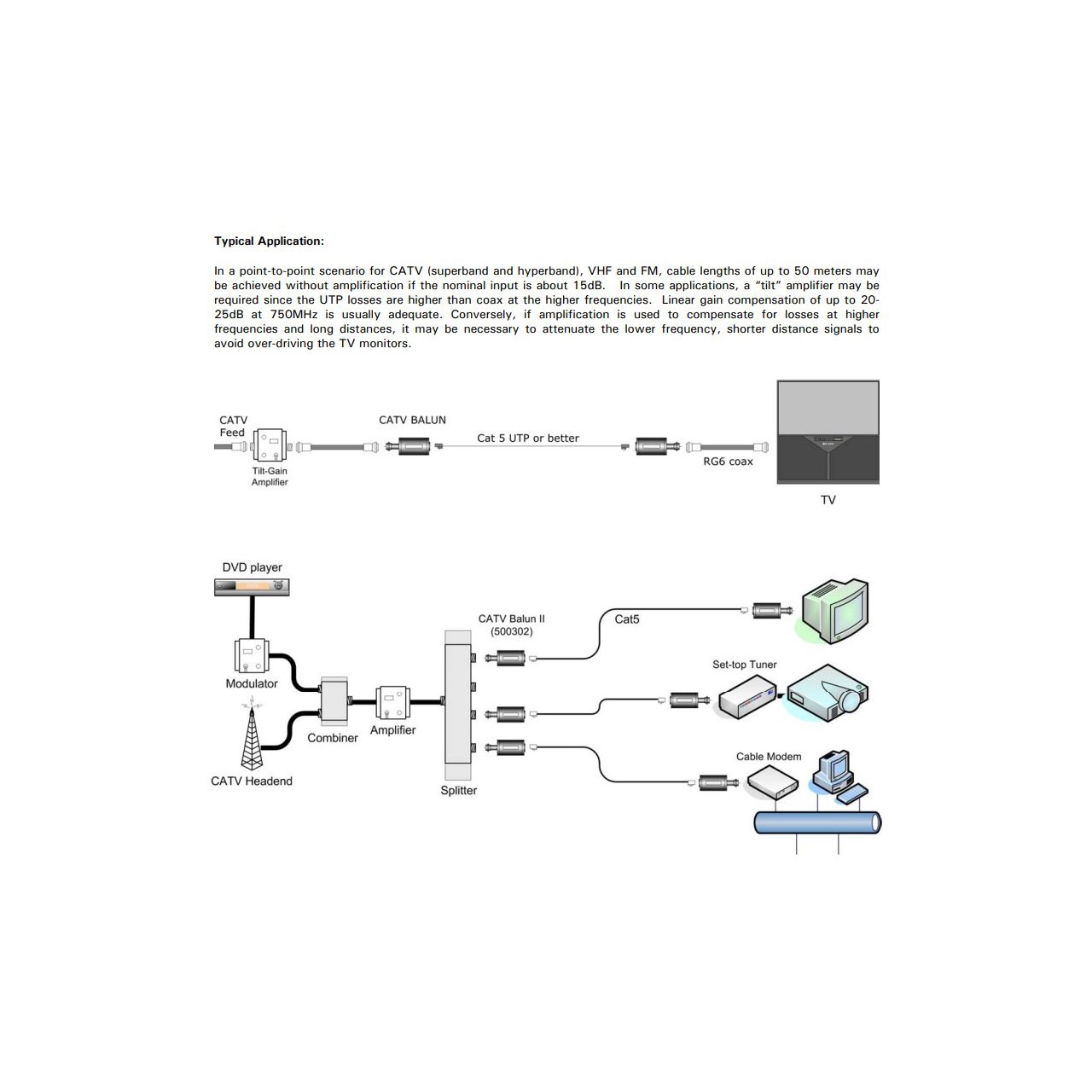

  • Works with CATV, satellite receivers, VCR, RF splitters and amplifiers.
  • Up to 330 feet (100m) via Cat 5 twisted pair depending on frequency*
  • Bandwidth 550 MHz.
  • Low return loss eliminates "ghosting"
  • Built-in male "F" connector for coax
  • RJ45 connector for twisted pair
  • FCC Part 15 Class A and Class B


• Specifications:

  • Environment: Private and public broadband CATV, VHF and FM networks
  • Transmission: Transparent to the user
  • 3dB Bandwidth: 5 MHz to 900 MHz
  • Video Channels Supported: CATV 2-142, VHF channels 2-13, FM broadcast band
  • Insertion Loss Per Pair:
    - <10 dB: 5 - 10 MHz | <3 dB: 10 - 600 MHz
    - <4 dB: 600 - 725 MHz | <3 dB: 725 - 900 MHz
  • Return Loss:
    - >10 dB: 15 - 370 MHz | >7 dB: 370 - 770 MHz
    - >10 dB: 770 - 900 MHz
  • Common Mode Rejection (CMMR): -20dB or higher at 5 MHz to 900 MHz
  • Cable - Cat5e/6 UTP:
    - 24-AWG or lower solid copper twisted pair
    - Impedance: 100-120-ohms
  • Cable - Coax:
    - Impedance: 75-ohms at 1MHz (RG6)
  • Connector - Input: "F" connector - male
  • Connector - Output: RJ45 - female
  • RJ45 Pin Configuration: RJ45 Pins 7&8
  • Maximum Distance:
    - Up to 100m (330ft) via Cat 5 UTP depending on channel frequency and input power
    - Maximum 100m at CATV Channel 2. May require tilt amplifiers at higher frequencies
  • Temperature:
    - Operating: 32°F - 104°F (0°C - 40°C)
    - Storage: 14°F - 158°F (-10°C - 70°C)
  • Enclosure: ABS
  • Humidity: Maximum 95% (non-condensing)
  • Dimensions: 2.5" x 1" diameter (6.35 x 2.54 cm diameter)
  • Weight: 1.05 oz (30 g)


• Warranty:

  • Lifetime Warranty


• GTIN:

  0627699003022
