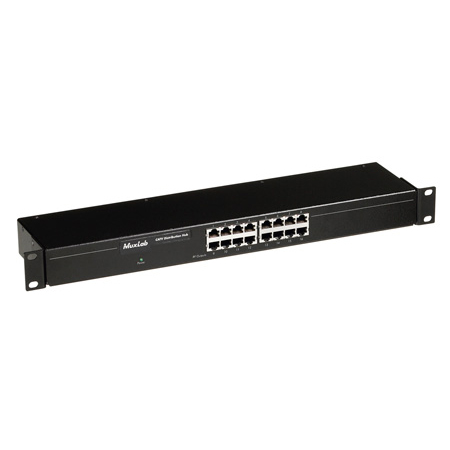

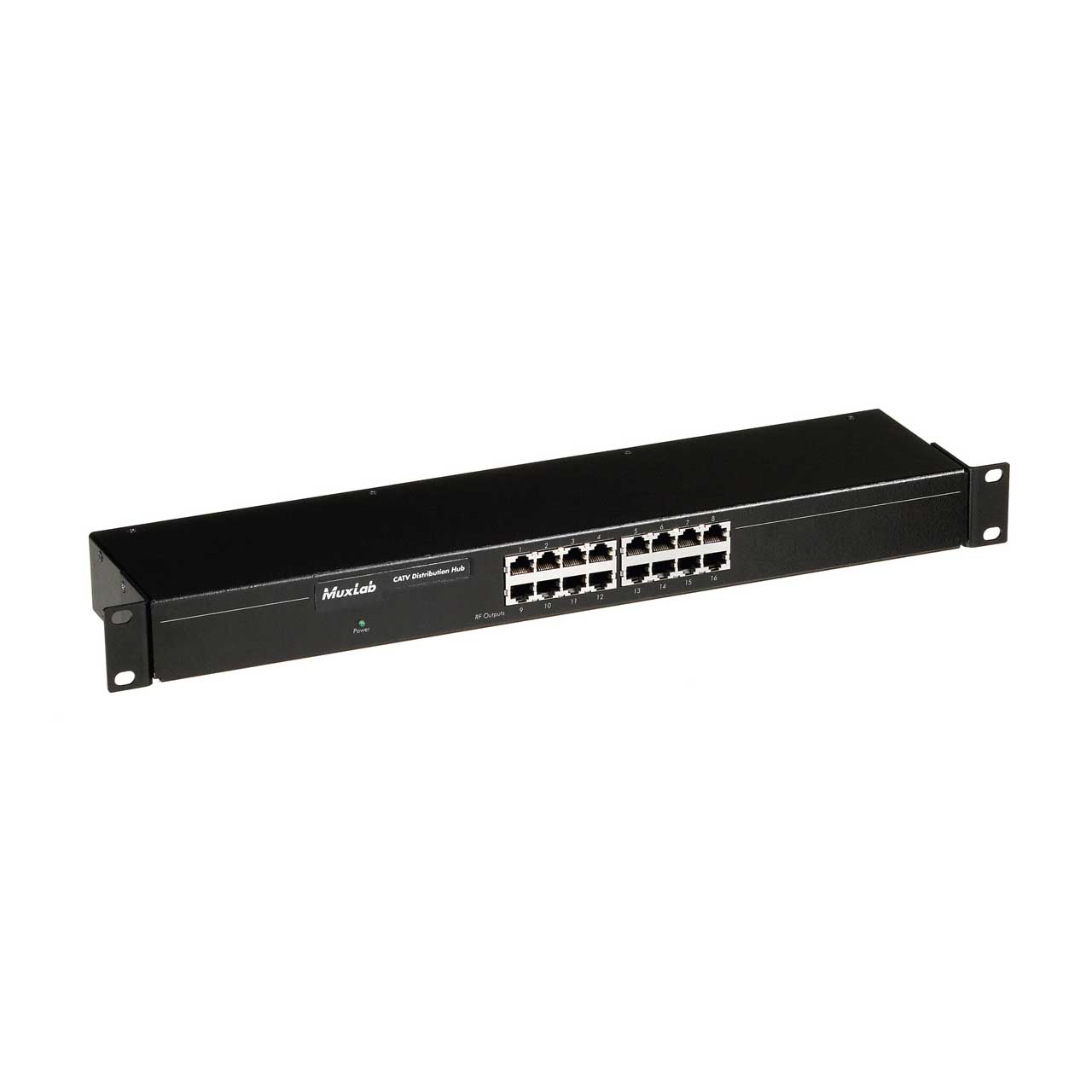

MuxLab 500303 VideoEase 16-Port 110V CATV Hub

Name: MuxLab 500303 VideoEase 16-Port 110V CATV Hub
Brand: MuxLab Inc
SKU: MUX-500303
Price: 1373.00 USD
Availability: PreSale

ITEM #: MUX-500303 MFG #: 500303

MuxLab Inc

List Price:

$1,716.00

Our Price:

$1,373.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500303 - Overview

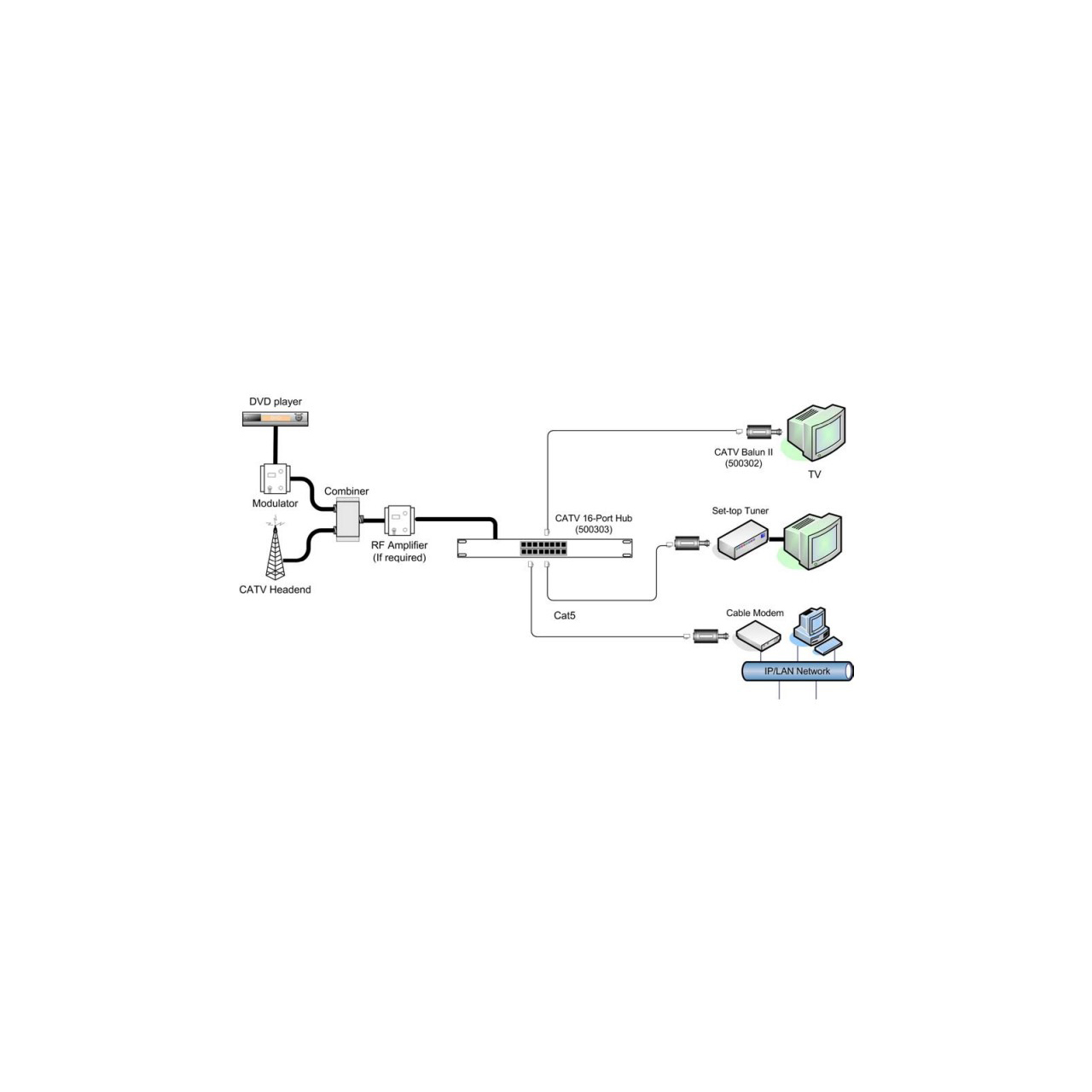

The MuxLab 500303 VideoEase CATV Hub allows a terrestrial broadband RF video signal to be distributed to multiple RF receivers via Cat5 unshielded twisted pair cable. The CATV Hub is available in two (2) configurations; Eight (8) ports: 500300/500301 and sixteen (16) ports: 500303/500304. The CATV Hub works in conjunction with MuxLab's passive CATV Balun (500302) and other RF video equipment for a more complete cabling solution. The CATV Hub has a 900 MHz bandwidth and supports broadband video, broadband Internet and Digital Cable. The product features built-in gain amplification and port buffering and may be used in conjunction with standard RF distribution equipment for larger installations. Applications include; residential, apartment, condominiums, hotels, offices, schools, hospitals, trading floors.

Features:
- 900 MHz bandwidth
- Built-in RF amplifier
- Bi-directional transmission
- Works with other standard RF video equipment
- Compact design
- Centralized cabling for greater control
- Cost savings - eliminate costly coaxial cable
- Quicker moves, adds and changes
- Neater wiring
Specifications:
- Environment: Broadband CATV, VHF, FM, broadband Internet, digital cable (Does not support satelite RF)
- Transmission: Transparent to the user
- Frequency Band Supported:
  - CATV: 54-900 MHz
  - Return Channel: 5-42MHz
- Signal Gain - Forward Path (S₂₁):
  - 55-450 MHz: > 12 dB
  - 450-900 MHz: > 10 dB
- Signal Gain - Reverse Path (S₁₂):
  - 5-42 MHz: > 0 dB
- Return Loss:
  - >5 dB from 5 to 42MHz
  - > 6 dB from 55 to 900 MHz
- Common Mode Rejection Ratio: > 30 dB from 5 to 900 MHz
- Mounting: 1U Rack-mount
- Dimensions: 19" x 3.9" x 1.75" (48.3 x 9.9 x 4.4 cm)
- Weight: 41 oz (1.2 kgs)
- Maximum Distance - Cat 5 UTP: Dependant on channel frequency, input power and receiver sensitivity
- LED Indicators:
  - Power: 1x green LED.
- Cable - UTP:
  - 24 gauge or lower solid copper twisted pair wire
  - Impedance: 100 ohms at 1 MHz
  - Maximum capacitance: 20 pf/foot
  - Attenuation: 6.6 dB/1000 ft at 1 MHz
- Cable - "F":
  - Impedance: 75 ohms at 1 MHz (RG6)
- Connectors:
  - RF Input: "F" connector
  - RF Outputs: Eight (8) or sixteen (16) RJ45S depending on model
- RJ45 Pin Configuration: RJ45 Pins 7&8
- Compatible MuxLab Baluns: 500302, 500306
- Power Requirement: 12VDC @ 400 mA
- Power Supply:
  - Desktop 110-240V switching power supply
  - Input: 100-240V, ~0.5A Max, 50-60Hz
  - Output: +12V, 1.25A
  - Output Power: 15W Max
  - Detachable AC power cord
- Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: 14°F - 158°F (-10°C - 70°C)
  - Humidity: up to 95% non-condensing
- Enclosure: Black anodized aluminium
Warranty:
- 2 Year Warranty
Applications:
- Residential
- Apartment
- Condominiums
- Hotels
- Offices
- Schools
- Hospitals
- Airports
- Trading floors
GTIN:
0627699003039
