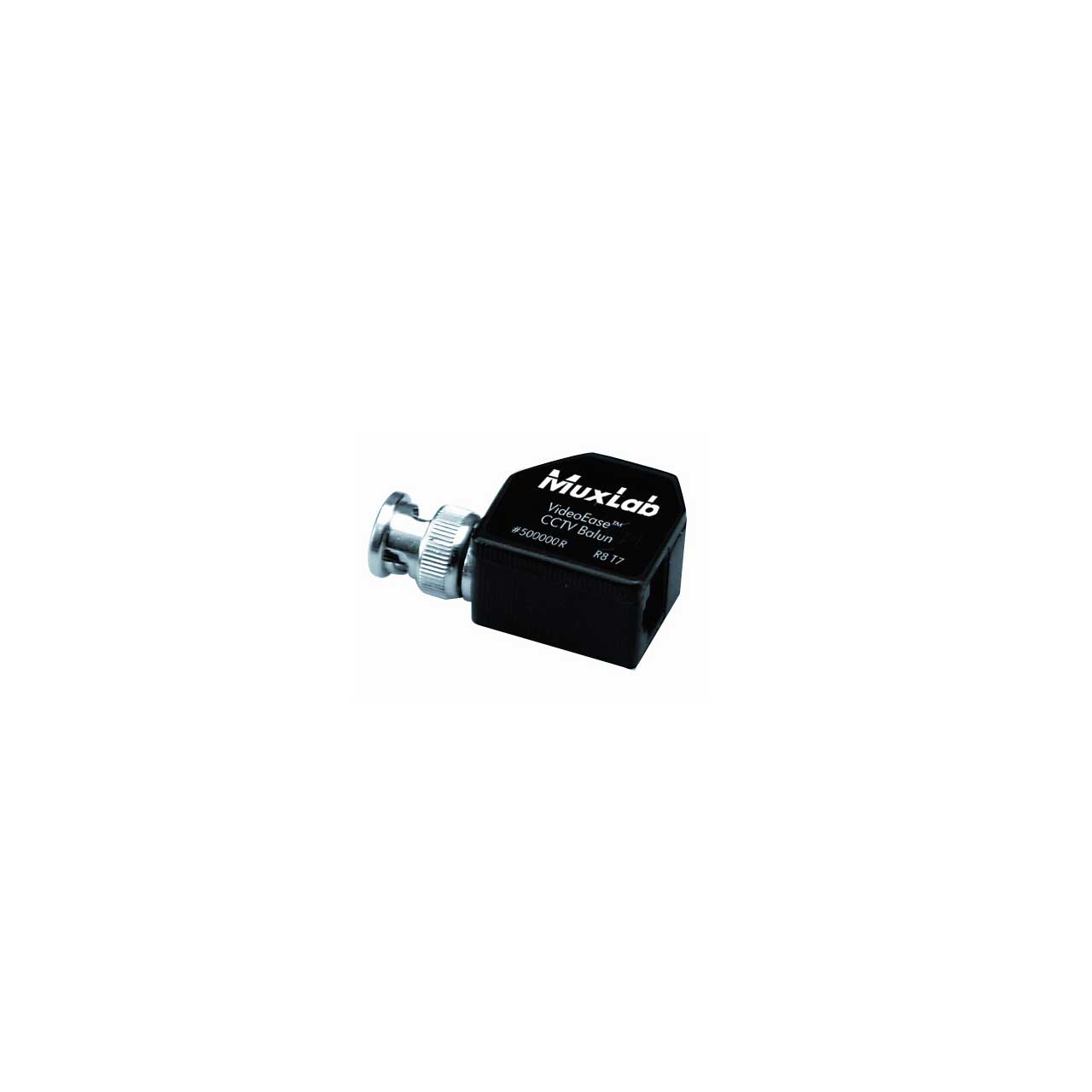

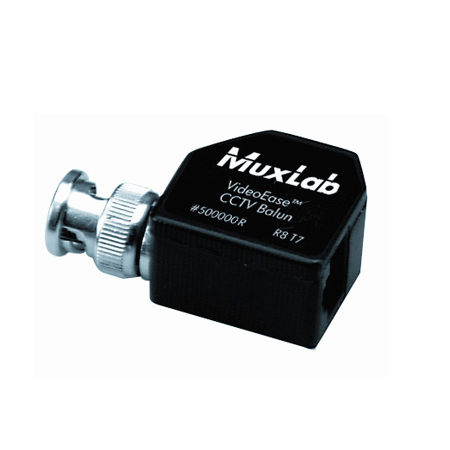

MuxLab 500000 VideoEase Single Channel BNC to RJ45 Modular Balun

500000 - Overview

• Features:

  • Up to 2500 feet (760m) in B&W via Cat 5 twisted pair
  • Up to 2200 feet (670m) in color via Cat 5 twisted pair
  • BNC coax to RJ45 modular
  • Compact design
  • Weather resistant


• Specifications:

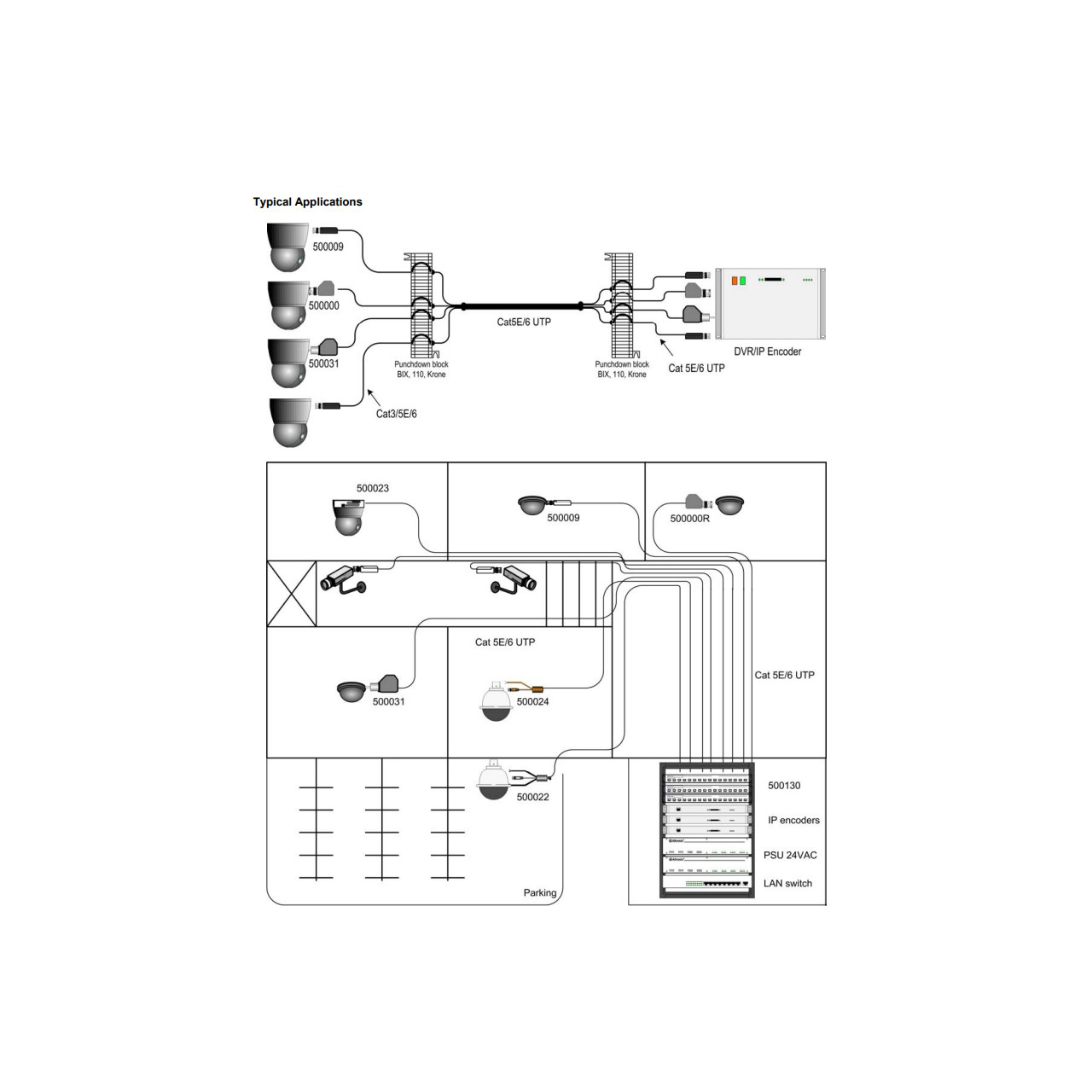

  • Environment: Close-Circuit TV (CCTV) equipment for security and surveillance
  • Devices: CCTV cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVR), IP camera servers and other CCTV equipment
  • Transmission: Transparent to the user
  • Bandwidth (Video): DC to 8 MHz
  • Maximum Input: 1.1Vp-p
  • Insertion Loss: Less than 2 dB per pair over the frequency range from DC to 8 MHz
  • Return Loss: Greater than 15 dB over the frequency range from DC to 8 MHz
  • Common Mode Rejection: Greater than 40 dB @ 8 MHz
  • Max. Distance Color:
    - Cat 3: 1200 ft
    - Cat 5 or higher: 2200 ft
    Less distance may result with DVR equipment. Typical: 1,000 to 1,500 ft via Cat5
  • Max. Distance Black & White:
    - Cat 3: 1500 ft
    - Cat 5/6: 2500 ft
  • Cable - UTP:
    - 24 gauge or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1 MHz
    - Maximum Capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable - BNC: Impedance: 75 ohms at 1 MHz (RG59/U)
  • Connectors (Reverse polarity sensitive):
    - 500000, 500031: RJ45 Pins R7 T8
    - 500000R: RJ45 Pins R8 T7 (pin compatible with 500022, 500024, 500130, 500131, 500133)
    - 500009: Two (2) screw terminals
  • Impedance:
    - Input: 75 ohms (BNC)
    - Output: 100 ohms (RJ45)
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS fire retardant plastic
  • Dimensions:
    - 500000, 500031: 1.75" x .75" x 1.00" (4.44cm x 1.9cm x 2.54cm)
    - 500009: 2.30" x 0.62" x 0.62" (5.8cm x 1.57cm x 1.57cm)
  • Weight: 1.5oz (42.5g)


• Warranty:

  • Lifetime Warranty


• GTIN:

  0627699000007
