MuxLab 500306-2PK Shielded CATV Balun 2-Pack

Name: MuxLab 500306-2PK Shielded CATV Balun 2-Pack
Brand: MuxLab Inc
SKU: MUX-500306-2PK
Price: 94.00 USD
Availability: InStock

ITEM #: MUX-500306-2PK MFG #: 500306-2PK

MuxLab Inc

List Price:

$118.00

Our Price:

$94.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

500306-2PK - Overview

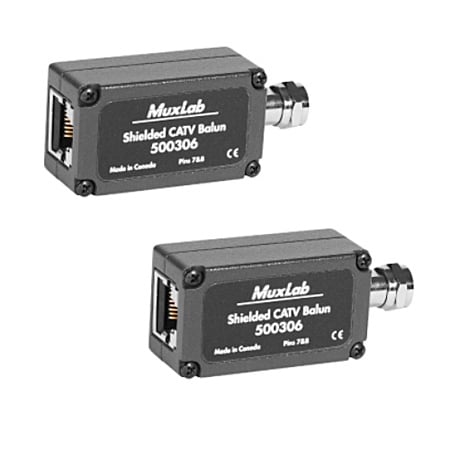

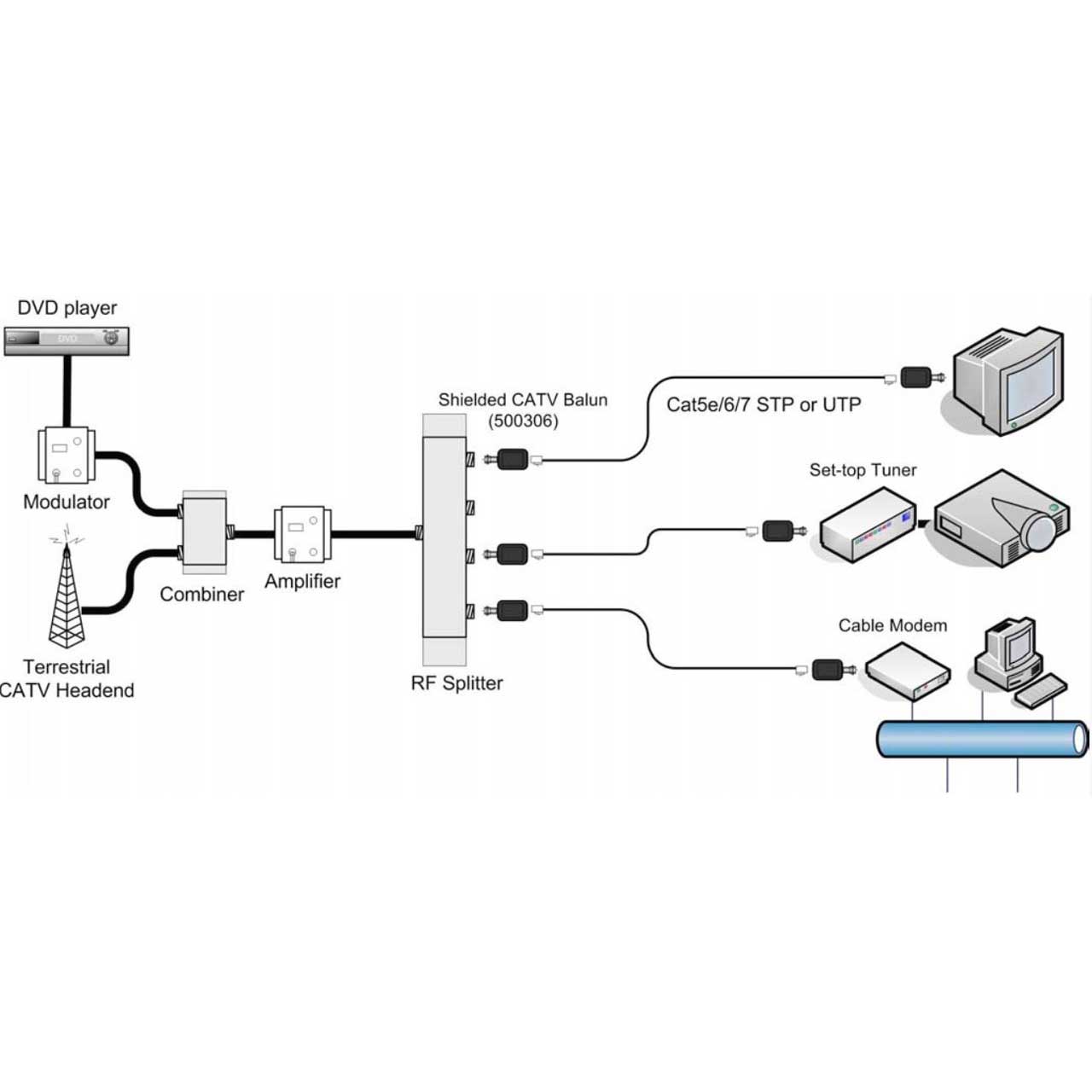

The MuxLab 500306 Shielded CATV Balun allows RG6 coaxial cable to be replaced by Cat 5e/6/7 STP or UTP cable in the terrestrial RF environment. Used in pairs, the Shielded CATV Balun allows broadband CATV equipment to be integrated into a structured cabling system thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. When used with Cat 5e/6/7 shielded twisted pair cable, the connection supports greater RF ampliflication and therefore greater distance with less EMI/RFI egress versus other UTP CATV baluns. The Shielded CATV Balun also works in conjunction with MuxLab's CATV Hub (500300/303) for a total cabling solution.

Features:
- Bandwidth up to 900 MHz including Internet, digital cable
- Supports Cat5e/6/7 STP and UTP
- Fits side-by-side on most RF splitters
- Lower EMI /RFI egress when STP is used
- Cast aluminum enclosure for maximum EMI/RFI shielding
- Low insertion loss
Specifications:
- Environment: Private and public broadband CATV, VHF and FM networks
- Transmission: Transparent to the user
- 3dB Bandwidth: 5 MHz to 900 MHz
- Video Channels Supported: CATV 2-142, VHF channels 2-13, FM broadcast band
- Insertion Loss Per Pair:
  - <3 dB: 5 - 295 MHz, 510 - 725 MHz
  - <4.2 dB: 295 - 510 MHz, 725 - 900 MHz
- Return Loss:
  - >10 dB: 5 - 245 MHz, 493 - 900 MHz
  - >9.6 dB: 245 - 493 MHz
- Common Mode Rejection (CMMR): -20dB or higher at 5 MHz to 900 MHz
- Cable - UTP:
  - 24-AWG or lower solid copper twisted pair
  - Impedance: 100-120-ohms
- Cable - Coax:
  - Impedance: 75-ohms at 1MHz (RG6)
- Connector - Input: "F" connector - male
- Connector - Output: RJ45S - female
- RJ45 Pin Configuration: RJ45 Pins 7&8
- Maximum Distance: Up to 100m (330ft) via Cat 5 UTP depending on channel frequency and input power. Maximum 100m at CATV Channel 2. May require tilt amplifiers at higher frequencies.
- Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: 14°F - 158°F (-10°C - 70°C)
- Enclosure: Aluminum cast
- Humidity: Maximum 95% (non-condensing)
- Dimensions: 0.8" x 1.85" x 1.05" (2cm x 2.6cm x 4.7cm) L x H x W + extended F conn
- Weight: 1.5oz (44g)
Item Includes:

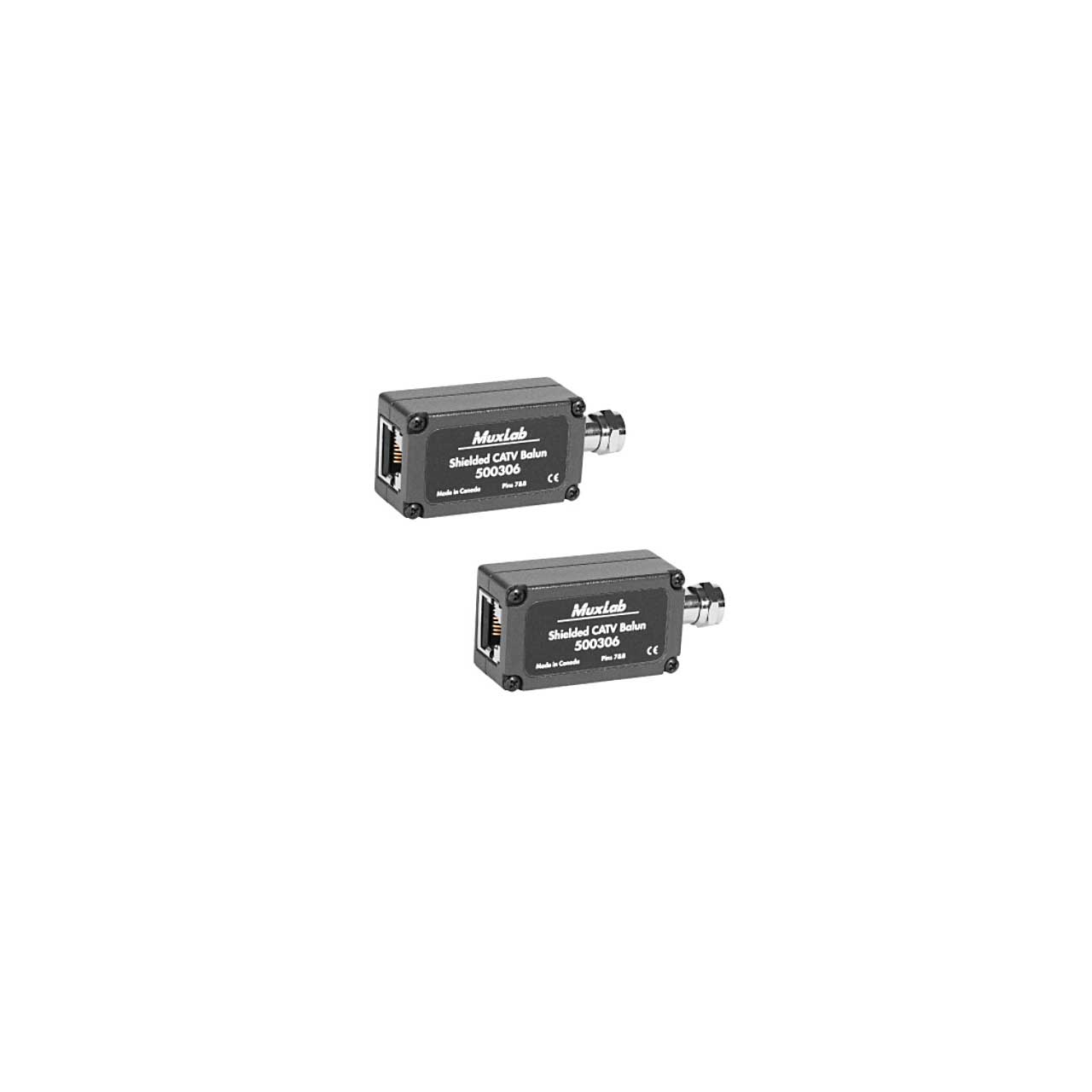

- 2x 500306 Shielded CATV Balun
Warranty:
- Lifetime Warranty
Applications:
- Schools
- Government
- Offices
- Hospitals
- Financial institutions
- Hotels and residential complexes
GTIN:
0627699903063
