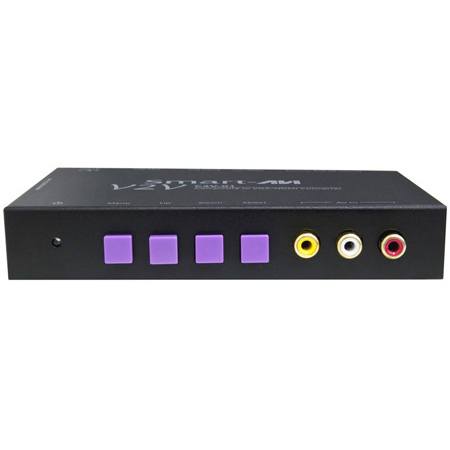

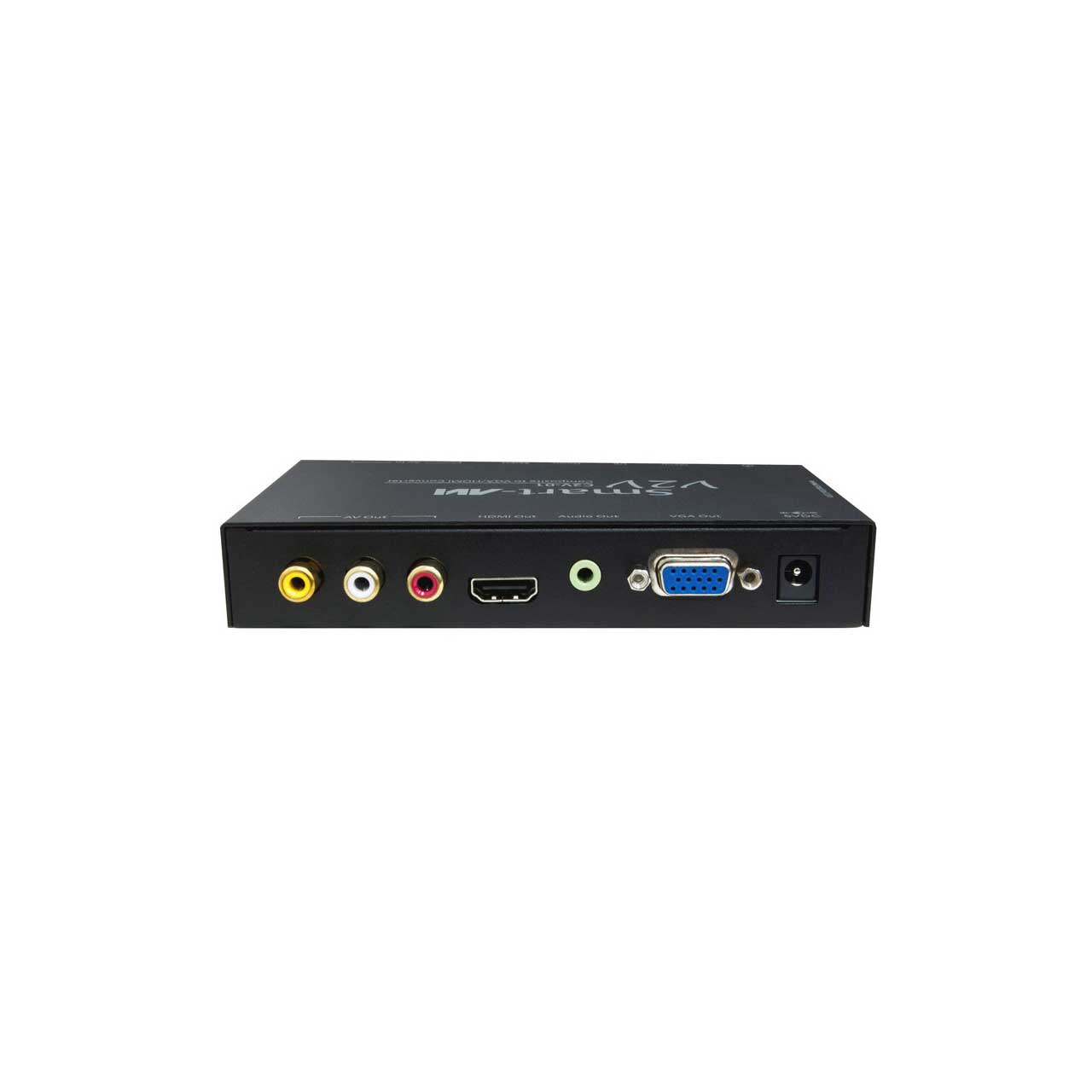

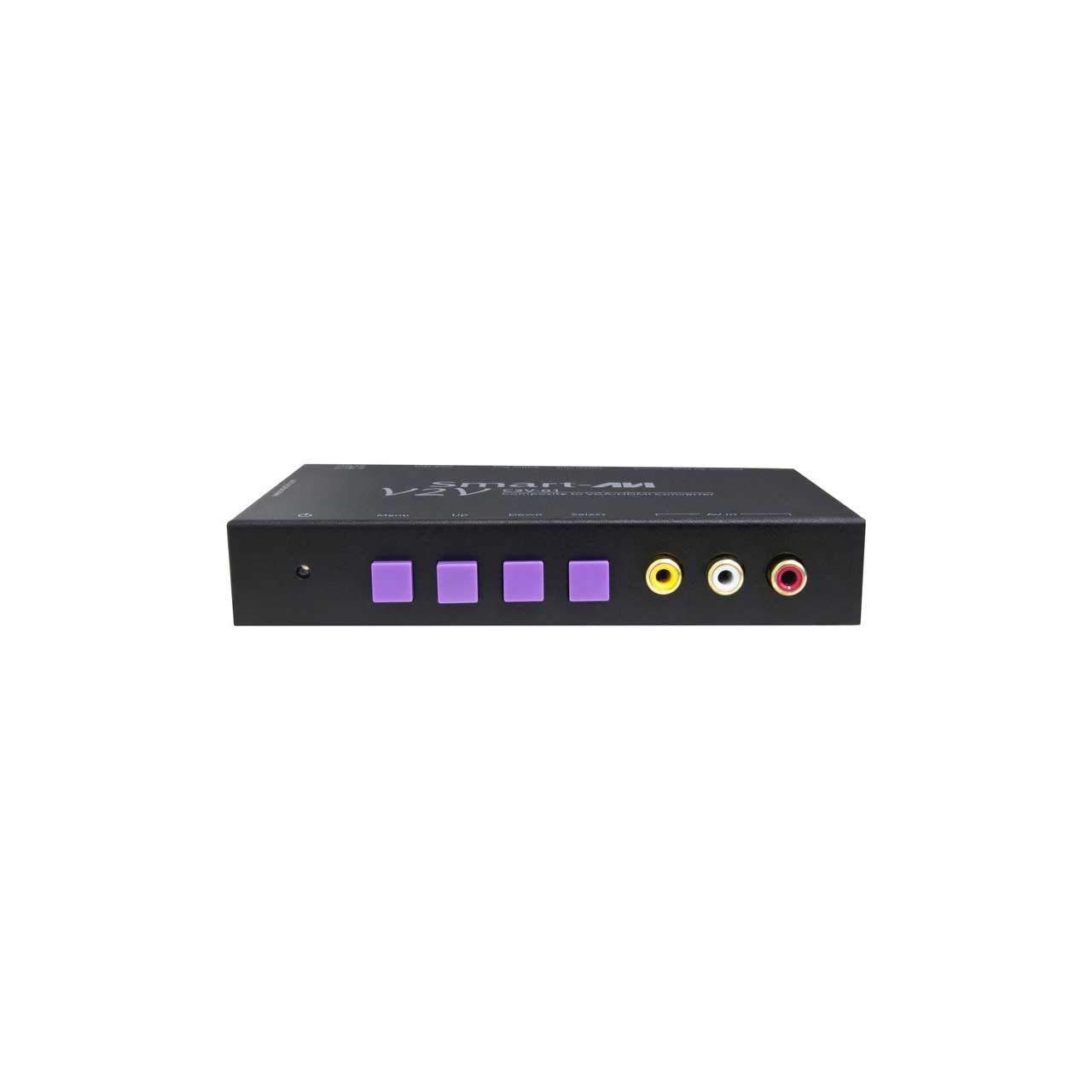

Smart AVI V2V-C2V-01 - Converts Composite Video to VGA with HDMI Output

V2V-C2V-01 - Overview

• Features:

  • Specially designed for computer VGA/ HDMI monitors and LCD color monitors
  • Composite Video Input via RCA
  • Video(CVBS), VGA ,HDMI Output
  • Supports NTSC, PAL video system
  • Input video system 50 to 60Hz frame rate detection (NTSC/PAL)
  • Supports VGA, HDMI resolutions: 800x600, 1024x768, 1280x720, 1920x1080@60Hz
  • Supports HDMI resolutions: 720P, 1080I, 1080P
  • Built in stereo audio input and output
  • Any adjustment will be auto memory
  • Frequency output: 60Hz, 75Hz, 85Hz
  • On screen display function: Resolution, Brightness, Contrast, Saturation, Hue


• Specifications:

  • COMPOSITE VIDEO
  • Input Format NTSC/PAL/SECAM
  • Output Formats NTSC/PAL/SECAM
  • Resolution 800 x 600, 1024 x 768, up to 1280 x 1024@60Hz
  • Input Interface (3) RCA Female
  • Output Interface (3) RCA Female
  • VGA VIDEO
  • Format RGBHV, RGsB, YUV, Y/C, CVBS
  • Resolution Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA
  • Output Interface (RX) (1) HD-15 Female
  • HDMI VIDEO
  • Format HDMI 1.3b [Deep Color, xvYcc color space supported]
  • DVI Compliance Single-link DVI-D 1.1
  • HDCP Compliance 1.0/1.1
  • Video Bandwidth Single-link 340MHz [10.2Gbps]
  • Resolution 480i,480p,720i,720p,1080i,1080p
  • Output Interface (1) HDMI[7.1ch audio & video]
  • Connector Type A[19-pin female]
  • Maximum Distance 25 ft.
  • AUDIO
  • Signal Type Stereo Unbalanced
  • Ouput Interface 3.5 mm Jack Socket (Female)
  • OTHER
  • Power External 100-240 VAC/5VDC2A @10W
  • Dimensions 5.75 in W x 1.25 in H x 3.25 in D
  • Weight 1 lb
  • Operating Temp. 0-55 °C (32-131°F)
  • Storage Temp. -20-85 °C (-4-185 °F)
  • Humidity Up to 95%
