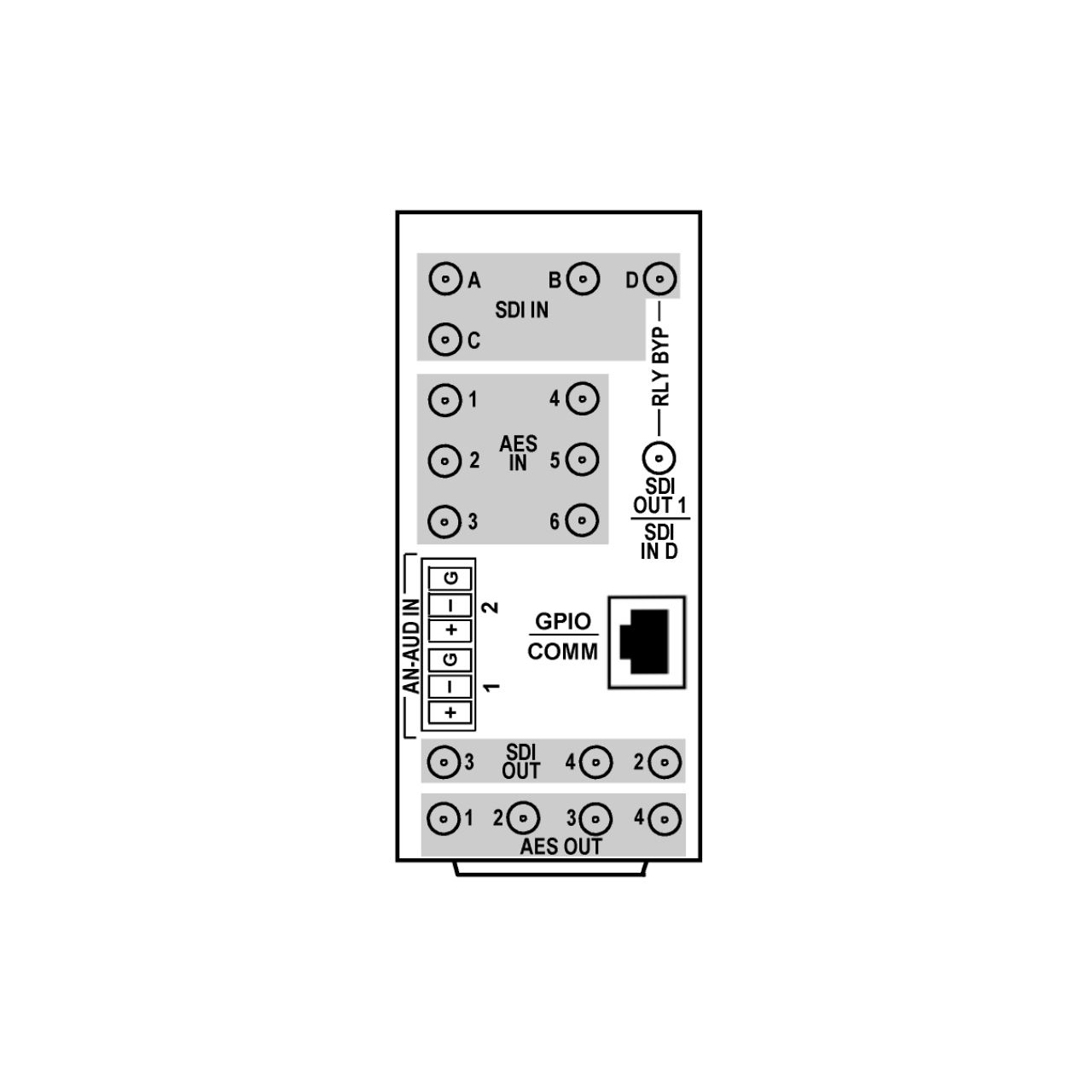

The Cobalt Digital RM20-9902-UDX-DSP-CI-K-HDBNC is a Rear Module option for the 9902-UDX-DSP-CI Channel Integrator (sold separately) provides a powerful, high-density 3G/HD/SD-SDI/CVBS Up/Down/Cross Converter-Frame Sync and Embedder/De-Embedder platform.
The RM20-9902-UDX-DSP-CI-K-HDBNC features
(4) SDI Ins (selectable manually or as failover
(1) Relay protected SDI Out (proc or SDI IN D on loss of power)
(6) AES In
(2) Balanced Analog Audio In
(4) SDI Out (each selectable as processed out or input RCK)
(4) AES Out
GPIO/COMM port (RJ-45)
All coaxial connectors are HD-BNC
