Fostex RM-3 1RU Rack-Mount Stereo Monitor System with AES/EBU Input

ITEM #: FOS-RM3 MFG #: FOS-RM3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$799.99

Our Price:

$599.99

Availability: In Stock
iAvailability Description Popup


FOS-RM3 - Overview

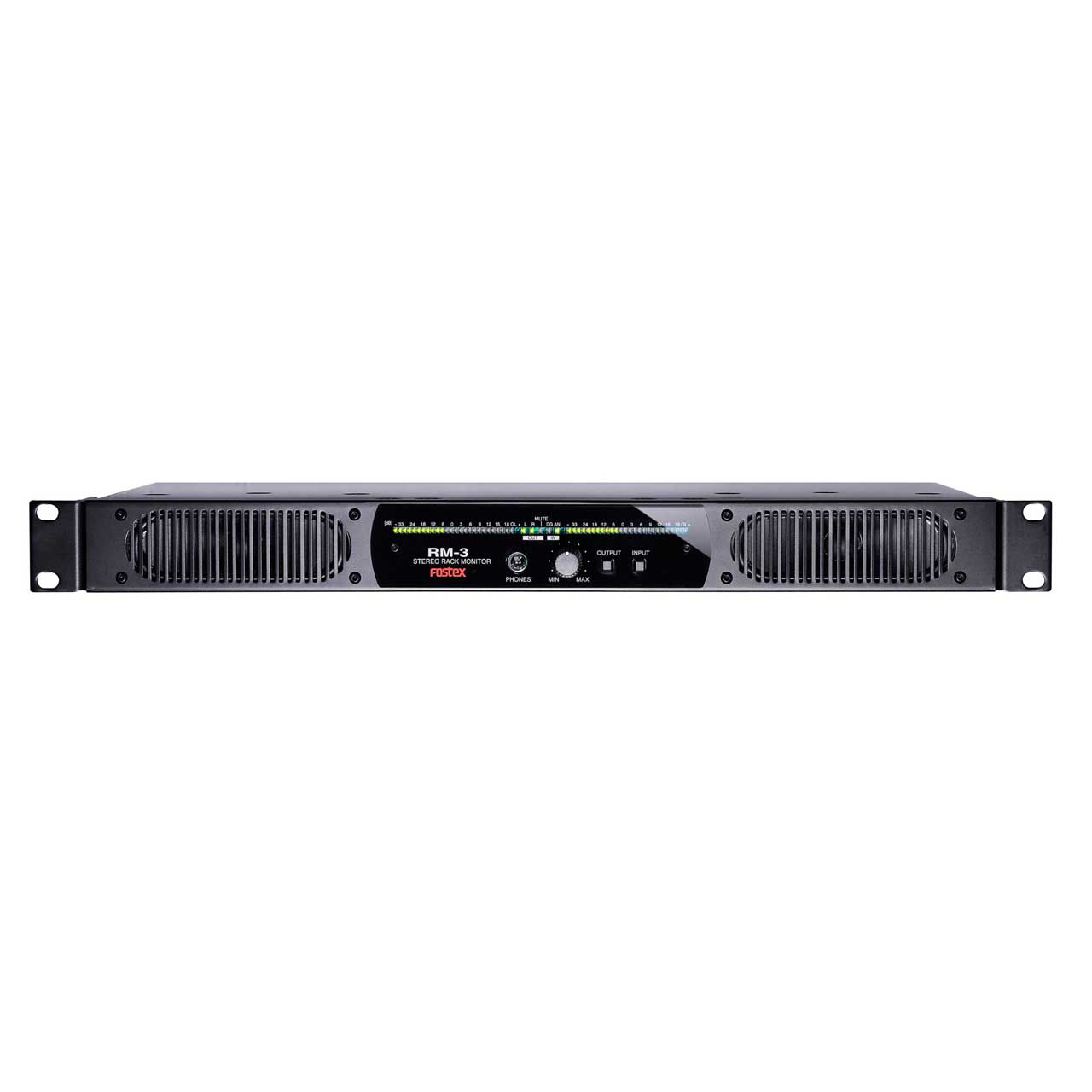

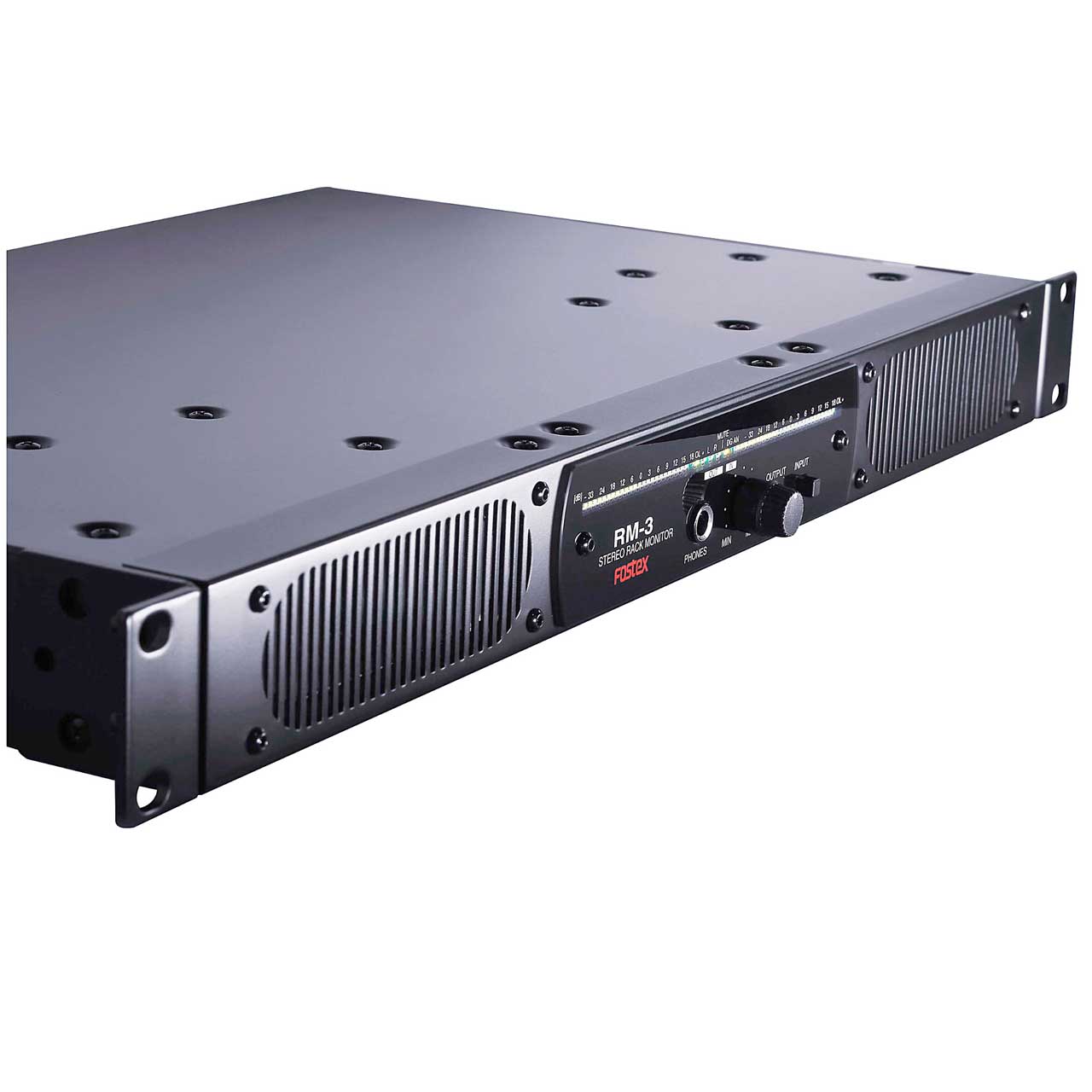

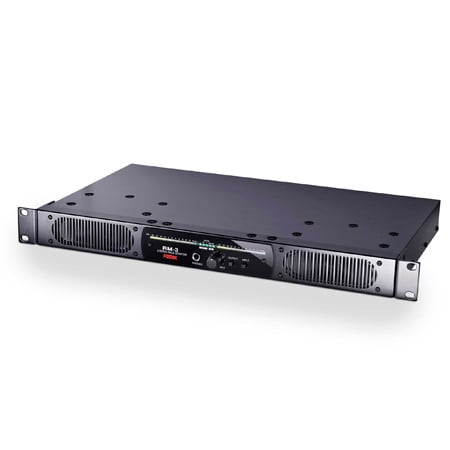

RM-3 Rack Mount Speaker System

The Fostex RM-3 is a rackmount stereo audio powered monitor speaker system with both analog and AES/EBU digital audio inputs. The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, control rooms, theme park applications where audio monitoring is needed in a compact environment.

Its list of features include THRU OUT (looping output), XLR/TS 1/4" phone combination inputs, brightness adjustment of bargraph LED, and auto memory of Input / Output status via rear panel DIP switch. It also has front panel volume control, headphone jack and mute.

  • Features:

    • Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units
    • Accepts both Analog input (XLR & 1/4"TS phone) and Digital Input (AES/EBU)
    • Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference
    • Mute switch works as total mute or -20dB attenuation
    • Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
    • Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peakhold, Peak+Peakhold and VU only
    • Reference level (0dB) is selectable between +4dBu and 0dBu
    • Audio characteristics can be selected between the conventional VOICE mode and new MU-SIC mode for wider frequency range music source

  • Specifications:

    • Speaker Section
    • Units: 110 x 40mm antimagnetic cone speakers
    • Frequency Response: 200Hz - 20kHz

      Amplifier Section
    • Rated Output Power: 10W x 2
    • Digital Input: XLR-3-31 connector (AES/EBU)
    • Sampling Frequency: 44.1kHz to 96kHz
    • Analog Inputs: XLR-3-31 connector (balanced)
    • Rated Input Level: +4/0dBu
    • Input Impedance: 10kΩ or more, 1/4" Phone jack (unbalanced)
    • Rated Input Level: -10/-14dBV
    • Input Impedance:10kΩ or more
    • Digital THRU: XLR-3-31 connector (AES/EBU)
    • Analog THRU: XLR-3-31 / 1/4" TS phone
    • Phones: 1/4" stereo phones
    • Adapted Load Impedance: 16Ω or more
    • Maximum Output: 20mW + 20mW (32Ω, 1kHz)
    • Level Meter: 26-dot LED x2
    • Reference Level: Digital -20dBFS
    • Analog XLR +4/9dBu; TS phone -10/-14dBV
    • Distortion (T.H.D.): 0.1% or less

      General
    • Power Requirement: AC 100V - 240V 50/60Hz
    • Power Consumption: 10W (0.5W or less in standby mode)
    • Dimensions: 19" x 1.7" x 11.2" (including protruding parts)
    • Weight: approx. 7.7lbs

  • GTIN:

    0636827304832
