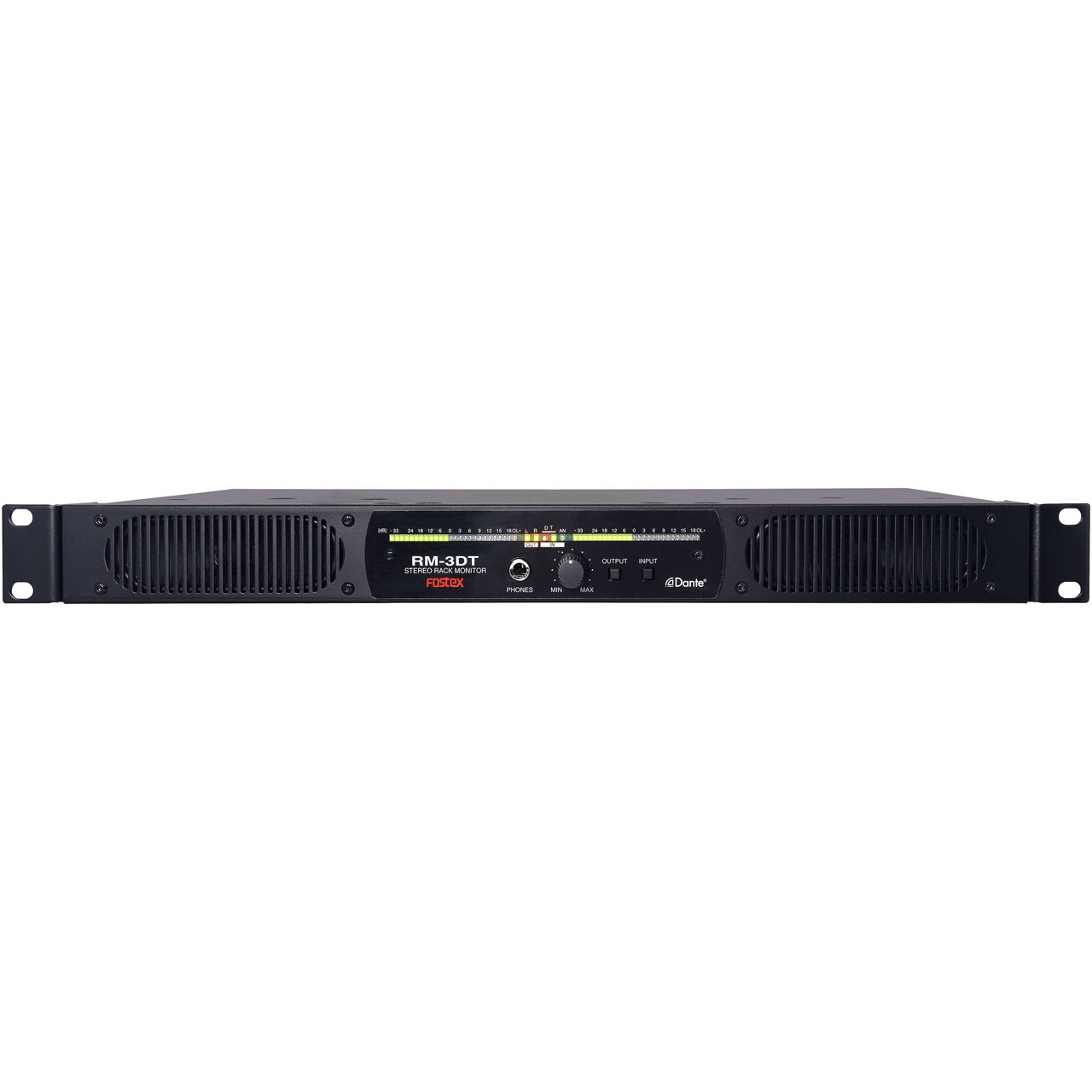

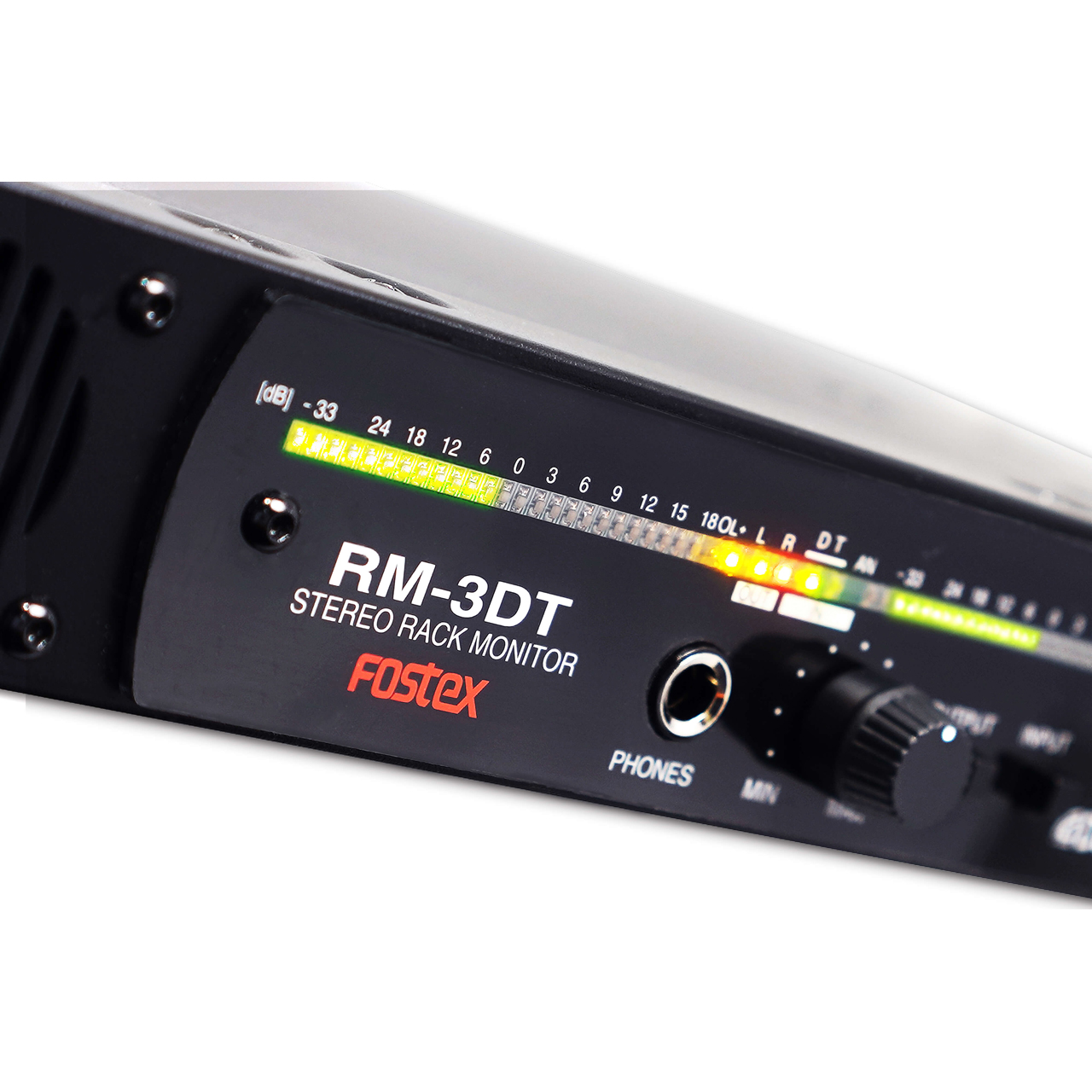

Fostex RM-3DT Stereo Active Monitor Speaker with Dante 1RU

AMS-RM-3DT - Overview

• Features:

  • Accepts Balanced Analog Input and Dante® Input.
  • Power saving design by the digital amplifier and switching power supply.
  • 26-dot LED meter indicates VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD.
  • The display brightness can be adjusted in four levels.
  • Outputs either or both of any 2-channel digital signals extracted from Dante® network signals.
  • Supported sampling frequencies: 44.1/48/88.2/96 kHz.
  • Physical dimensions are identical to the conventional RM-3 for easy replacement.


• Specifications:

  • Speaker Section
  • Unit: 110 x 40mm rectangle cone type
  • Impedance: 8 ohm
  • Sound Pressure Level: 84dB / W (1m)
  • Frequency response: 200 Hz - 20k Hz

    Amplifier Section
  • Rated output: 10W x 2
  • Residual Noise: -50dBV or less (DIN AUDIO)
  • Distortion (T.H.D.): less than 0.1%

    Inputs
  • Connector: Dante Input (RJ45), XLR-3-31 (balanced)
  • Analog Input Level: +4/0 dBu (balanced)
  • Analog Input Impedance: 10k ohm or more
  • THROUGH OUT
  • Connector: XLR-3-32 (balanced)

    Phones
  • Connector: 1/4" Stereo Phone
  • Input Impedance: 16 ohm or higher
  • Maximum Output Level: 20mW + 20mW (32 ohm, 1kHz)

    Level Meter
  • Display: 26 dot LED x 2
  • Reference Level: XLR: +4/0 dBu (analog)

    General
  • Dimensions: 482 (W) x 44 (H) x 284 (D) mm (incl. protruded parts)
  • Weight: approx. 3.5kg
  • Power Requirement: AC 100 - 240V (50/60Hz)
  • Power Consumption: 10W


• GTIN:

  0636827308977
