Audinate ADP-DAI-AU-1X0 Dante AVIO Analog Input Adapter with RJ45 and XLR female. Single Channel Version

ITEM #: ADN-ADPDAI-AU1X0 MFG #: ADP-DAI-AU-1X0

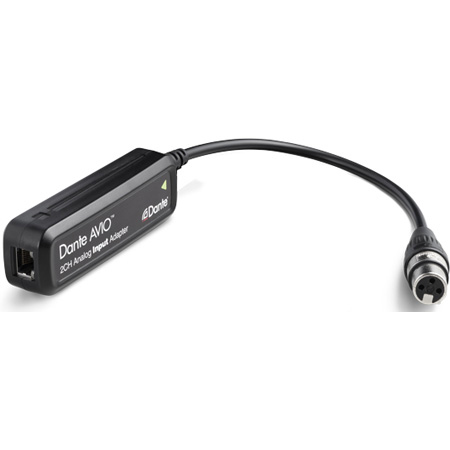

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$209.00

Our Price:

$159.00

Availability: In Stock
iAvailability Description Popup


ADP-DAI-AU-1X0 - Overview

The Audinate ADP-DAI-AU-1X0 with RJ45 in and XLR female out. 1 channel version. Dante AVIO Analog Input lets you use analog audio line-level source gear you already own to feed any Dante-connected system. Don't abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. This is the 1-channel version. Dante AVIO Analog Adapters allow you to use the audio gear you already own with your Dante network. Don't abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO. Dante AVIO Analog Adapters are available as balanced line-level single or dual-channel input or output adapters, with high-quality XLR connectors. Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.

  • Features:

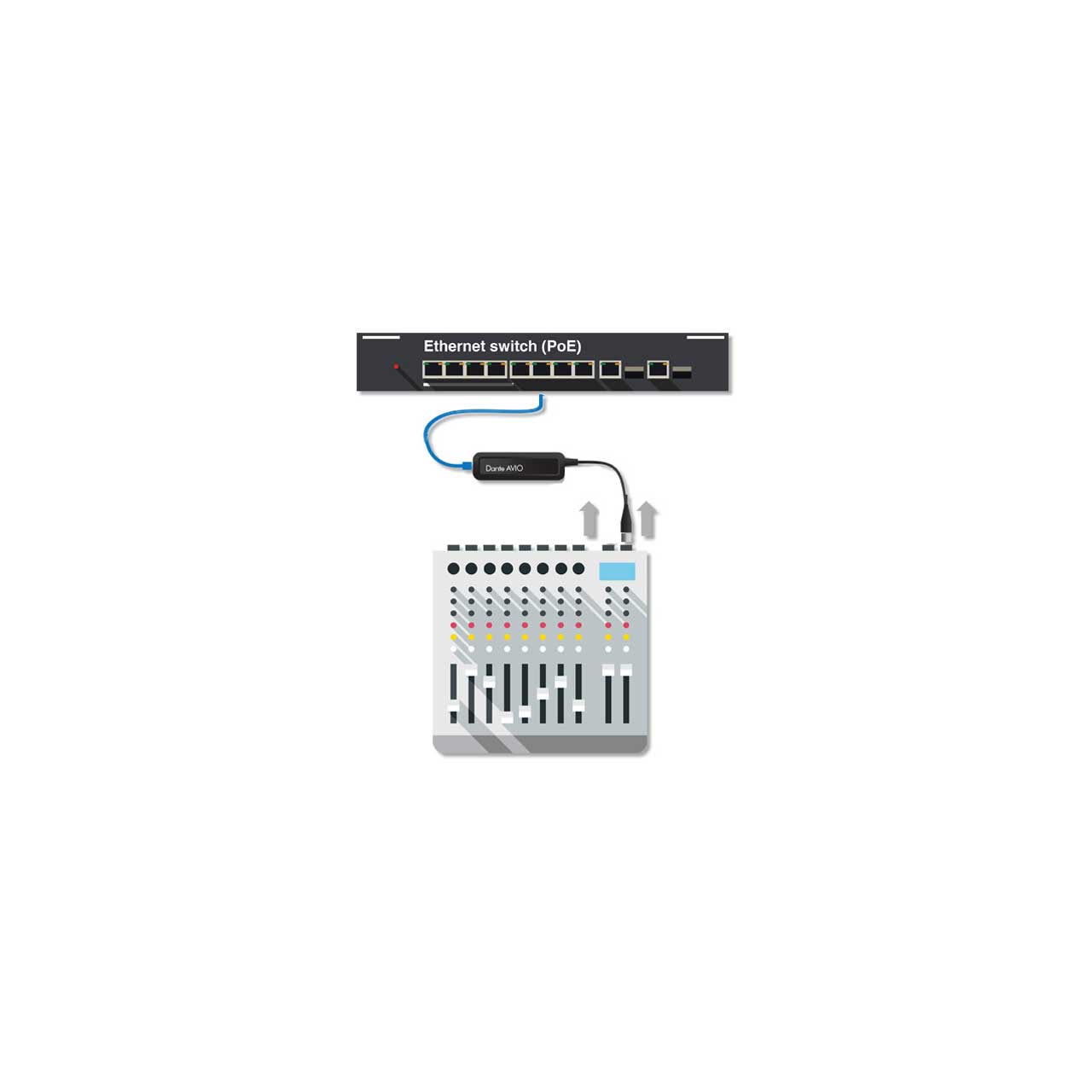

    • Connect legacy mixers and consoles to a Dante network
    • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
    • Connect stage DI boxes and keyboard instruments directly to a Dante network
    • Plug & play operation
    • Built for the road
    • Sample rates up to 96 kHz (48 kHz for USB)
    • Excellent dynamic range, SNR and THD performance
    • Configurable gain / attenuation (analog input and output models only)
    • Dante Audio over IP and AES67 RTP transport formats
    • Power over Ethernet (PoE) support
    • Dante Domain Manager ready

  • Specifications:

    • Channels: 1
    • Max Signal Level(balanced): +24dBu / +4dBu / 0dBu; 0dBV /-10dBV
    • Frequency Response: 20Hz to 20kHz (±0.5dB)
    • Impedance: 20k Ohm balanced 10k Ohm unbalanced
    • Dynamic Range: > 100dB
    • Signal to Noise Ratio: > 100dB
    • Total Harmonic Distortion: < 0.01% at +4dBu
    • Connectors: RJ45 & 1 XLR-F
    • Power: Class 1 802.3af PoE
    • Sample Rates: 44.1, 48, 96 kHz
    • Bit Depth: 24
    • Network Transport: Dante Audio over IP AES67 RTP
