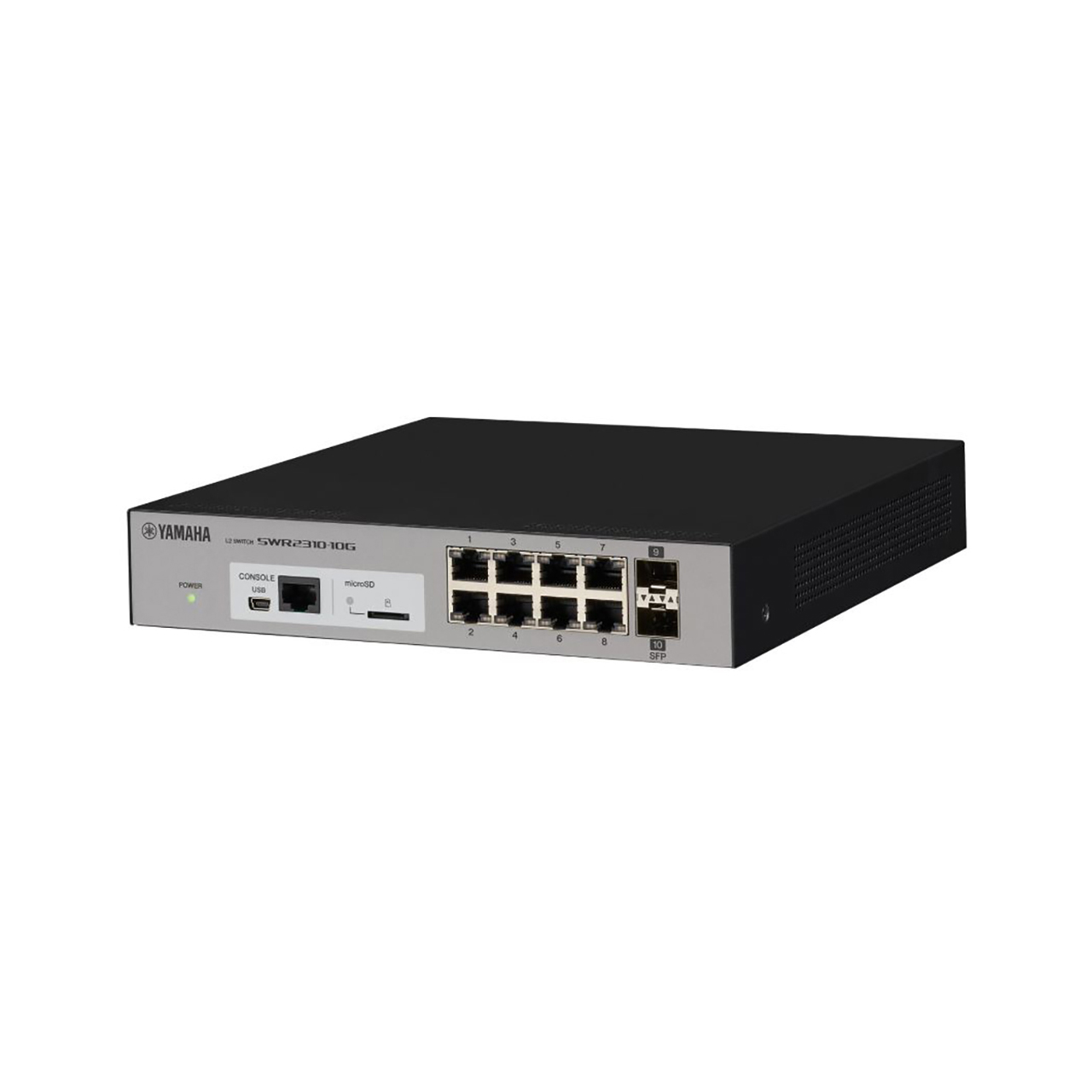

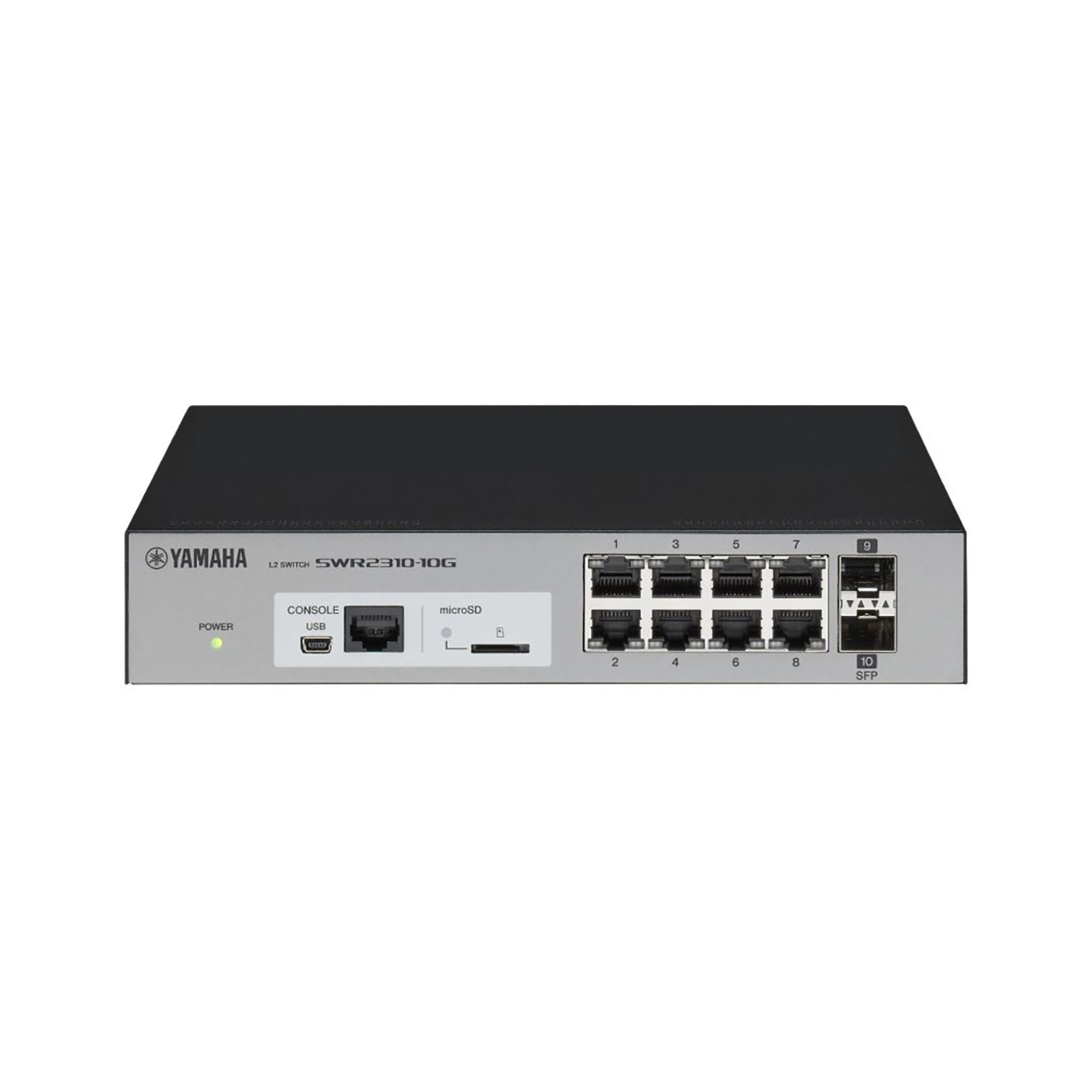

Yamaha SWR2310-10G 8 LAN Port L2 10G Intelligent Dante Network Switch with 2x SFP Ports and Built-in RADIUS

SWR2310-10G - Overview

• Features:

  • Available ports: 8 LAN ports and 2 SFP slots
  • In-build RADIUS server for advanced security management
  • Yamaha LAN Monitor supported
  • 10Gbps supported Multi-port models for solid backbone performance
  • One-click Dante optimization
  • Intelligent security management
  • Network Visibility and Smart Management (Yamaha LAN Monitor)


• Specifications:

  LAN Ports
  • Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
  • Number of Ports: 8
  • Communication Mode: Auto negotiation
  • Connector Type: RJ-45
  • Polarity: Automatic detection of straight/cross, or fixed at straight

    SFP Ports
  • Standard: IEEE 802.3z (1000BASE-SX/ 1000BASE-LX)
  • Number of Ports: 2

    Console Ports
  • Standard: RS-232C, USB 2.0
  • Connector Type: RJ-45, USB mini-B (5-pin)
  • Data Transmission Speed: 9600 bit/s

    microSD Slot
  • Standard: microSD/microSDHC (microSDXC is not supported)
  • File System: FAT/FAT32


  • Indicators:
    - POWER
    - microSD
    - LAN port (LINK/ACT, SPEED)
    - SFP port (LINK/ACT, SPEED)
  • MAC Address: Indicated in product label on top panel of unit
  • Operating Environment:
    - Ambient Temperature: 32°F - 122°F (0°C - 50°C)
    - Ambient Humidity 15% - 80% (non-condensing)
  • Storage Environment:
    - Ambient Temperature: -4°F - 140°F (-20°C - 60°C)
    - Ambient Humidity: 10% - 90% (non-condensing)
  • Power Supply Voltage, Frequency: AC 100V - 240V, 50/60Hz
  • Maximum Power Consumption: 11.7 W
  • Dimensions (HxWxD): 1.59" x 8.66" x 9.84" (40.5mm x 220mm x 250mm)
  • Weight: 3.75lbs (1.7kg)


• Item Includes:

  • 1x SWR2310-10G Dante Network Switch
  • 1x Owner's manual
  • 1x Power cord (3-prong)
  • 1x Power cord clamp
  • 4x Legs
