Yamaha VXL1B-16P Dante PoE Line Source Loudspeaker - 16 Drivers - Black

ITEM #: YMH-VXL1B-16P MFG #: VXL1B-16P

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,501.00

Our Price:

$1,277.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VXL1B-16P - Overview

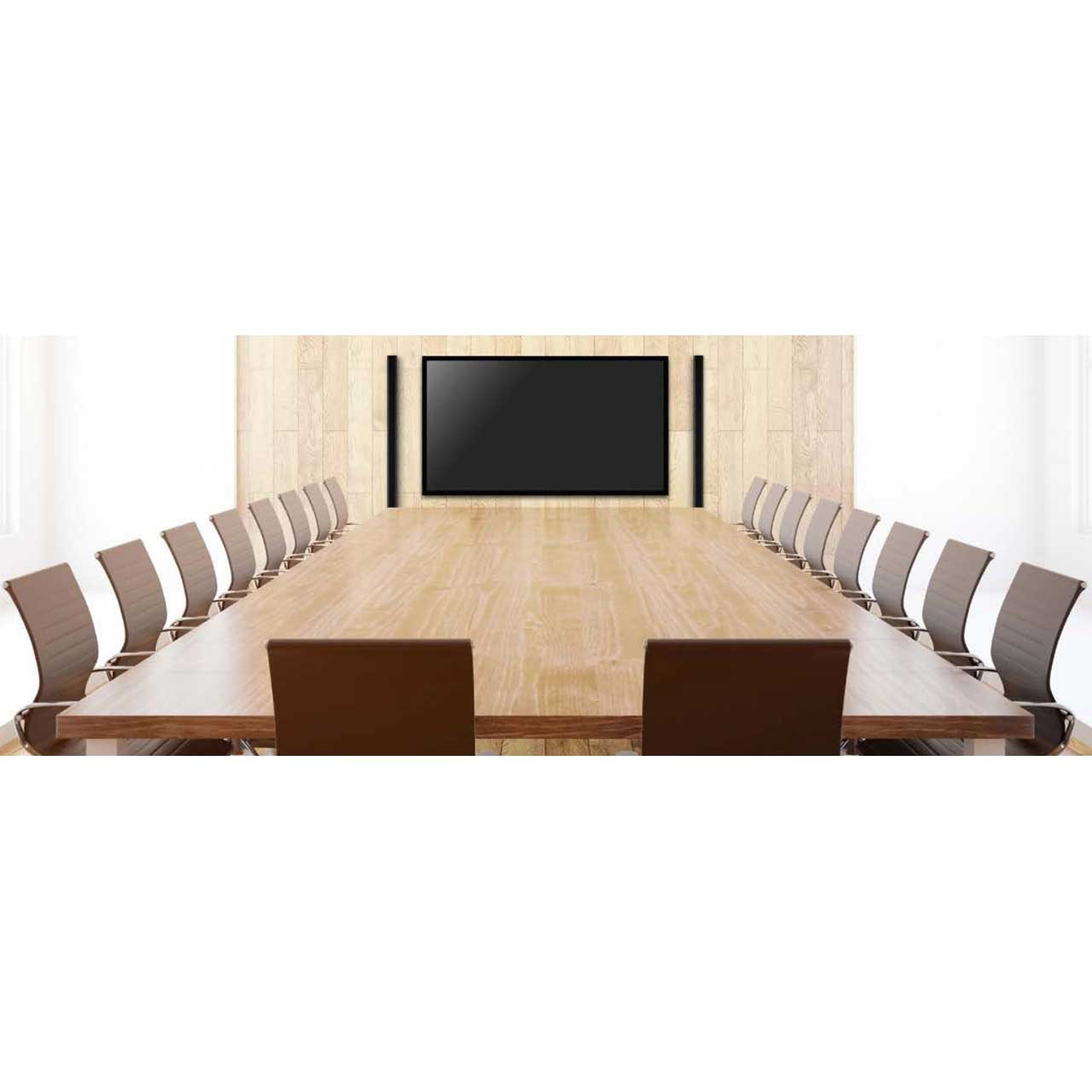

The VXL1B-16P and VXL1W-16P support the "Dante" audio network, and use a slim line-array configuration, making them an easy fit perfectly for conference rooms (in the size range of 12m × 10m) that demand vocal clarity while imposing numerous constraints on space, and require both functionality and a sense of design. With audio distributed via a Dante network and PoE power* supplied from a PoE compliant L2 switch, the speaker system can be constructed as a network, allowing existing IT infrastructure to be effectively utilized. Simple wiring via LAN cables, easy installation, and no need for a power amp contribute to the flexibility of installation, allowing you to construct an elegant sound system that will not interfere with the design of the conference room.

  • Features:

    • 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
    • Slim design complements any interior décor
    • Available in black or white
    • Enclosures can be painted to match surroundings
    • Wall mount bracket supplied
    • Optional hardware for a wide range of installation needs

  • Specifications:

    • Speaker type: Full-range, powered speaker, bass reflex
    • Frequency range (-10dB): 80Hz - 20kHz
    • Nominal coverage (H/V): 170° / 25° (+12.5° - -12.5°)
    • Effective coverage (-10dB) (H/V): 180° / 30° (+15° - -15°)

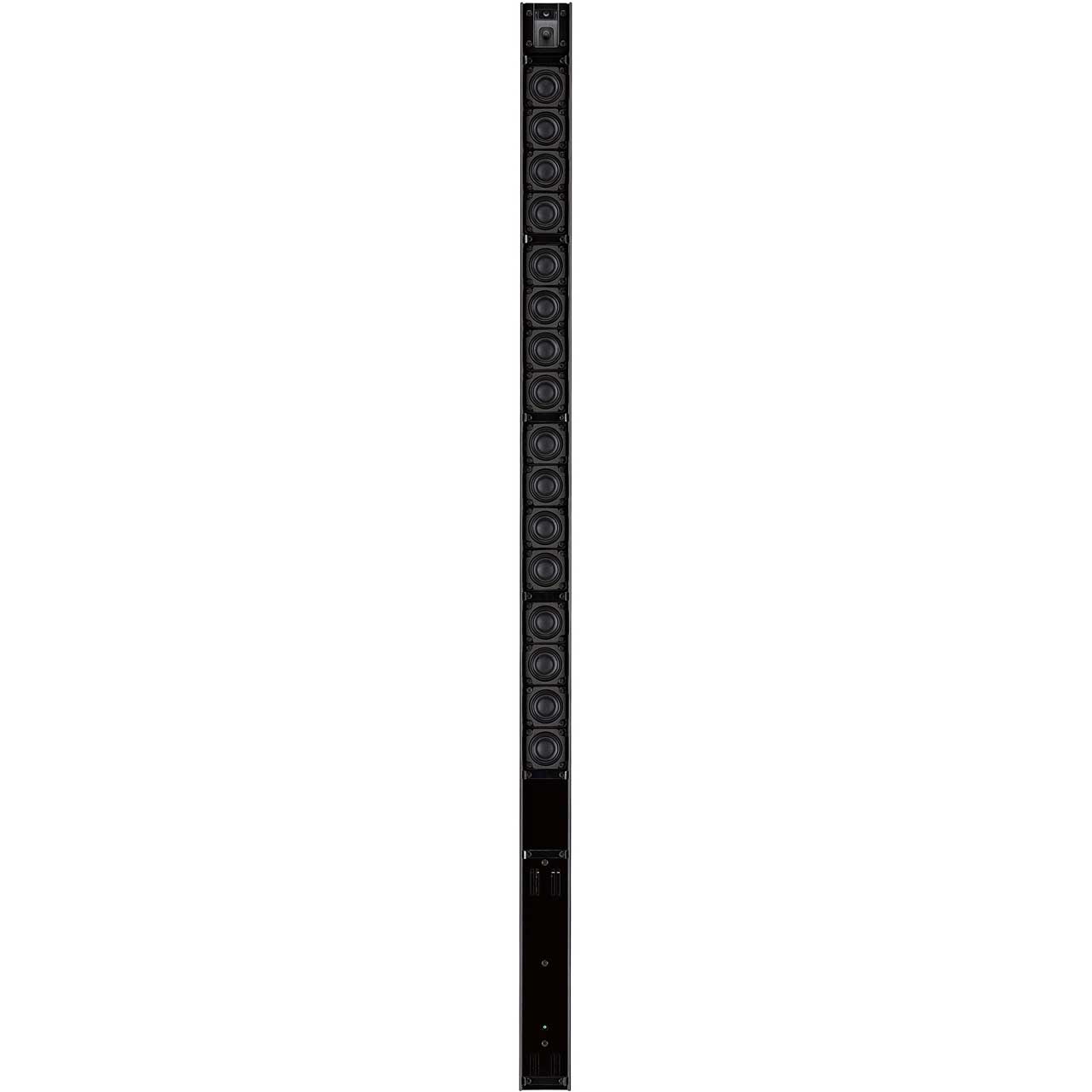

    • Components (LF-HF): 1.5"(3.75cm) Cone x 16
    • Maximum output level (1m; on axis): 102 dB SPL (when using PoE+(IEEE 802.3at))
    • Power rating (Dynamic/Continuous): 15W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af)) / 5W (PoE+ (IEEE 802.3 at)), 6W (PoE (IEEE 802.3 af))
    • I/O connectors: RJ-45 (Dante) x1Speaker processing: Clip limiting, Integral power protection
    • Amplifier protection: Over current protection, Over temperature protection, Under voltage lock out, DC detection, Clock detection
    • Power supply protection: Over load protection, Over voltage protection, Under voltage lock out
    • Cooling: Natural convection
    • Power requirements: PoE+(IEEE 802.3at), PoE(IEEE 802.3af)
    • Power consumption: Idle: 3W, 1/8(Pink Noise): 6W (PoE+(IEEE 802.3at)), 4.3W (PoE(IEEE 802.3af))
    • Finish: VXL1B-16P: Black painting (approximate value: Munsell N3.0)
    • Dimensions (W x H x D): 54 mm x 1120 mm x 104 mm (2.12" x 44.09" x 4.09")
    • Weight: 5 kg (11.02 lbs)

  • Item Includes:

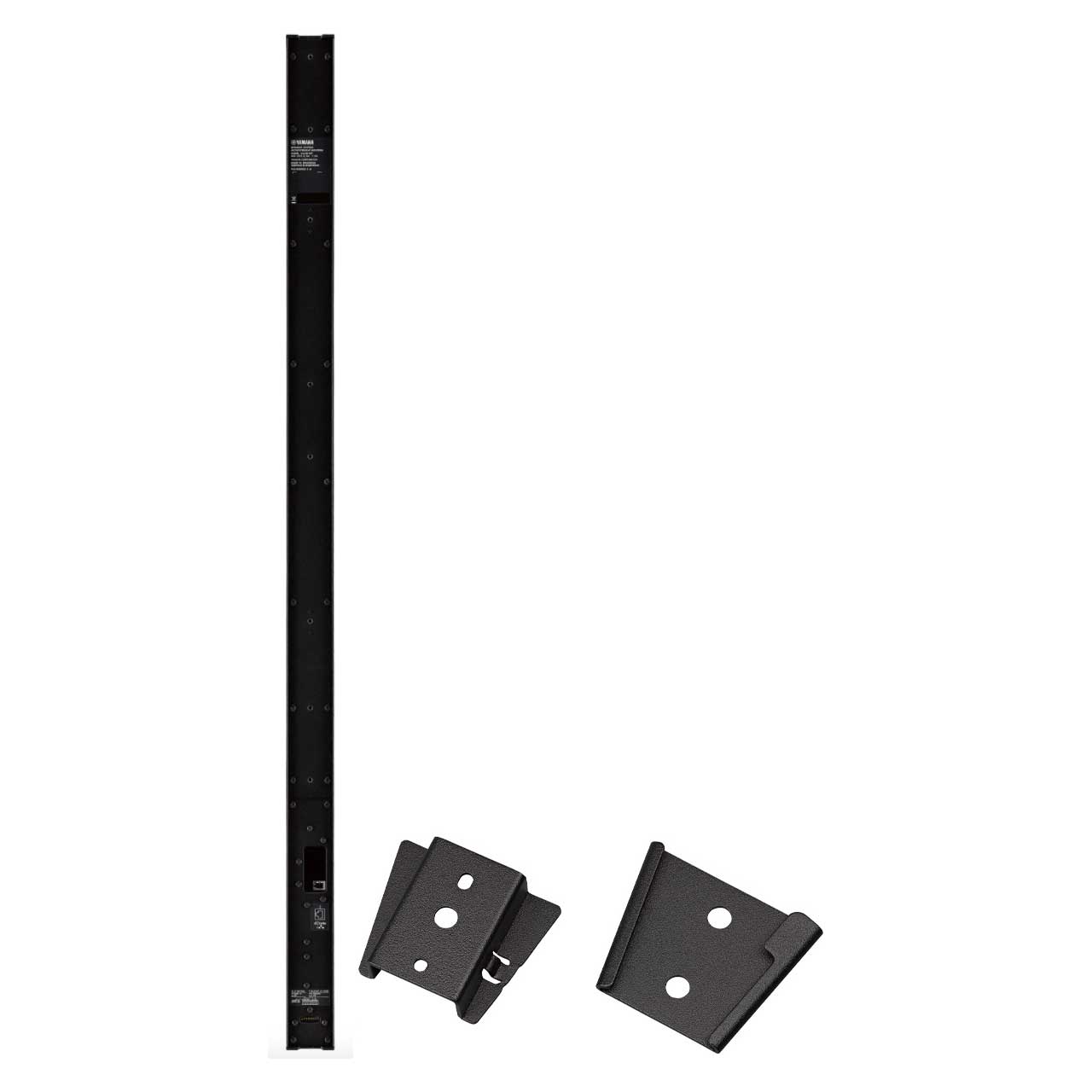

    • Mounting bracket x2
    • Bracket base x2
    • Safety wire x1
    • Machine screws (M5x10) x2
    • Template x1
    • Owner's manual

  • GTIN:

    0889025119290
