Belden 5T00UP CL2 High-Flex Commercial Audio 2 Conductor Str/BC Unshielded Speaker Cable 10 AWG - Gray - 1000 Foot

ITEM #: BL-5T00UP-1000 MFG #: 5T00UP 0081000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,263.40

Our Price:

$1,732.98

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

5T00UP 0081000 - Overview

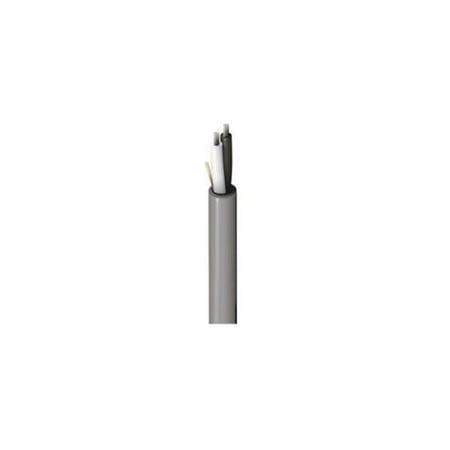

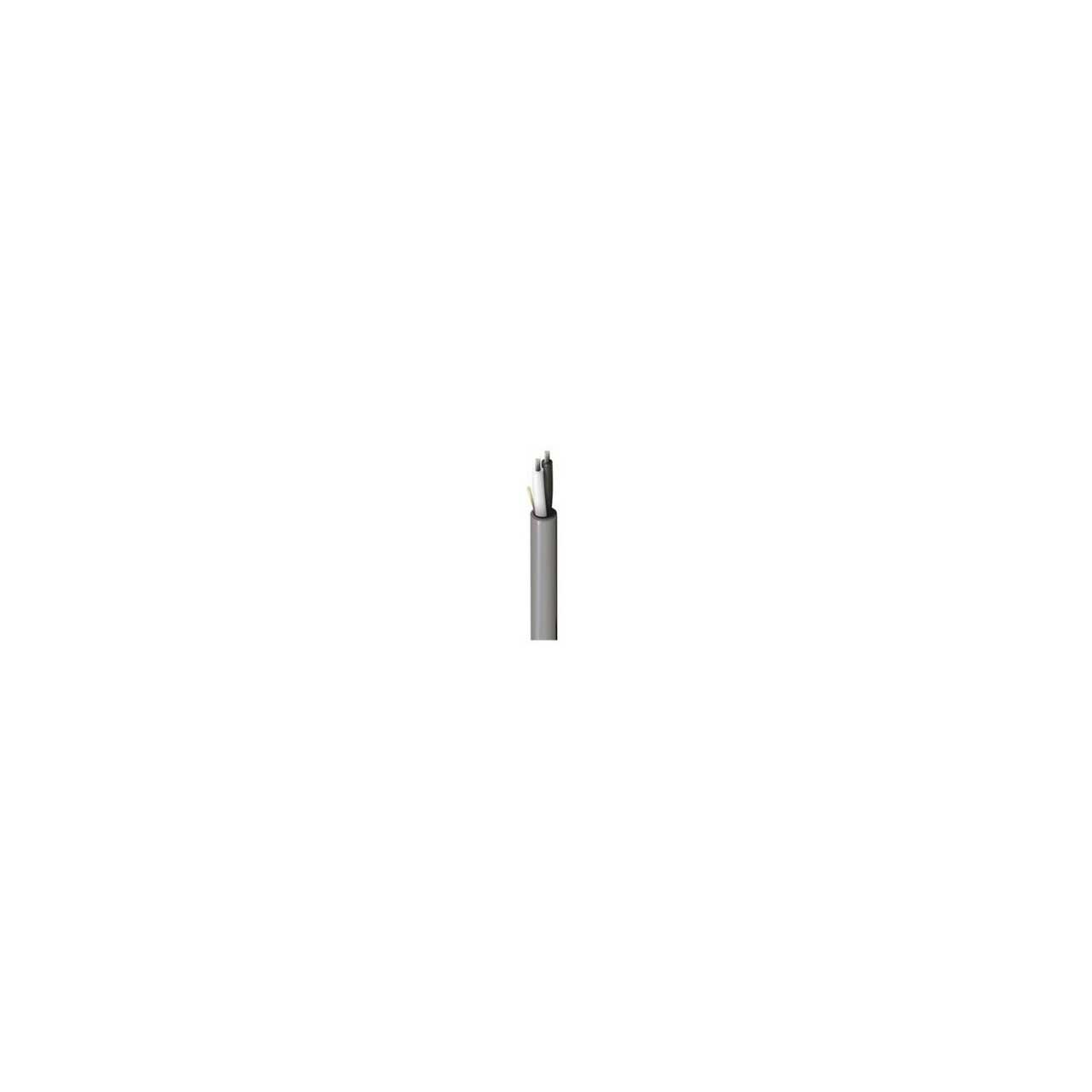

Belden 5T00UP is a Commercial Audio/Speaker Cable. It's rated-CL2/fire resistant and is 2-10 AWG, highly flexible with stranded bare copper conductors, PVC insulation in a PVC jacket with ripcord.

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers.

Applications
Security Systems
Intercom/PA
Audio/Speaker
Power-Limited Controls

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings


  • Specifications:

    • Conductor Number of Element: 2
    • Conductor Size: 10 AWG
    • Conductor Stranding: 65x28
    • Conductor Material: BC - Bare Copper
    • Insulation Element: Conductor
    • Insulation Material: PVC - Polyvinyl Chloride
    • Insulation Nom. Thickness: 0.020 in (0.51 mm)
    • Insulation Color Code: Black, White
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.026 in (0.66 mm)
    • Outer Jacket Nom. Diameter: 0.356 in (9.04 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.356 in (9.04 mm)
    • UL Temperature: 75°C
    • Operating Temperature: -20°C to +75°C
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Reaction to Fire: UL1685 (UL Loading), IEC 60332-1-2
    • Max. Pull Tension: 260 lbs (120 kg)
    • Bulk Cable Weight: 91 lbs/1000ft (140 kg/km)
    • Stationary Min: 3.6 in (91 mm)
    • Installation Min: 3.6 in (91 mm)


  • Item Includes:

    • 5T00UP CL2 Speaker Cable 10 AWG - Gray - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825154471
