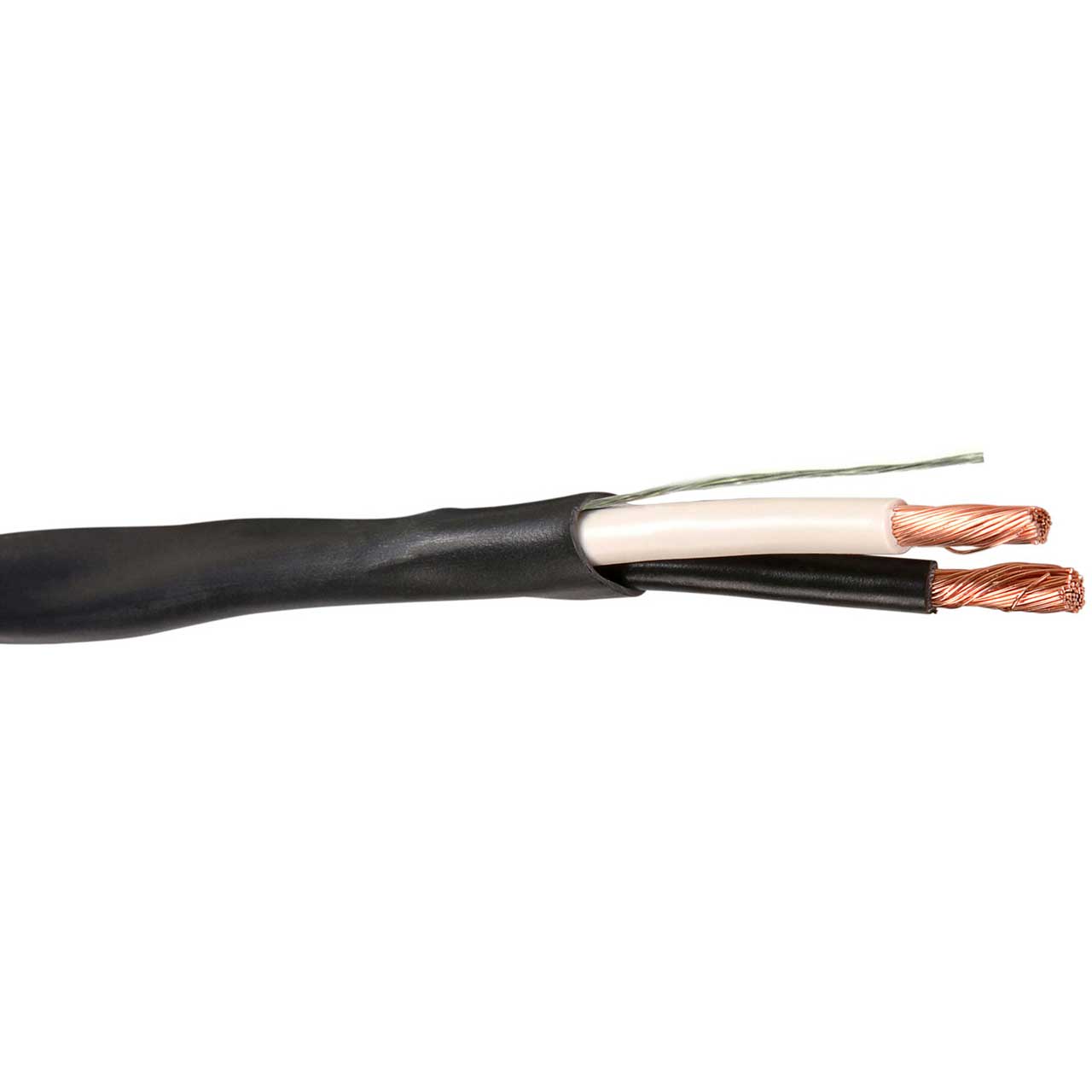

Belden BL-5000UP CL3 High Flex High Strand Copper Unshielded Commercial Audio Cable 2x12AWG - Black - Per Ft.

ITEM #: BL-5000UP MFG #: 5000UP PER FT.

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.63

Our Price:

$1.38

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

5000UP PER FT. - Overview

Belden BL-5000UP is a 2 Conductor 12 AWG, BC, Unshielded, CL3 rated Commercial Audio Cable. It feature two 12 AWG highly flexible stranded bare copper conductors with PVC insulation in a PVC jacket with ripcord.

Belden offers quality Speaker Cables that are suitable for commercial and professional installations so you can reliably connect speakers to receivers or power amplifiers.

Applications
Security Systems
Intercom/PA
Audio/Speaker
Power-Limited Controls

  • Features:

    • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
    • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
    • Easy Identification: Cable jackets feature footage room and zone markings


  • Specifications:

    • Conductor Count: 2
    • Conductor Size: 12 AWG
    • Conductor Stranding: 65x30
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Elements: 2
    • Insulation Element: Conductor(s)
    • Insulation Material: PVC - Polyvinyl Chloride
    • Insulation Nom. Thickness: 0.023 in (0.58 mm)
    • Insulation Color Code: Black, White
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.018 in (0.46 mm)
    • Outer Jacket Nom. Diameter: 0.312 in (7.92 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.312 in (7.92 mm)
    • UL Voltage Rating: 300 V (CL3)
    • UL Rating: 75°C
    • Operating: -20°C to +75°C
    • Max. Pull Tension: 169 lbs
    • Bulk Cable Weight: 59 lbs/1000ft
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202, IEC 60332-1-2
    • NEC / UL Compliance: Article 725, CL3
    • CPR Euroclass: Eca
    • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)


  • Item Includes:

    • BL-5000UP CL3 Commercial Audio Cable 2x12AWG - Black - Per Ft.


  • Warranty:

    • Limited 10 Year Warranty
