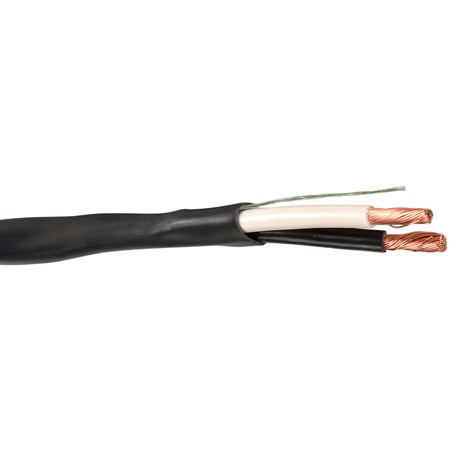

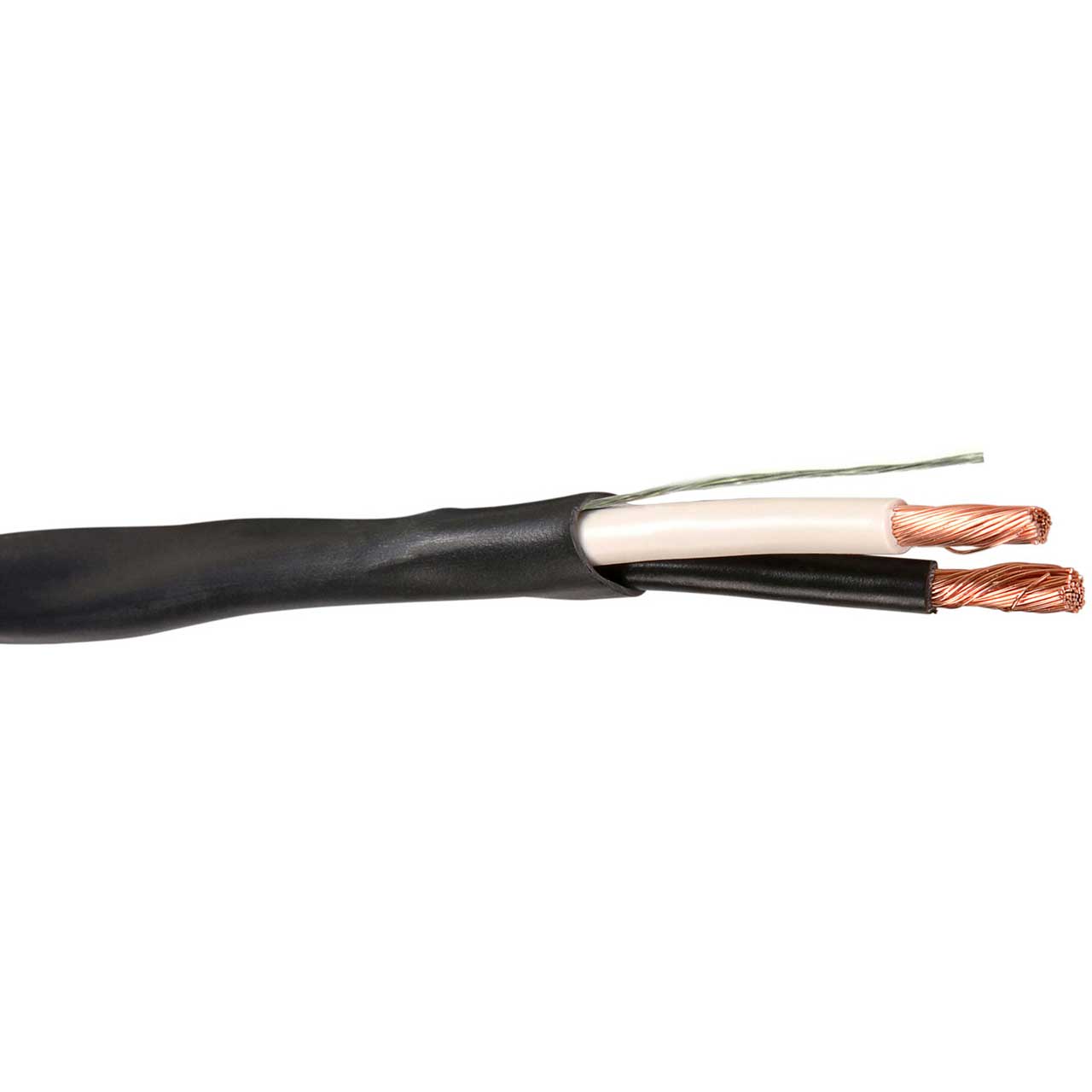

Belden BL-5000UP CL3 High Flex High Strand Copper Unshielded Commercial Audio Cable 2x12AWG - Black - 1000 Foot

5000UP 0101000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Conductor Count: 2
  • Conductor Size: 12 AWG
  • Conductor Stranding: 65x30
  • Conductor Material: BC - Bare Copper
  • Conductor Number of Elements: 2
  • Insulation Element: Conductor(s)
  • Insulation Material: PVC - Polyvinyl Chloride
  • Insulation Nom. Thickness: 0.023 in (0.58 mm)
  • Insulation Color Code: Black, White
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.018 in (0.46 mm)
  • Outer Jacket Nom. Diameter: 0.312 in (7.92 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.312 in (7.92 mm)
  • UL Voltage Rating: 300 V (CL3)
  • UL Rating: 75°C
  • Operating: -20°C to +75°C
  • Max. Pull Tension: 169 lbs
  • Bulk Cable Weight: 59 lbs/1000ft
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Fire Resistance: UL1685 (FT4 Loading), FT4, 1202, IEC 60332-1-2
  • NEC / UL Compliance: Article 725, CL3
  • CPR Euroclass: Eca
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)


• Item Includes:

  • BL-5000UP CL3 Commercial Audio Cable 2x12AWG - Black - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825154747
