Mogami W3104 4 Conductor 12 AWG Superflexible High Definition Speaker Wire - Per Foot

ITEM #: W3104 MFG #: W3104

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$6.40

Our Price:

$5.89

Availability: In Stock
iAvailability Description Popup


W3104 - Overview

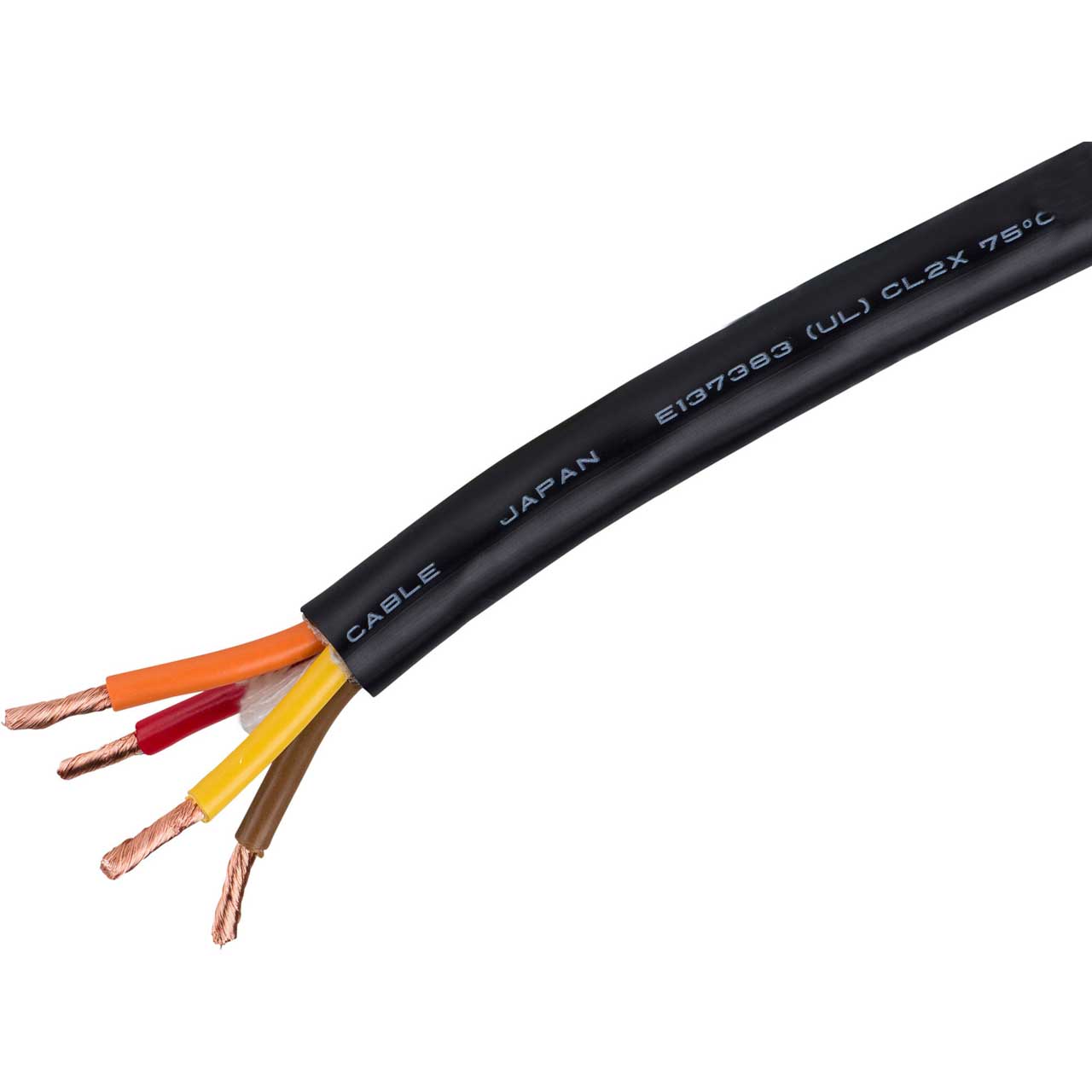

The Mogami W3104 is a unique professional speaker cable originally designed to deliver maximum performance from state of the art speaker systems. It offers true audiophile performance for accurate sound transmission with clear, transparent response, yet possess a rugged superflexibility for the most demanding professional applications. Each conductor features many strands in rope-lay of famous MOGAMI 'NEGLEX' Oxygen-Free-Copper within colour-coded PVC insulation. A tough, low profile matte black superflexible PVC jacket protects the cables.

  • Features:

    • 12AWG 4 Conductor Speaker Cable
    • Overall Diameter: 0.571"
    • Conductor Colors: Brown / Red / Orange / Yellow
    • Can be used as a Standard 2-Conductor Speaker Cable by Quad-Connection
    • Flexible PVC, Matte Black Jacket

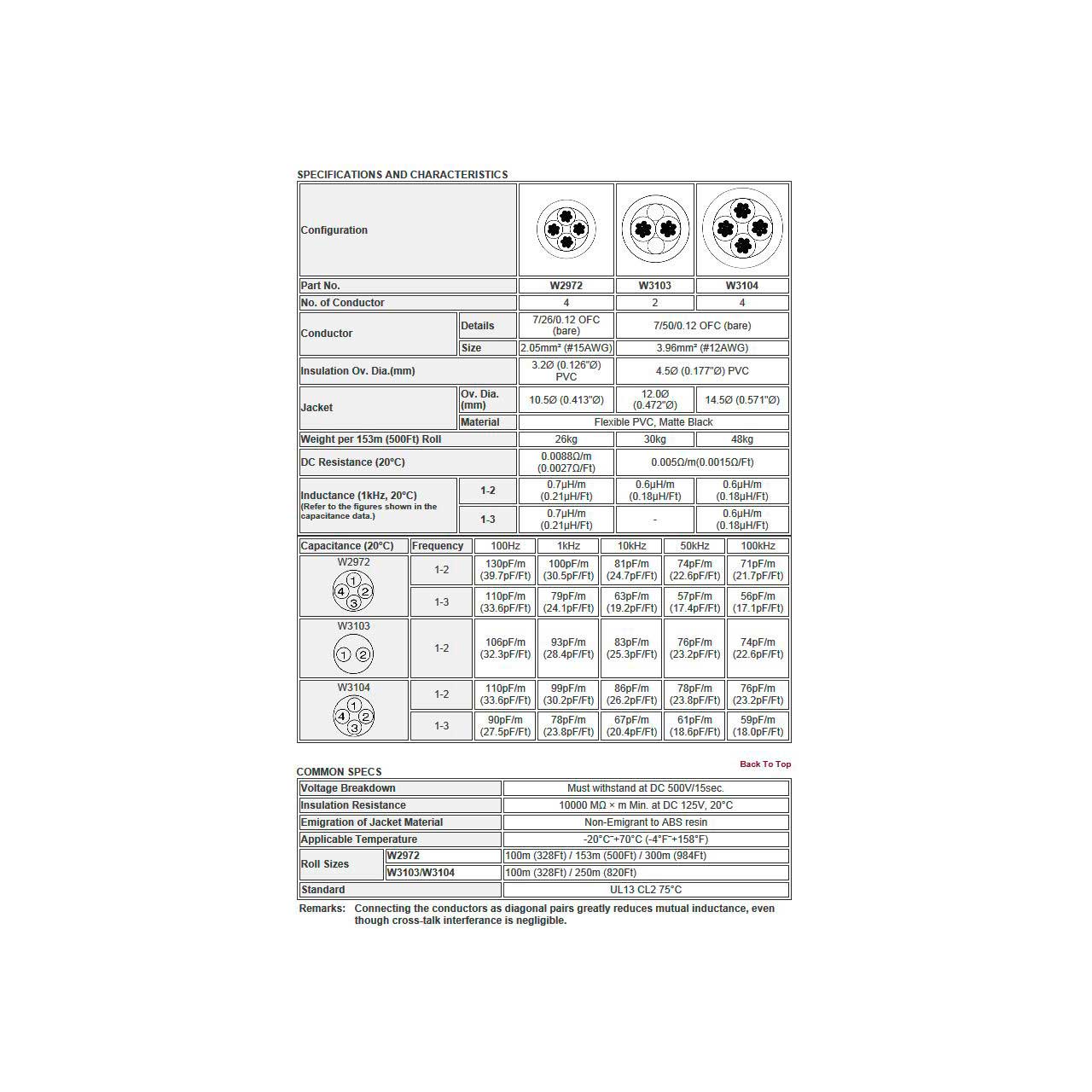

  • Specifications:

    • No Conductors: 4
    • Details: 7/50/0.12 Oxygen Free Copper (bare)
    • Insulation Overall Diameter (mm): 4.5O (0.177"O) PVC
    • Size: 3.96mm² (#12AWG)
    • Jacket Overall Diameter (mm): 14.5O (0.571"O)
    • Jacket Material: Flexible PVC, Matte Black
    • DC Resistance (20°C): 0.005O/m(0.0015O/Ft)
    • Voltage Breakdown: Must withstand at DC 500V/15sec.
    • Insulation Resistance: 10000 MO x m Min. at DC 125V, 20°C
    • Emigration of Jacket Material: Non-Emigrant to ABS resin
    • Applicable Temperature: -20°C +70°C (-4°F+158°F)
    • Standard: UL13 CL2 75°C

  • GTIN:

    0801813033984
