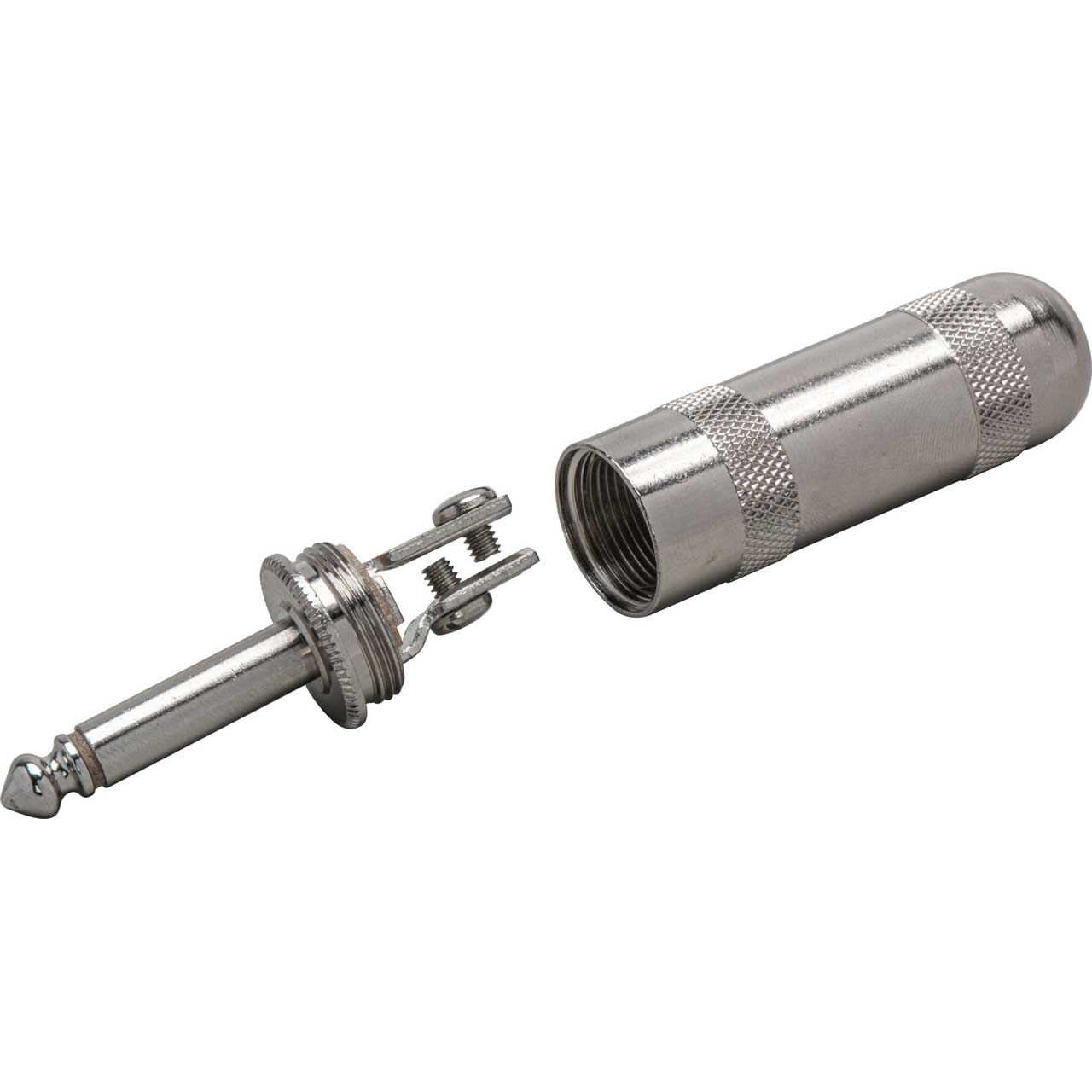

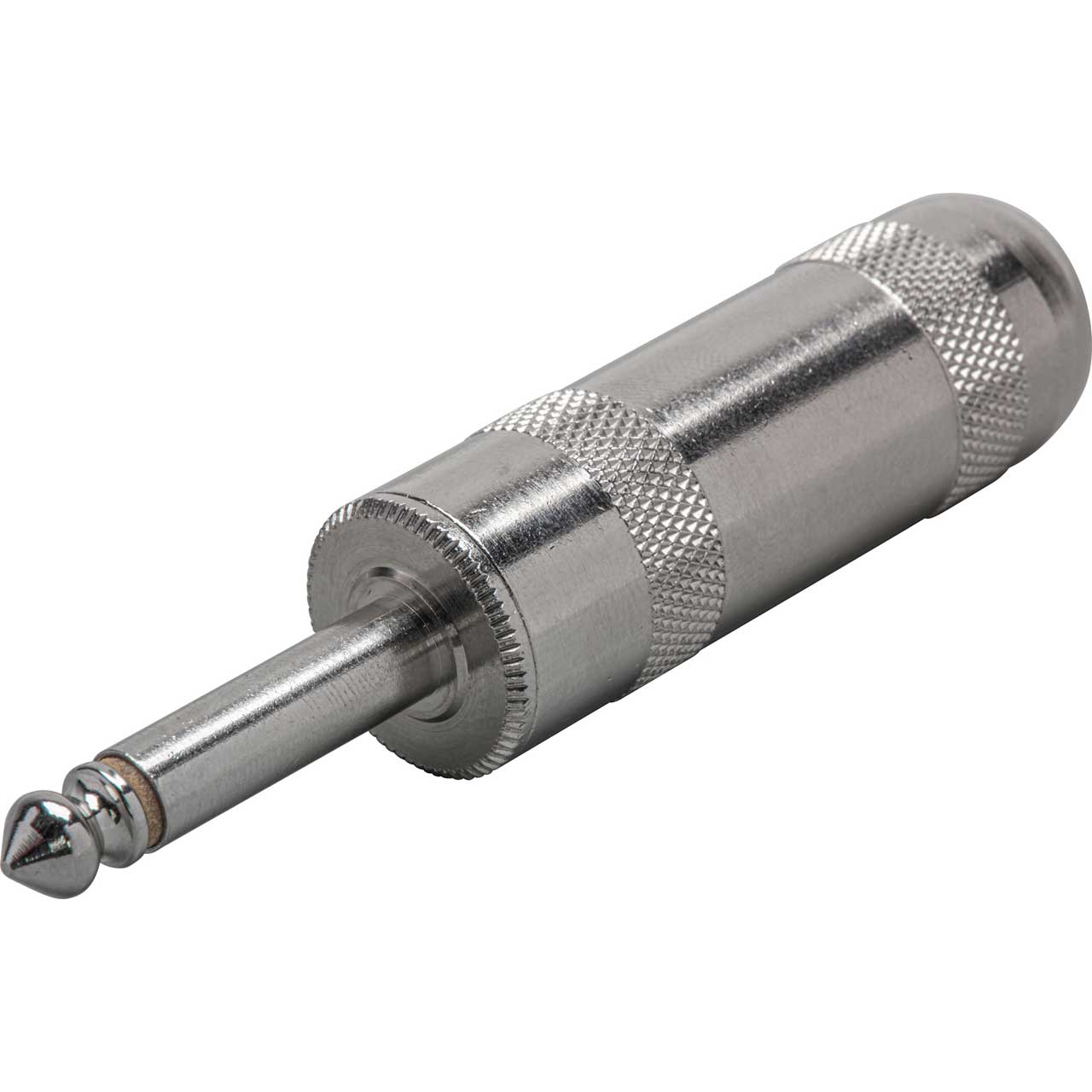

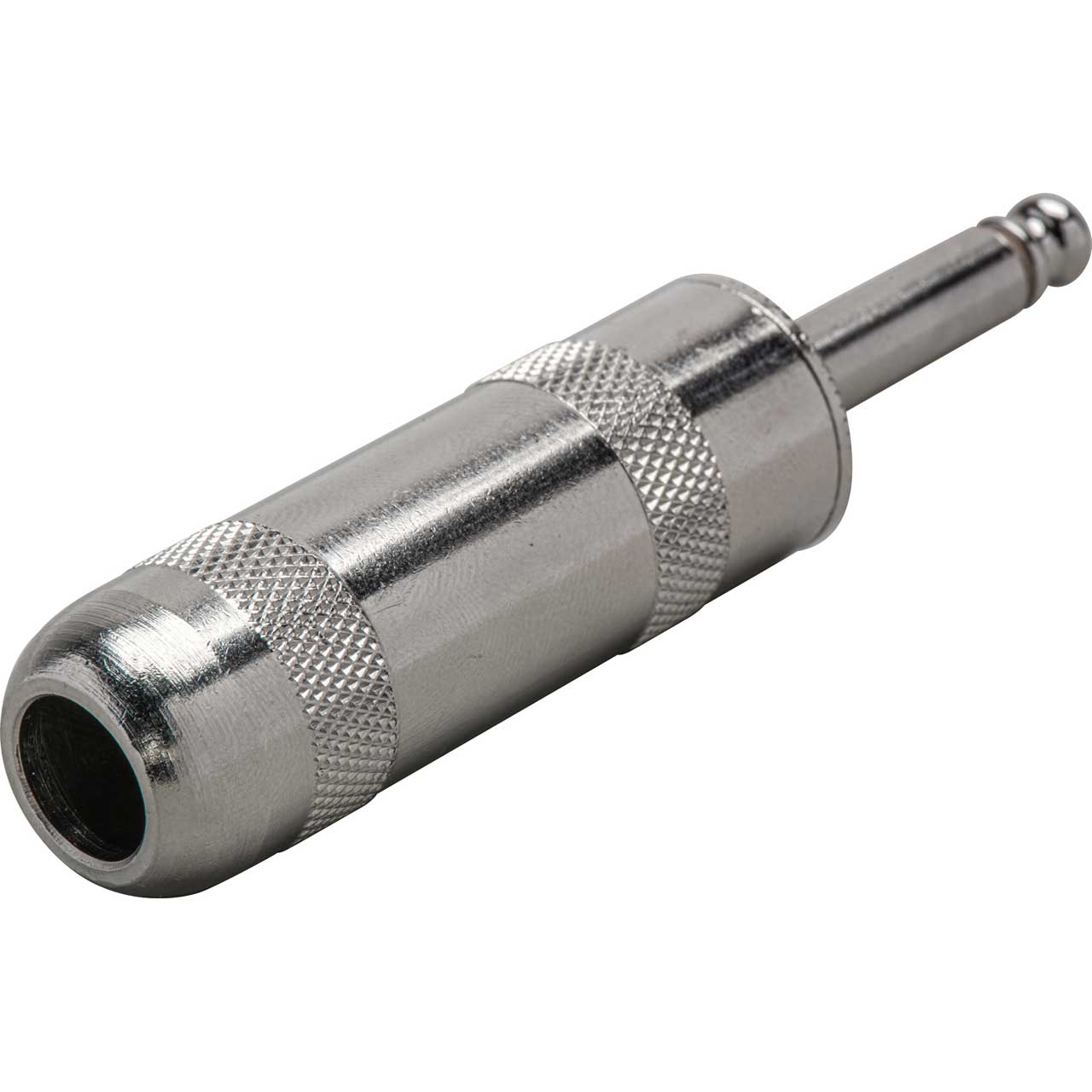

Switchcraft 70 Jumbo 2 Conductor 1/4 Inch Plug / Nickel Metal Handle Screw Terminals Cable Mount

ITEM #: SW70B MFG #: SWITCHCRAFT 70

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$9.95

Our Price:

$8.89

Availability: In Stock
iAvailability Description Popup


SWITCHCRAFT 70 - Overview

The industry standard 2 conductor 1/4" commercial plug with shielded handle plug. The Switchcraft 70 1/4" Mono 2 Conductor Cable Mount Plug has a Nickel Metal Handle with Screw Terminals. It is the proven industry standard phone plug for audio applications as both a guitar plug and speaker plug connector. Beware of imitations! Its shielded handle is recommended for applications where electromagnetic interference and physical abuse may occur and has a 0.687" Diamater.

Switchcraft connectors have set the standard for the audio world since 1946. Their extensive line of quality connectors features cord plug, panel, PC mount, and in-line versions in a variety of sizes, pin configurations, contact materials and housing finishes.

  • Features:

    • 1-piece tip rod staked into tip terminal insures tightness of plug.
    • All essential conducting members are brass with external parts nickel-plated.
    • Screw terminals have grooves which accommodate 1 or 2 cord tips.
    • Thermoplastic handle insert for greater insulation.
    • SW70B Handle has 0.380 inch (9.65mm) diameter hole to accommodate .375" diameter cable.
    • SW70B: Screw Terminal
