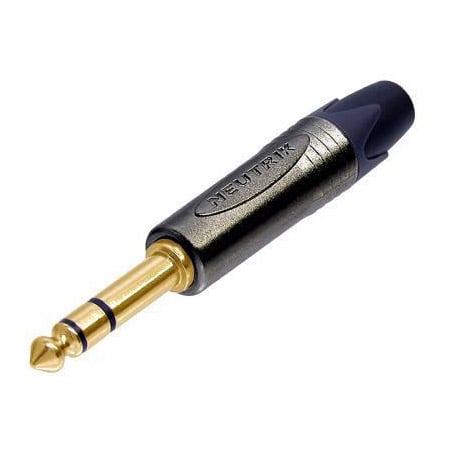

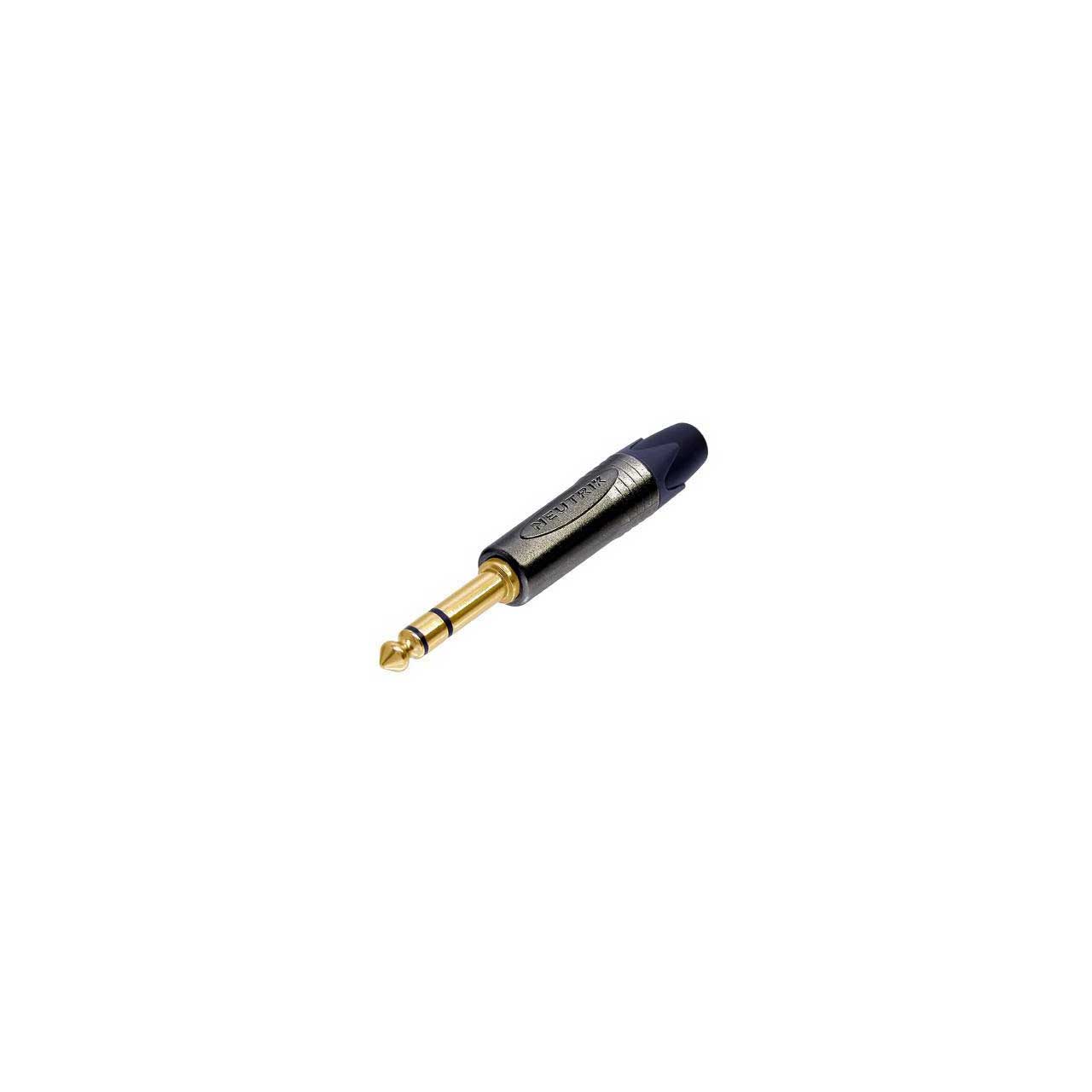

Neutrik NP3X-B X-Series 1/4-Inch TRS 3-Conductor Phone Plug Black and Gold

ITEM #: NP3X-B MFG #: NP3X-B

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7.72

Our Price:

$6.61

Availability: In Stock
iAvailability Description Popup


NP3X-B - Overview

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

  • Features:

    • Extra slim 1/4" plug for highest packing density Robust diecast shell in stylish design Proven chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts - avoid hook up of tip contact

  • Specifications:

    • Gender: Male
    • Contact Resistance: Depends on mating connector mO
    • Dielectric Strength: 1kVdc
    • Insulation Resistance: > 2GΩ (initial)
    • Rated Current per Contact: Depends on mating connector A
    • Rated Voltage: < 50V
    • Cable O.D.: 4 - 7mm
    • Lifetime: > 1000 mating cycles
    • Wiresize: 1mm²/18 AWG
    • Wiring: Solder contacts
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 0.2µm Au
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: KTL coating
    • Strain Relief: Polyacetal (POM)
    • Standard Compliance: IEC 60603-11/EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)

  • GTIN:

    7613187000690
