Rean NYS2202P Full Metal 2-Pole 1/4 Inch Cable Jack to 1/4 Inch Mono TS Female

ITEM #: NYS2202P MFG #: NYS2202P

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$3.78

Our Price:

$2.26

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NYS2202P - Overview

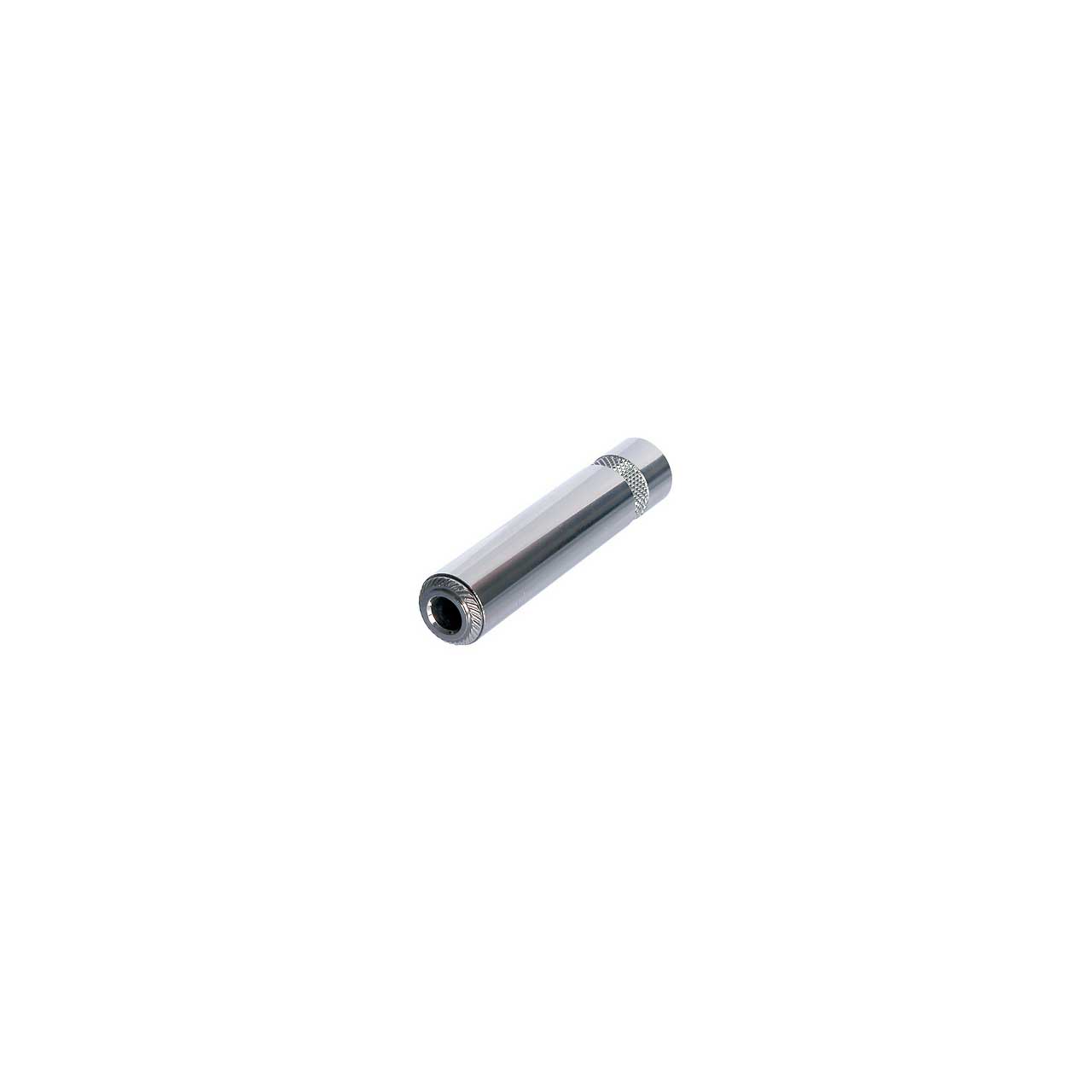

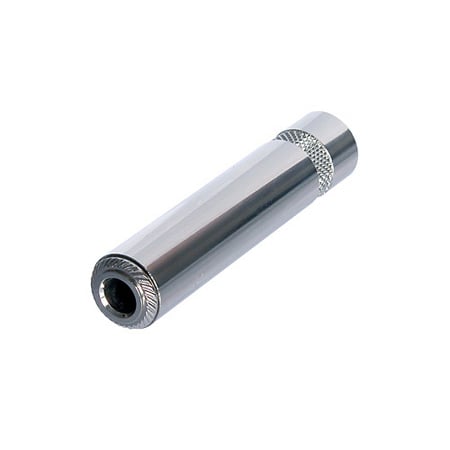

    The Rean NYS2202P is a 2 pole 1/4" cable jack made from full metal with a maximum cable O.D. of 6 mm.

    • Specifications:

      • Connector: Type Jack
      • Gender: Female
      • Contact resistance: < 10 m Ohm
      • Dielectric strength: 0,5 kVdc
      • Rated current per contact: 1 A
      • Cable O.D.: = 6 mm
      • Insertion force: = 20 N
      • Withdrawal force: > 10 N
      • Lifetime: > 1000 mating cycles
      • Wire size: 24 AWG
      • Contact plating: SnCe
      • Contacts: Bronze (CuSn6)
      • Insert: Polyamide (PA 6 30 % GR)
      • Shell: Brass (CuZn39Pb3), gal Ni plated
      • Strain relief: CRIMP type snce plated
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -4°F - 158°F (-20 °C to +70 °C)
