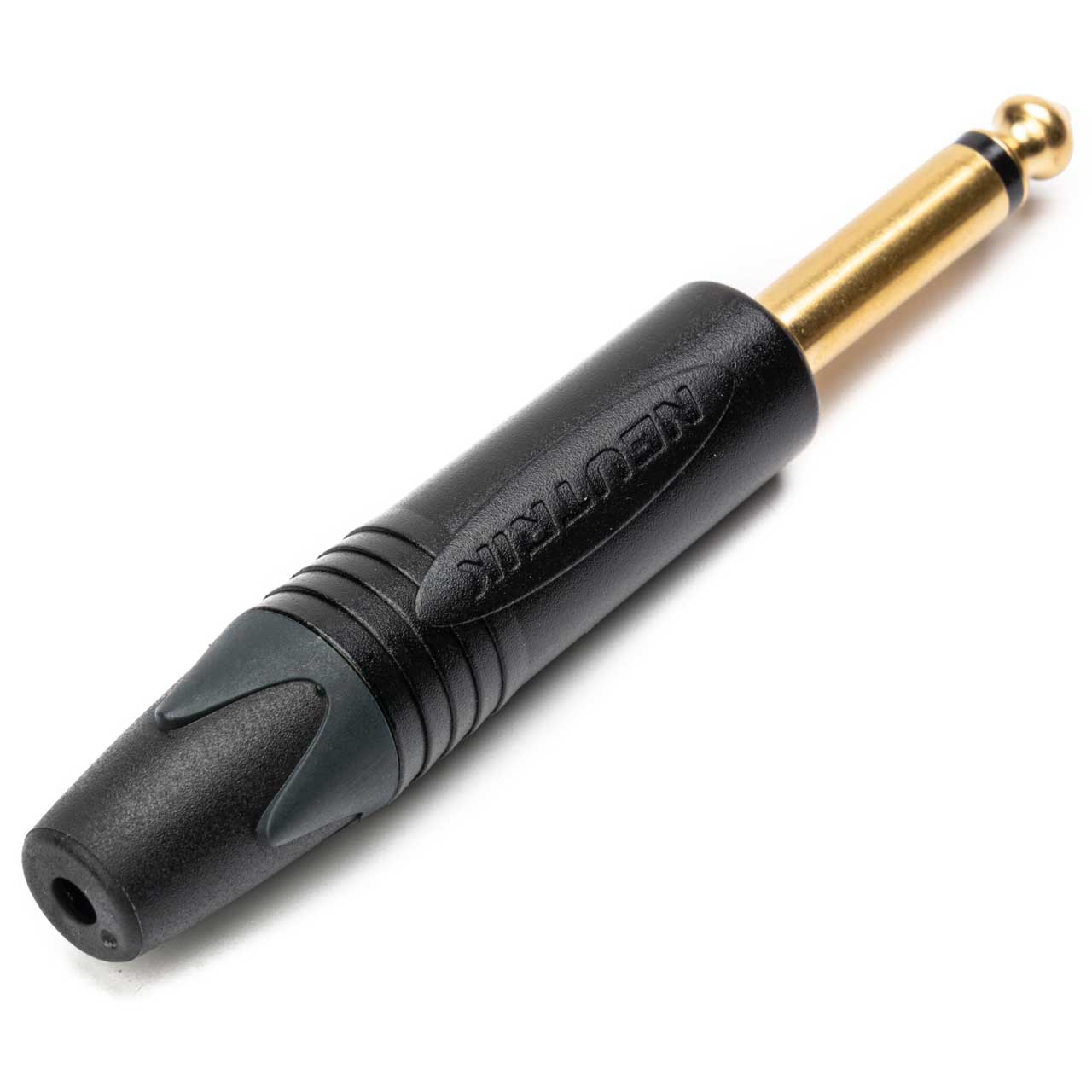

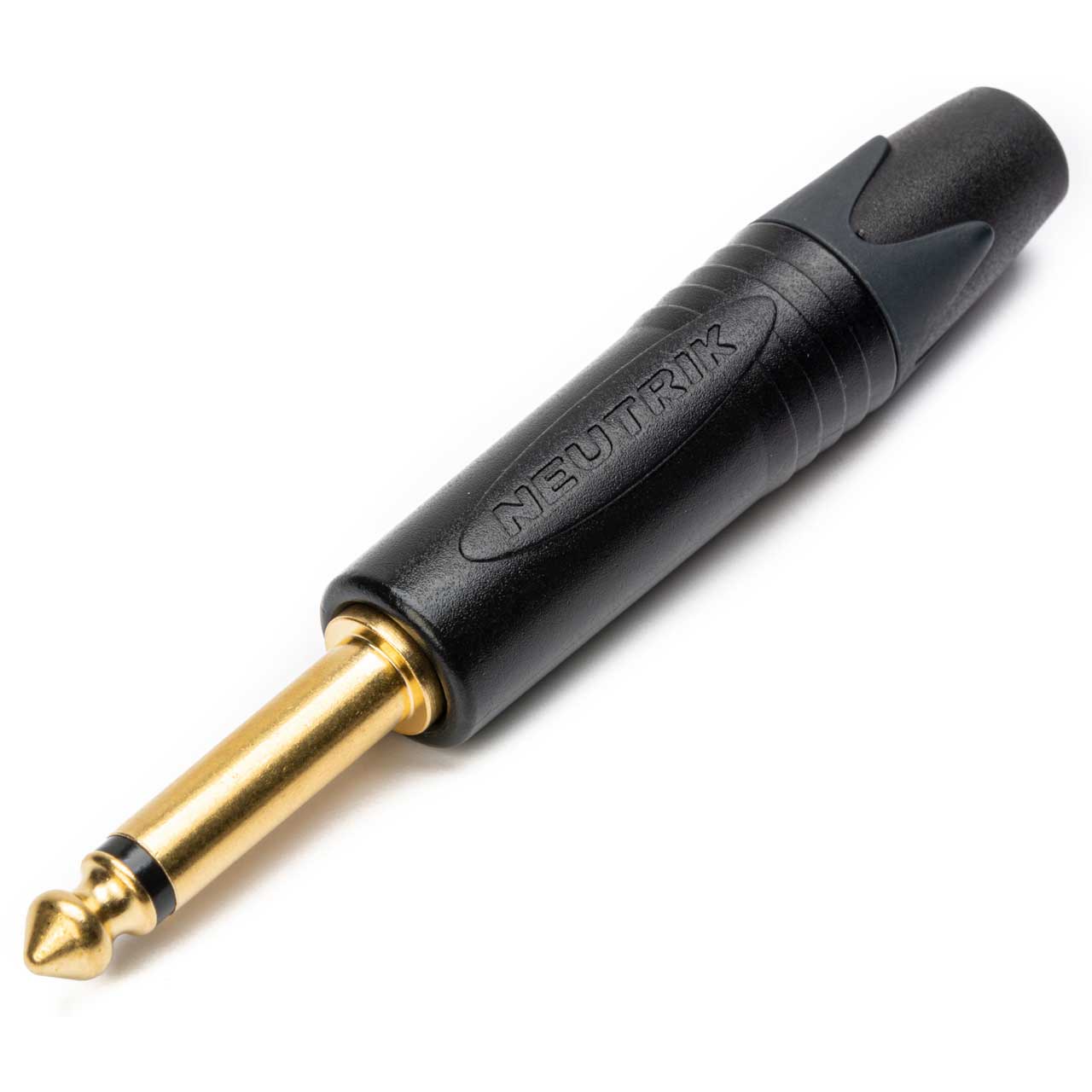

Neutrik NP2X-B X-Series 1/4in Phone Plug w/Gold Contacts & Black Shell

ITEM #: NP2X-B MFG #: NP2X-B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Neutrik Americas
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5.68

Our Price:

$4.91

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NP2X-B - Overview

The new X-Series improves on the design of the existing phone plug by offering the thinnest available 1/4" plug with unique Neutrik chuck type strain relief on the market. The new plugs meet the most recent requirements for highest packing density, which is 15.88mm jack pitch.

  • Specifications:

    • Gender: Male
    • Connection Type: Plug
    • Contact Resistance: Depends on mating connector mΩ
    • Dielectric Strength: 1kVdc
    • Insulation Resistance: > 2GΩ (initial)
    • Rated Current per Contact: Depends on mating connector A
    • Rated Voltage: < 50V
    • Cable O.D.: 4 - 7mm
    • Lifetime: >1000 mating cycles
    • Wiresize(mm/AWG): 1mm²/18AWG
    • Wiring: Solder contacts
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 0.2µm Au
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30% GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: KTL coating
    • Strain Relief: Polyacetal (POM)
    • Standard Compliance: IEC 60603-11/EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)


  • GTIN:

    7613187000720
