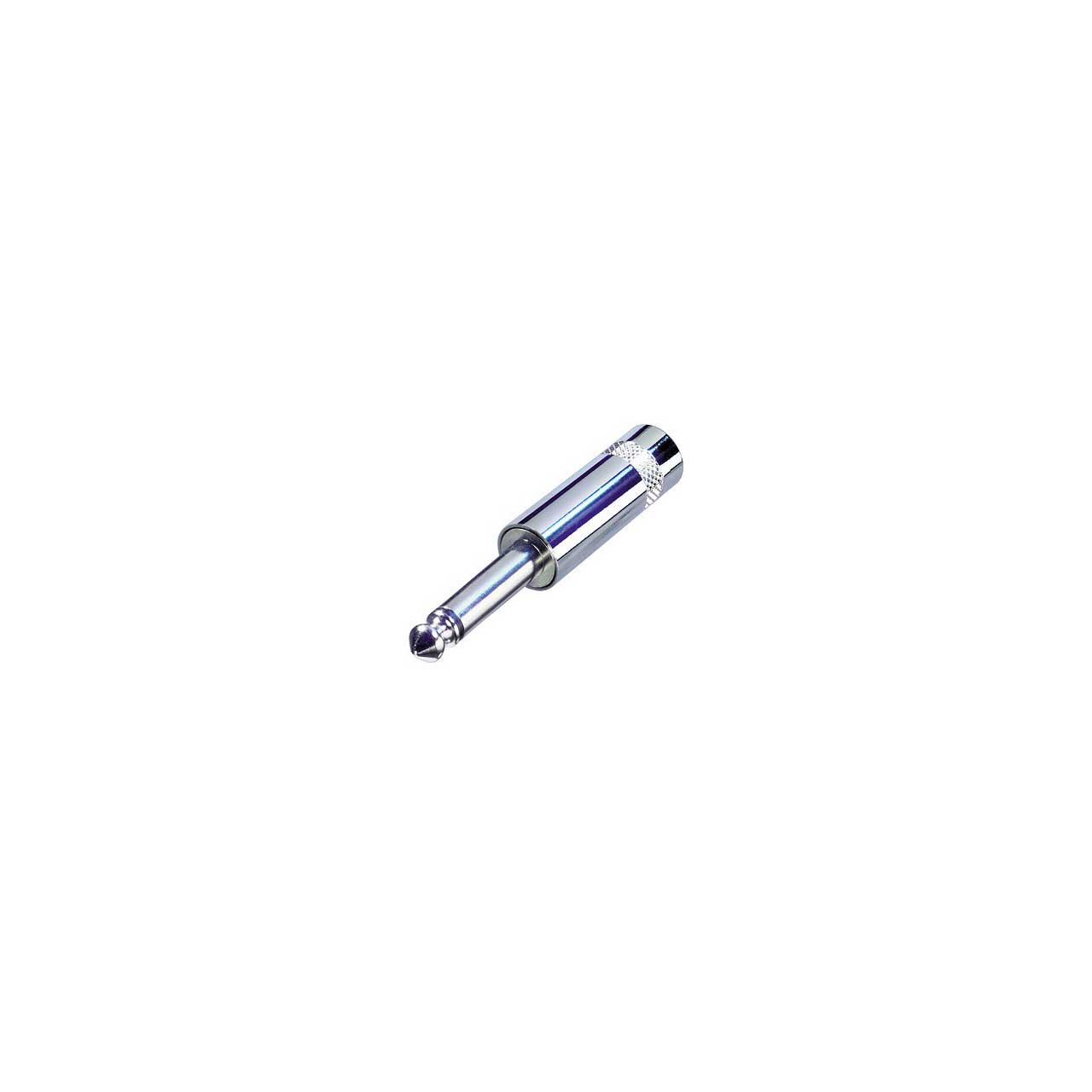

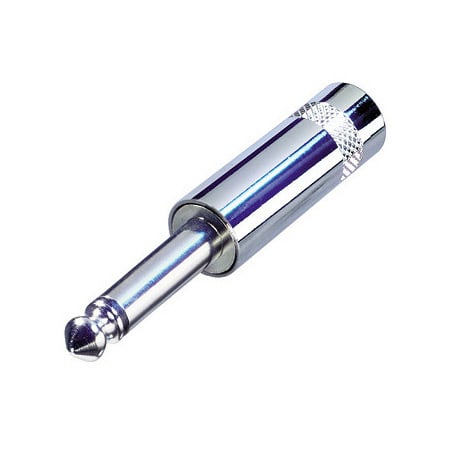

Rean NYS201 1/4 Inch 2-Pole Mono Plug Short Handle Nickel/Silver

NYS201 - Overview

• Features:

  • Commercial 1/4" plugs and adapters
  • All connectors according to EIA RS-453 / IEC 60603-11
  • Short and long turned brass handles
  • Plastic handle with flexible strain relief
  • Heavy duty cable clamp for best strain relief
  • Solderability Complies with IEC 68-2-20


• Specifications:

  • Contact Resistance: < 10 m Ohms
  • Dielectric Strength: 0,5 kVdc
  • Rated Current per Contact Depends on mated connector A
  • Cable O.D.: < 6 mm
  • Wire Size: 24 AWG
  • Contact Plating: 2 Ým Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: CRIMP type snce plated
  • Temperature range: -4°F - 158°F (-20°C to 70°C)


• GTIN:

  7613187010309
