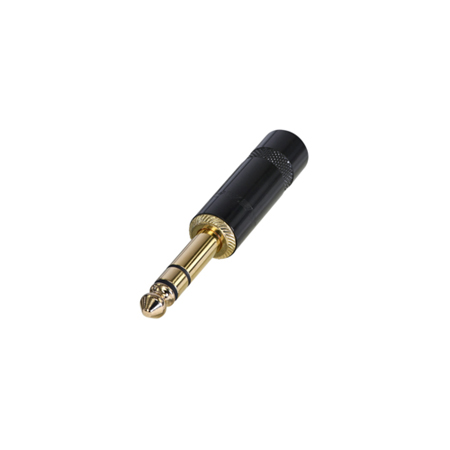

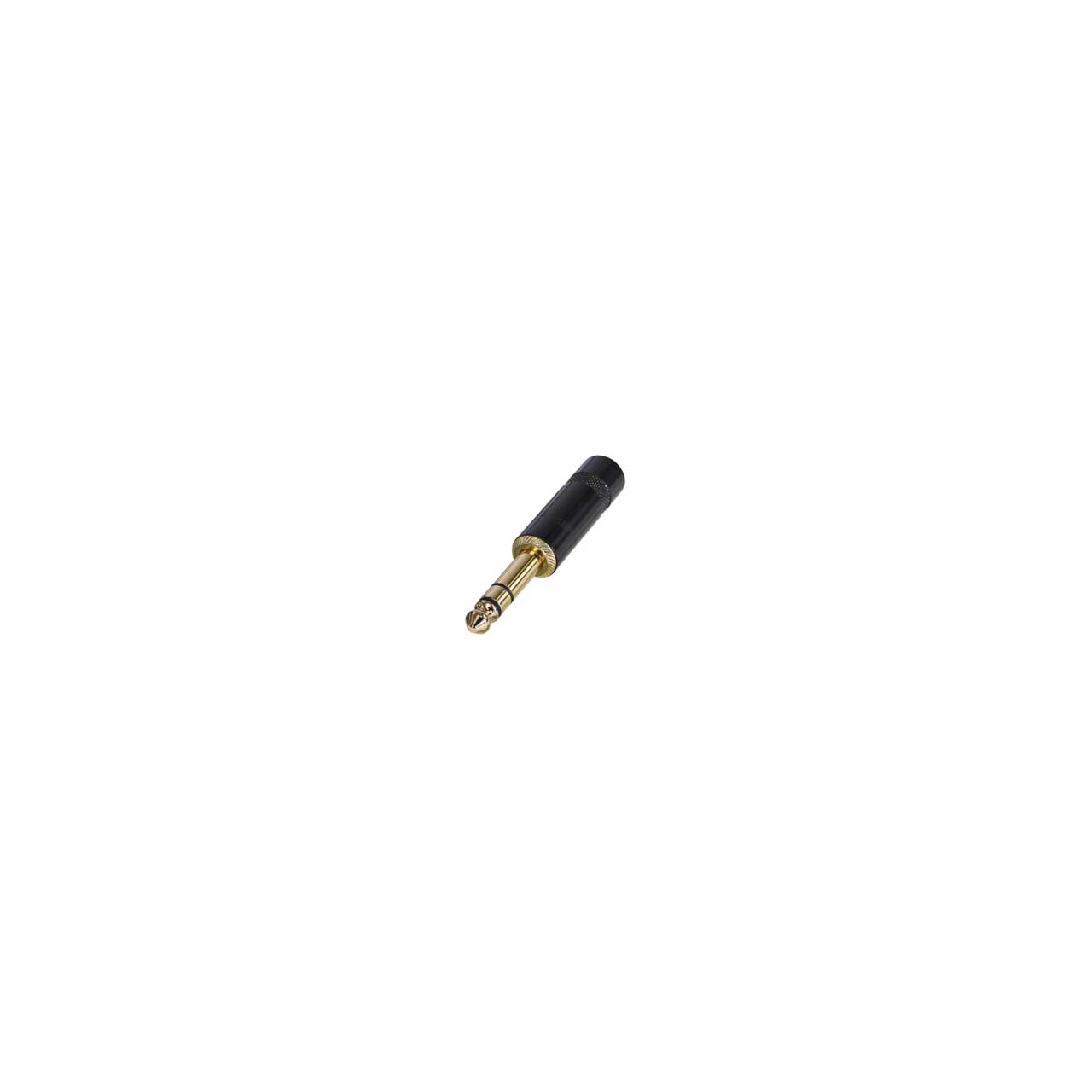

Rean NYS228BG 1/4 Inch Plug - TRS Stereo Black & Gold Contacts

ITEM #: NYS-228BG MFG #: NYS228BG

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4.50

Our Price:

$2.70

Availability: In Stock
iAvailability Description Popup


NYS228BG - Overview

The Stereo (TRS) version of the Rean NYS 224 with black and gold plated contacts, the REAN NYS 228BG is perfect for cables up to 6mm in outside diameter. It is a commercial grade 1/4" plug manufactured to EIA RS-453 / IEC 60603-11 standards.

With the REAN brand, you get the backing of the world's leading supplier of professional audio and video connectors - Neutrik - at an excellent cost-performance ratio and reliable functionality. The REAN connector is widely respected for its low profile design and ease of integration and assembly.

  • Features:

    • TRS 1/4" Plug with Black and Gold Contacts
    • Commercial 1/4" plugs and adapters
    • All connectors according to EIA RS-453 / IEC 60603-11
    • Short and long turned brass handles
    • Plastic handle with flexible strain relief
    • Heavy duty cable clamp for best strain relief
    • Low profile design
    • Ease of integration and assembly.

  • Specifications:

    • Electrical
    • Contact Resistance: =10 mO
    • Insulation Resistance: >200 MO(Initial)
    • Dielectric Strength: 500 V dc 50HZ

      Mechanical
    • Insertion and Withdrawal Force: 5-40N
    • Lifetime: >5,000 Mating Cycles

      Material
    • Tip: Brass
    • Bushing: PA66+30%GF
    • Insert: Brass
    • Sleeve: Brass
    • Insulation: PVC
    • Threaded Nut: Brass
    • Insulator: PA66+30%GF
    • Housing: Zinc
    • Soldering Contact: Brass
    • Cable Clamp: Steel
    • Tip: Nickel Plating
    • Insert: Nickel Plating
    • Sleeve: Nickel Plating
    • Threaded Nut: Nickel Plating
    • Housing: Nickel Plating
    • Soldering Contact: Tin and Cer
    • Cable Clamp: Tin and Cer


NYS228BG - Required Accessories
