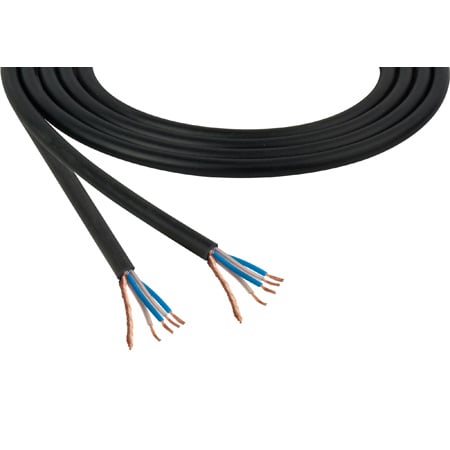

Mogami W2534 Neglex Quad Microphone Cable - Per Foot - Black

ITEM #: 2534 MFG #: 2534

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.79

Our Price:

$1.59

Availability: In Stock
iAvailability Description Popup


2534 - Overview

The Mogami W2534 Neglex Quad cable is perfect cable for home studios suffering from wiring and grounding problems. Mogami 2534 should also be used where intense RFI interference is a problem. It provides an improvement in signal to noise of 10dB-20dB over equivalent twisted pair cables. Double conductors quad cables are more effective in canceling noise that can get past even the best of shields and is critical in an environment of high RF and EM interference. It has become popular around the world as the standard for high quality digital and analog recording. The cable has also become popular for use with unbalanced equipment, such as high quality pre-amp, amp inputs and tape decks.

  • Features:

    • Conductor insulation is XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering.
    • Served (spiral) Bare Copper Shield is superior to foil or braided shields for sound quality and simplifies termination.

  • Specifications:

    • Cable
    • No. of Conductor: 4 (Quad)
    • Conductor:
      - Details: 20/0.12 OFC
      - Size (mm²): 0.226mm² (#24 AWG)
    • Insulation:
      - Ov. Dia. (mm): 1.6∅ (0.063")
      - Material: XLCPE (Cross-Linked Polyethylene)
    • Served Shield: Approx. 64/0.18A
    • Jacket:
      - Ov. Dia. (mm): 6.0∅ (0.236")
      - Material: Flexible PVC

      Electrical & Mechanical
    • DC Resistance at 68°F (20°C):
      - Inner Cond.: 0.083Ω/m (0.025Ω/ft)
      - Shield: 0.012Ω/m (0.0037Ω/ft)
    • Capacitance at 1kHz, 68°F (20°C):
      - K0: 65pF/m (20pF/ft)
      - K1: 13pF/m (4pF/ft)
      - K2: 4pF/m (1.2pF/ft)
    • Balanced Quad Connection:
      - Cond. Cond.: 97pF/m (29.6pF/ft)
      - Cond. Shield.: 110pF/m (33.6pF/ft)
    • Inductance Between Conductors at 1kHz, 68°F (20°C): 0.4µH/m (0.12µH/ft)
    • Electrostatic Noise: 50mV Max
    • Electromagnetic Noise: 0.15mV Max
    • Microphonics at 50KΩ/Load: 430m V Max
    • Voltage Breakdown: Must withstand at DC 500V/15 sec
    • Insulation Resistance: 100000MΩ/x m Min. at DC 125V, 68°F (20°C)
    • Flex Life: 11,000 cycles
    • Tensile Strength: 686N
    • Emigration: Non-emigrant to ABS
    • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)
