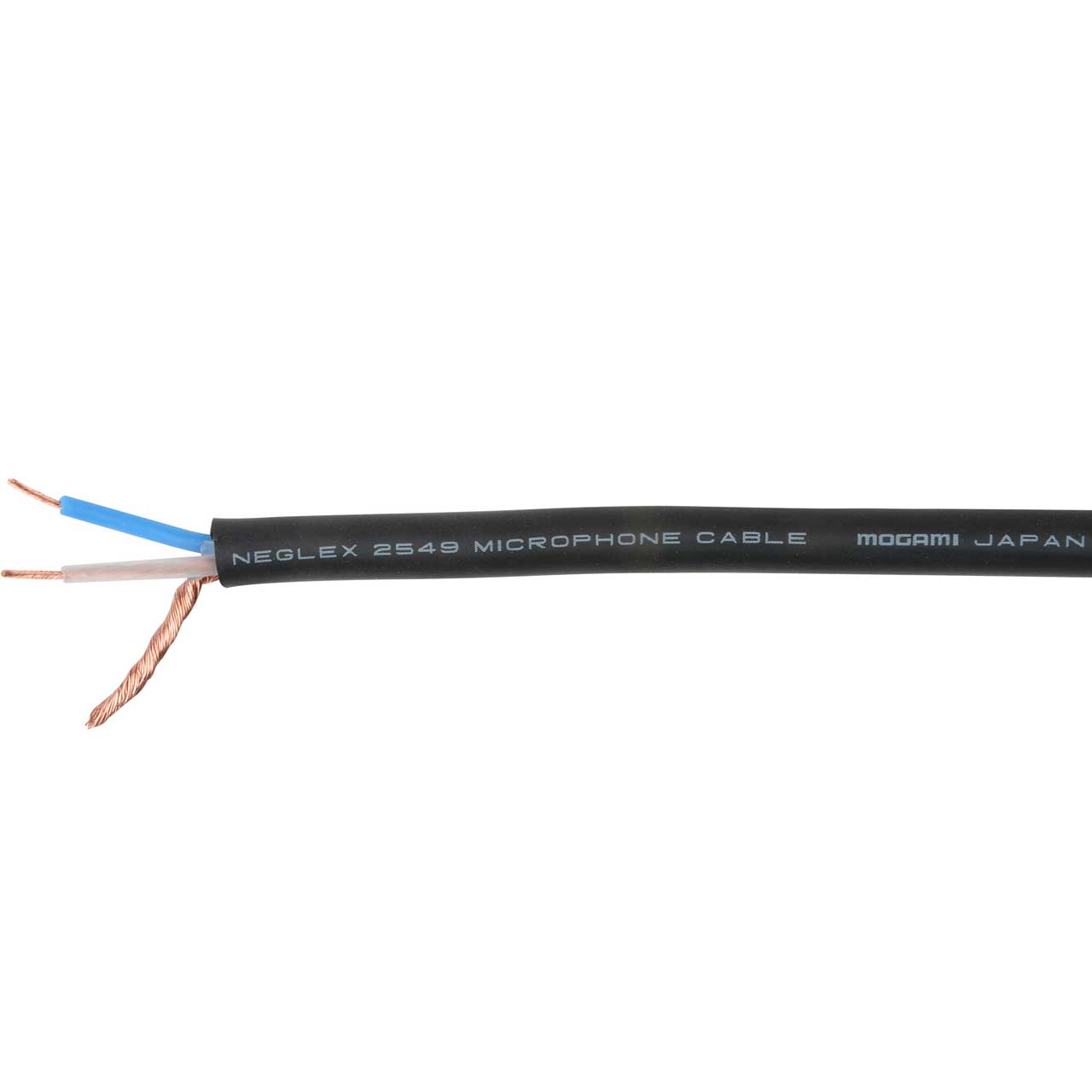

Mogami W2549 High Quality 22AWG Neglex Balanced Microphone Cable - Per Foot - Black

ITEM #: 2549 MFG #: 2549

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.02

Our Price:

$0.92

Availability: In Stock
iAvailability Description Popup


2549 - Overview

The Mogami W2549 high quality Neglex balanced microphone cable has been designed using Neglex OFC to provide the highest quality audio reproduction in any recording application. It features 22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

  • Specifications:

    • Cable
    • No. of Conductor: 2
    • Conductor:
      - Details: 30/0.12 OFC
      - Size (mm²): 0.339mm² (#22 AWG)
    • Insulation:
      - Ov. Dia. (mm): 1.9∅ (0.075")
      - Material: XLPE (Cross-Linked Polyethylene)
    • Shield: Served Approx. 64/0.18A
    • Jacket:
      - Ov. Dia. (mm): 6.0∅ (0.236")
      - Material: Flexible PVC
    • Flex Life: 14,500 cycles
    • Tensile Strength: 657 N

      Electrical & Mechanical
    • DC Resistance at 68°F (20°C):
      - Inner Cond.: 0.058Ω/m (0.018Ω/ft)
      - Shield: 0.013Ω/m (0.004Ω/ft)
    • Capacitance at 1kHz, 68°F (20°C):
      - K0: 76pF/m (23pF/ft)
      - K1: 11pF/m (3.4pF/ft)
    • Inductance Between Conductors at 1kHz, 68°F (20°C): 0.8µH/m (0.24µH/ft)
    • Electrostatic Noise: 50mV Max
    • Electromagnetic Noise: 0.15mV Max
    • Microphonics at 50KΩ Load: 30m V Max
    • Voltage Breakdown: Must withstand at DC 125V/15 sec
    • Insulation Resistance: 100000MΩ x m Min. at DC 125V, 68°F (20°C)
    • Flex Life: 14,500 cycles
    • Tensile Strength: 657N
    • Emigration: Non-emigrant to ABS
    • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)
