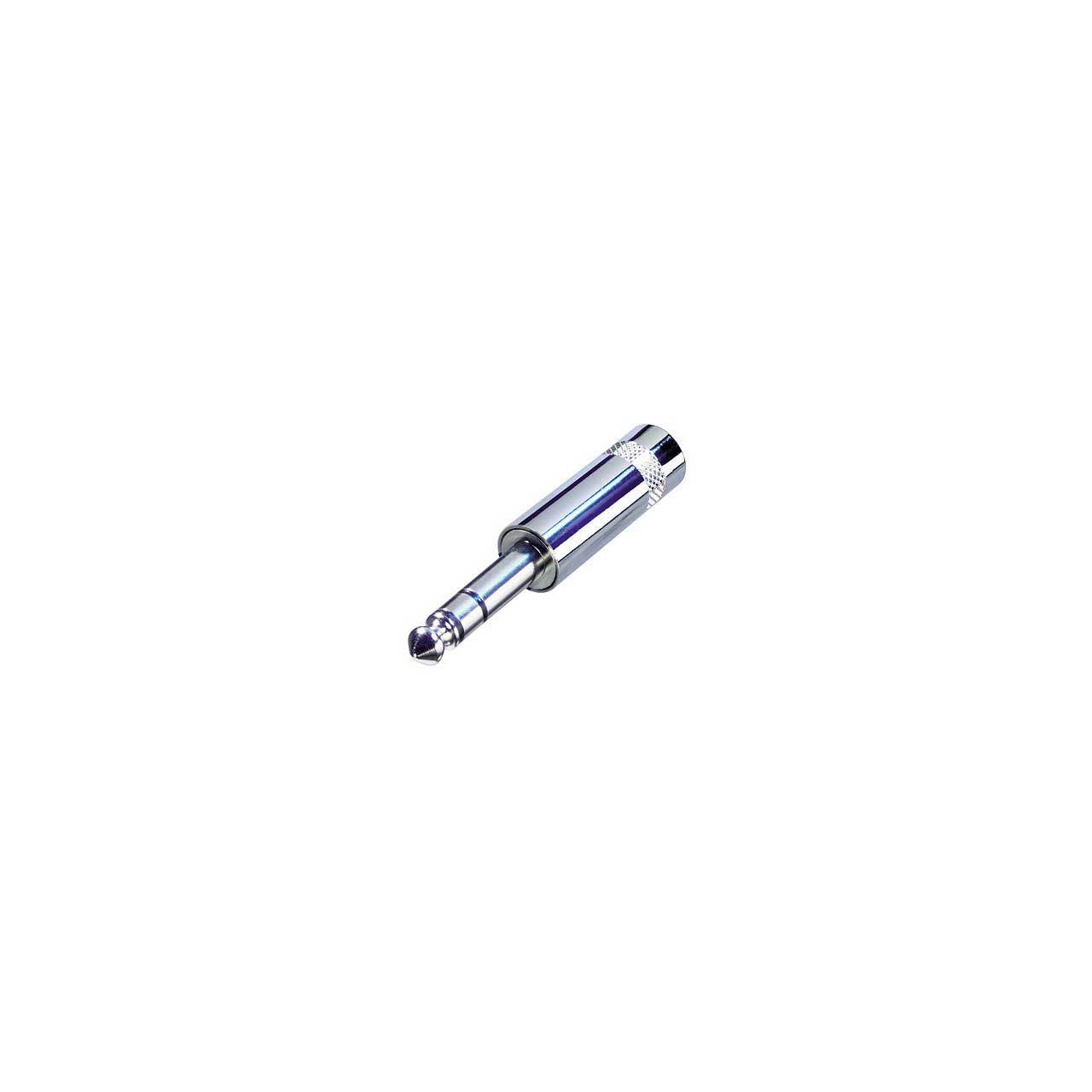

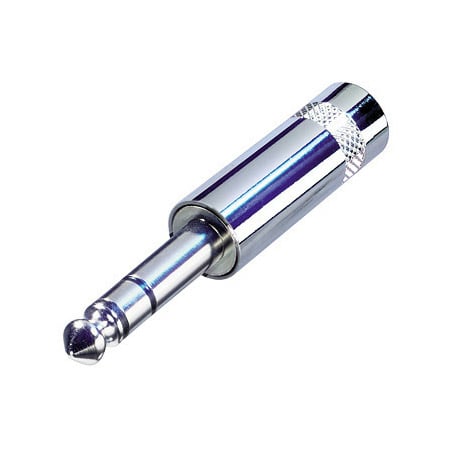

Rean NYS202 1/4 Inch 3-Pole Plug Short Turned Brass Handle

NYS202 - Overview

• Features:

  • 1/4 Inch 3-Pole Plug Short Turned Brass Handle
  • Commercial 1/4" plugs and adapters
  • All connectors according to EIA RS-453 / IEC 60603-11
  • Short and long turned brass handles
  • Plastic handle with flexible strain relief
  • Heavy duty cable clamp for best strain relief


• Specifications:

  • Electrical
  • Dielectric Strength: 0.5 kVdc
  • Insulation Resistance: = 1 GO
  • Contact Resistance: Depends on Mating Connector
  • Rated Current: Depends on Mating Connector

    Mechanical
  • Cable O.D.: = 6 mm
  • Lifetime: 1000 mating cycles
  • Wiresize: 24 AWG

    Material
  • Contact plating: 2 æm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel
  • Insulation: Thermoplastic
  • Strain Relief: Crimp type SnCe plated

    Environmental
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -4°F - 21.1°F (-20°C - 70°C)


• GTIN:

  7613187016172
