Neutrik NP2RX-AU-SILENT Right Angle Gold Plated Silent Plug

ITEM #: NP2RX-AU-SILENT MFG #: NP2RX-AU-SILENT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$17.40

Our Price:

$14.91

Availability: In Stock
iAvailability Description Popup


NP2RX-AU-SILENT - Overview

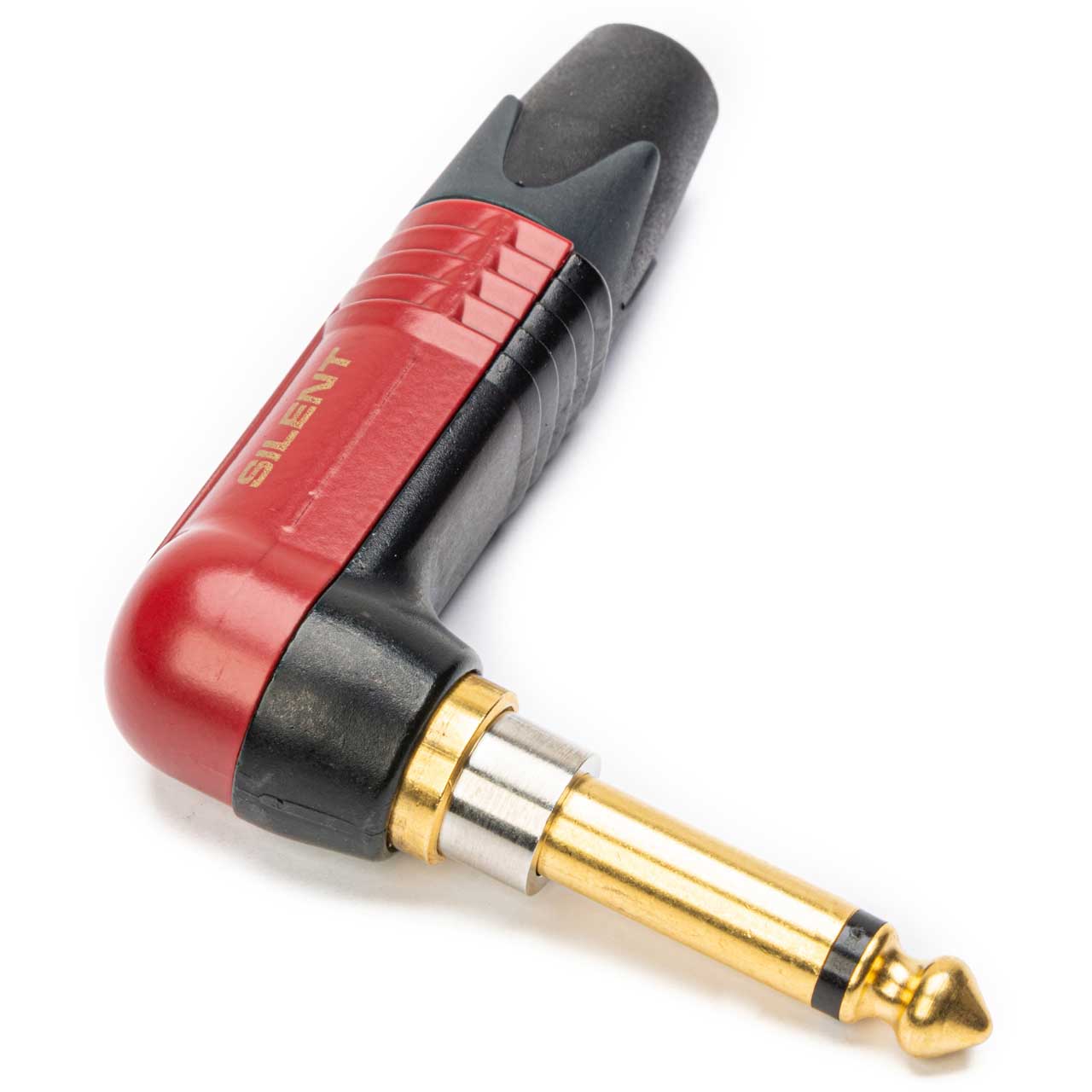

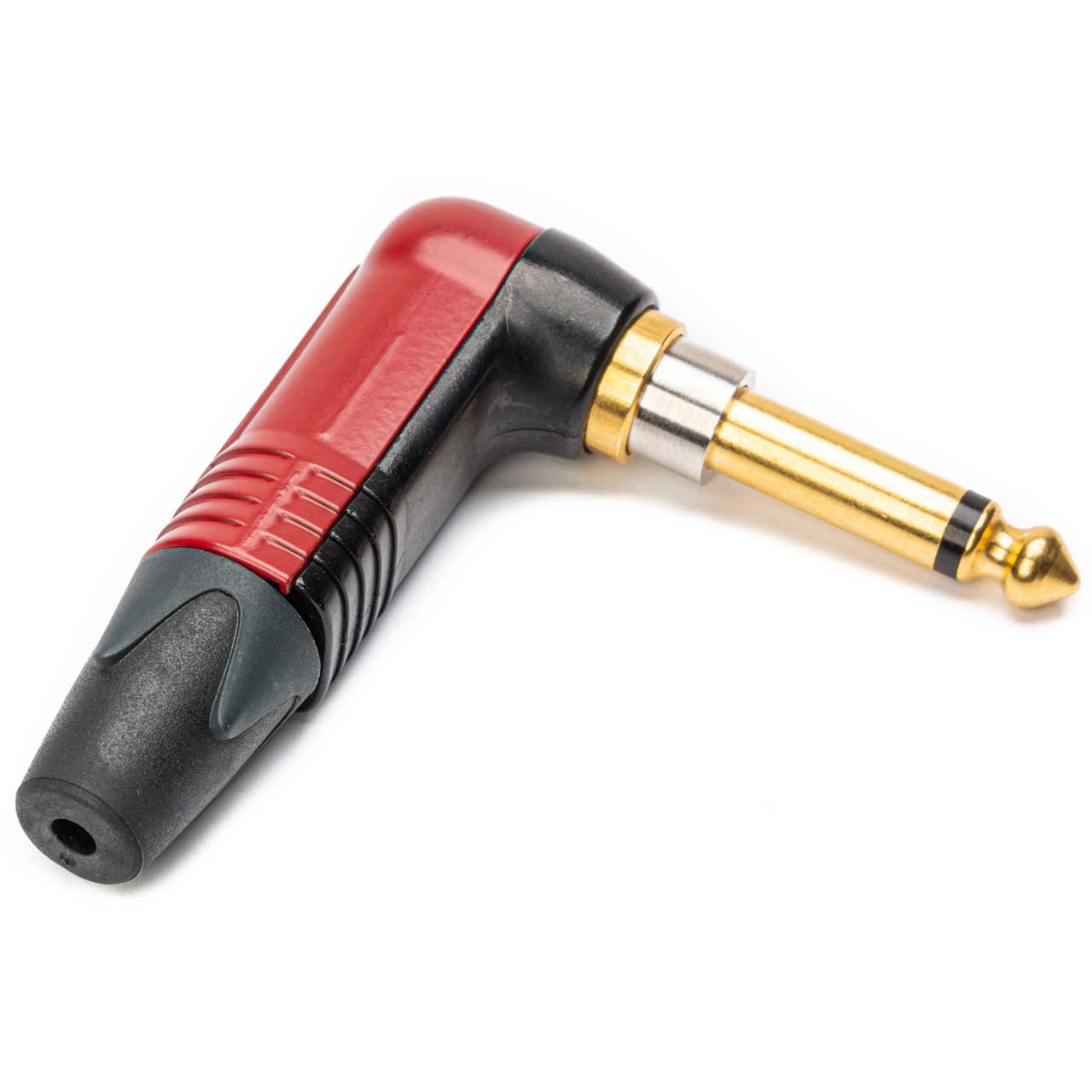

The Neutrik NP2RX-AU-SILENT is a 2 pole right angle 1/4 inch professional phone plug with gold plated contacts, a red coating, and specially designed silent switch. This special version of the 2 pole plug has an integrated switch which automatically mutes (shorts) a guitar cable to avoid annoying pops and squeals when hot swapping guitars. The integrated silent switch is based on REED technology and guarantees a lifetime beyond 10,000 mating cycles. To further guarantee the electrical contact necessary for the Reed switch solder has been added between the Reed and Sleeve.

  • Features:

    • Hermetically sealed and magnetically operated switch
    • No wear, constant contact resistance
    • No corrosion or pollution of switch, durable and long-lasting
    • Lifetime beyond 10,000 mating cycles
    • Now soldered between the Reed and Sleeve to assure contact

  • Specifications:

    • Gender: Male
    • Connection Type: Plug
    • Contact Resistance: Depends on mating connector mΩ
    • Dielectric Strength: 0.2kVdc
    • Insulation Resistance: > 2GΩ (initial)
    • Rated Current per Contact: depends on mating connector A
    • Rated Voltage: < 50V
    • Cable O.D.: 4 - 7mm
    • Lifetime: >1000 mating cycles
    • Wiresize (mm/AWG): 1mm²/18AWG
    • Wiring: Solder contacts
    • Bushing: Polyacetal (POM) + PU
    • Contact Plating: 0.2µm Au
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30% GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Partly red coated, black chromium plated
    • Strain Relief: Polyacetal (POM)
    • Standard Compliance: IEC 60603-11/EIA RS-453
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -4°F - 149°F (-20°C - 65°C)

  • GTIN:

    7613187000799
