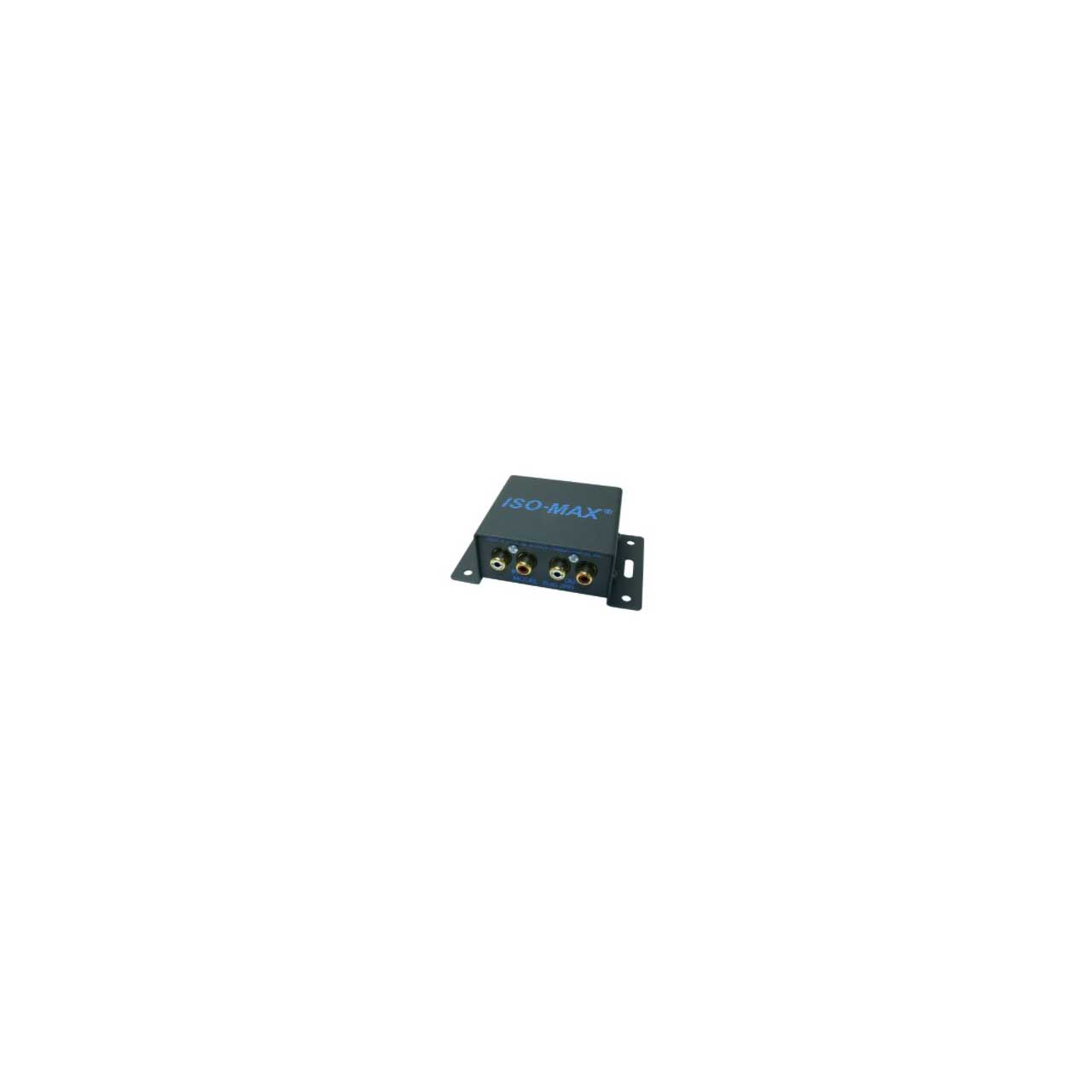

Jensen Iso-Max SUB2RR Two Channel Low-Frequency Sub-Woofer Audio Isolator (RCA)

ITEM #: JEN-SUB2RR MFG #: SUB-2RR

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$241.99

Our Price:

$219.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SUB-2RR - Overview

Eliminates hum and buzz caused by ground loops

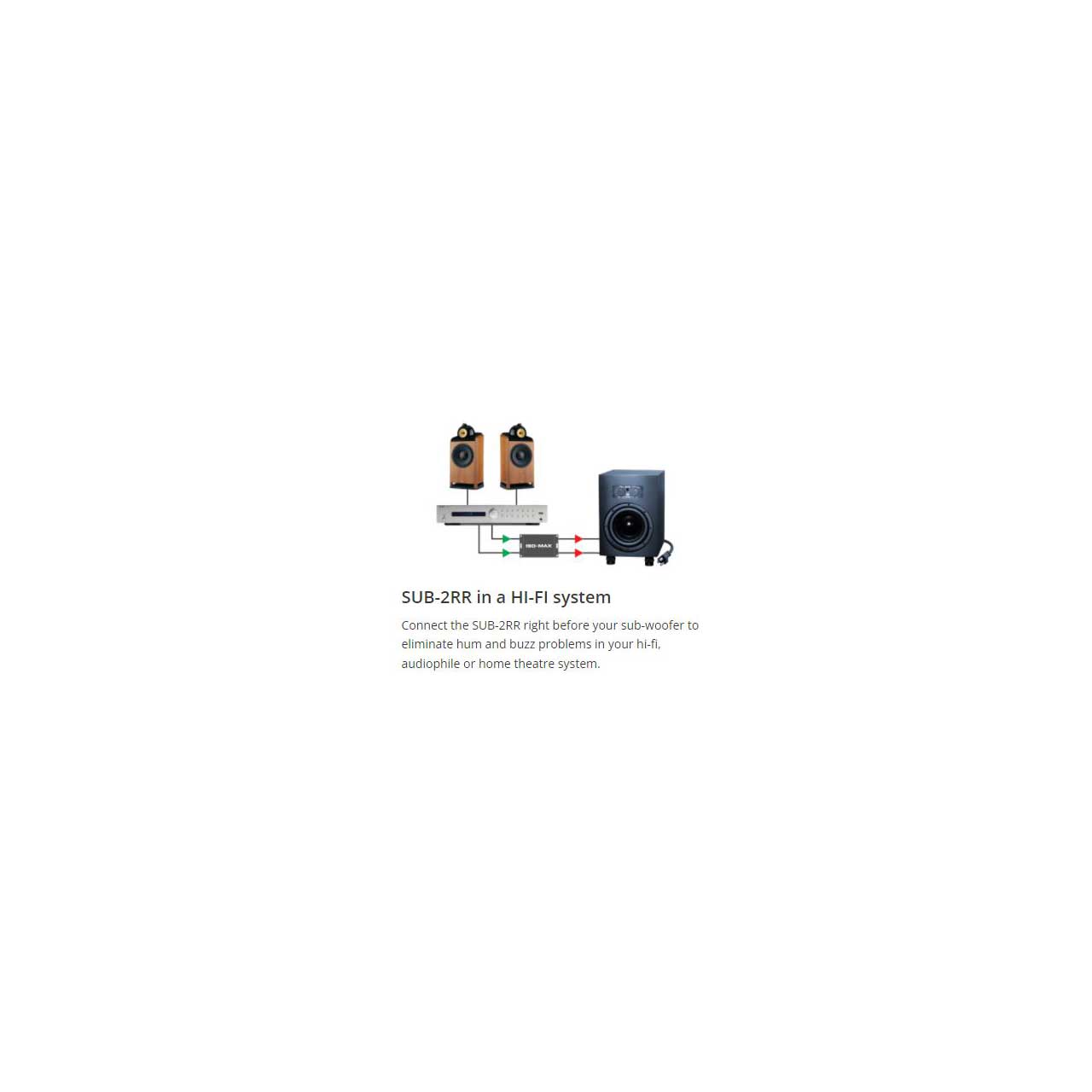

The Jensen Iso-Max SUB2RR is a two channel low-frequency isolator designed especially for use with sub-woofers that are designed with stereo inputs to eliminate hum and buzz caused by ground loops.

Inside, a specially designed Jensen audio transformer with extended sub-sonic response delivers powerful and articulated bass for maximum impact. Even when being subjected to extremes, the SUB-2RR is able to gracefully handle low frequencies down to 20Hz with less than 0.01% distortion and less than 1dB of phase shift. And with better than 100dB of common mode noise rejection, it solves the most difficult installation problems so that you can enjoy the full performance of your audio system without noise.

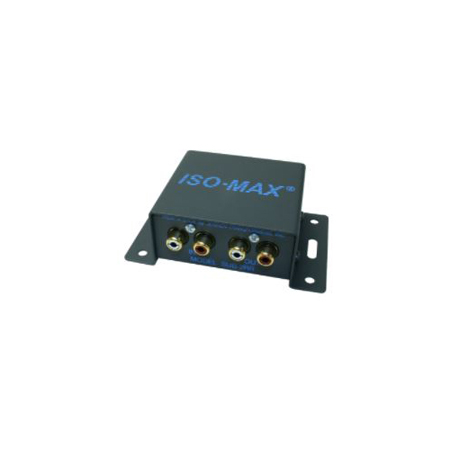

Housed in a heavy duty steel enclosure, the SUB-2RR is equipped with a `screw down flange' for easy mounting inside an equipment rack, under a shelf or directly on the sub woofer. Gold plated RCA connectors ensure optimal signal transfer and will not corrode over time. The passive design does not require any power. You merely plug in and it goes to work without artifact or signal degradation. These combined features make the Iso-Max SUB-2RR ideal for home theater, studio and car audio installations.

  • Features:

    • Eliminates hum and buzz caused by ground loops
    • Extended low frequency response down to 1Hz
    • Less than 0.01% distortion at 20Hz
    • Plug and play easy to use, no power required

  • Specifications:

    • Input Impedance:
    • 39.4㏀ (100Hz, -10dBV, test circuit 1)

    • Deviation from linear phase (DLP):
    • +0.7/-0 ° (10Hz to 2kHz, -20dBV, test circuit 1)

    • Distortion (THD):
    • 0.01 % (20Hz, -10dBv, test circuit 1)

    • Maximum 20Hz input level:
    • -18 dBV (1% THD, test circuit 1)

    • Common-mode rejection ratio (CMRR):
    • 105 dB (60Hz, test circuit 2)

    • Output Impedance:
    • 5㏀ (100Hz, test circuit 1)

    • Input DC Resistances:
    • 1.73㏀

    • Output DC Resistances:
    • 2.74㏀

    • Capacitances at 1kHz:
    • 85 pF (1kHz, input to output)

    • Allowable Source Impedance:
    • 600 ohms (output impedance of device driving the ISO-MAX input)

    • Allowable Load Impedance:
    • 47㏀ (input impedance of device loading the ISO-MAX output)

    • Operating Temperature (Maximum):
    • 158°F

    • Operating Temperature (Minimum):
    • 32°F

  • Item Includes:

    • SUB2RR Two Channel Low-Frequency Sub-Woofer Audio Isolator

  • Warranty:

    • For a period of 1 YEAR after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any part of an ISOMAX® product that fails due to defective materials or workmanship.
      For a period of 20 YEARS after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any Jensen OEM transformer or any Jensen tranformer contained in an ISOMAX® product that fails due to defective materials or workmanship.

  • GTIN:

    0657248890094
