Clear-Com MT-701 Encore Intercom System Hum Isolation Box

MT-701 - Overview

• Features:

  • Isolation Box
  • One termination required between connected systems
  • Status information LEDs
  • Easy installation with standard XLR cables
  • High-quality enclosure for professional use


• Specifications:

  • Audio: Pin 2 Impedance: >5000 Ohms, Max Level: +2 dBu, Distortion: <0.2% THD (200Hz - 10 KHz, -10 dBu), Frequency Response: 100 KHz - 10 KHz, +2 dBu, Nominal Input Level: -18 dBu (Clear-Com).
  • Connectors: (1) XLR-3M, (1) XLR-3F.

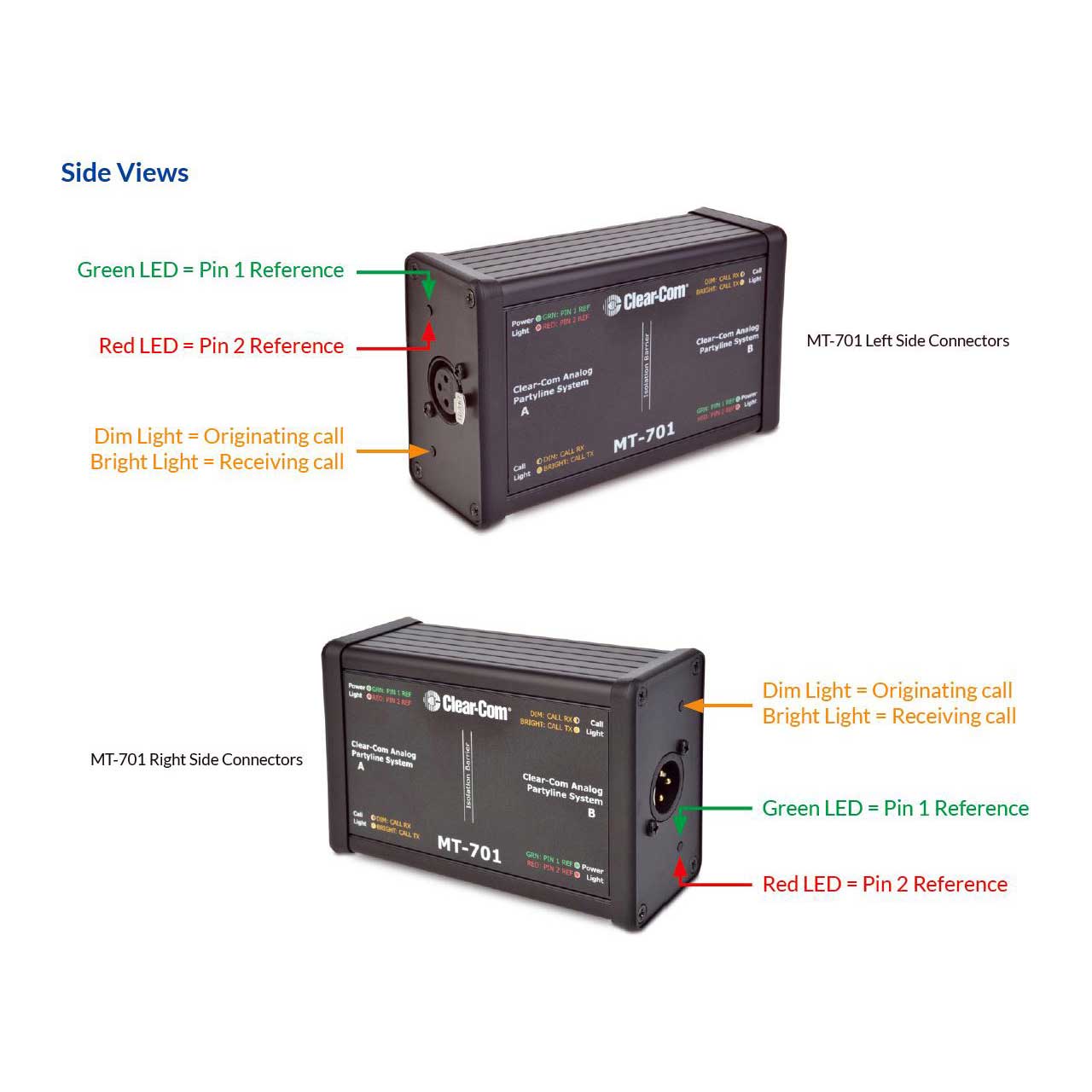

  • LED Indicators: Red (pin 2 reference), Green (pin 1 reference), Dim Yellow (originating call), Bright Yellow (receiving call).
  • Power Supply: Power Consumption: <5 mA.
  • Operating Temperature: 32°F - +122°F (0°C - +50°C).
  • Dimensions: 3.2in W x 1.8in H x 5.0in D, (81.1mm x 46.1mm x 126mm).
  • Weight: 0.6lbs (0.272kg).
