USW-PRO-24-POE - Overview

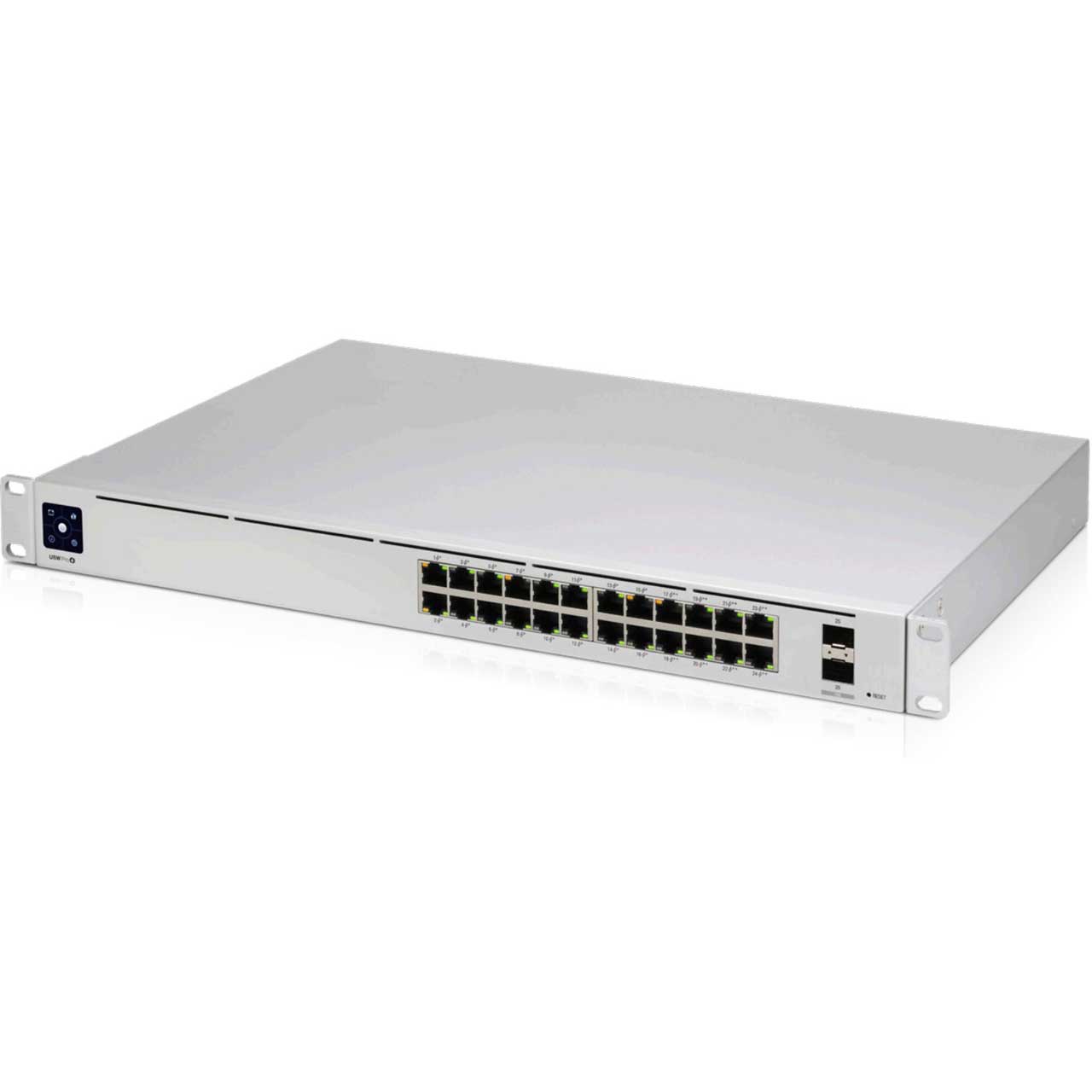

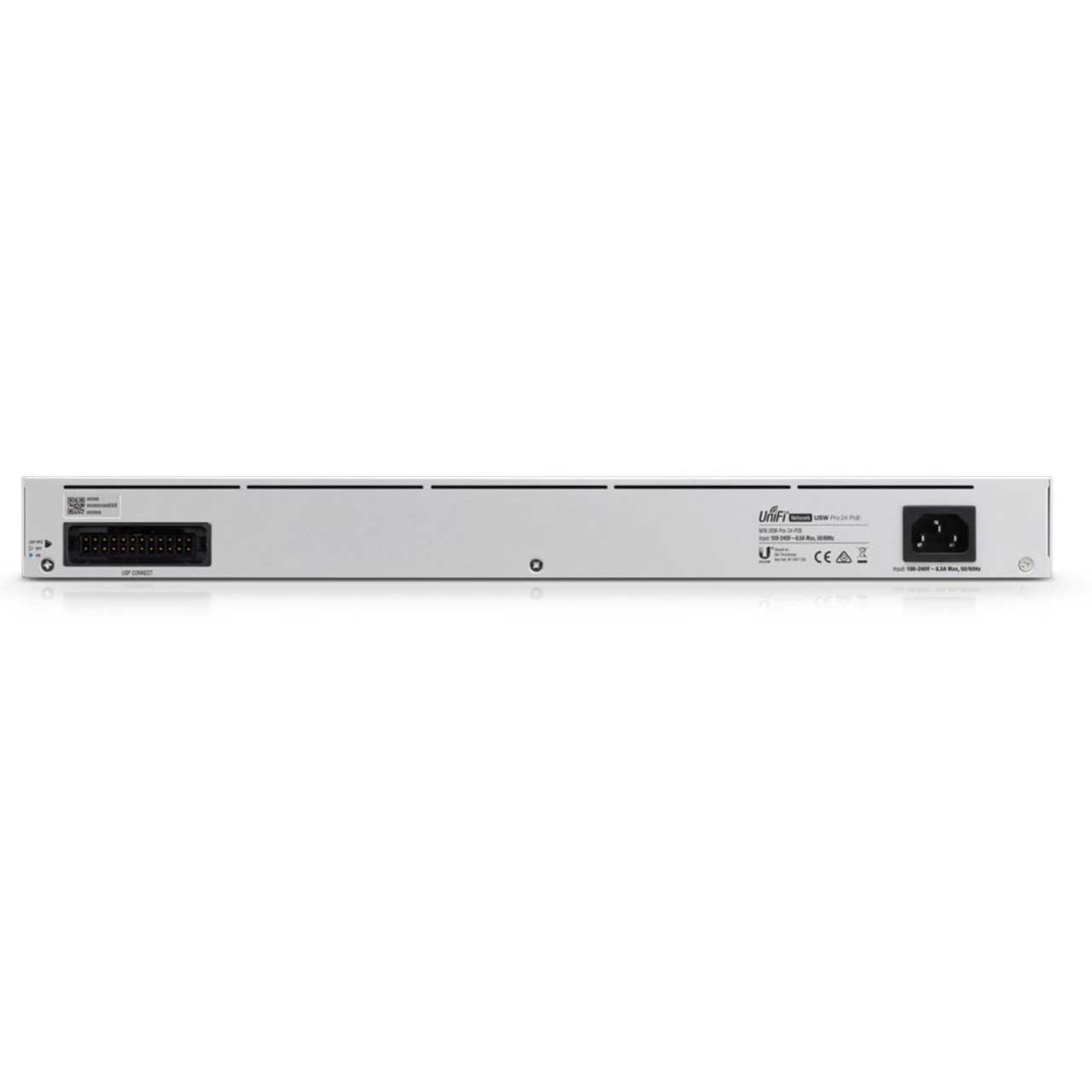

The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, PoE+ RJ45 ports, (8) GbE, PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

  • Features:

    • (1) 1.3" LCM color touchscreen with AR switch management
    • (16) GbE, PoE+ RJ45 ports
    • (8) GbE, PoE++ RJ45 ports
    • (2) 10G SFP+ ports
    • (1) USP RPS DC input
    • 400W total PoE supply
    • Near-silent cooling
    • Layer 3 switching features


  • Specifications:

    • Dimensions 442.4 x 285.4 x 43.7 mm
    • (17.42 x 11.24 x 1.72")
    • Weight
    • With Brackets
    • 4.30 kg (9.48 lb)
    • 4.39 kg (9.68 lb)
    • Interfaces
    • Networking
    • Management
    • (24) 10/100/1000 RJ45 Ports
    • (2) 1/10G SFP+ Ethernet Ports
    • Ethernet In-Band
    • Total Non-Blocking
    • Throughput
    • 44 Gbps
    • Switching Capacity 88 Gbps
    • Forwarding Rate 65.472 Mpps
    • Power Method
    • Universal Input
    • USP RPS DC Input
    • 100-240VAC, 50/60 Hz
    • 52VDC, 7.69A; 11.5VDC, 2.61A
    • Power Supply AC/DC, Internal, 450W
    • Voltage Range 100 to 240VAC
    • Max Power Consumption
    • (Excluding PoE Output)
    • 50W
    • LEDs
    • System
    • RJ45 Data Ports
    • SFP+ Data Ports
    • Status
    • PoE; Speed/Link/Activity
    • Link/Activity
    • ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
    • Shock and Vibration ETSI300-019-1.4 Standard
    • Operating Temperature -5 to 40° C (23 to 104° F)
    • Operating Humidity 10 - 90% Noncondensing
    • Certifications CE, FCC, IC
    • Total Available PoE 400W
    • PoE Interfaces
    • Ports 1-16
    • Ports 17-24
    • 802.3af/at
    • 802.3bt
    • PoE+ IEEE 802.3af/at
    • (Pins 1, 2+; 3, 6-)
    • 60W PoE++ IEEE 802.3af/at/bt
    • (Pins 1, 2+; 3, 6-)
    • (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
    • Max. PoE Wattage per
    • Port by PSE
    • 802.3at
    • 802.3bt
    • 32W
    • 64W
    • Voltage Range
    • 802.3af Mode
    • 802.3at/bt Mode
    • 44-57V
    • 50-57V
