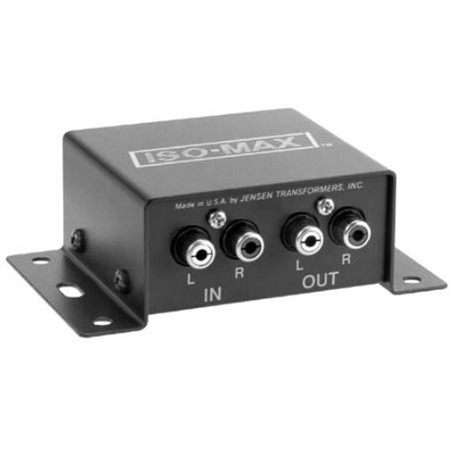

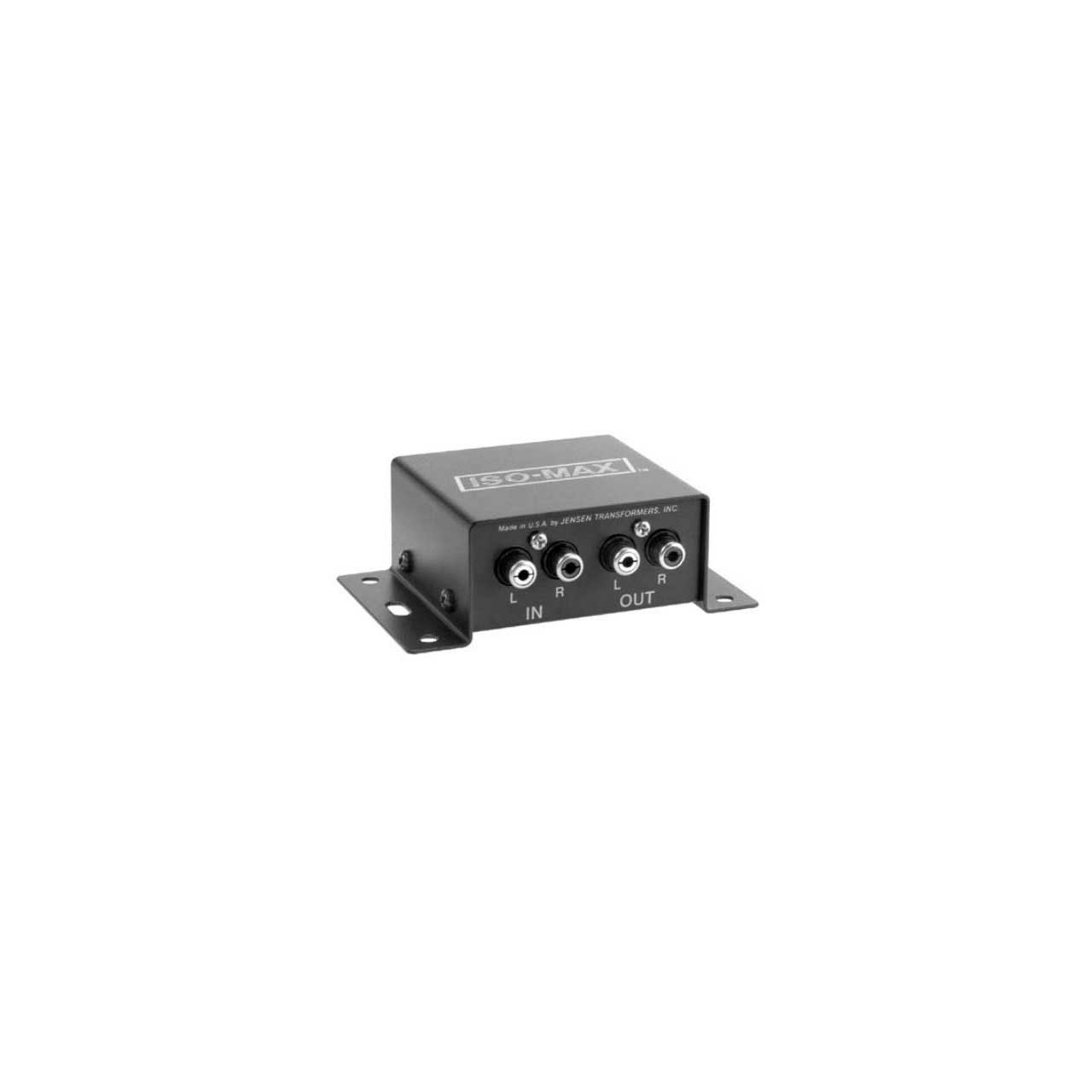

Jensen CI-2RR IsoMax Stereo Audio Isolator & Hum Eliminator

CI-2RR - Overview

Eliminates hum and buzz caused by ground loops

• Features:

  • Eliminates hum and buzz caused by ground loops
  • Extended frequency response from 10 Hz to 40 kHz
  • Less than 2° phase deviation at 20 Hz
  • Plug and play easy to use - no power required


• Specifications:

  • Type
  • Passive isolator

    Channels
  • 2 (stereo)

    Connectors
  • 2 x RCA, gold-plated, female, unbalanced (inputs)
  • 2 x RCA, gold-plated, female, unbalanced (outputs)

    Frequency Response
  • 10 Hz to 40 kHz

    Input Impedance
  • Zi, 1 kHz, +4 dBu, test circuit 1
  • Minimum: 47.0 kOhms
  • Typical: 48.6 kOhms
  • Maximum: 50.0 kOhms

    Insertion Loss
  • 1 kHz, +4 dBu, test circuit 1
  • Typical: 0.82 dB
  • Maximum: 1.00 dB

    Magnitude Response
  • 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
  • Minimum: -0.15 dB
  • Typical: -0.03 dB
  • Maximum: ±0.0 dB
  • 20 kHz, +4 dBu, test circuit 1, ref 1 kHz
  • Minimum: -1.0 dB
  • Typical: -0.70 dB
  • Maximum: ±0.0 dB

    Deviation from Linear Phase
  • 20 Hz to 20 kHz, +4 dBu, test circuit 1
  • Typical: +1.4 / -0°
  • Maximum: ±2.0°

    Distortion (THD)
  • 1 kHz, +4 dBu, test circuit 1
  • Typical: <0.001%
  • 20 Hz, +4 dBu, test circuit 1
  • Typical: 0.04%
  • Maximum: 0.10%

    Maximum Input Level
  • At 20 Hz, 1% THD, test circuit 1
  • Minimum: +17 dBu
  • Typical: +19 dBu

    Common Mode Rejection Ratio
  • 60 Hz, test circuit 2
  • Typical: 95 dB
  • 3 kHz, test circuit 2
  • Typical: 85 dB

    Output Impedance
  • Zo, 1 kHz, test circuit 1
  • Typical: 4.65 kOhms

    Source Impedance Minimum:
  • 0 Ohm
  • Typical: 600 Ohms
  • Maximum: 2 kOhms
  • (Allowable output impedance of device driving the ISO-MAX input)

    Load Impedance
  • Minimum: 10 kOhms
  • Typical: 47 kOhms
  • Maximum: ∞
  • (Allowable input impedance of device loading the ISO-MAX output)

    Load Capacitance
  • Minimum: 0 pF
  • Typical: 50 pF
  • Maximum: 100 pF
  • (Allowable cable and input capacitance loading the ISO-MAX output)

    Optimal Cable Length Input
  • Typical: 9.8' / 3 m
  • Maximum: 26.2' / 8 m

    Temperature Range
  • 32 to 158°F / 0 to 70°C
  • (Operation or storage)

    Voltage Difference
  • Maximum: 24 V RMS, 34 V peak
  • (Input to output, any input to any output shield or any shield to case, 60 Hz)


• Item Includes:

  • CI-2RR IsoMax Stereo Audio Isolator & Hum Eliminator


• Warranty:

  • For a period of 1 YEAR after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any part of an ISOMAX® product that fails due to defective materials or workmanship.
    For a period of 20 YEARS after purchase, Jensen Transformers, Inc. will, free of charge, repair or replace any Jensen OEM transformer or any Jensen tranformer contained in an ISOMAX® product that fails due to defective materials or workmanship.
