Sescom RCA to XLR Audio Level Converter with Level Controls

ITEM #: SES-ON-THE-LEVEL MFG #: SES-ON-THE-LEVEL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Sescom
Free Shipping with $49 Minimum Order

List Price:

$139.95

Our Price:

$135.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SES-ON-THE-LEVEL - Overview

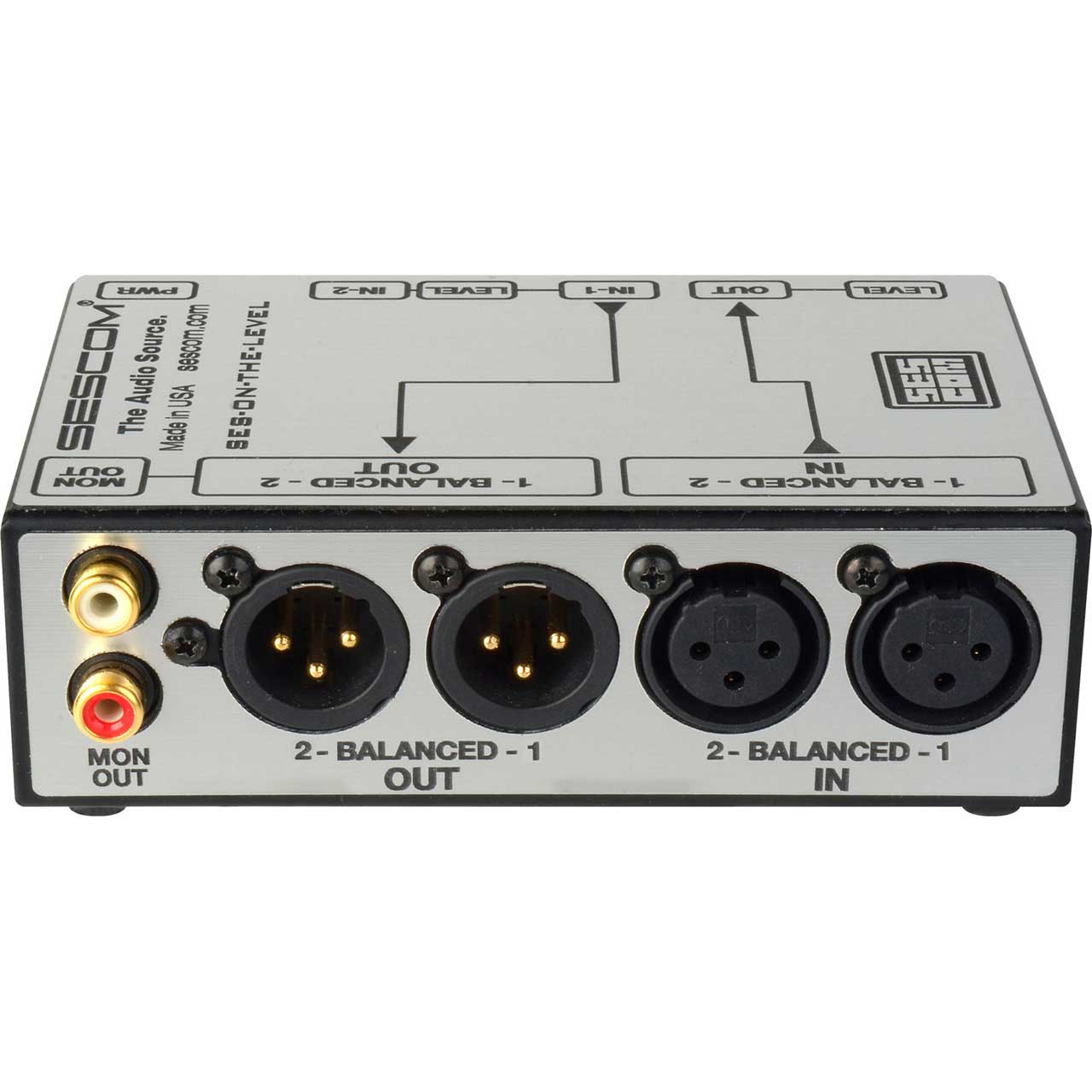

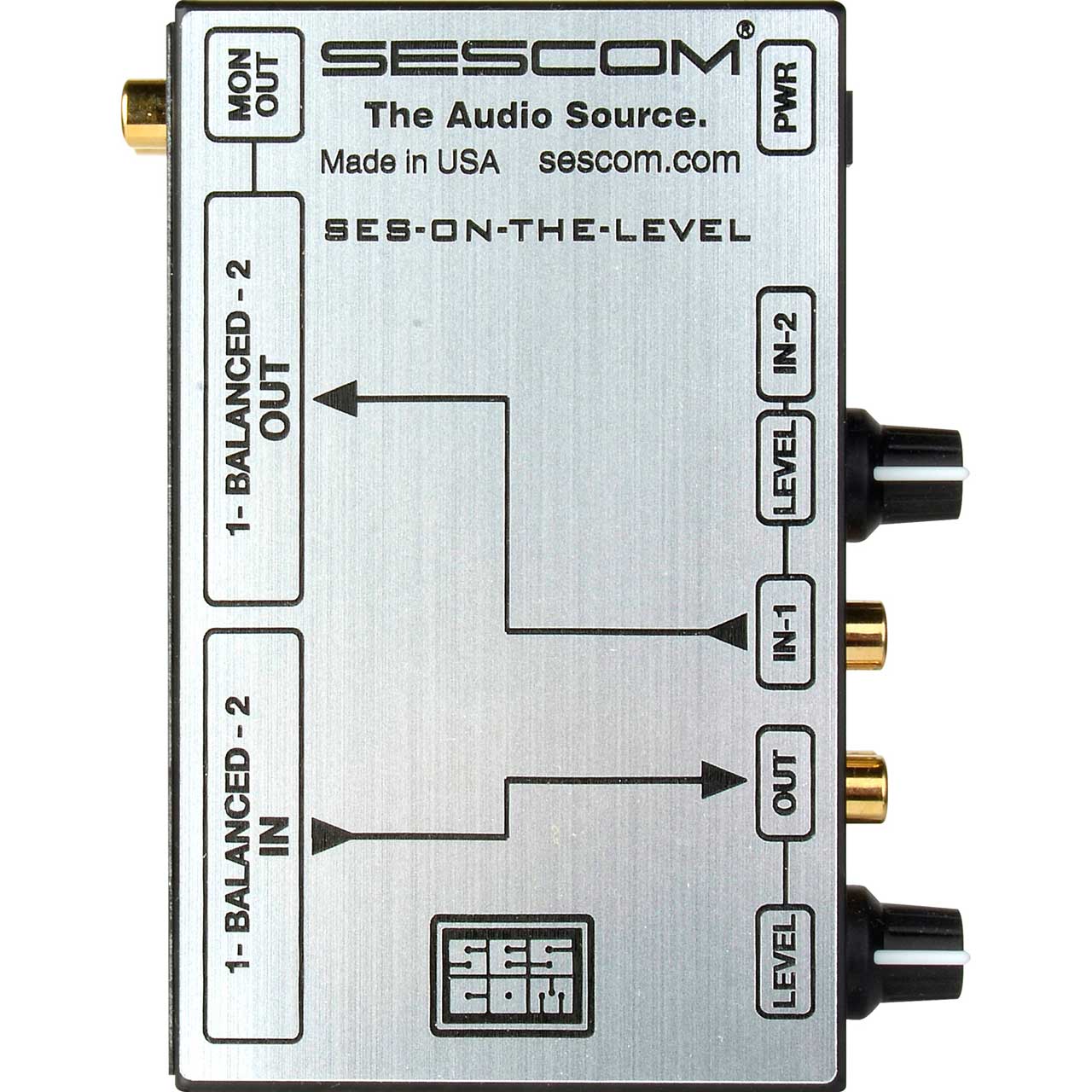

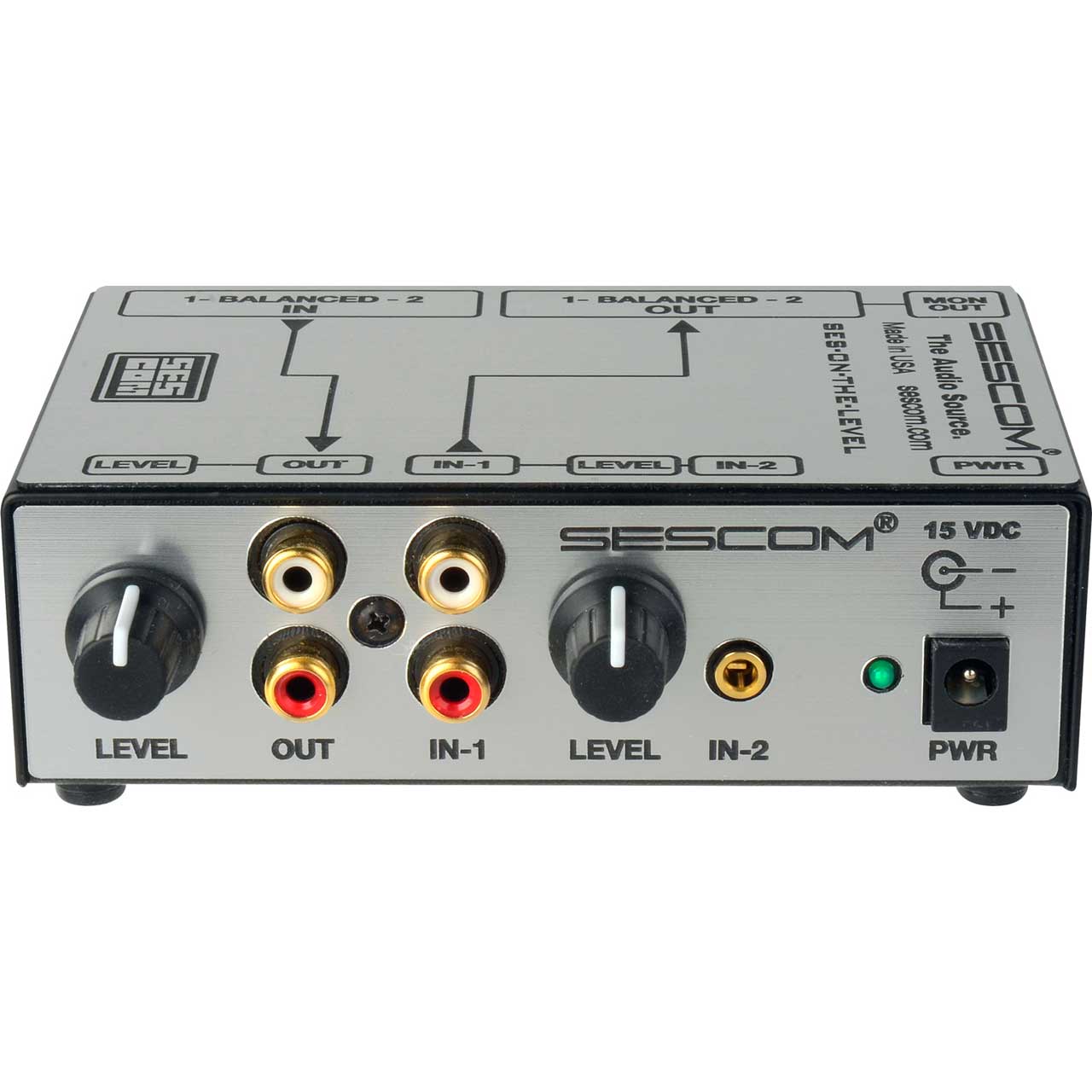

The SES-ON-THE-LEVEL is a feature rich, bidirectional balanced to unbalanced audio level converter with level controls. The product is provided with XLRs for Balanced I/O and RCA for Unbalanced I/O. The SES-ON-THE-LEVEL also features a 3.5mm (1/8") stereo audio input that's compatible with iPod & similar MP3 players. Balanced line outputs (L/R RCA) are also provided to feed a stereo amplifier for real time monitoring.

The SES-ON-THE-LEVEL has an output for monitoring and confirming either direction, without disturbing the conversion. 12VDC powered - AC adapter included.
Rugged, all metal cabinet. 3" x 5" x 1.5".

  • Features:

    • Stereo balanced line level controller
    • Stereo Direct Box
    • Stereo RCA to stereo XLR
    • Stereo Level control for each channel
    • 3.5mm Headphone level to line level adaptor


  • Specifications:

    • Input Impedance: RCA : 100k Ohm, XLR: 10 k Ohm, 3.5mm stereo: 10k Ohm
    • Output Impedance: RCA: 100 Ohm, XLR: 100 Ohm balanced
    • Max Out: Balanced: +18 dB / Unbalanced: +12 dB
    • Max In: Balanced: +22 dB / Unbalanced: +22 dB
    • Gain @ +4 dB In: -8 dB
    • Gain @ -10 dB In: + 20 dB
    • Noise Floor: -88 dB
    • THD: .003%
    • Power: 15 VDC adapter (Please note the center is negative)
    • Weight: 1 lbs. (.45 Kg)


  • Warranty:

    • 1 Year
