IS-KIT-Q-ST - Overview

The Optical Wavelength Labs Installer Series Quad MM/SM Test Kit with ST Connectors contains the tools necessary for certifying fiber optic links against a myriad of cabling standards, including two user-customizable standards, in both multimode and singlemode networks. Installer Series test kits are ideal for the fiber optic professional who requires standards-based certification of fiber links, including TIA-568, ISO 11801, various Ethernet standards, among others. The Fiber OWL 7 LITE can also be configured with custom standards to meet the needs of various fiber optic applications.

Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed.

The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards.

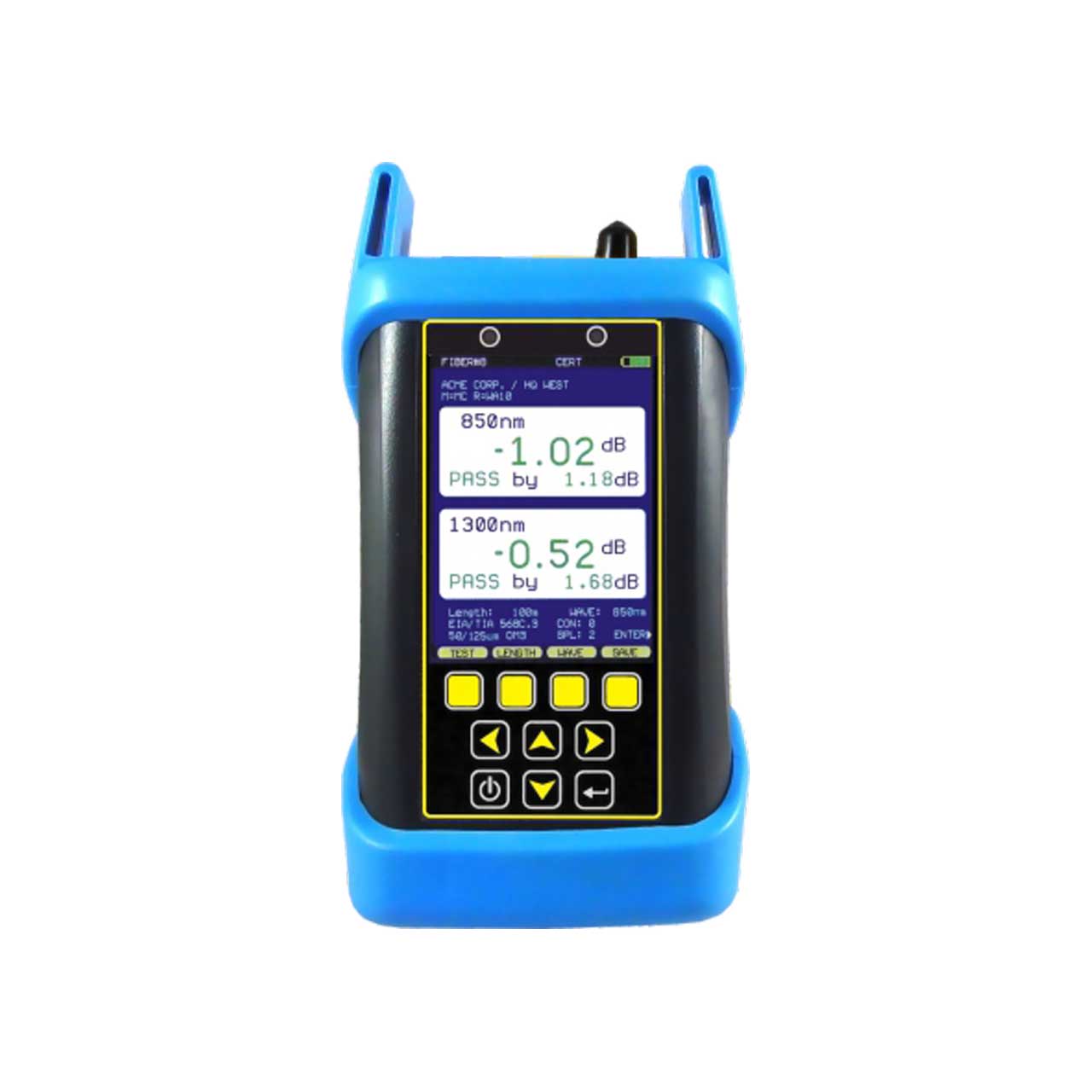

The Fiber OWL 7 optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation, and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, and downloaded to a PC for report generation using our OWL Reporter software. Its universal port allows connections to ST, SC, and FC, and also includes a 1.25mm universal port for connection to LC, MU, and other SFF connectors.

The WaveSource Quad fiber optic light source contains all four popular industry-standard wavelengths in a single unit, designed for accurate testing and certification of multimode (850nm & 1300nm) and singlemode (1310nm & 1550nm) networks. Its quad-wavelength outputs are temperature stabilized for accurate measurements, and are housed in SC connector ports.

Applications:
Full-featured Tier 1 fiber link certification
Optical loss (attenuation) measurement
Optical power measurement
Continuity testing
Patch cord verification

  • Features:

    • Standards-based link certification for multimode and singlemode fiber links
    • Color LCD indicates PASS / FAILstatus based on color
    • Unlimited job configurations
    • User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
    • Auto-wavelength recognition and data storage reduces testing time and human error
    • Up to 10,000 test readings can be stored in memory
    • Prints official certification reports via OWLView certification software
    • Re-chargeable Lithium Polymer battery
    • NISTTraceable


  • Specifications:

    • Fiber OWL 7 Optical Power Meter
    • Detector Type: InGaAs
    • NIST Traceable Wavelengths: 850, 980, 1300, 1310nm, 1490, 1550, 1625nm
    • Optical Power Measurement Range: +5 to -70 dBm
    • Accuracy: ±0.15 dB
    • Resolution: 0.01 dB
    • Battery Life: up to 50 hours (Lithium Polymer)
    • Connector Type: Universal (2.5mm & 1.25mm)
    • Data Storage Points: up to 10000
    • Download Data Points: OWL Reporter Software
    • Power Units Displayed: dBm, dB, mW, æW, nW
    • Modes of Operation: Simple / Certification
    • Battery Capacity Display: Yes
    • Backlight: Yes
    • NIST Traceable: Yes
    • Auto-shutdown: Yes
    • Operating Temperature: -10 to 55 C
    • Storage Temperature: -30 to 70 C
    • Dimensions: 2.9 x 4.49 x 1.3 Inch
    • Weight: 373g (12 oz.)

    • WaveSource Pro Quad Fiber Optic Light Source
    • Launch Method (multimode): LED
    • Launch Method (singlemode) FP Laser
    • Connector Type: ST
    • Center Wavelength (850nm): 850 +30/-10nm
    • Center Wavelength (1300nm): 1300 ±50 nm
    • Center Wavelength (1310nm) 1310 ±30nm
    • Center Wavelength (1550nm) 1550 ±30nm
    • Spectral Width (FWHM; 850 nm): 50nm
    • Spectral Width (FWHM; 1300nm): 180nm
    • Spectral Width (FWHM; 1310nm) 2nm
    • Spectral Width (FWHM; 1550nm) 2nm
    • Output Power (multimode) -20.0 dBm
    • Output Power (singlemode) -10.0 dBm
    • Initial Accuracy: +/- 0.1 dB
    • Ouput Modes: Continuous Wave; Modulated
    • Battery Life: Up to 150 Hours (rechargeable lithium polymer)
    • Battery Type: Lithium Polymer
    • Battery Capacity Display: Yes
    • Operating Temperature: 0 to 55° C
    • Storage Temperature: 0 to 75° C
    • Width: 2.75"
    • Height: 4.94"
    • Depth: 1.28"
    • Weight: 10 oz.

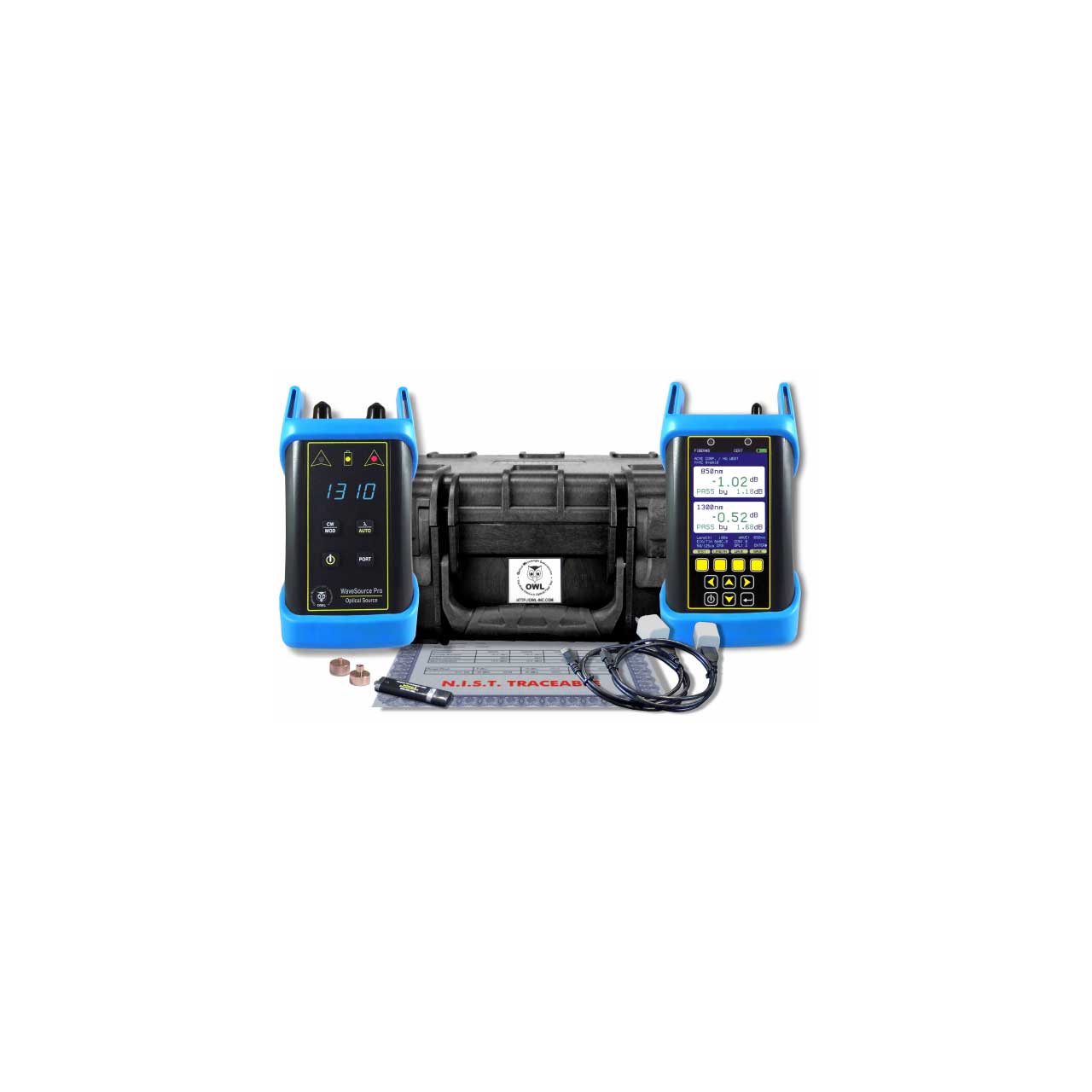

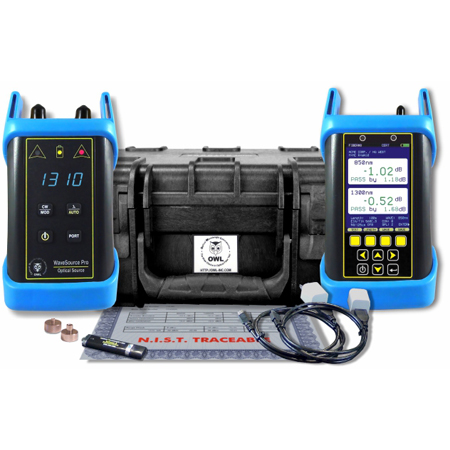

  • Item Includes:

    • Power Meter: Fiber Owl 7 - ST Connectors
    • Light Source: Wavesource Quad
    • Accessories: Owl Reporter Software
    • Product Manuals
    • Download Cable
    • Nist Certificate
    • Carrying Case
    • Protective Rubber Boots
    • Patch cables are not included
