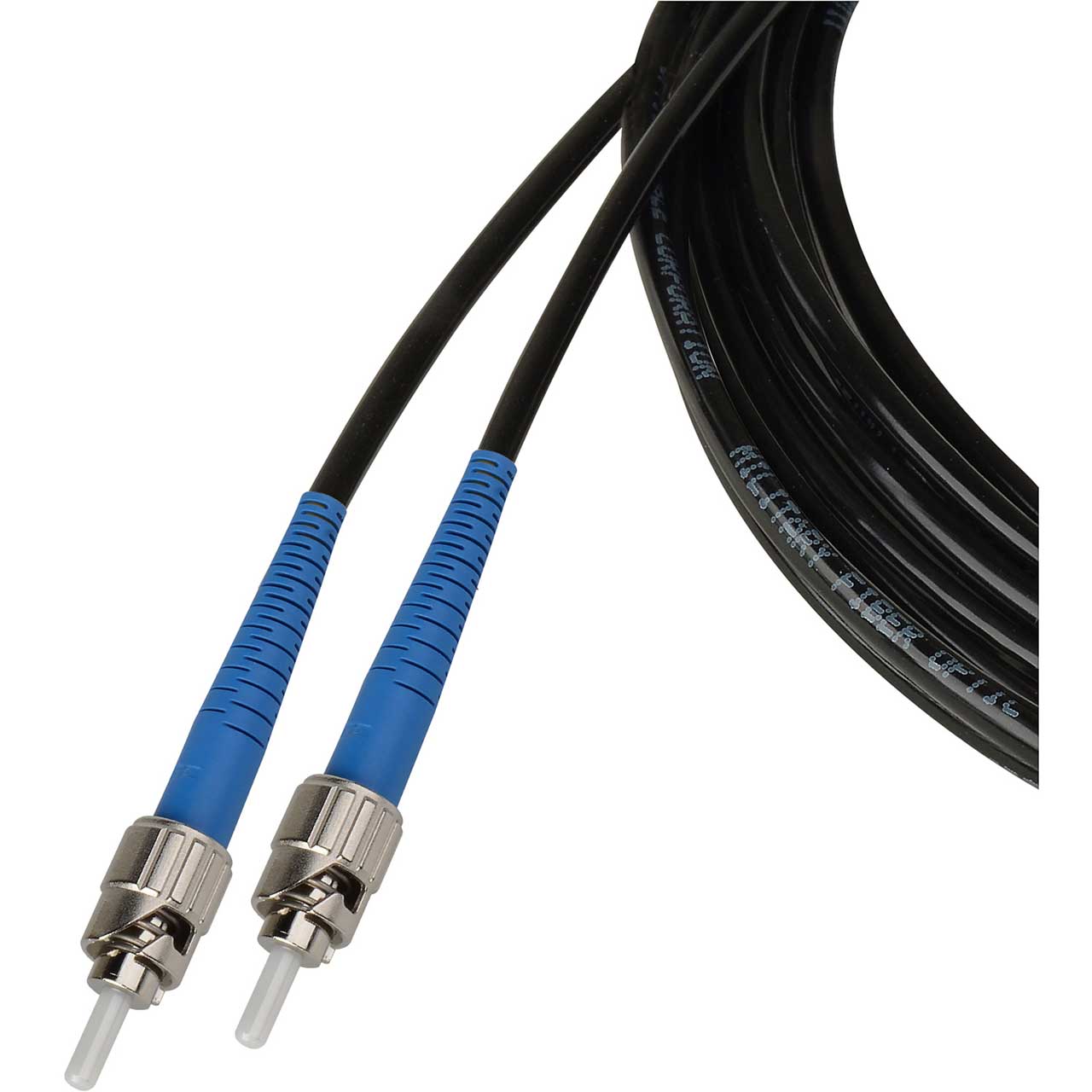

Camplex TAC1 Simplex Single Mode ST Fiber Optic Tactical Cable - 10 Foot

ITEM #: HF-T1SM-ST-0010 MFG #: HF-T1SM-ST-0010

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$70.49

Our Price:

$61.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HF-T1SM-ST-0010 - Overview

Extremely Rugged & Lightweight Single Channel SC Simplex Singlemode Tactical Cables for Broadcast & Pro-Audio Applications!

This single channel tactical cable is designed for Military Tactical deployment applications and meets all outdoor tactical needs for broadcast applications requiring an outdoor rated crush and impact resistant design. The tough Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. A complete set of test documentation of your cable is available upon request.

Please Note: LC and FC UPC and APC connectors are also available. Custom Lengths & Configurations Always Available!

  • Features:

    • Strong & Lightweight Broadcast Deployable Cable
    • Indoor/Outdoor Rated Jacket
    • Typical RL <-55dB and IL<0.25dB
    • Wide Temperature Range (typically -55°C to 85°C)
    • 500µm Primary Acrylate Buffer with 900µm Secondary Hard Elastomeric Buffer (Ultra-Fox Plus)
    • Polyurethane Core-Locked Outer Jacket Provides Excellent Crush & Impact Resistance
    • Rugged Metal Dust Caps with Cable Lanyards


  • Specifications:

    • Industry Standard Designation: Single-Mode ITU-T G.652.A
    • Core/Cladding Diameter (µm): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (µm): 500
    • Secondary Buffer Diameter (µm): 900
    • Zero Dispersion Slope (ps/nm2-km): 0.092
    • Proof Test Level (kpsi): 100
    • Typical RL <-55dB and IL<0.25dB
