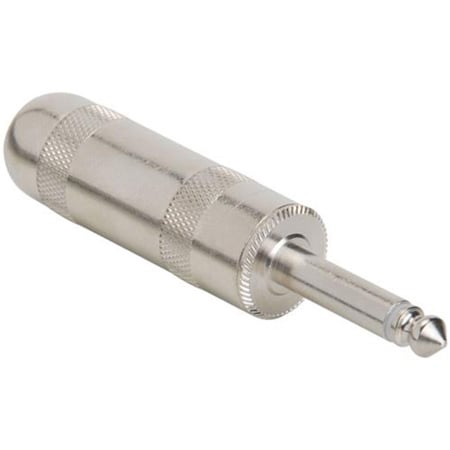

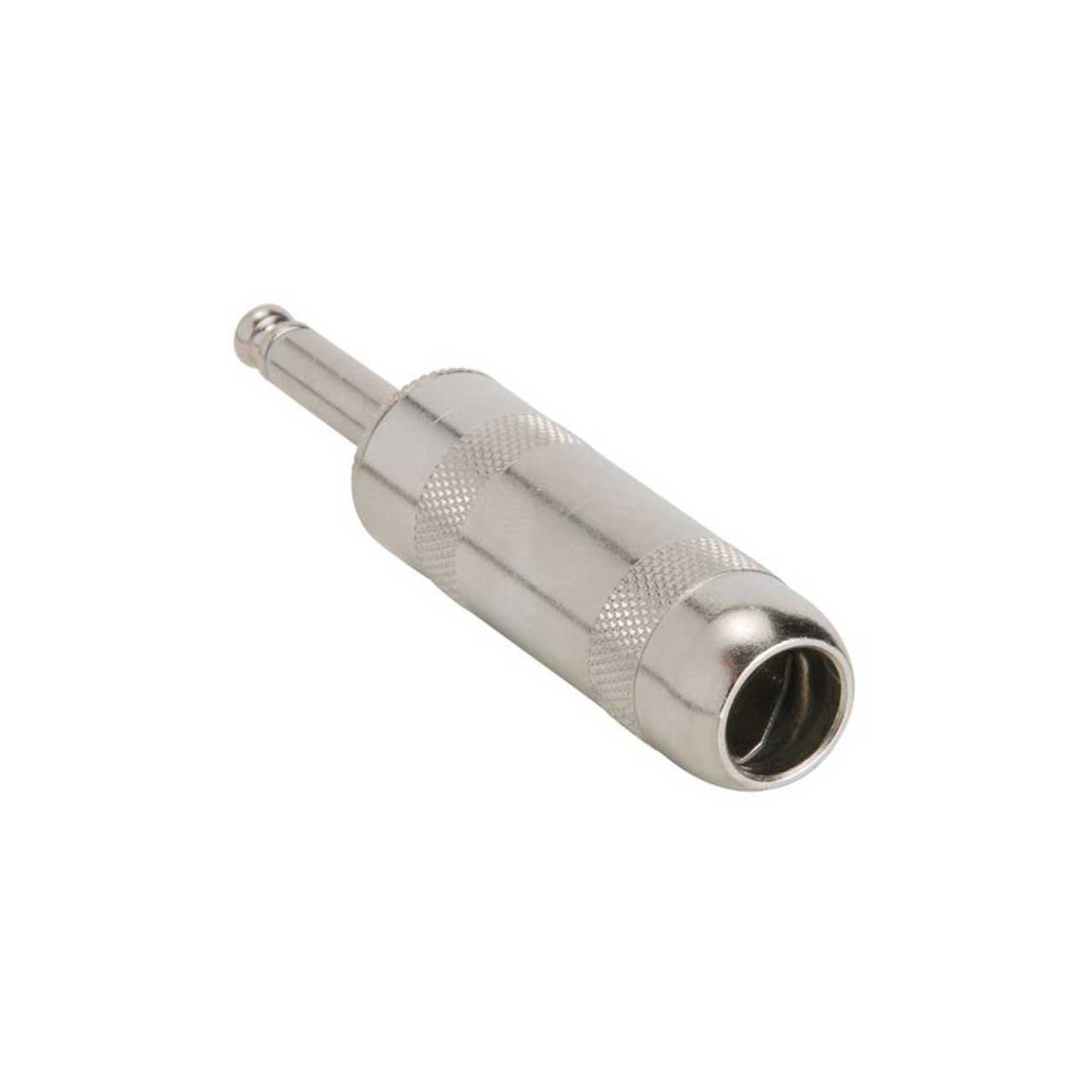

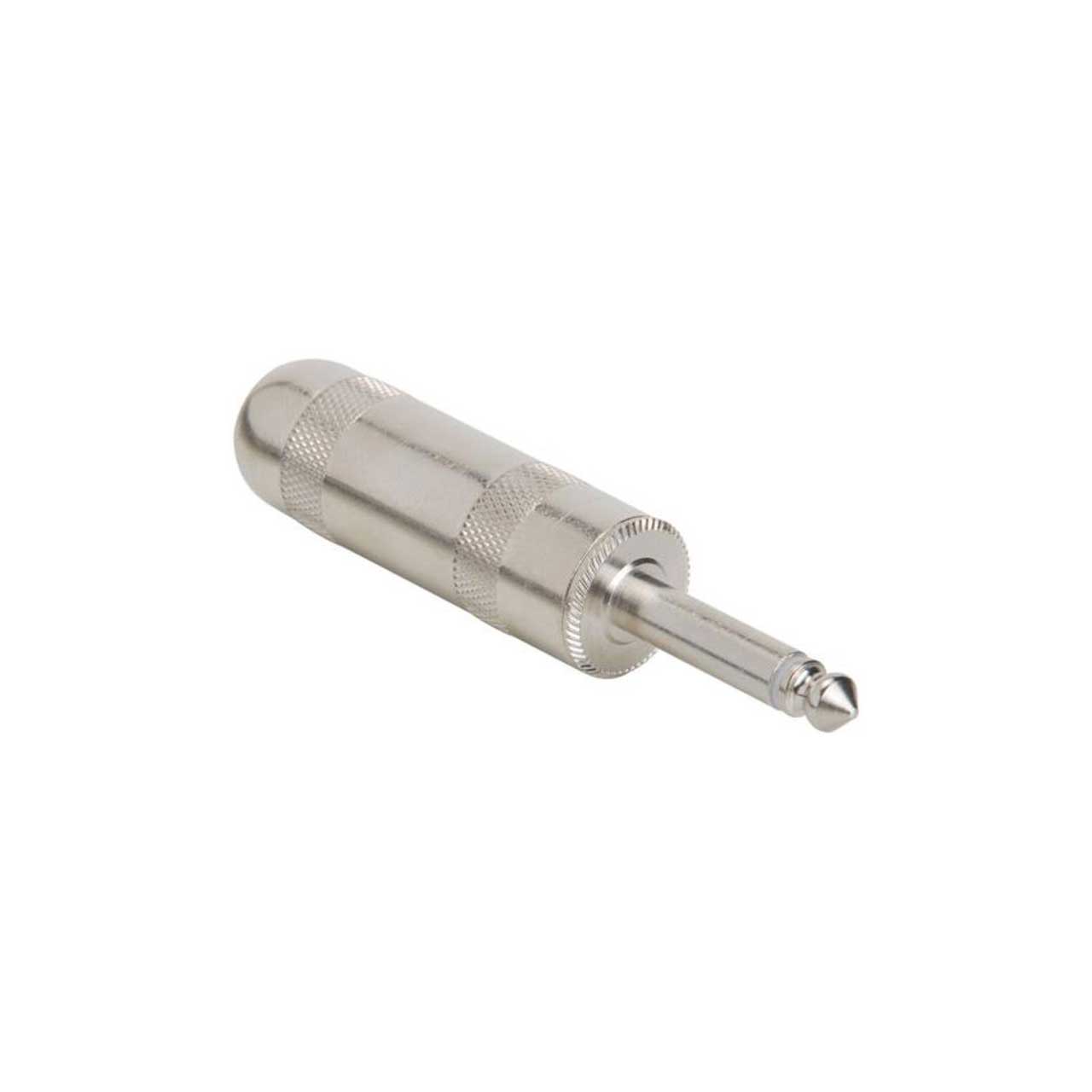

Switchcraft 188 and 299 Plugs
Switchcraft's 188 is more heavy-duty than our competitor's biggest 1/4" commercial phone plugs. Large curved tip solder terminal makes it easier to solder to heavy gauge wires. Longer sleeve terminal allows more room to make sleeve solder connections.
-
- Switchcraft's 188 is more heavy-duty than our competitor's biggest 1/4" commercial phone plugs.
- Large curved tip solder terminal makes it easier to solder to heavy gauge wires.
- Longer sleeve terminal allows more room to make sleeve solder connections.
- Extra-large cable clamp securely grips cable of up to .450" in diameter.
- Will easily accommodate some varieties of four conductor 14 gauge wire and parallel two conductor 12 gauge wire.
- Bendable tab on sleeve terminal makes termination easier by holding down cable while soldering. In addition, such mechanical retention makes for a superior solder connection.
- Will handle up to 15 A. rms (maximum).
- Current Carry @ Working Voltage For 188 Plug (typical *D.O.M.J.) : 15.0 AMPS.
- Current Carry @ Working Voltage For 299 Plug (typical *D.O.M.J.) : 6.0 AMPS.
- Maximum Cable Size For 188 Plug: 12 AWG stranded, up to .450" diameter.
- Maximum Cable Size For 299 Plug: .290" diameter.
- Insulators For 188 Plug: Thermojet plastic, thermoplastic, thermoplastic film, P.P.O.
- Insulators For 299 Plug: Thermoplastic, thermoplastic film, glass epoxy.
*D.O.M.J. - Dependent On Mating Jack
-
