Rolls MA1705 70v Mixer Amplifier 70w

ITEM #: MA1705 MFG #: MA1705

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Rolls Corporation
Free Shipping with $49 Minimum Order

List Price:

$459.00

Our Price:

$379.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

MA1705 - Overview

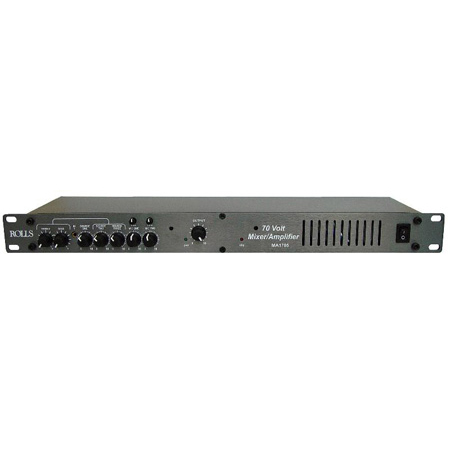

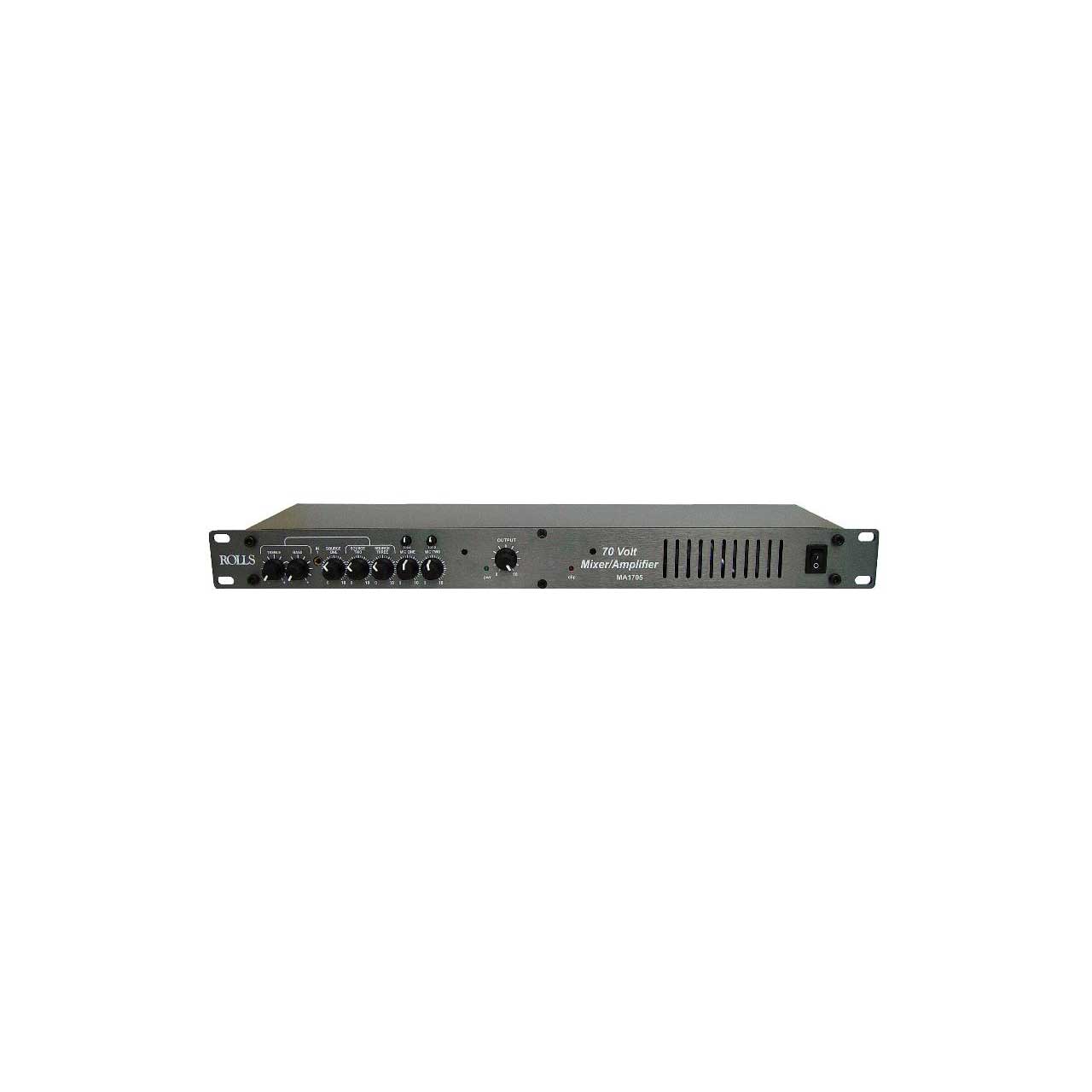

The Rolls MA1705 is a single rack space mixer amplifier designed for installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power when connected to a 70 volt speaker system.

Note: This unit is not designed to drive spreakers directly, it is for operation in 70 volt systems. Total taps should not exceed 70 watts. The front panel acts as a heat-sink for this unit, and may get hot under a heavy load.

  • Features:

    • Two Microphone inputs with phantom power.
    • Tone controls for each Mic input.
    • Three stereo Source inputs (mixed to mono).
    • Bass and Treble controls on Sources Two and Three.
    • Priority ducking on Mic Two and Source One.
    • Dual pre-master level Record Output.
    • Fault protected power amp.
    • Balanced 70 volt line output.
    • Spring-loaded output terminals.
    • Clip indication.
    • FR4 Double-sided epoxy circuit board.
    • Socketed ICs.
    • Made in the U.S.A.


  • Specifications:

    • Mixer
    • Input Impedance: Mic: 600 Ohms XLR balanced
    • Source: 22K Ohms RCA
    • Insert: 22K Ohms 1/4" TS unbalanced
    • Max Input Level(Mic): -14 dBV Mic level Max
    • Source: 24 dBV
    • Insert: + 20 dB
    • Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS
    • Phantom Power: +12 VDC
    • Max Gain(Mic): 60 dB
    • Source: 26 dB
    • Tone Controls: +/-12 dB 100 Hz Bass +/-12 dB 11kHz Treble
    • Noise Floor: - 80 dB
    • S/N Ratio: 96 dB
    • Priority Attenuation: 60 dB

      Power Amp
    • Recommended Load: 70 Volt line (70 Watts maximum)
    • Frequency Response: 60Hz to 20 kHz
    • Size (W x H x D): 19" x 1.75" x 5" (48 x 4.5 x 12.7)
    • Weight: 5.5 lbs (2.5 kg)


  • Warranty:

    • 1-Year Limited Warranty


  • GTIN:

    0675889170504
