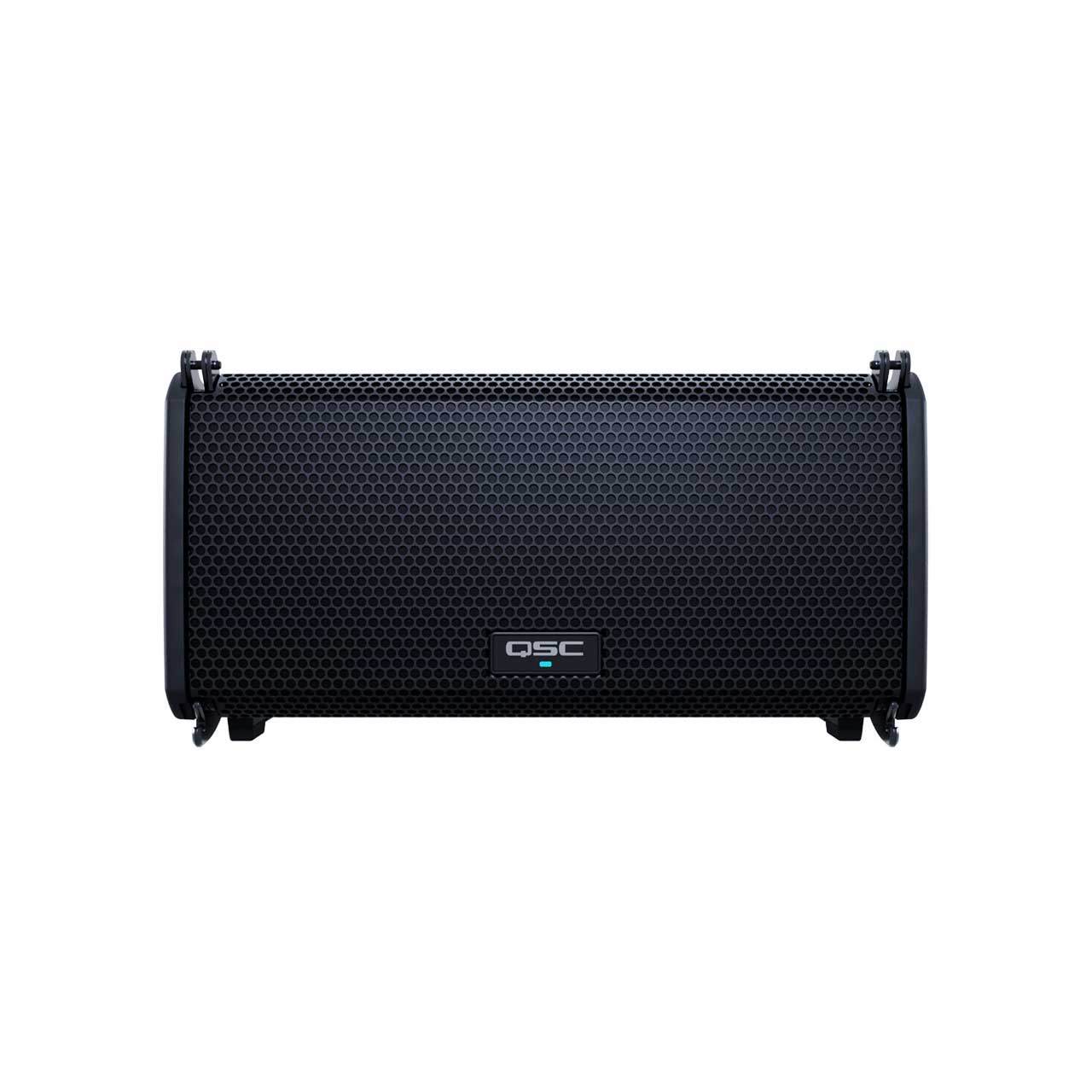

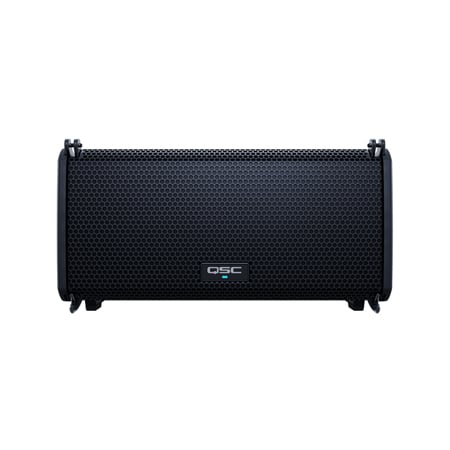

QSC LA108 L Class 8-Inch Two-way 1300 Watt Active Line Array Loudspeaker

LA108 - Overview

Next-generation Intelligent Active Loudspeakers.

• Features:

  • Purpose-designed, lightweight neodymium 8-inch woofer and 1.75-inch HF compression driver, delivering high, undistorted 134 dB max. peak SPL.
  • Energy efficient, 1300 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption.
  • Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (100° H x 15° V) and exceptional throw.
  • Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
  • Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker's Rear User Interface (RUI) or QSC System Navigator™ App.
  • Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
  • Network solution includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

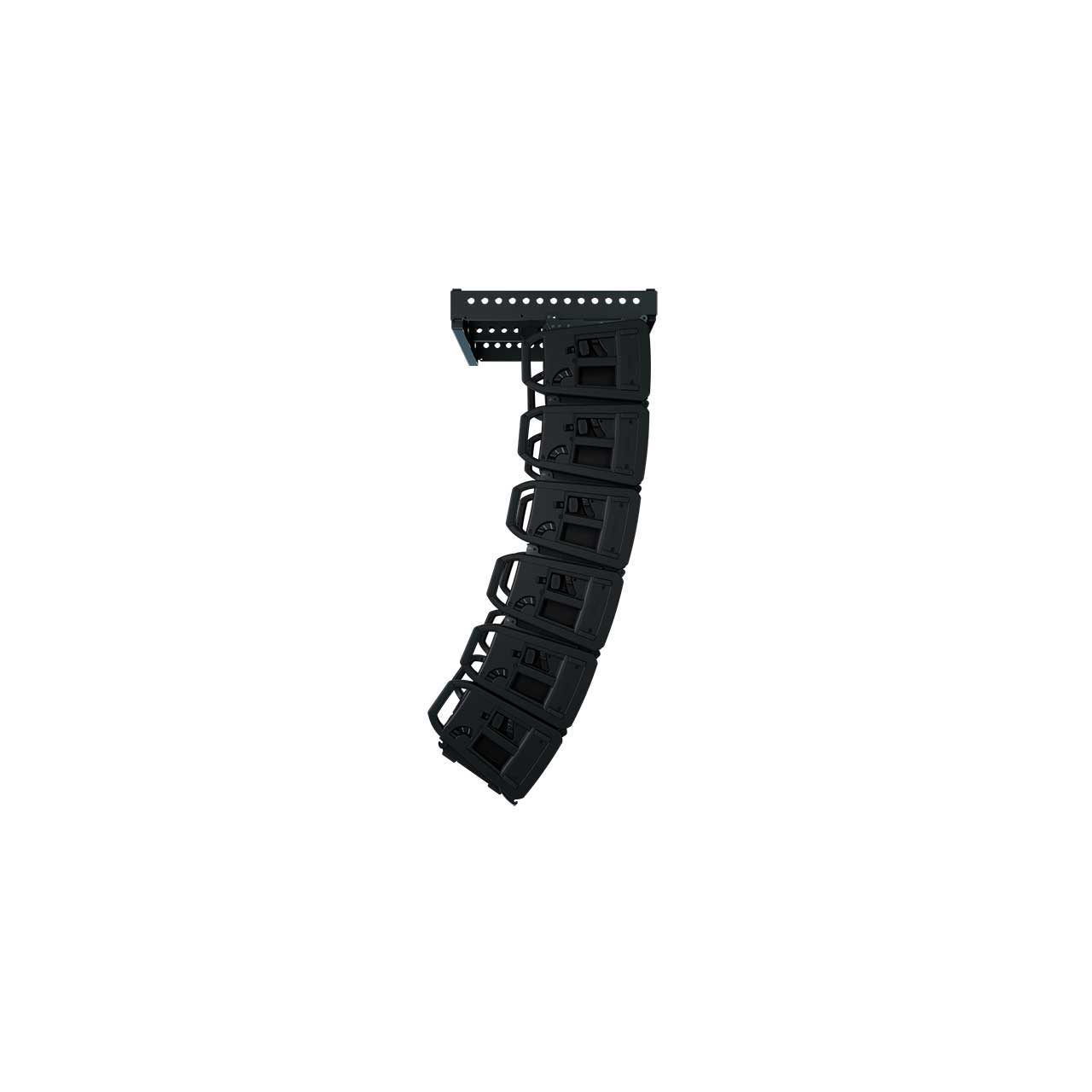

  • Flown (up to six units with array frame), ground-stacked (up to four LA108 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108) deployment options.

    SysNav Software Features
  • QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
  • Inventory function which provides a means to create and save systems offline and connect virtual loudspeakers and arrays to physical devices.
  • System Designs including Inventories and DSP settings for arrays and loudspeakers that may be created, saved, recalled and applied to physical devices.
  • User-adjustable EQ and filters, including a 6-band parametric EQ as well as high-pass filters for use with QSC and generic active subwoofers.
  • Improvements and refinements to the SysNav AIM (Array Installation Modeling) prediction tool including addition of subwoofer stacking deployment options.


• Specifications:

  • Configuration: Two-way active line array loudspeaker
  • LF Transducer: 203 mm (8-inch), cone
  • HF Transducer: 44 mm (1.75-inch), compression driver with Polyimide diaphragm
  • Frequency Response (-6 dB): 62 Hz - 20 kHz
  • Frequency Range (-10 dB): 57 Hz - 20 kHz
  • Nominal Coverage Angle: 100° H x 15° V
  • Maximum Rated SPL (peak): 134 dB @1 m
  • Amplifier (peak): Class D, LF 1000 W / HF 300 W
  • Cooling: Convection cooling
  • Controls: Rotary push encoder, 2 x Push buttons (Menu, ID)
  • Display Screen: 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
  • Indicators: Power LED, Limiter active LED, Standby active LED, 2 x Signal LED

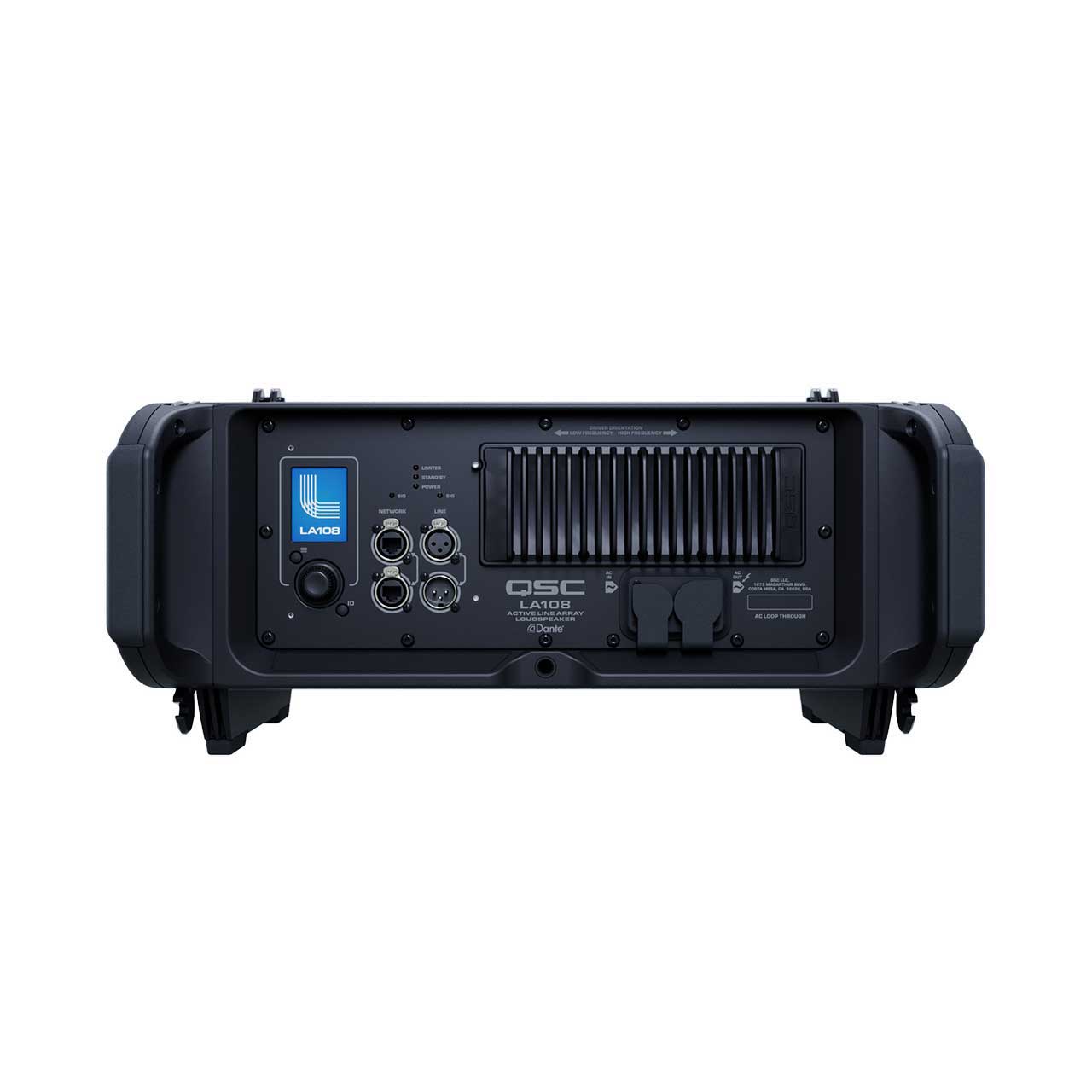

  • Connectors: XLR Female (Analog In), XLR Male (Analog Thru), 2 x RJ45 EtherCON (Danter and QSC SysNav™ In/Thru), 2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
  • AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz,
  • AC Power Consumption: 100 VAC, 0.8 A / 120 VAC, 0.75 A / 230 VAC, 0.5 A
  • Enclosure Material: Impact Resistant ABS

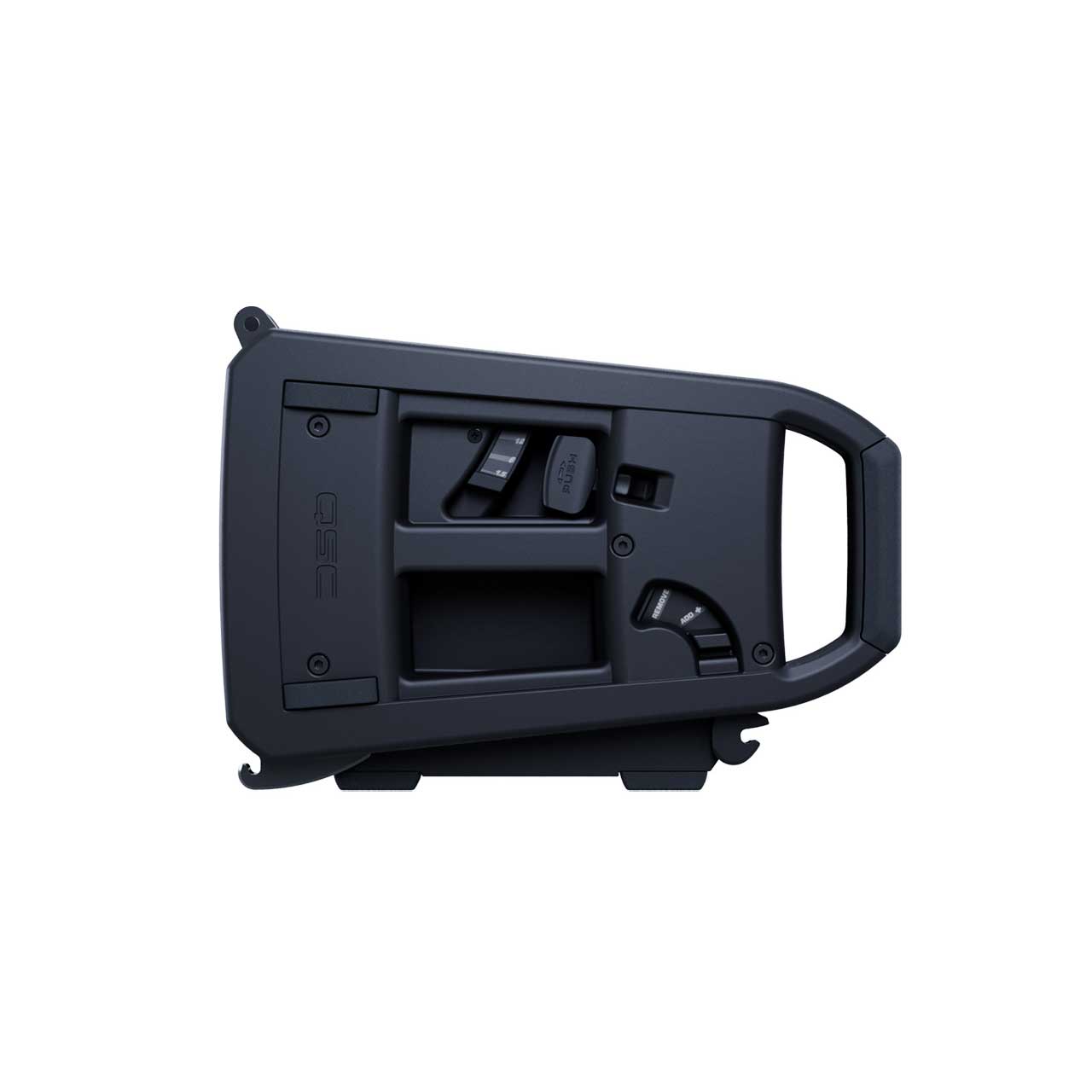

  • Attachment Points: QSC RapidDeploy™ rigging system, 1x M10 (on rear panel for pull-back)
  • Color: Black (RAL 9011)
  • Grille: 18 GA Powder coated steel
  • Dimensions (H x W x D): 10.7 x 20.4 x 14.7 inches
  • Net Weight: 30.1 lb
  • Shipping Weight: 37.6 lb
  • Supplied Accessories: 1 x PowerCON TRUE1 power cable
  • Regulatory: UL, CE, FCC Class B


• Item Includes:

  • 1x LA108 active line array loudspeaker unit
  • 1x AC power cord, with PowerCON TRUE1 (3 m / 10 ft) connectors
  • 1x Quick Start Guide
  • 1x Safety Sheet


• Warranty:

  • 6-Year Extended Warranty with product registration
