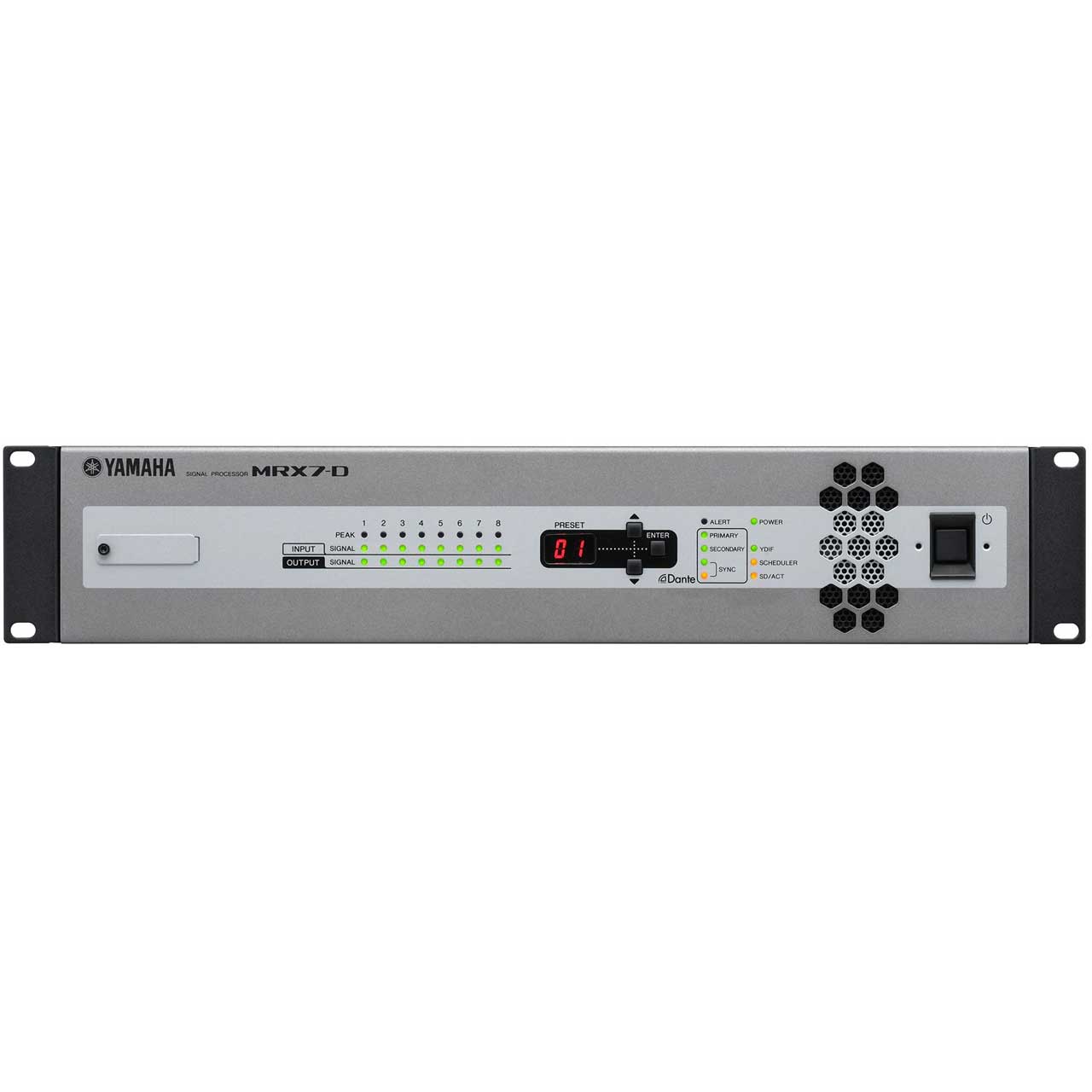

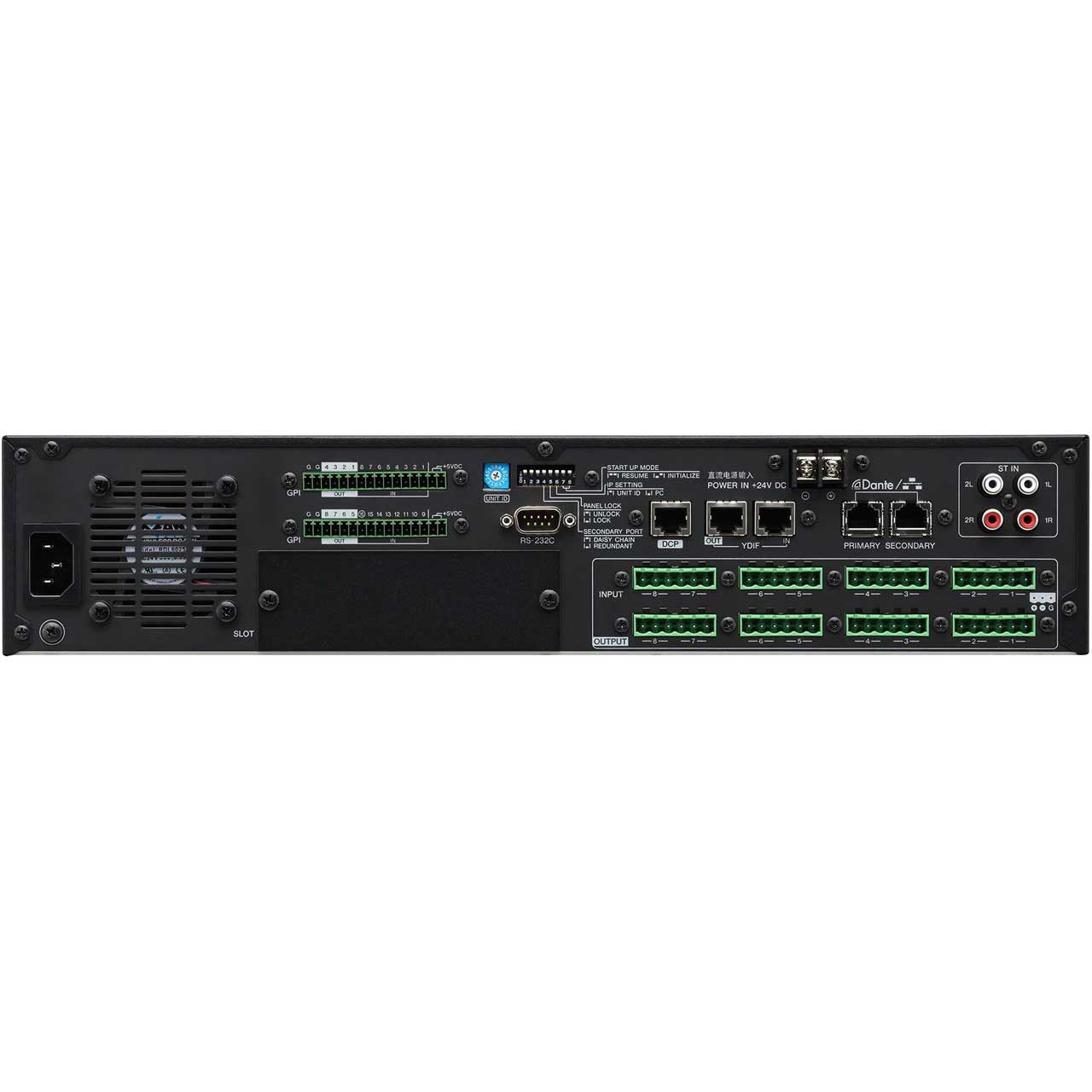

Yamaha MRX7-D Open Architecture DSP Signal Processor

ITEM #: YMH-MRX7-D MFG #: MRX7-D

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$4,394.00

Our Price:

$4,199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MRX7-D - Overview

Sound system requirements for corporate conference rooms, educational facilities, shopping malls, and a variety of other environments are becoming increasingly large and complex. The MRX7-D offers outstanding control efficiency and flexibility for a broad spectrum of audio installations.

Because the MRX7-D's design architecture is freely configurable, it allows an audio engineer to create a unique solution for the customer which can incorporate many unique processing components and maximize the use of available DSP. Having built in Dante connectivity, it also allows audio systems to take advantage of the many other Dante enable products on the market including Yamaha's wide range of Digital Mixers.

  • Features:

    • SD Memory Card Slot for Playback
    • High Expandability offered by Mini-YGDAI Card Slot
    • MRX7-D Digital Network System
    • Dante for MRX7-D
    • Support for AES67, Dante Device Lock
    • Smart, Flexible Paging System for Large Commercial Spaces

  • Specifications:

    • Sampling Frequency Rate Internal: 48kHz/44.1kHz
    • Signal Delay: 1.9 msec (AD-DA @48kHz)
    • Total Harmonic Distortion: "0.05% (+4dBu, Gain:-6dB, 48kHz) 0.1% (+4dBu, Gain: +66dB, 48kHz)" (Measured with a 18dB/Oct filter @80kHz)
    • Frequency Response: 20Hz to 20kHz: max:+0.5dB, min:-1.5dB
    • Dynamic Range: 107dB (typ. Gain:-6dB)
    • Crosstalk: -100dB (@1kHz)
    • Heat Dissipation: 55.9kcal/h max
    • Power Requirements: AC100V-240V 50Hz/60Hz
    • Power Consumption: 65W
    • Dimensions (WxHxD): 18.90 x 3.46 x 14.41" (480 x 88 x 366mm)
    • Net Weight: 14.33Lbs (6.5kg)
    • Others:
      Memory bank = PRESET: 50
      Phantom Power = +48V

  • Item Includes:

    • 1x Power cord
    • 16x Euroblock plugs (3-pin, tabbed)
    • 2x Euroblock plugs (16-pin)
    • 1x Cable Ties
    • 1x Manual

  • GTIN:

    0086792999135
