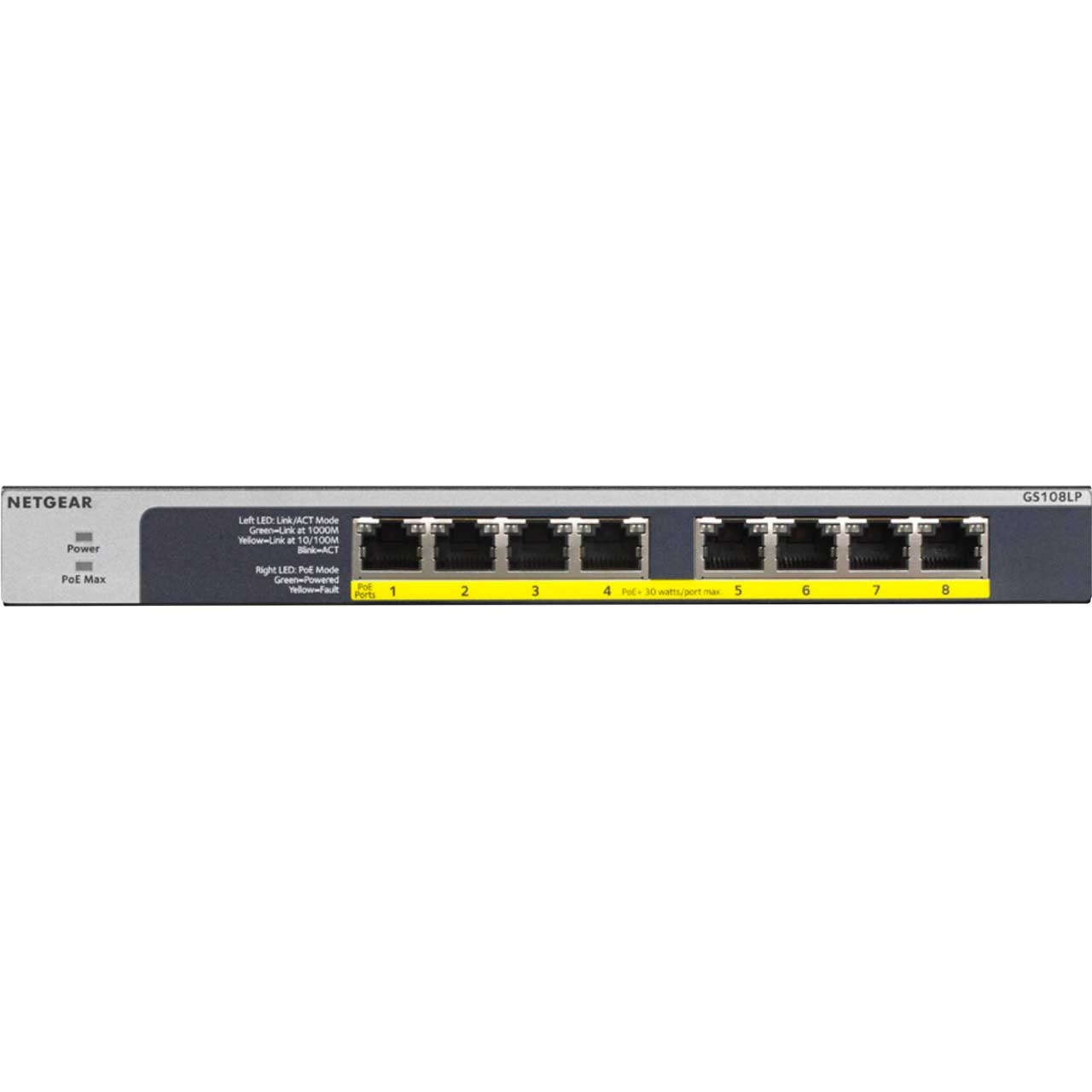

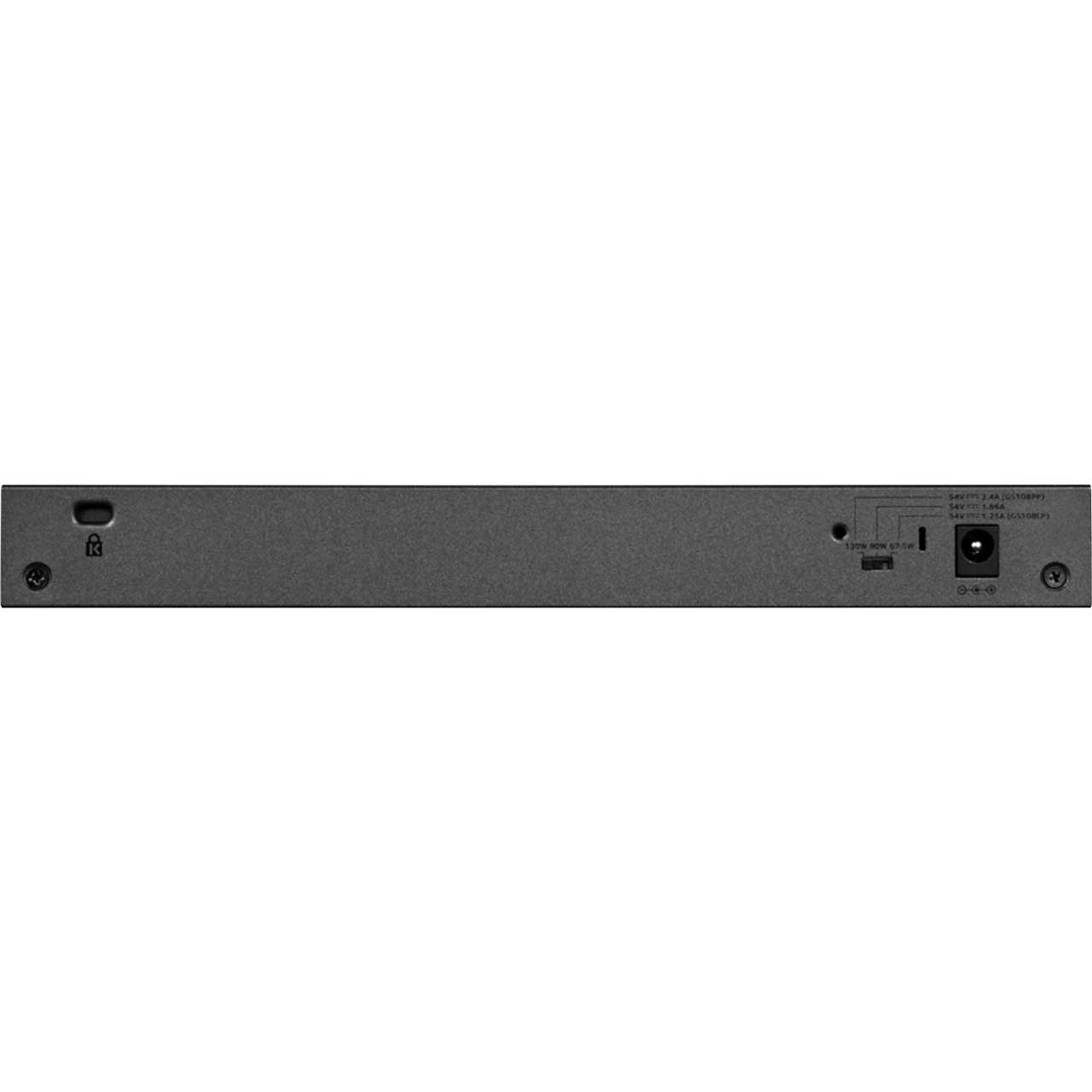

Netgear GS108LP-100NAS 8-Port PoE/PoE Plus Gigabit Ethernet Unmanaged Switch

13372729 - Overview

• Features:

  • All ports Support PoE+
  • All ports are able to provide up to 30W per port to any power-hungry device (PTZ cameras, PoE Lights, PD Switches, Access Points, more)

    Flexible mounting options
  • Adapts to your needs and configuration in any environment.
  • Desktop, wall-mount, or rack-mount with included mounting kits.

    Flexible PoE Budget
  • NETGEAR's exclusive FlexPoE with interchangeable external power adapters allow you to increase (or
    decrease) your PoE budget as your needs change.
  • GS108LP/GS108PP: 60W, 83W, 123W PoE Budget

    Compact, fanless, silent design
  • Small form-factor, fanless design for silent operation. Perfect for noisesensitive environments.


• Specifications:

  • Technical
  • Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T: 8
  • PoE/PoE+ Ports: 8 PoE+ (60W PoE budget)
  • Power Supply: External Input 54V 1.25A (67.5W)
  • Power Supply Supported: External, Input 54V 2.4A (130W), Input 54V 1.66A (90W), Input 54V 1.25A (67.5W)
  • Form Factor: Desktop/Rackmount/Wall-Mount

    Product Specifications
  • Gigabit Ports: 8
  • Max MAC entries: 4k
  • Buffer Size: 192kb
  • Energy Effi cient Enthernet (IEEE 802.3az complaint): Yes

    PoE Support
  • 802.3af: Ports 1-8
  • 802.3at: Ports 1-8
  • PoE Max Power Per Port: Up to 15.4w for 802.3af and 30W for 802.3at
  • Total PoE Power Budget: 60W
  • Forwarding modes: Store-and-Forward
  • Bandwidth: 16Gbps
  • Jumbo frame support: Yes
  • Acoustic noise (ANSI-S10.12): 0(fanless)
  • Mean Time Between Failures (MTBF): 2,752,476 hours

    Quality of Service (QOS)
  • DSCP: Yes
  • IEEE 802.1p COS: Yes
  • Queue WRR Ratio: 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ)

    LEDs
  • Per port: Speed, Link, Activity, PoE
  • Per device: Power Status, PoE Max

    IEEE Network Protocols
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.1p Class of Service
  • IEEE 802.3az Energy Effi cient Ethernet (EEE)
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3x Flow Control

    Physical Specifications
  • Dimensions (W x D x H): 236 x 102 x 27 mm, 9.29 x 4.02 x 1.06 in
  • Weight: 1.32 lb

    Power Consumption
  • Power Supply: External Input 54V 1.25A (67.5W)
  • Power Supply Supported: External, Input 54V 2.4A (130W), Input 54V 1.66A (90W), Input 54V 1.25A (67.5W)
  • Max power (worst case, all ports used, line-rate traffi c)(Watts): 67.5W
  • Min power (link-down standby) (Watts): 1.08W
  • Heat Dissipation (max and min) (BTU/hr): 230.85 BTU/ 3.69 BTU
  • Energy Efficient Ethernet (EEE) IEEE 802.3az: Yes
  • Short cable power reduction: Yes
  • Auto power-down: Yes
  • Fan(s): 0 (fanless)

    Environmental Specifications
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Humidity: 90% maximum relative humidity (RH), non-condensing
  • Altitude: 10,000 ft (3,000 m) maximum
  • Storage Temperature: -20° to 70°C (- 4° to 158°F)
  • Humidity (relative): 95% maximum relative humidity (RH), non-condensing
  • Altitude: 10,000 ft (3,000 m) maximum


• GTIN:

  0606449134957
