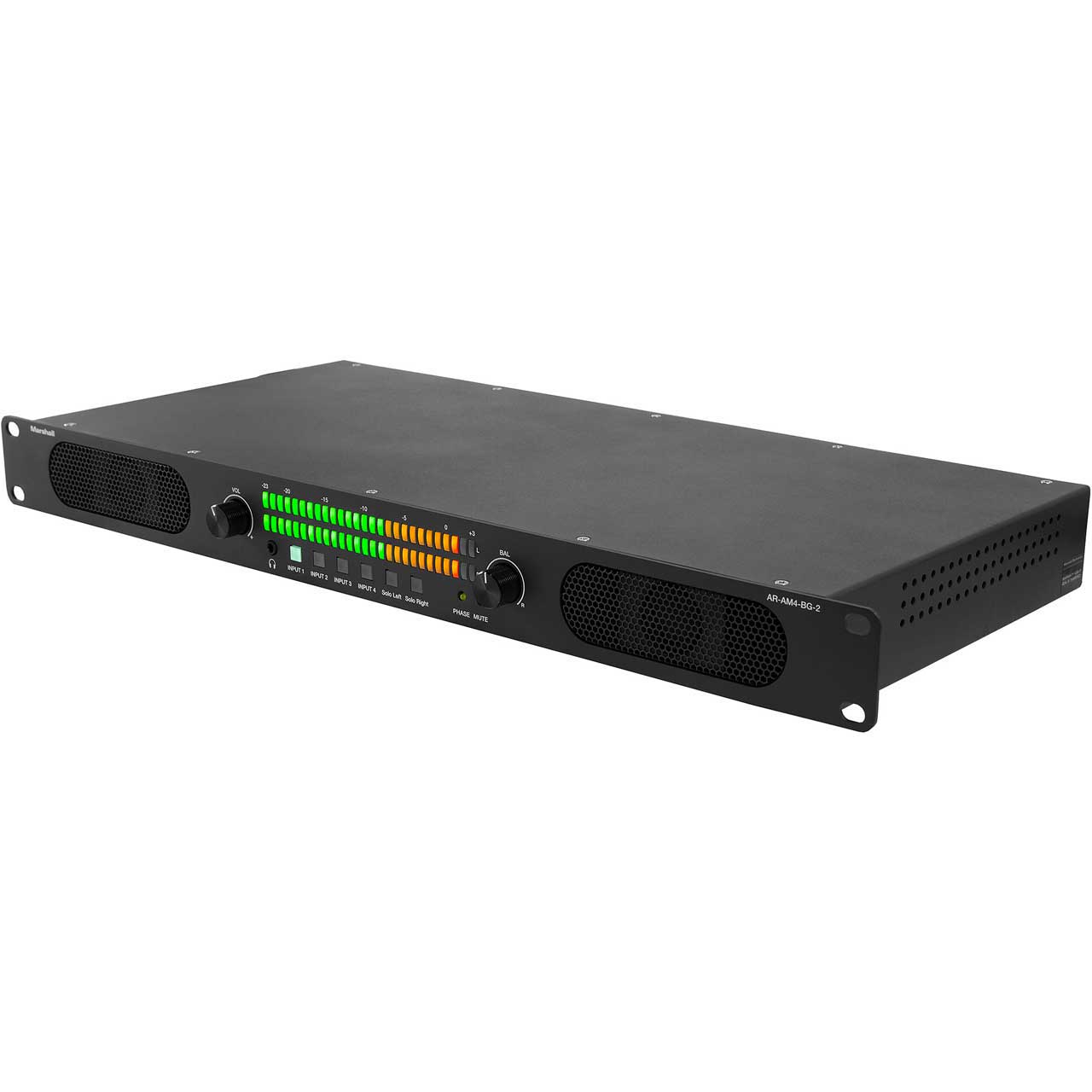

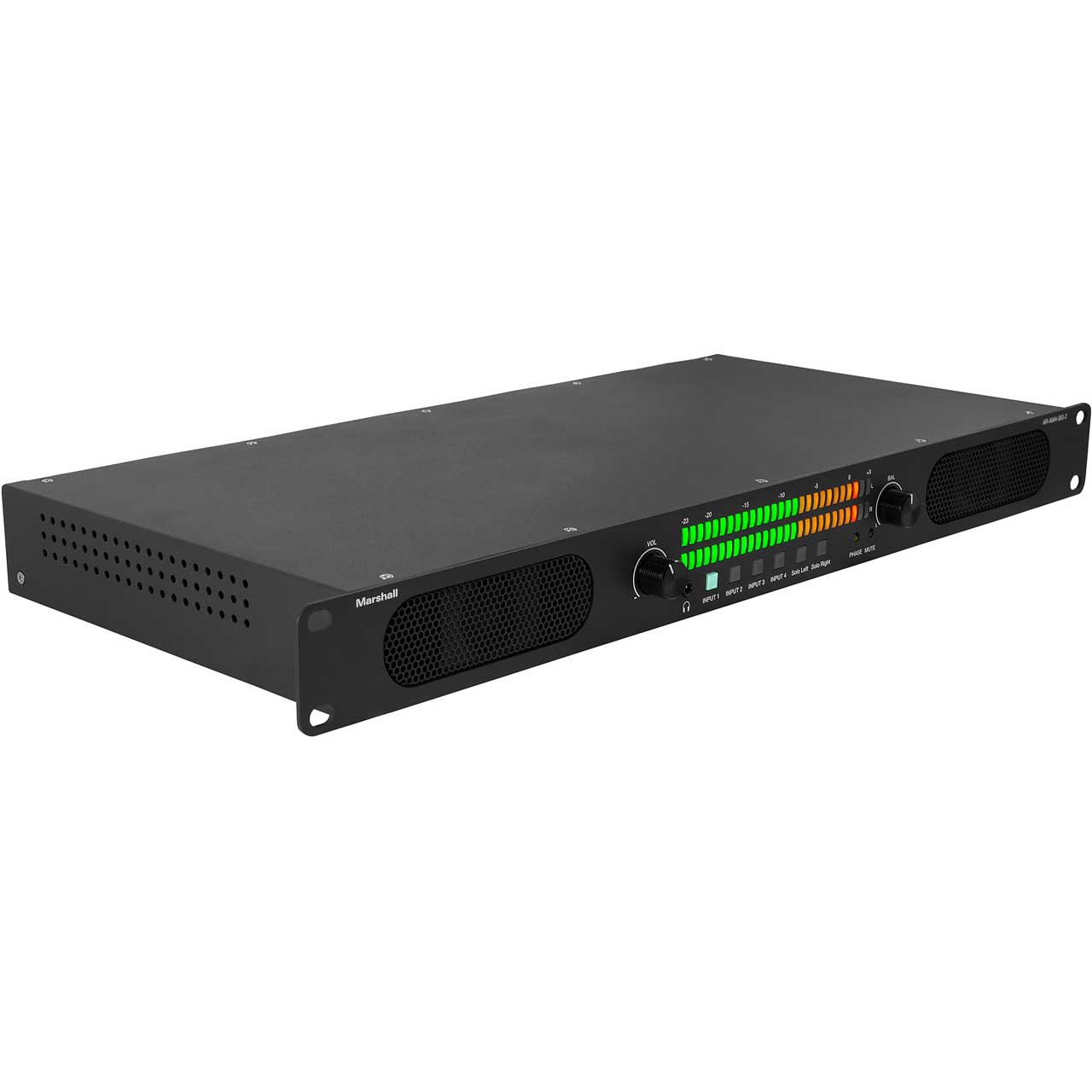

Marshall AR-AM4-BG-2 4x1 Rackmount Stereo Analog Audio Monitoring System

ITEM #: MAR-AR-AM4-BG-2 MFG #: AR-AM4-BG-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Marshall Electronics
Free Shipping with $49 Minimum Order

List Price:

$639.00

Our Price:

$576.15

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AR-AM4-BG-2 - Overview

For straight-forward analog audio monitoring, the Marshall AR-AM4-BG-2 delivers simple setup and operation, making it one of the friendliest audio monitors on the market today. With four analog stereo balanced XLR inputs, the AR-AM4-BG-2 makes it easy to check audio sources whether on set or in the equipment room. An RS-232 control port makes it the right choice for automated systems.

The 1RU design makes it an easy fit into any rack setup, and the speakers deliver enough "punch" to be heard even in the noisiest server rooms. The AR-AM4-BG-2 comes with one 12V universal power supply.

Applications:
Production flight packs, news vans, remote OB vans and equipment rooms

  • Features:

    • 4 analog balanced XLR stereo inputs
    • 2 analog balanced XLR outputs
    • Two powerful speakers
    • LED VU display shows audio input activity
    • Remote control via RS-232
    • Headphone jack
    • Press volume knob for instant mute
    • 1 RU design
    • 12V DC Power Supply included


  • Specifications:

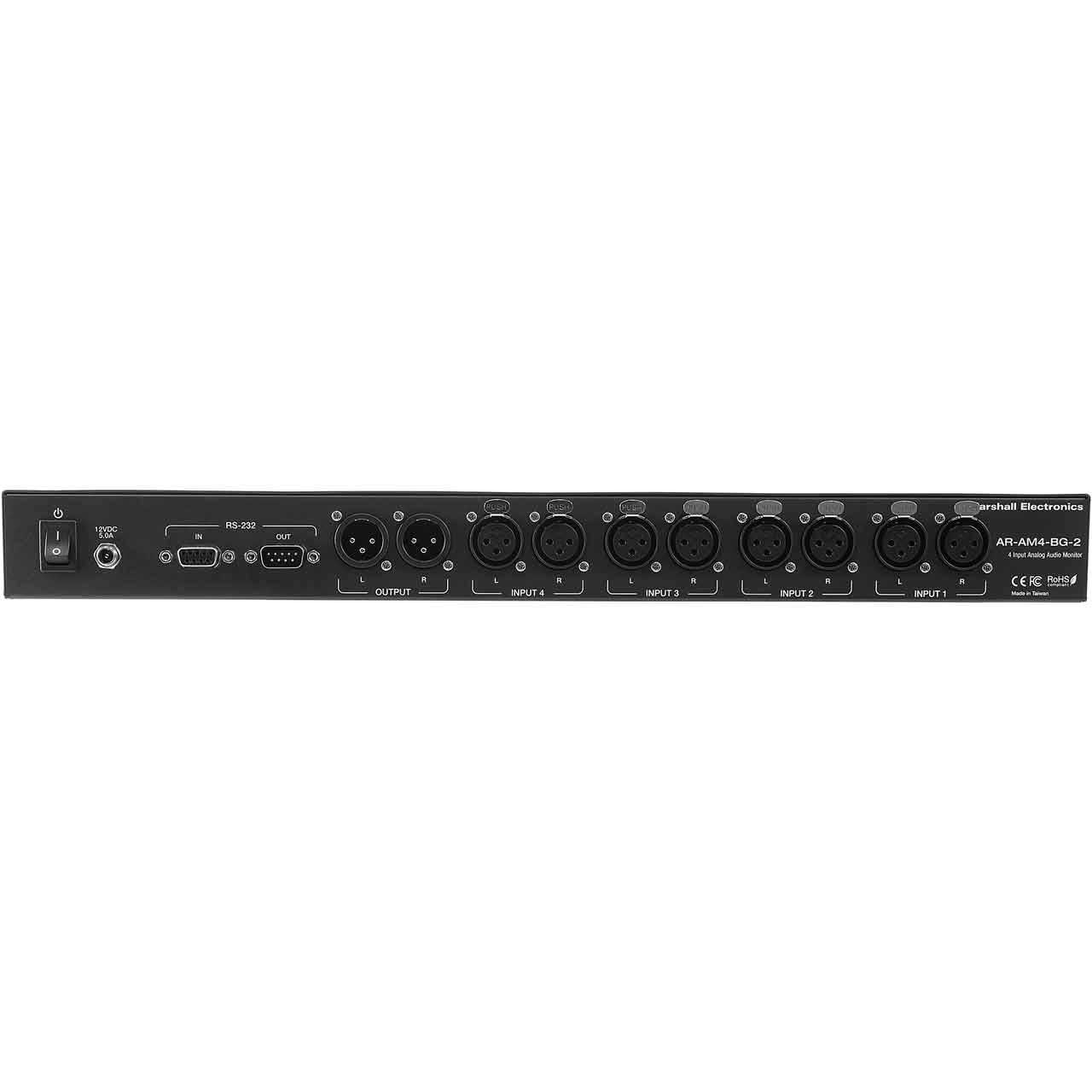

    • Interfaces
    • Audio Inputs: Analog Balanced x 8 XLR Female
    • Audio Outputs: Analog Balanced x 2 XLR Male
    • Headphone Output: 3.5mm Stereo Phone Jack (plugging in headphone mutes speakers)
    • Serial Control Connector: 9-pin D-Sub supports RS-232 control and updates

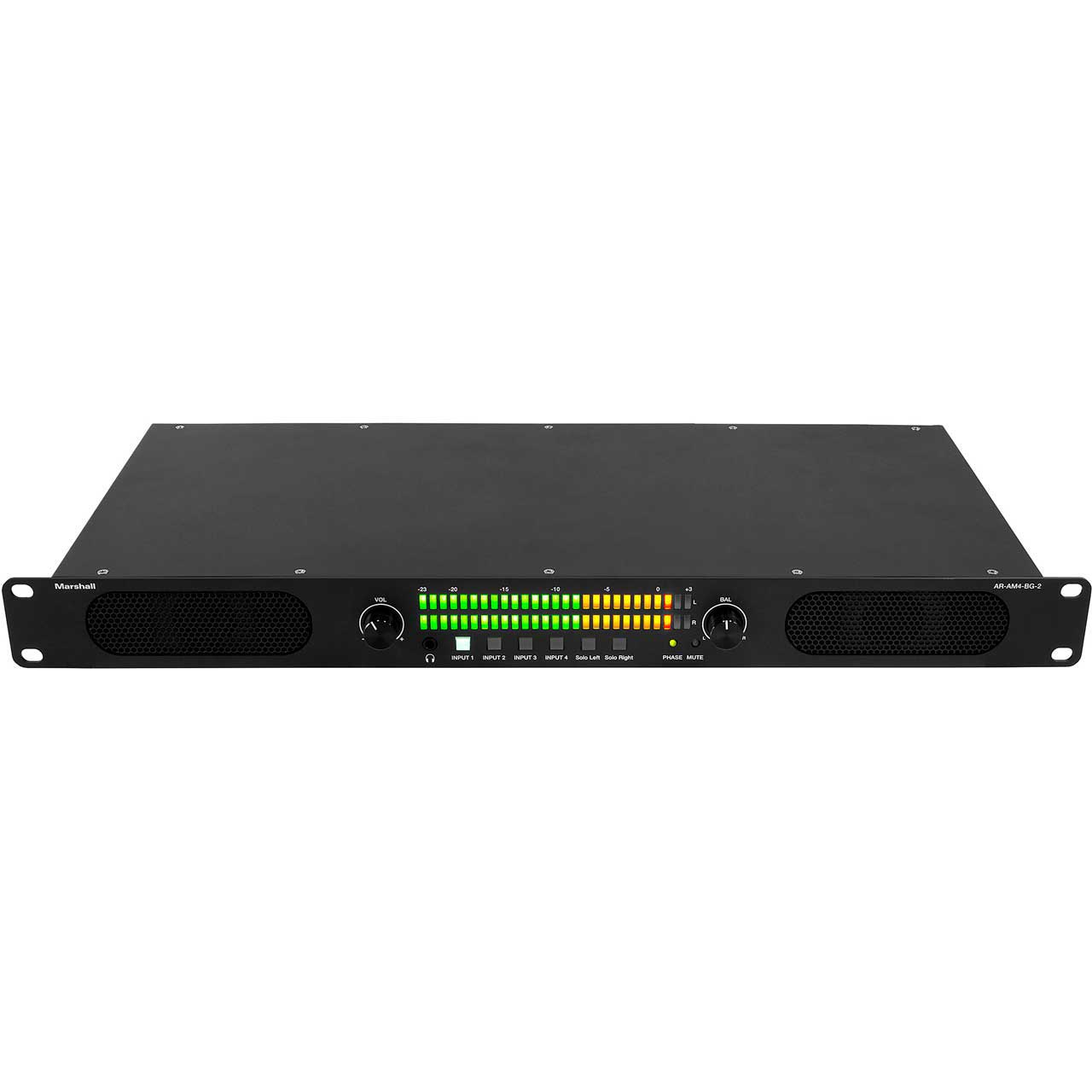

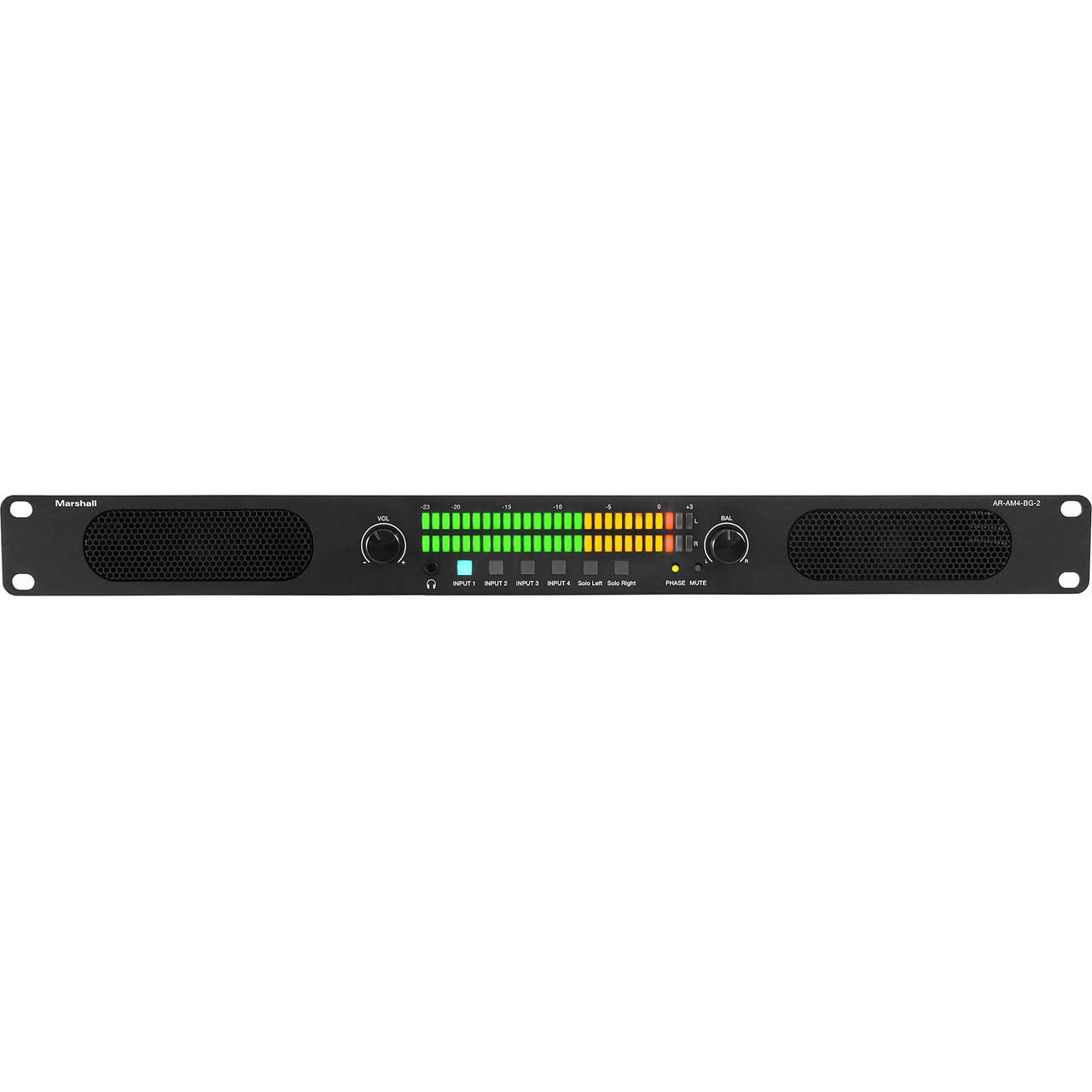

      Controls and Displays
    • Input Select: Four buttons, each selects one input pair
    • Solo Left, Solo Right: Select to monitor Left or Right channel individually
    • Volume Knob: Rotate to change speaker volume level, Pushknob in to Mute speakers
    • Balance Knob: Rotate to change the volume ratio between left and right speakers
    • Phase LED: Green = Left / Right In-Phase, Red = 180° Phase, Blinking = Changing Phase
    • VU Meter: "0" mark indicates +4dBU (1.23 Volts RMS, 3.47 Volts P-P) input level

      Mechanical & Electrical
    • Housing: Metal enclosure
    • Dimensions (Depth Includes Connectors) [H xW x D]: 1.75" X 19" x 8.5" / 4.45 cm x 48.25 cm x 21.6cm
    • Weight 7.3 lbs / 3.3 Kg
    • Mounting: Chassis includes "ears" for standard 19" rack mount
    • Included Power Supply: 12 Volts DC, 5 Amps Coaxial Connector, Center Positive Accepts 100 - 240 Volts AC, 50/60 Hz Line
    • DC Power Consumption: 3 Watts at Typical Listening Level, Less than 2 Watts Silent
    • Operation Temperature: 0~40°C [32~104°F]
    • Storage Temperature: -20~60°C [-4~140°F]
    • ESD Protection: Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
    • Relative Humidity: 20~90% RH [no condensation]


  • Item Includes:

    • 1x Marshall AR-AM4-BG-2 4x1 Rackmount Stereo Analog Audio Monitoring System
    • 1x 12V DC Power Supply


  • GTIN:

    0801813187519
