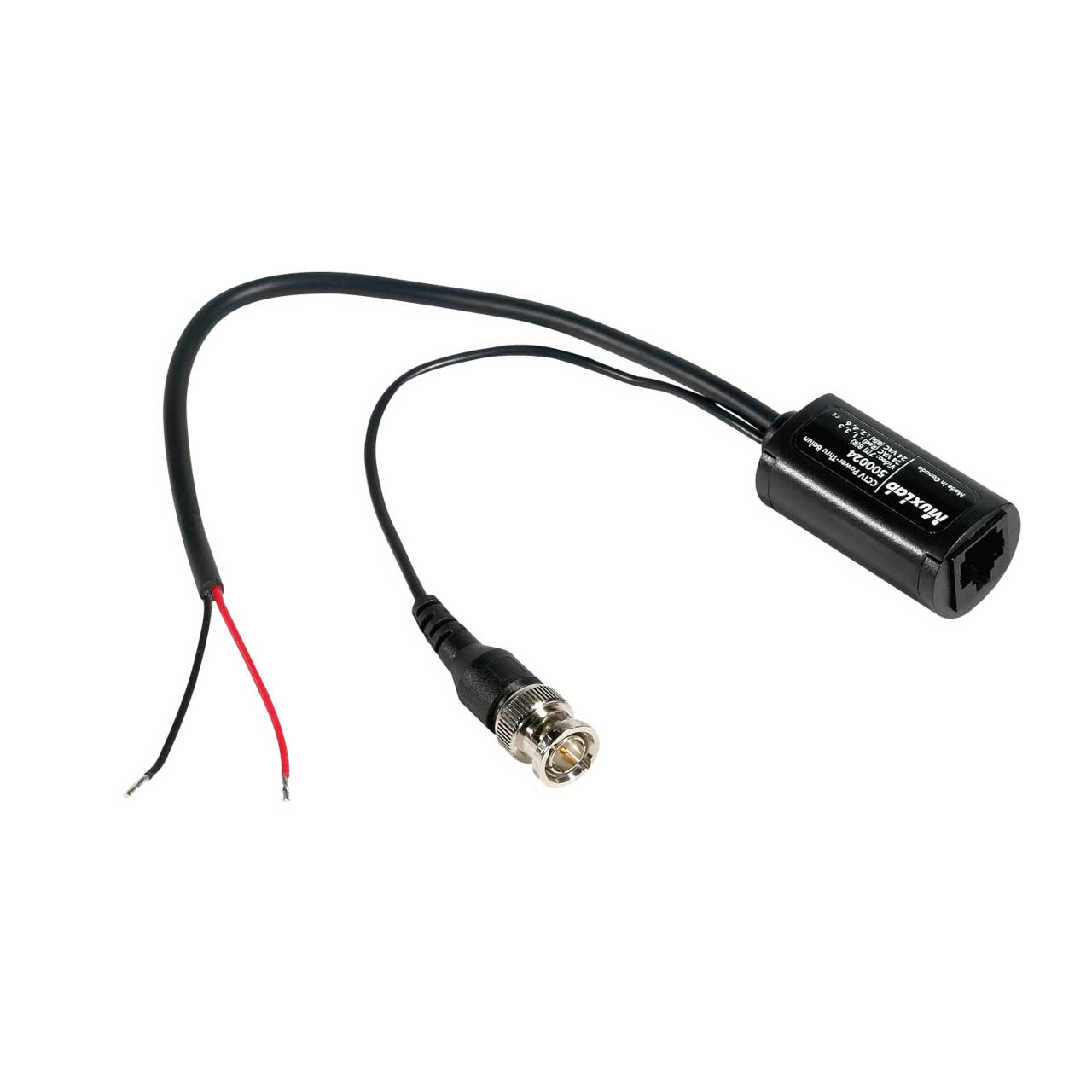

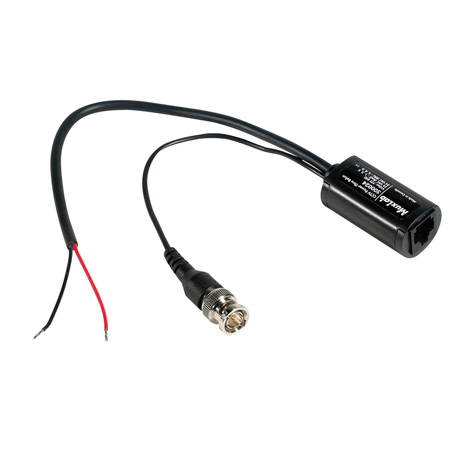

MuxLab 500024 CCTV Power-Thru Balun RJ45

500024 - Overview

• Features:

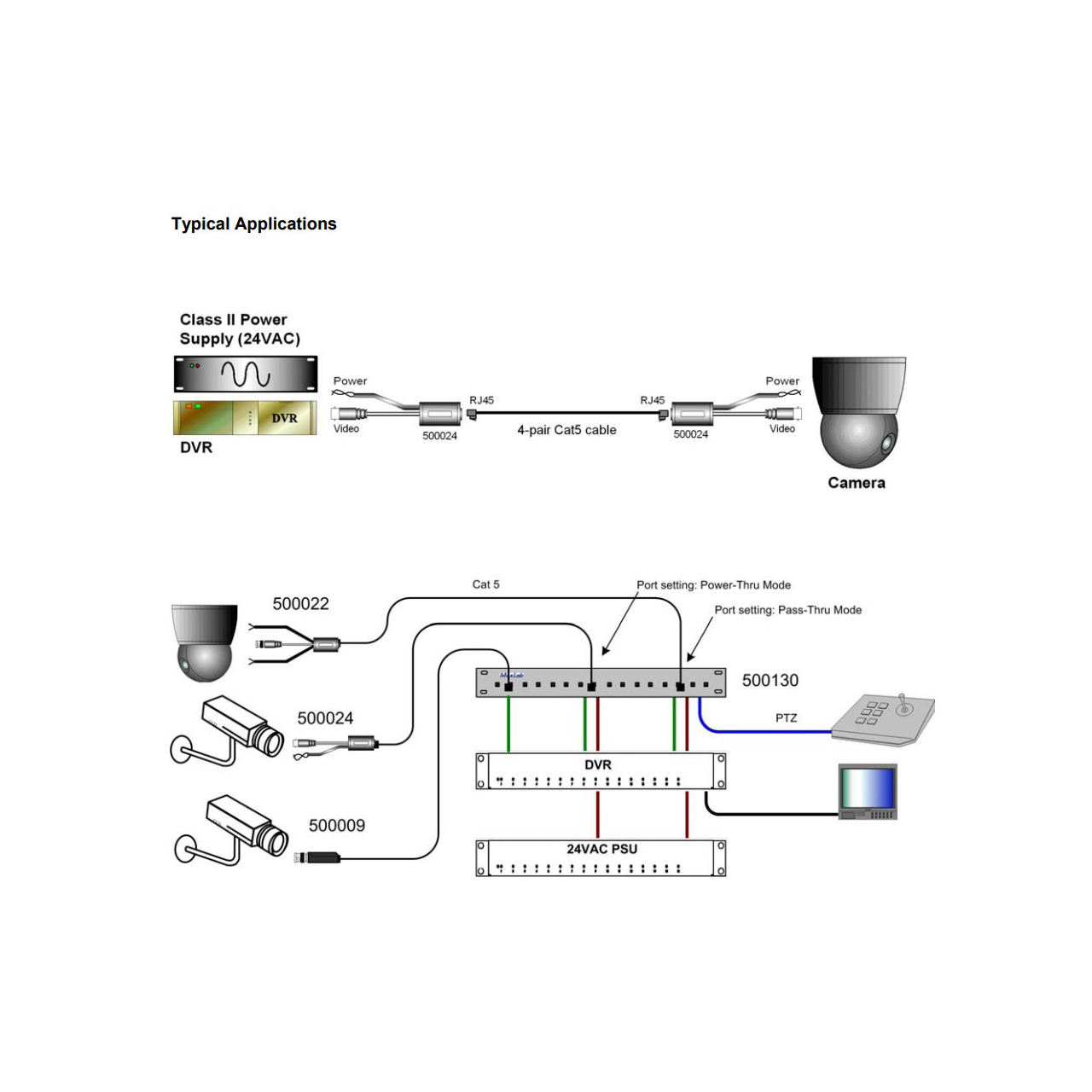

  • Combines video and remote power under one 4-pair Cat 5 cable for more efficient cabling
  • Video up to 2,200 ft (670m) via Cat 5 UTP
  • Remote power up to 500ft (170m)@ 24VAC/5VA via three (3) twisted pairs


• Specifications:

  • Environment: Baseband video; NTSC, PAL, SECAM
  • Devices: Close-circuit TV (CCTV) cameras , monitors, switchers, sequencers, multiplexers, digital video recorders (DVR) and other CCTV equipment
  • Transmission: Transparent to the user
  • Bandwidth: DC to 8 MHz
  • Impedance:
    - Input: 75 ohms (BNC)
    - Output: 100 ohms (RJ45)
  • Maximum Input: 1.1Vp-p
  • Insertion Loss: Less than 2 dB per pair over the frequency range from DC to 8 MHz
  • Return Loss: Greater than 15 dB over the frequency range from DC to 8 MHz
  • Common Mode: Rejection Greater than 40 dB @ 8 MHz
  • Max. Distance - Color:
    - Cat 3: 1,200 ft (365m)
    - Cat 5: 2,200 ft. (670m)
    Certain models of DVR may yield shorter distances of 1,000 to 1,500 ft
  • Max. Distance - Black & White:
    - Cat 3: 1,500 ft (457m):
    - Cat 5 - 2,500 ft (762m)
  • Wiring: Remote power via three (3) twisted pairs. Class II power supply recommended.
  • Max. Distance @ 24VAC via three (3) twisted pairs (Longer distances may be achieved @ 28 VAC):
    - 5 VA: 518 ft (170m)
    - 10 VA: 259 ft (85 m)
    - 20 VA: 130 ft (43 m)
    - 30 VA: 86 ft (28 m)
    Based on 10% voltage drop at camera. Please consult your CCTV equipment vendor for more detailed performance specifications.
  • Maximum Input Voltage: 50 Volts (AC RMS/DC)
  • Maximum Current Rating: 4.5A (AC RMS/DC)
  • Cable - UTP:
    - 24 AWG or lower solid copper twisted pair wire
    - Impedance: 100 ohms at 1 MHz
    - Maximum capacitance: 20 pf/foot
    - Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Cable - Coax:
    - Impedance: 75 Ω at 1 MHz. (RG59/U). Max. 25 ft. of coax allowed end to end.
  • Connectors:
    - Video: BNC-male 8" mini-coax lead
    - Power: 2-wire 18AWG lead
    - Combined Signals: RJ45
  • Pin Configuration (Signal | RJ45 Pin | Cable Lead Color):
    - Power A | 1 (common with 3&5) | Red
    - Power B | 2 (common with 4&6) | Black
    - Power A | 3 (common with 1&5) | Red
    - Power B | 4 (common with 2&6) | Black
    - Power A | 5 (common with 1&3) | Red
    - Power B | 6 (common with 2&4) | Black
    - Video BNC Center (Tip) | 7 [T] opposite to 500000 | Mini-coax
    - Video BNC Ground (Ring) | 8 [R] opposite to 500000 | Mini-coax
  • Temperature:
    - Operating: 32°F - 131°F (0°C - 55°C)
    - Storage: -4°F - 185°F (-20°C - 85°C)
    - Humidity: up to 95%
  • Enclosure: ABS fire retardant plastic
  • Dimensions: 1.875" (4.7cm) x 1.0" (2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power lead
  • Weight: 1.95 oz (55 g)


• Warranty:

  • Lifetime Warranty


• GTIN:

  0627699000243
