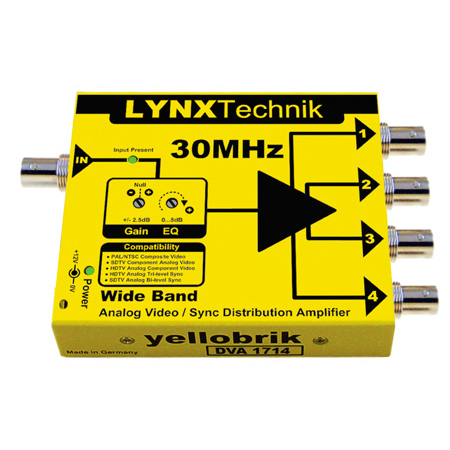

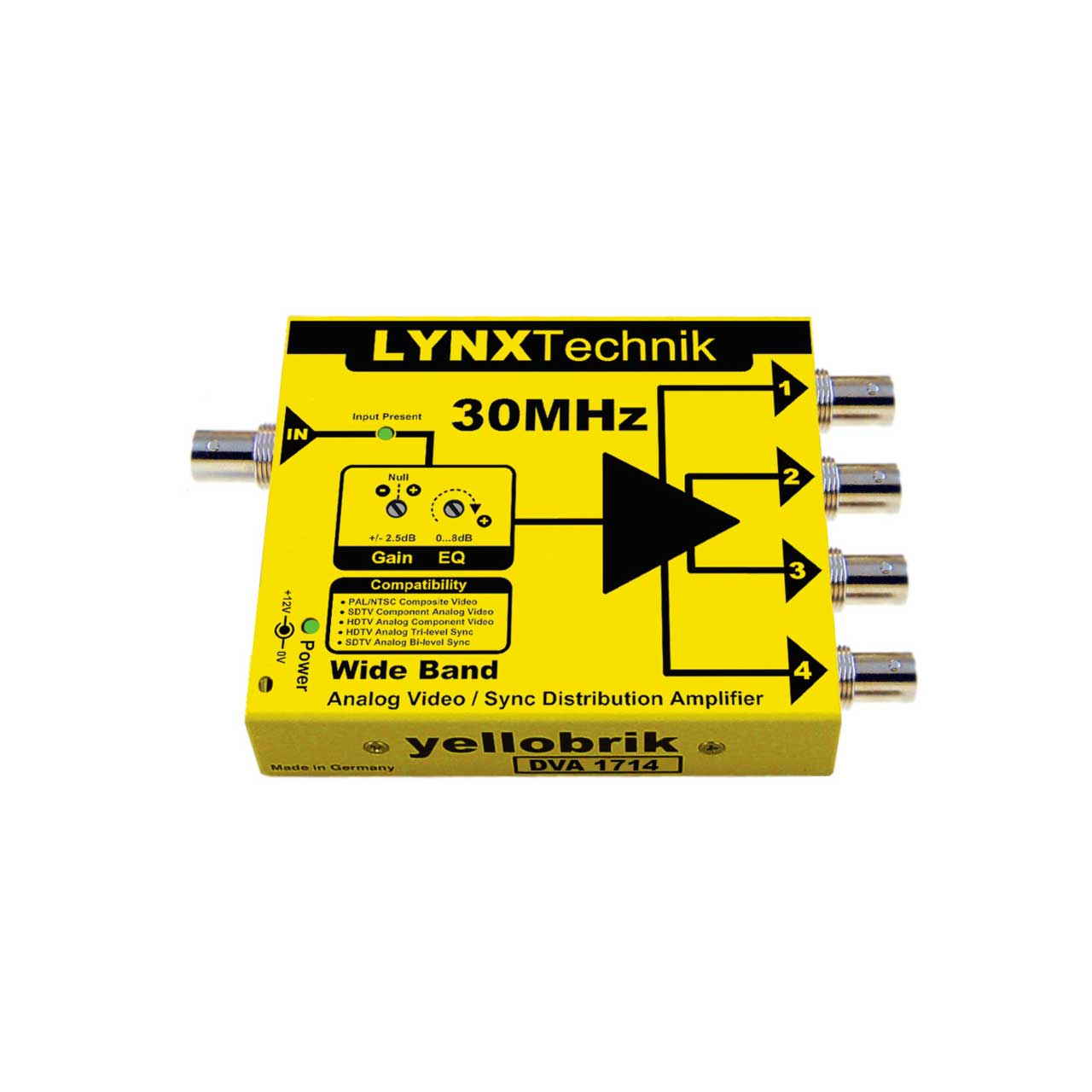

LYNX Technik Yellobrik DVA 1714 - Analog Video - Sync Distribution Amplifier

DVA-1714 - Overview

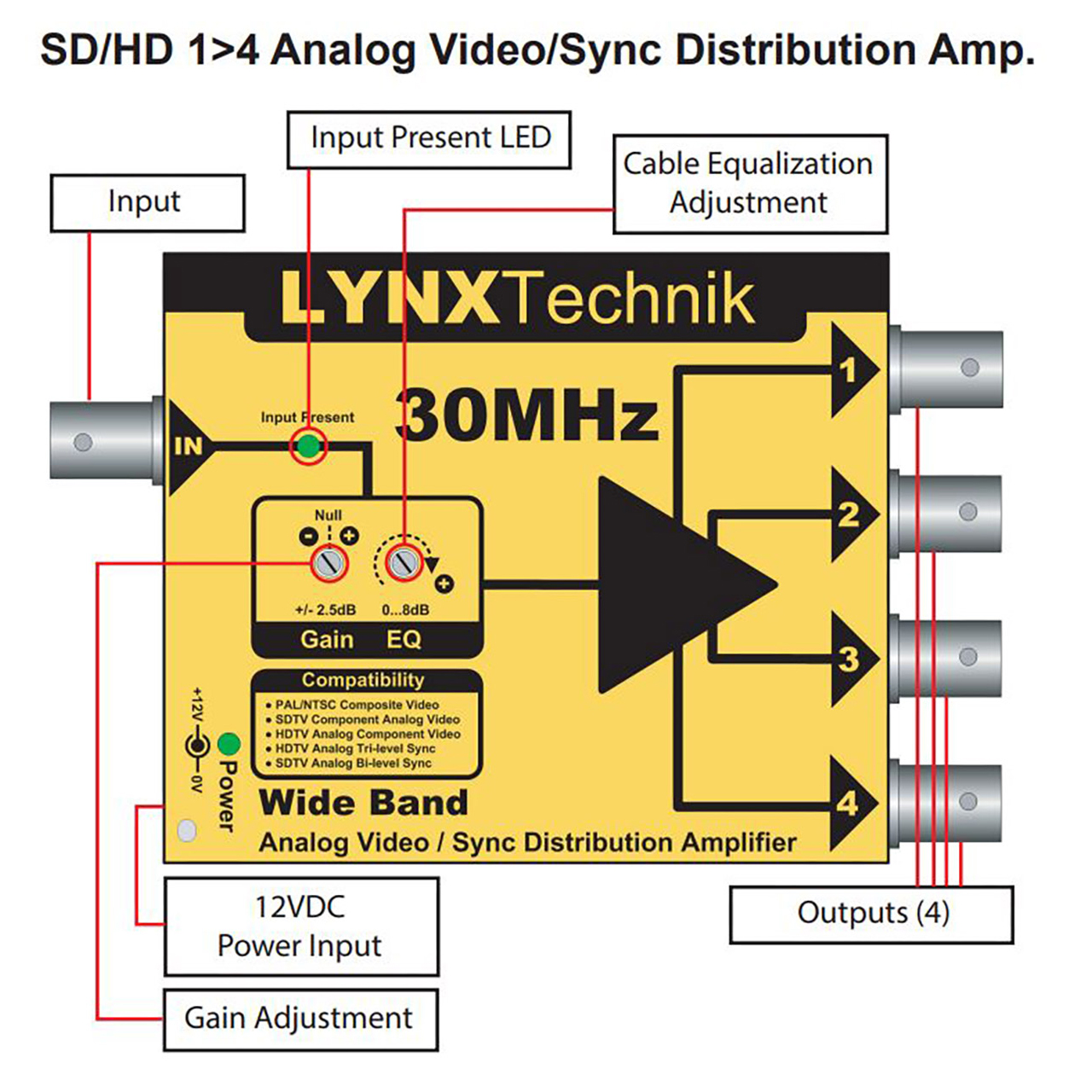

• Features:

  • 1 input and 4 outputs
  • Wide band - 30MHz
  • Adjustable gain and EQ
  • Input Clamp
  • Input present LED indication
  • Suitable for analog SDTV/HDTV video or Sync signals


• Specifications:

  • Input
  • 1 x 75 Ohm BNC connector
  • Compatible Input Sources
  • SDTV Composite video (NTSC/PAL)
  • SDTV Component Analog Video
  • HDTV Component Analog Video
  • SDTV Bi-level sync (or black burst)
  • HDTV Tri-Level Sync
  • Return loss > 31dB to 30MHz
  • Input Gain adjustment range ±2.5dB
  • Input Cable Equalization Adjustment 0 - 8dB
  • Input clamp
  • Input presence detection (LED)

    Outputs
  • 4 x Analog Video / Sync Outputs
  • 75 Ohm BNC connectors
  • Return loss >22dB to 30MHz

    Performance Frequency Response
  • -3dB @ 30MHz (EQ min)
  • -3dB @ 37MHz (EQ max)
  • ±0.1dB to 10MHz
  • Signal to noise >60dB (RMS)

    Physical
  • Power +12VDC @ 1.3W nominal - ( supports 8 - 24VDC input range )
  • Physical Size: 138 x 90 x 22mm (5.43 x 3.54 x 0.86") - including connectors
  • Weight: 220g (7.8oz)
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• GTIN:

  4250479321182
