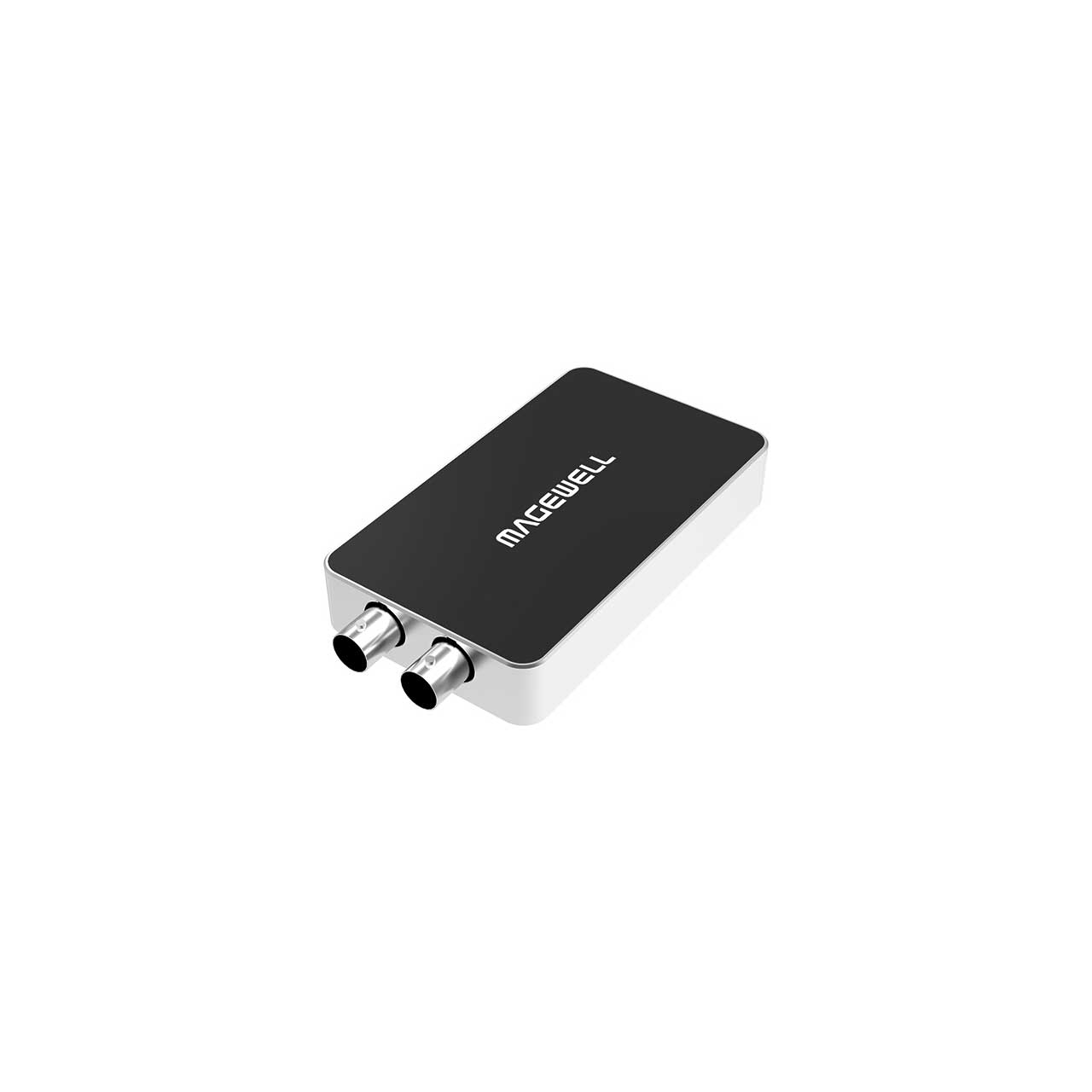

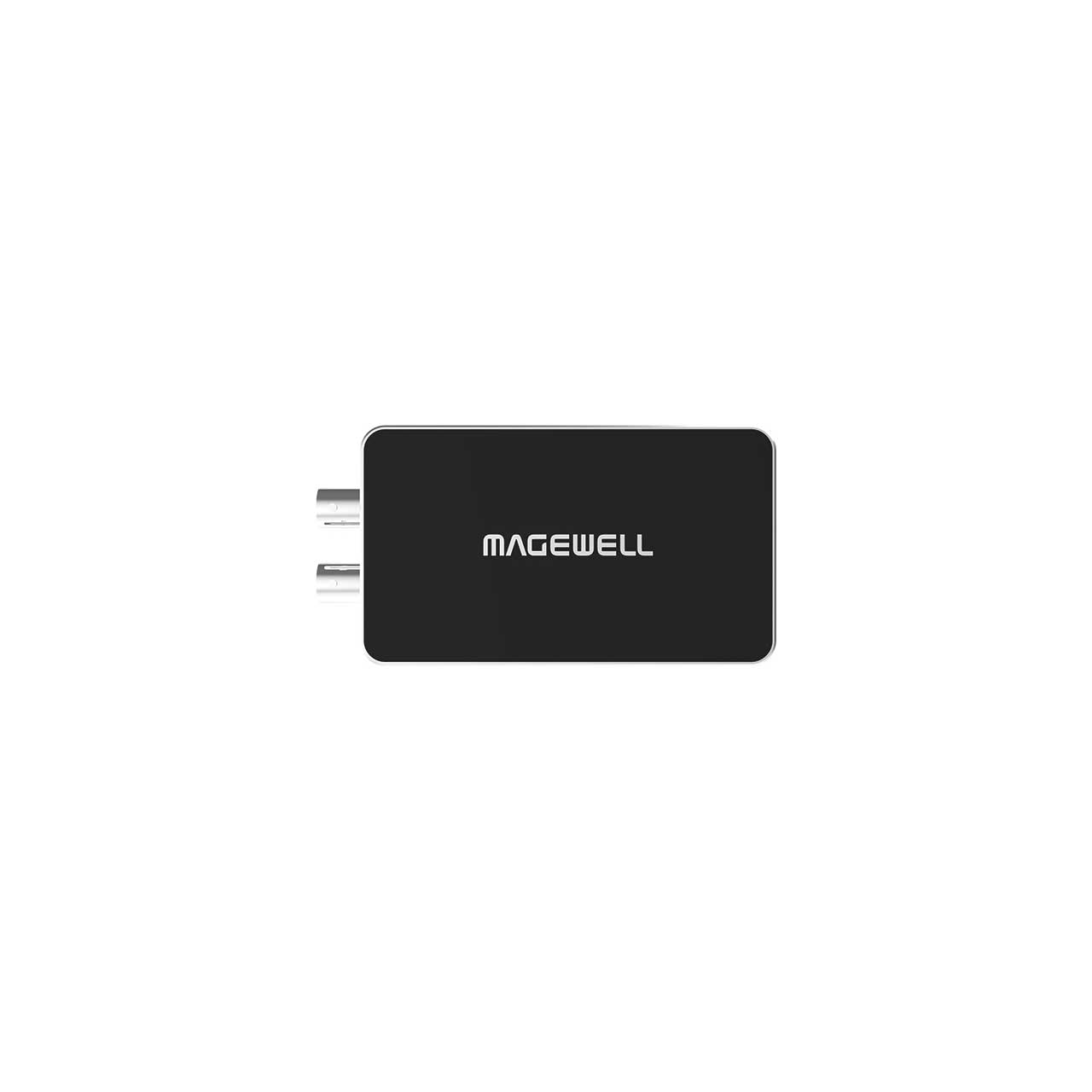

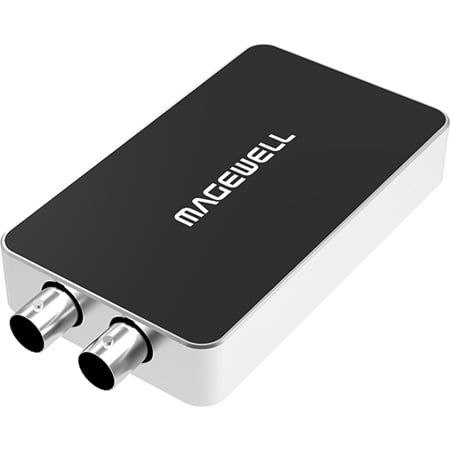

Magewell 32050 USB Capture SDI Plus

32050 - Overview

• Features:

  • Capture SD/HD/3G/ 2K SDI + embedded audio
  • Loop-through SD/HD/3G/2K SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out


• Specifications:

  • Supported OS
  • Windows: 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
  • Linux: (Ubuntu 12.04-16.10, CentOS 7)
  • OS X: 10.9-10.11
  • macOS: 10.12
  • Chrome OS

    Supported APIs
  • Windows: DirectShow, Wave API/DirectSound/WASAPI
  • Linux: V4L2, ALSA
  • OS X/macOS: QuickTime, AV Foundation

    Supported Software
  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

    Video Capture Format
  • Support for capture resolutions up to 2048x1080
  • Support for capture frame rates up to 60fps. (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows): 1920x1080 YUY2 (up to 70fps), 1920x1080 RGB24 (up to 60fps)
  • Support for YUY2 & UYVY4:2:2 8-bit
  • Support for RGB24 & RGB32 4:4:4 8-bit
  • The default capture format is YUY2. More capture format can be set using USB Capture Utility.

    Multiple devices on one computer
  • Support for connecting multiple USB devices in one system
  • Support for setting the device serial number as the device name shown in the system using USB Capture Utility
  • SDK: USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
  • Firmware Upgrade: Multiple devices in one system can be upgraded simultaneously
  • LED Indicator: Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
  • Form Factor (LxWxH): 4.36 x 2.24 x 0.67" (110.7 x 56.8 x 17mm)

    General

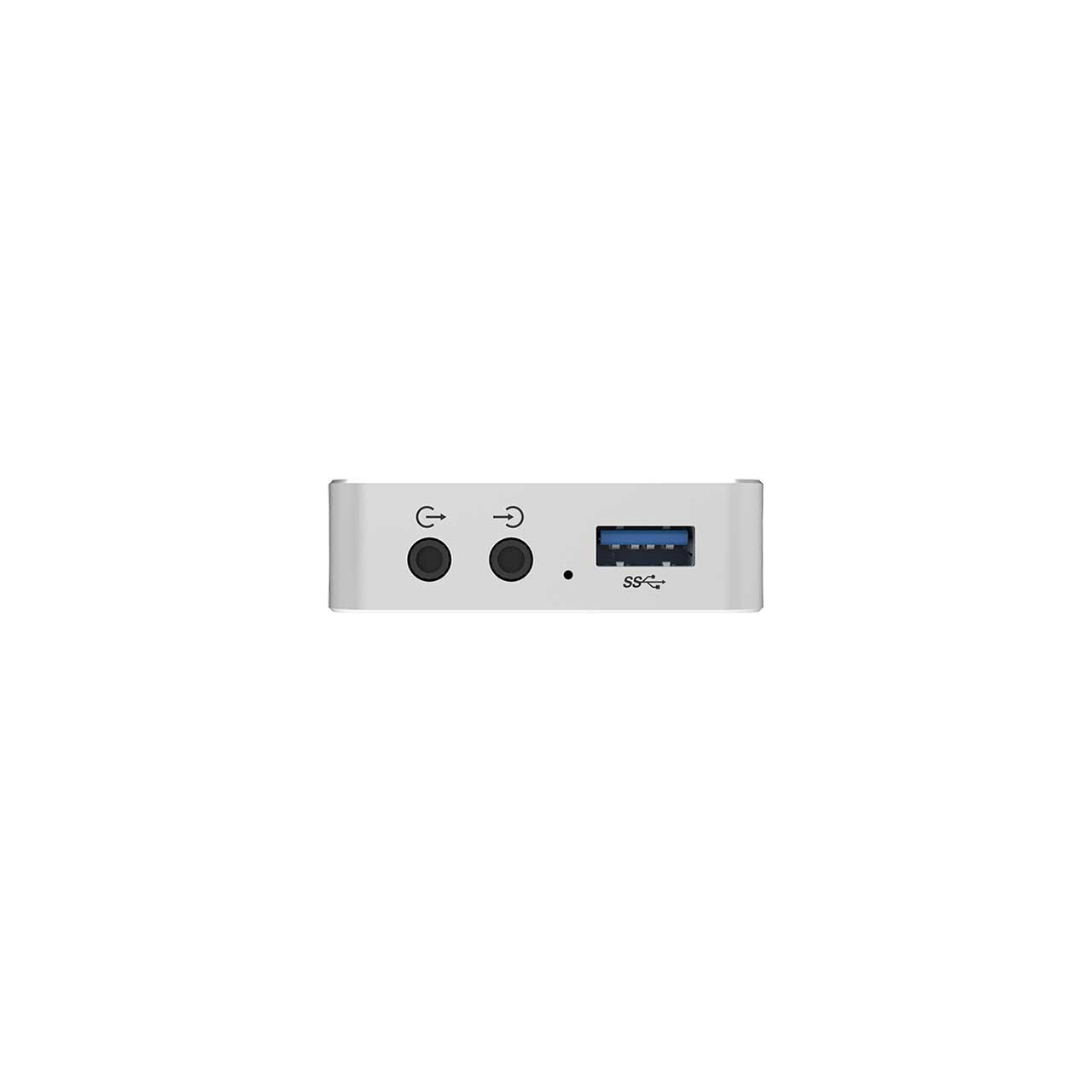

  • Input Interfaces: BNC - SD/HD/3G SDI 3.5mm audio jack unbalanced Line in interface
  • Host Interfaces USB 3.0: compatible with USB 2.0, compatible with USB 3.1 Gen 1
  • Output Interfaces: 3.5mm audio jack, unbalanced Line Out interface

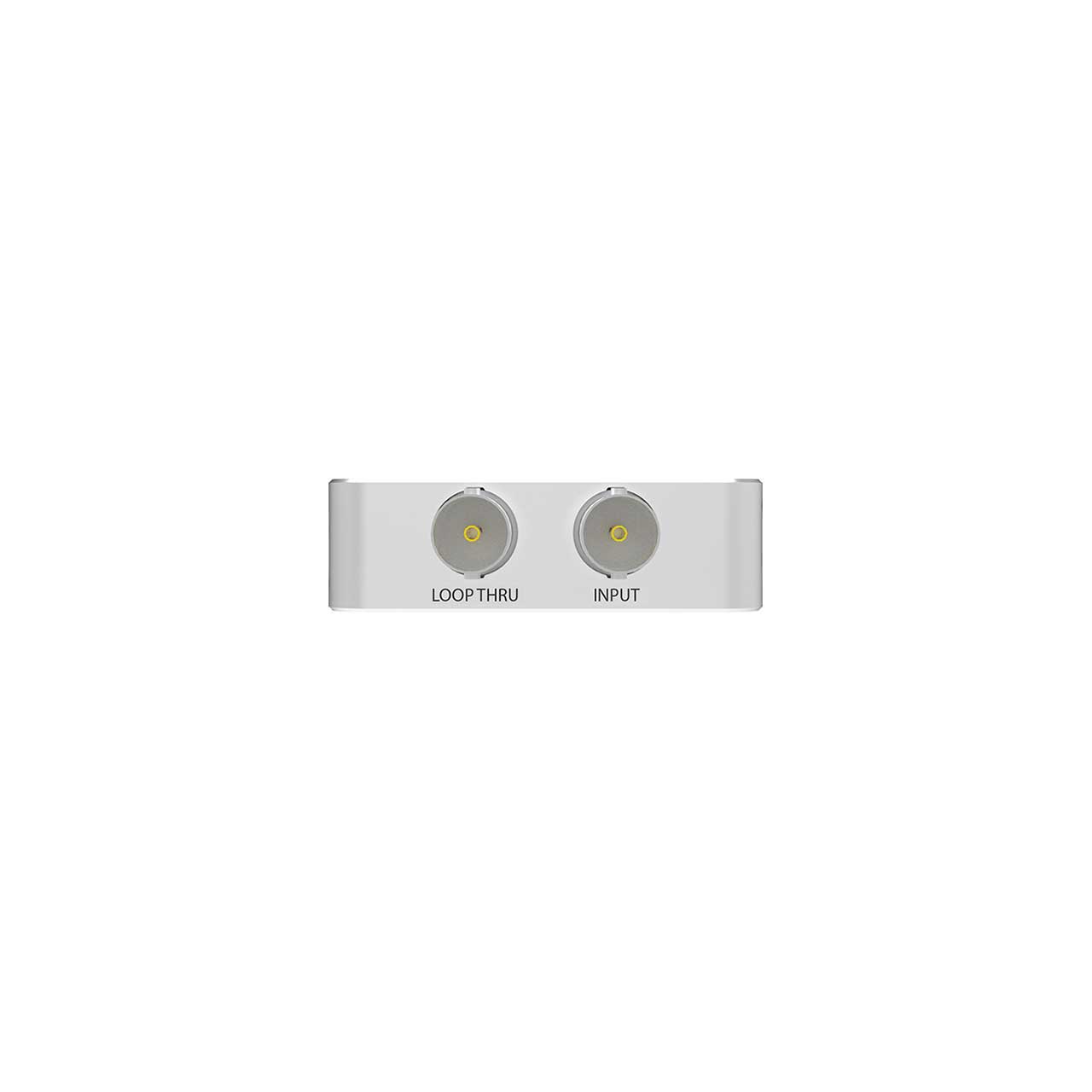

  • Loop-through Interface: BNC - SDI loop-through interface
  • Power Consumption:
    5V Max Current: ~0.5 A
    Max Power Consumption: ~2.5 W
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 158°F (-20° to 70°C)
  • Relative Humidity: 5 to 90% non-condensing

    For a list of full features and specifications, please see the Data Sheets Tab.


• Item Includes:

  • 1x One-channel 2K capture device (32050)

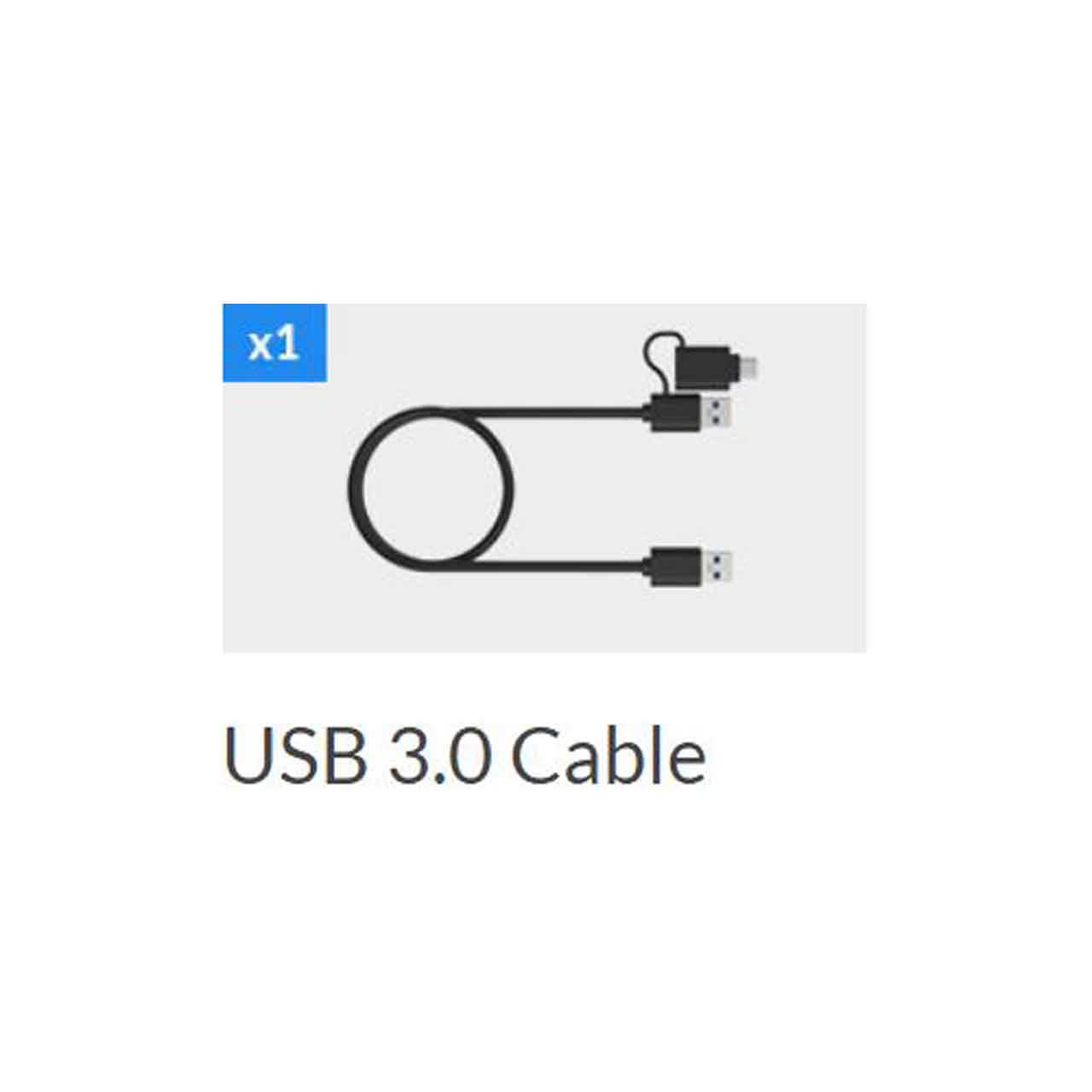

  • 1x USB 3.0 Cable (90062)


• Warranty:

  • 3-Year Warranty


• GTIN:

  8143950200877
