Blackmagic Design HDL-SMTVDUO2 SmartView Duo2 Dual 8 Inch Intelligent 6G-SDI Rack Monitors

ITEM #: BMD-HDL-SMTVDUO2 MFG #: HDL-SMTVDUO2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Availability: In Stock
iAvailability Description Popup


HDL-SMTVDUO2 - Overview

The ultimate in low cost SDI monitoring!

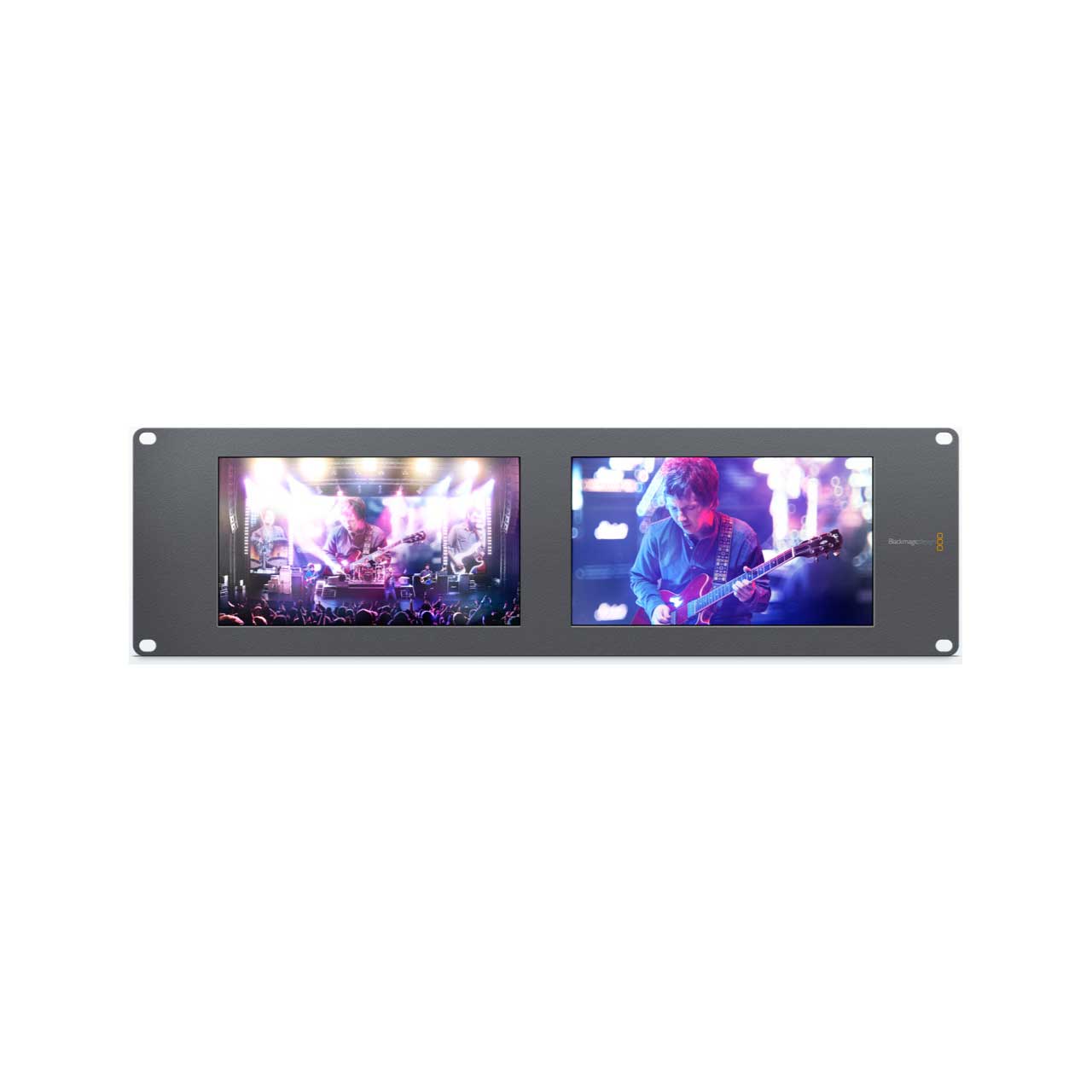

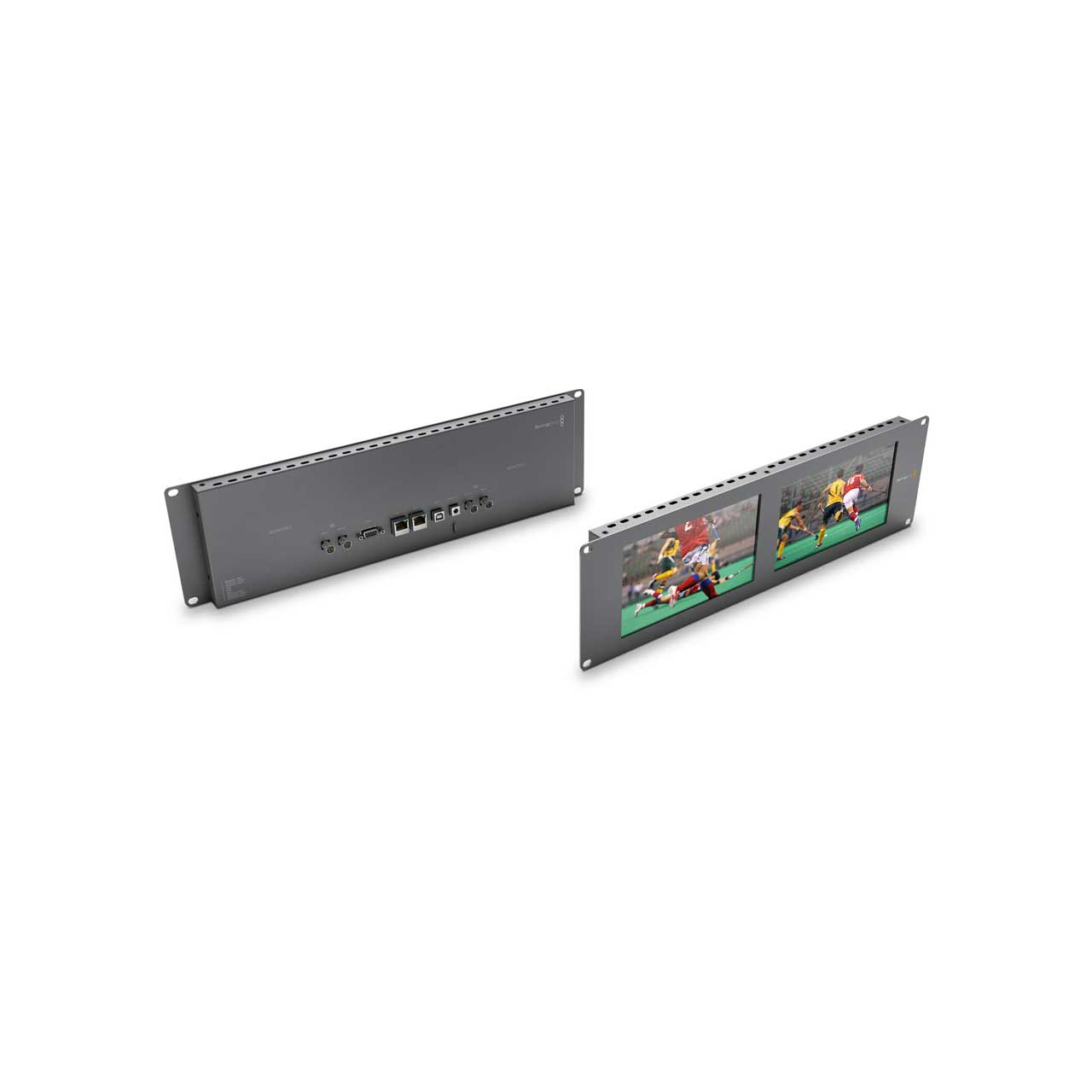

The Blackmagic Design Blackmagic SmartView Duo 2 features two large independent 8-inch LCD screens in a compact rack mount design. The SmartView Duo handles SD, HD and 3Gb/s SDI video standards, perfect for post-production, broadcast and live event monitoring.

The ultimate in low cost SDI monitoring you can use SmartView Duo in racks for local monitoring, for multi monitor video walls in master control rooms or for camera monitoring for production switchers! With SmartView Duo you can afford to put SDI monitoring everywhere you need! Incredibly thin, it's ideal for portable setups where you need to save space. SmartView Duo is lightweight and thin, so it's perfect for outside broadcast vans, portable monitor racks and flyway kits! SmartView Duo even includes tally!

Imagine having all your video sources displayed on large 8-inch LCD screens so you can see camera focus and quality! SmartView Duo includes easy to use software for Mac and Windows so you can see all the monitors on your network for remote adjustments. That's perfect when you want to color match all screens in a video wall remotely from your laptop! Simply connect your SmartView Duo to your Ethernet network and use the included Mac and Windows software to adjust all your monitors from one central location. The Monitor Utility software uses Bonjour to automatically find all the SmartView Duo monitors on your network. You can save monitor settings from one monitor and copy to another, and when you're working with lots of monitors, SmartView Duo includes an identify mode to help you find the monitor you're adjusting!

  • Features:

    • Affordable SDI Monitoring with the SmartView Duo!
    • Perfect for Live Production
    • Monitor Everywhere!
    • International Power Supply
    • Smart Ethernet Control
    • Greater SDI Compatibility
    • Vital for both Broadcast and Post Production

  • Specifications:

    • Connections
    • SDI Video Input: Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
    • Multi Rate Support: Auto detection of 2K, HD or standard definition inputs.
    • Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
    • Ethernet: 10/100 BaseT with loop through.
    • Tally: 9-pin D connector

      Standards
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
    • SDI Color Space: REC 601, REC 709
    • SDI Auto Switching: Automatically selects between SD, HD and 3 Gb/s SDI.
    • Video Sampling: 4:2:2 and 4:4:4
    • SDI Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
    • 2K Format Support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p,2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

      Software
    • Internal Software Upgrade: Via included firmware updater software.
    • SmartView Utility Software: Via USB or Ethernet.

      Operating Systems
    • Mac 10.12 Sierra, Mac 10.13 High Sierra or later.Windows 8.1 and 10.

      Display
    • Display Element: TFT Active Matrix LCD.
    • Display Resolution: 800 x 480 pixels
    • Response: < 15 ms
    • Contrast Ratio: Typically 500:1
    • Color Depth: 16.7 Million Colors.
    • Display Orientation: Displays can rotate upside down for optimum viewing angle.

      Power Requirements
    • Power Supply: 12V universal power supply included with international socket adapters for all countries.
    • Power Consumption: < 20 Watts
    • Operational Voltage Range: 12V - 15V

      Environmental Specifications
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 45° C (-4° to 113° F)
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • SmartView Duo
    • Power Supply
    • SD card with software and manual

  • Warranty:

    • 12 Months Limited Manufacturer's Warranty.

  • GTIN:

    9338716004465
