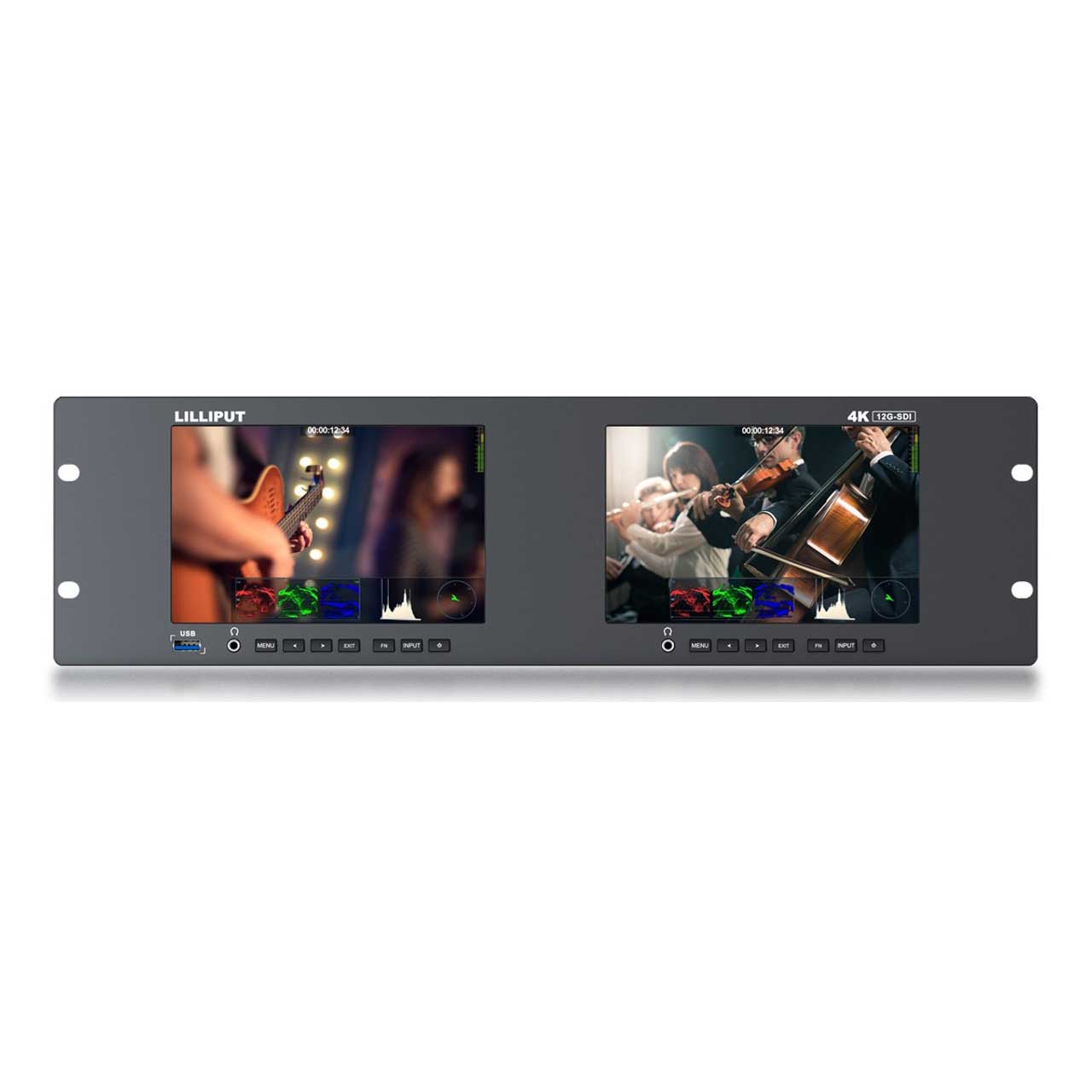

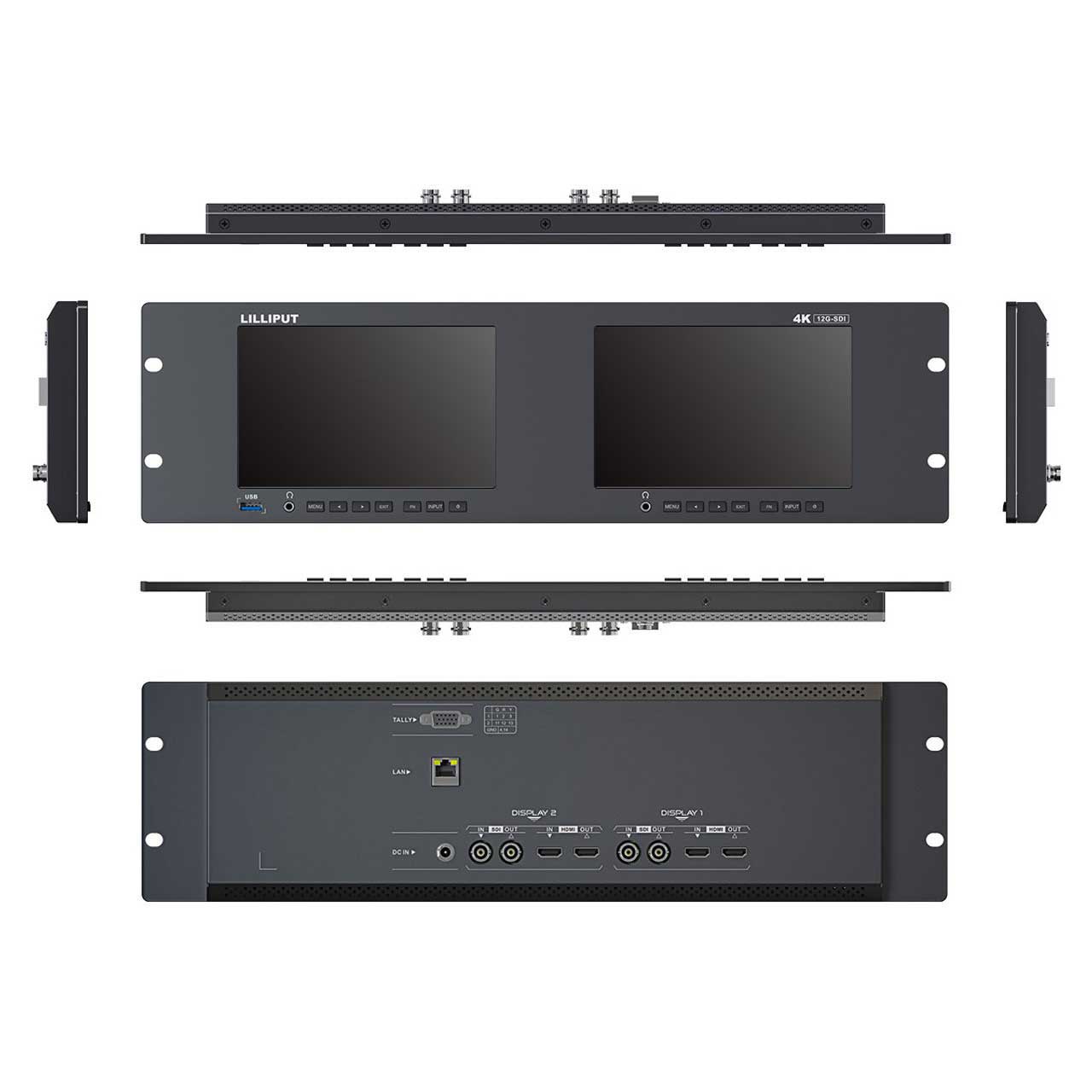

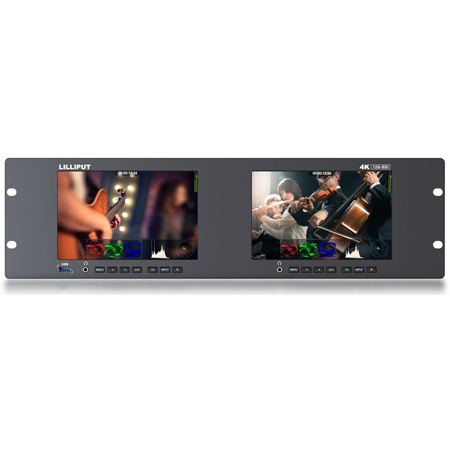

Lilliput RM-7026-12G Dual 7 Inch 3RU Rackmount 12G-SDI Monitor

RM7026-12G - Overview

• Features:

  • Up to 1000 Nits brightess
  • 12G-SDI/HDMI 2.0 Supported
  • Lan connection
  • Remote controllable via computer
  • 1900x1200 resolution


• Specifications:

  • Display
  • Panel: 2x7" LTPS
  • Physical Resolution: 1920x1200
  • Aspect Ratio: 16:10
  • Brightness: 1000 Nits
  • Contrast: 1200:1
  • Viewing Angle: 160° / 160° (H/V)
  • HDR Supported: HLG; ST2084 300/1000/100000

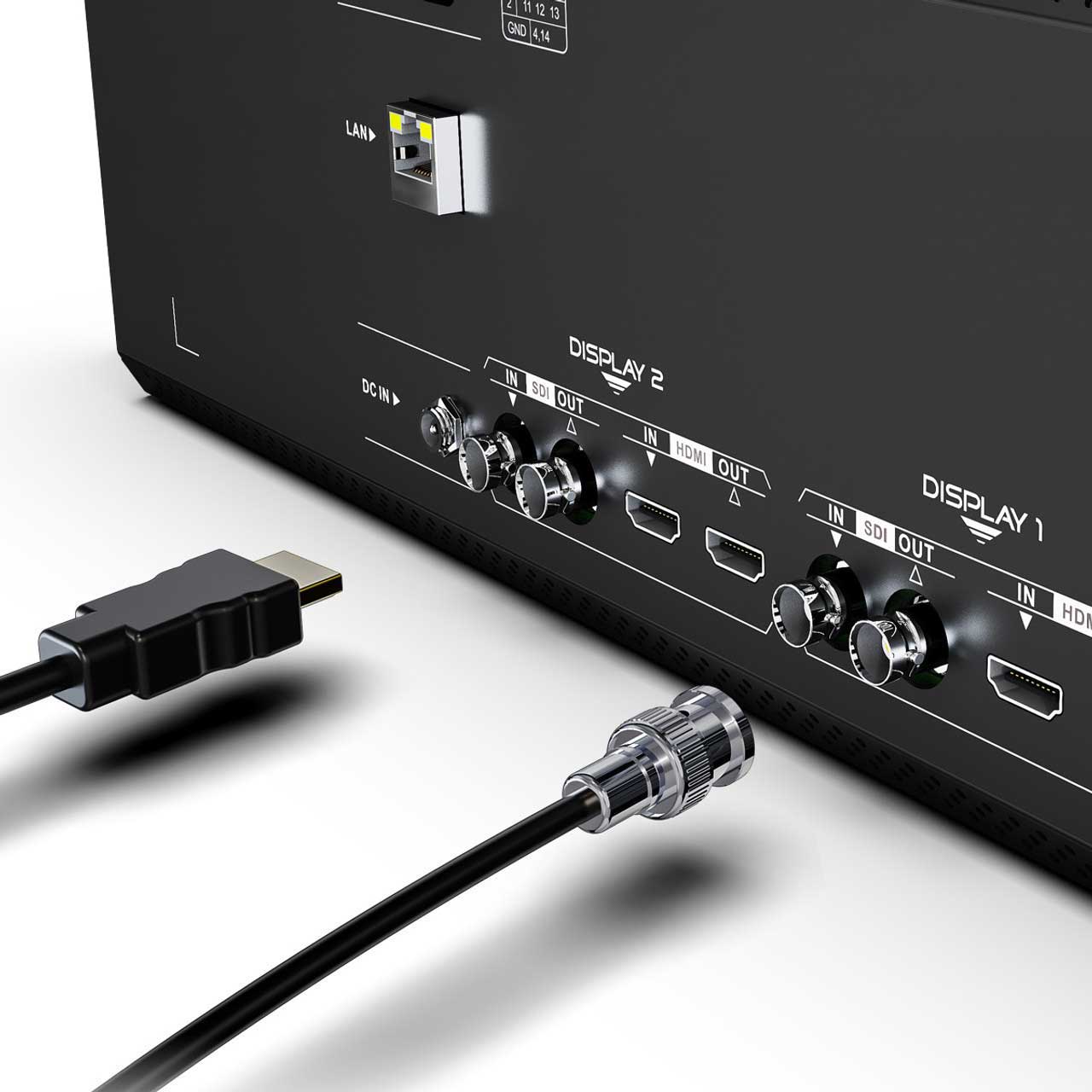

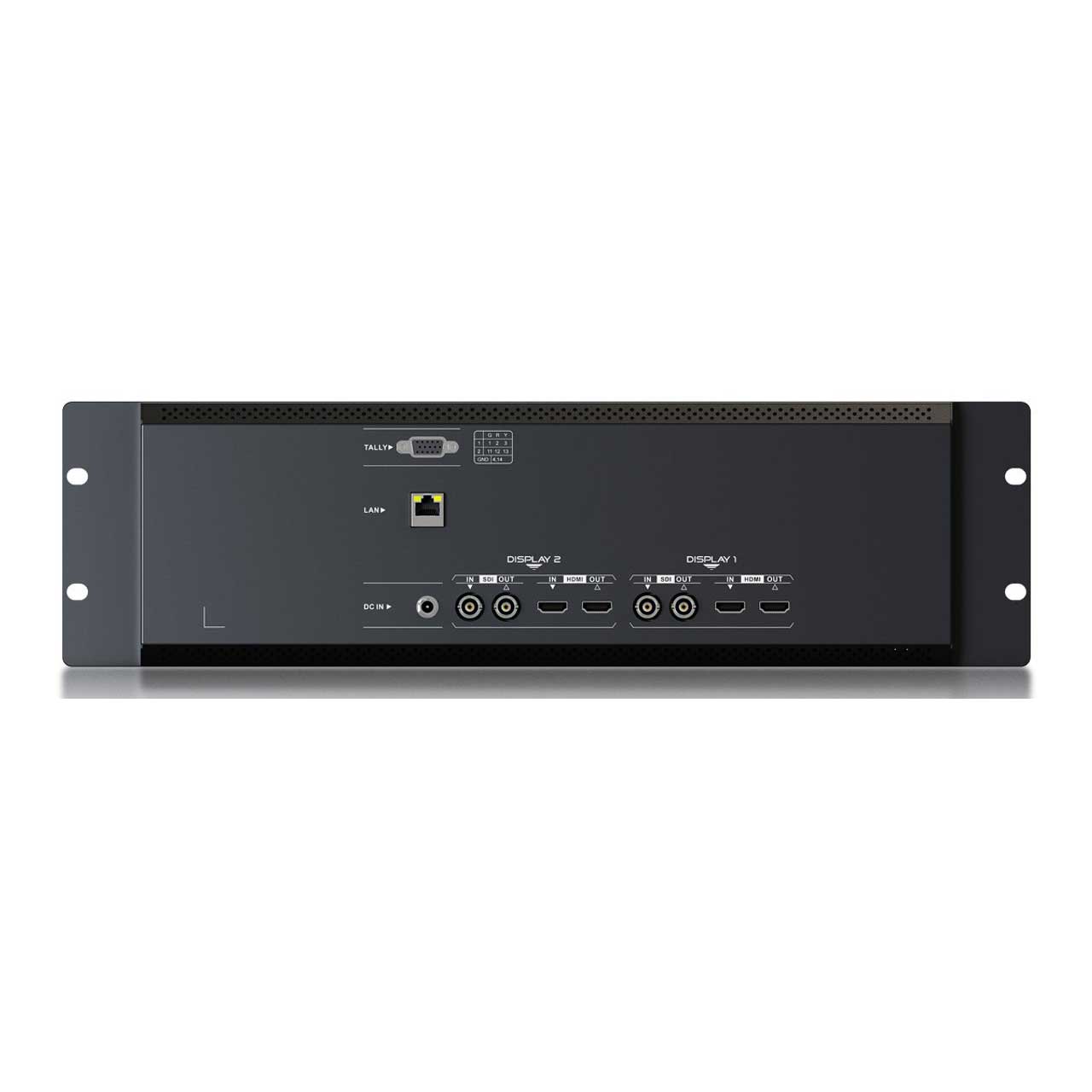

    Inputs/Outputs
  • HDMI Input: 1 (HDMI 2.0)
  • 12G-SDI Input: 1
  • HDMI Output: 1 (HDMI 2.0)
  • 12G-SDI Output: 1

    Supported Formats
  • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
  • 12G-SDI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...

    Audio In/Out
  • Audio Channel: HDMI 8ch / SDI 16ch
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit

    Power
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤21W (12V)

    Environment
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)

    Dimensions
  • Dimensions: 480mm x 131.6mm x 32.5mm (18.9 in x 5.18 in x 1.3 in)
  • Weight: 1.83kg (4lbs)


• Item Includes:

  • 1x 12V 3A DC Power Adapter
  • 1x Tally Connecter
  • 1x E-User Manual


• Warranty:

  • 1 Year Warranty


• GTIN:

  6950821602737
