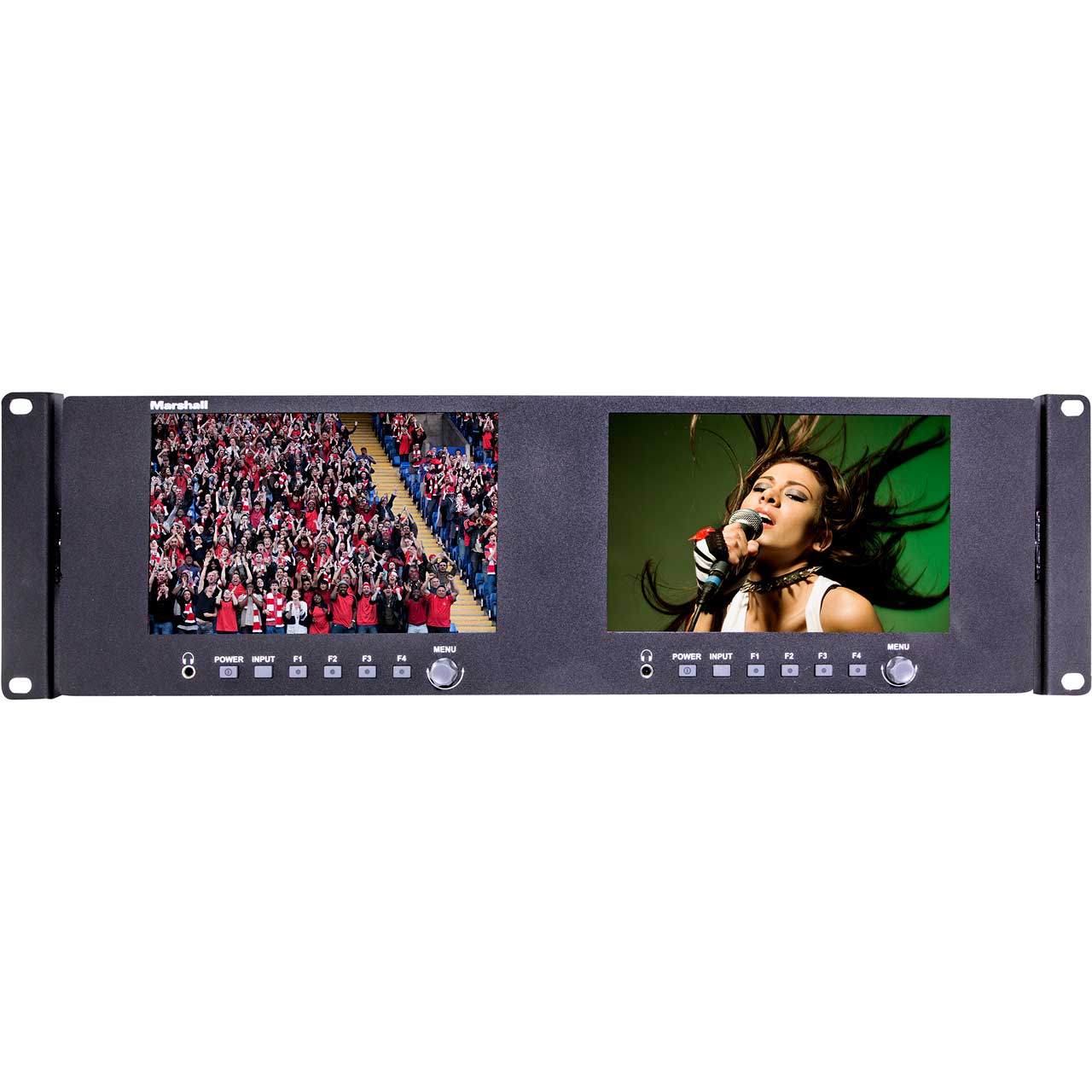

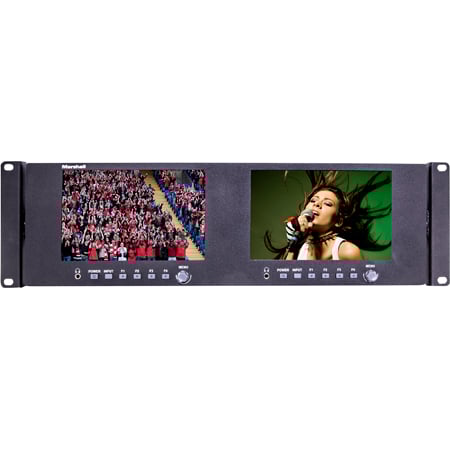

Marshall ML-702 Dual 7-Inch Rackmountable Video Monitor with HDMI/3G-SDI & Composite

ML-702 - Overview

• Features:

  • Dual 7" with 1920 x 1200 resolution, typical brightness 450 cd/m² and contrast 1100:1
  • Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
  • SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30.
  • Two bar audio overlay
  • Compact size
  • Tilting rack mount
  • Dual power inputs
  • Front panel control plus Ethernet control
  • Bright displays with very good viewing angle
  • Four User-defined function buttons
  • Front panel headphone jacks
  • On-screen Tally borders
  • Histogram, marker, focus peaking and more


• Specifications:

  • Number of Panels: 2
  • Panel Size: Dual 7-inch Diagonal, 3RU high
  • Resolution (Pixels): 1920 x 1200
  • Aspect Ratio: 16:10
  • Viewing Angle: 160° / 160° (H/V)
  • Brightness (in cd/m2): 450
  • Contrast Ratio: 1100:1

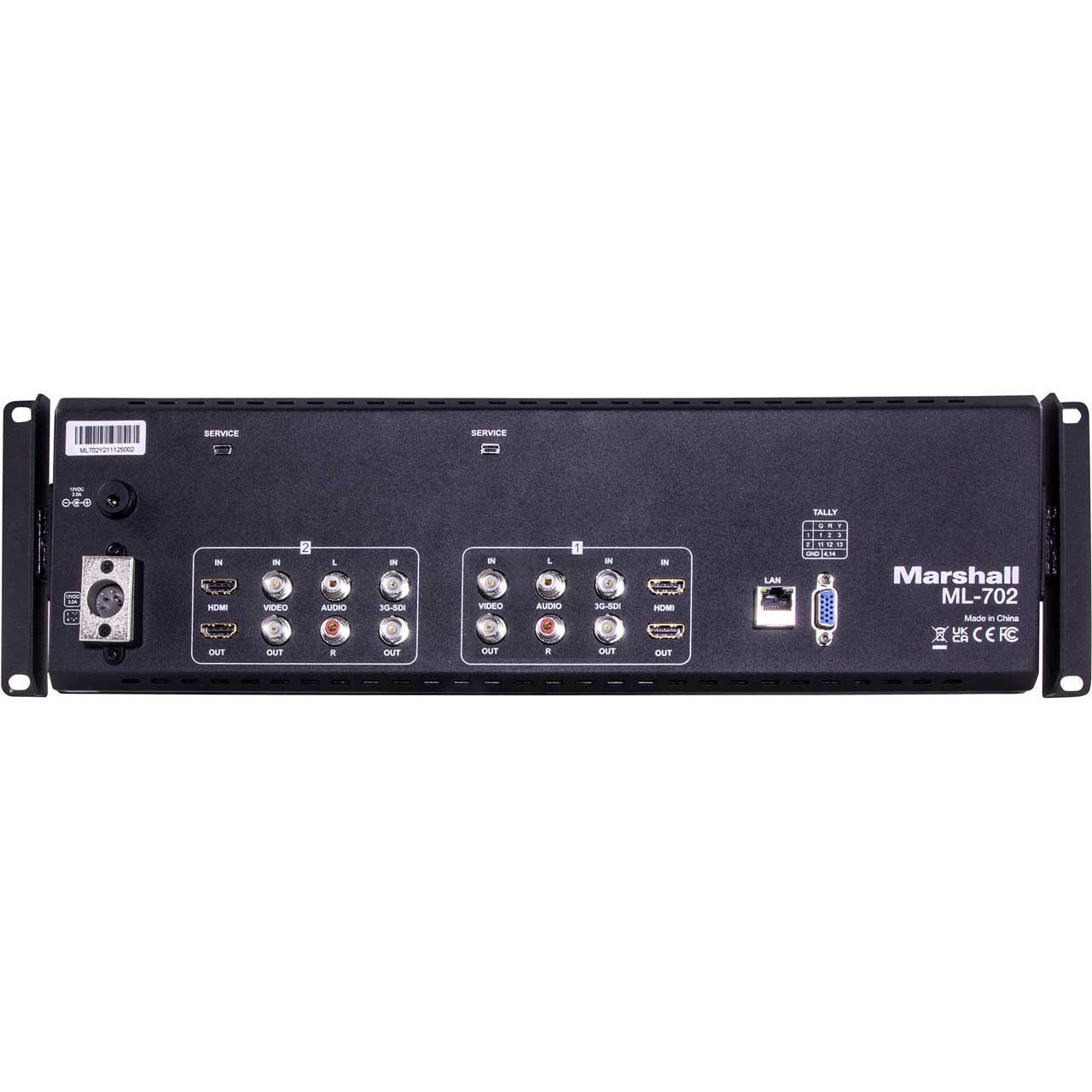

  • Digital Video Inputs: 3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M), HDMI 2.0 with loop out
  • Analog Video Inputs: CVBS (Composite) with loop out (RCA-type), Analog Stereo Audio (RCA-type)
  • Compatible Input Formats: SDI / HDSI / 3G SDI:
    525i 59.94 / 625i 50
    720p 24, 25, 29.97, 30, 50, 59.94, 60
    1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60
  • HDMI:
    480i, 480p 59.94 / 576i, 576p 50
    720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60
    1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30, 50, 59.94, 60
  • CVBS: 480i 59.94 / 576i 50
  • Control Inputs: RJ-45 for Ethernet Control, 9-pin D-Sub for GPI Tally Control, Mini USB Service Port
  • Power: 12 Volts DC @ 1.5 Amps (10.8 - 24V range) via XLR 4-pin or 5.5mm x 2.1mm push-in coaxial jack
  • Dimensions (WxHxD): 19 x 5.125 x 1.75" (482.6 x 130.175 x 44.45mm)
  • Weight: 5.3Lbs (2.4kg)


• Item Includes:

  • 1x ML-702 Dual 7-Inch Rack Monitor
