ToteVision LED-710-4KIP 7 Inch Ruggedized IP/Analog Camera Test Monitor - Li-Ion

ITEM #: TOV-LED-710-4KIP MFG #: LED-710-4KIP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
ToteVision
Free Shipping with $49 Minimum Order

List Price:

$866.00

Our Price:

$606.20

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

LED-710-4KIP - Overview

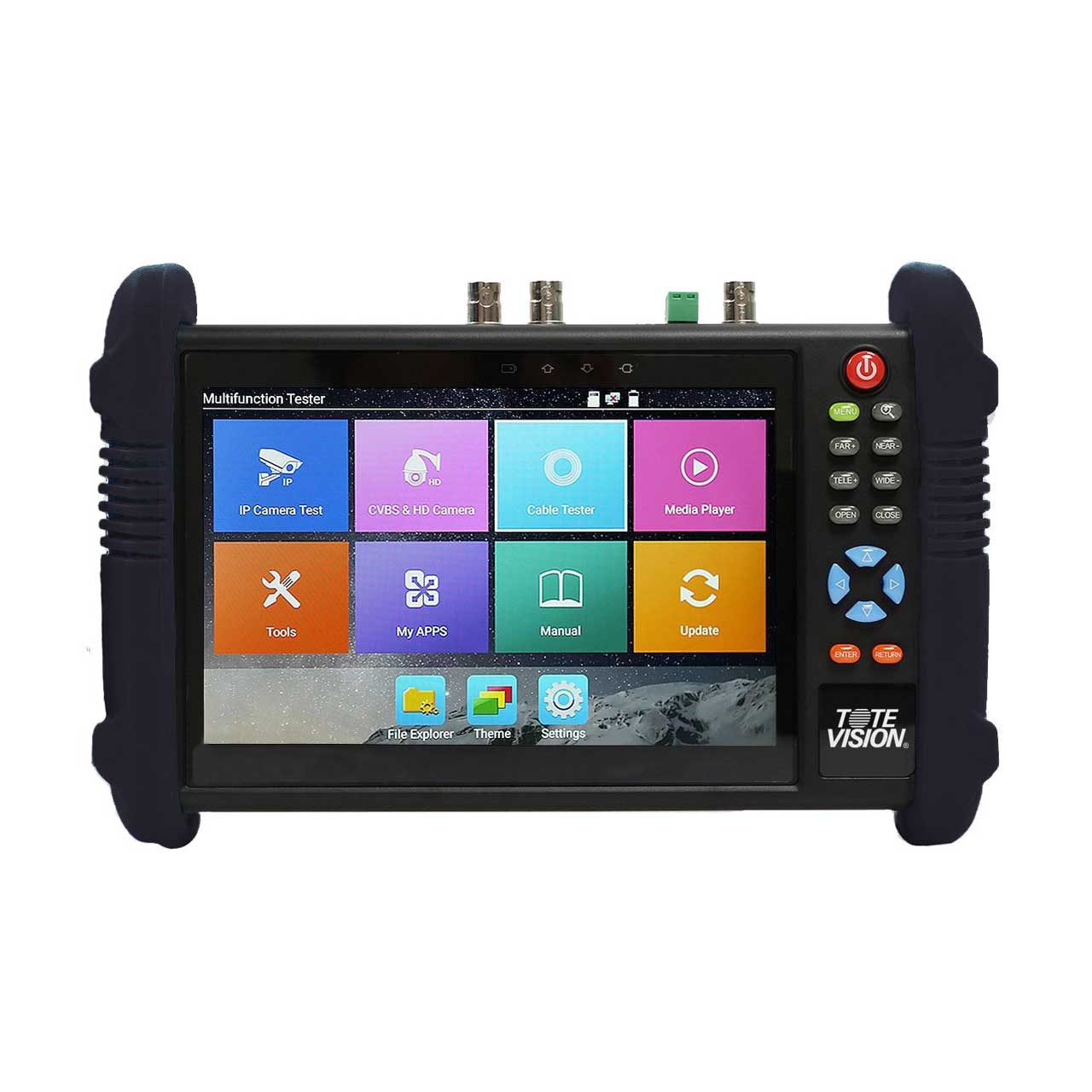

The ToteVision LED-710-4KIP is a 7" commercial-grade, multi-function camera test monitor designed for installation and maintenance of both IP and analog cameras including TVI, CVI, AHD, SDI, and 4K formats.

Many features including wireless capability, PoE+ for providing power to an IP camera while testing, and a built-in PTZ controller for ONVIF IP and analog PTZ control. This LED-710-4KIP test monitor is an indispensable tool for the video installation professional.

Please Note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Linux 1.2GHz quad core processor with Android 5.1 embedded operating system for optimized performance
    • 8GB storage SD card with port capacity to support 32GB
    • Interactive on-screen touch-controlled menu to quickly access multiple functions
    • Supports H.264 and H.265 protocol; 4K video can be displayed through main stream feed
    • Supports HD-SDI/EX-SDI 1080p resolution @ 30fps (50/60Hz)
    • PTZ controller for both IP (ONVIF) and analog cameras; supporting 30+ protocols
    • Rapid video selection with single key to detect network IP (ONVIF) cameras and auto display
    • Enhanced color bar generator (NTSC/PAL)
    • Built-in rechargeable battery provides 10 hours of power depending on workload; auto-off adjustable (5-30 minutes)
    • LAN connectivity (RJ45 port) and Wireless connectivity including ability to create WiFi hotspot
    • Screen lock function with option to password lock and pattern lock


  • Specifications:

    • Display: 7" LCD IPS panel
    • Resolution: 1280 x 800
    • Back Light: LED
    • Audio:
      - 1x 3.5mm Input
      - 1x 3.5mm Output (for headphone)
    • Power: 1x DC Input
    • Operating Temperature: 41°F - 95°F
    • Humidity: 3% - 90%
    • Power Requirements: 12V DC 2A external power supply; built-in 7.4V 5400mAh Lithium Polymer battery
    • Power Consumption: 3.6 watts active; 10milliwatts standby
    • Product Weight: Net: 1.4lbs
    • Case: Durable ABS plastic with ruggedized rubber handles
    • CPU: 1.2GHz quad-core
    • Memory: 1GB
    • Storage: 8GB internal flash; 8GB external SD with port capacity up to 32GB
    • Video Card: Mail 400
    • Touchscreen: projected capacitive

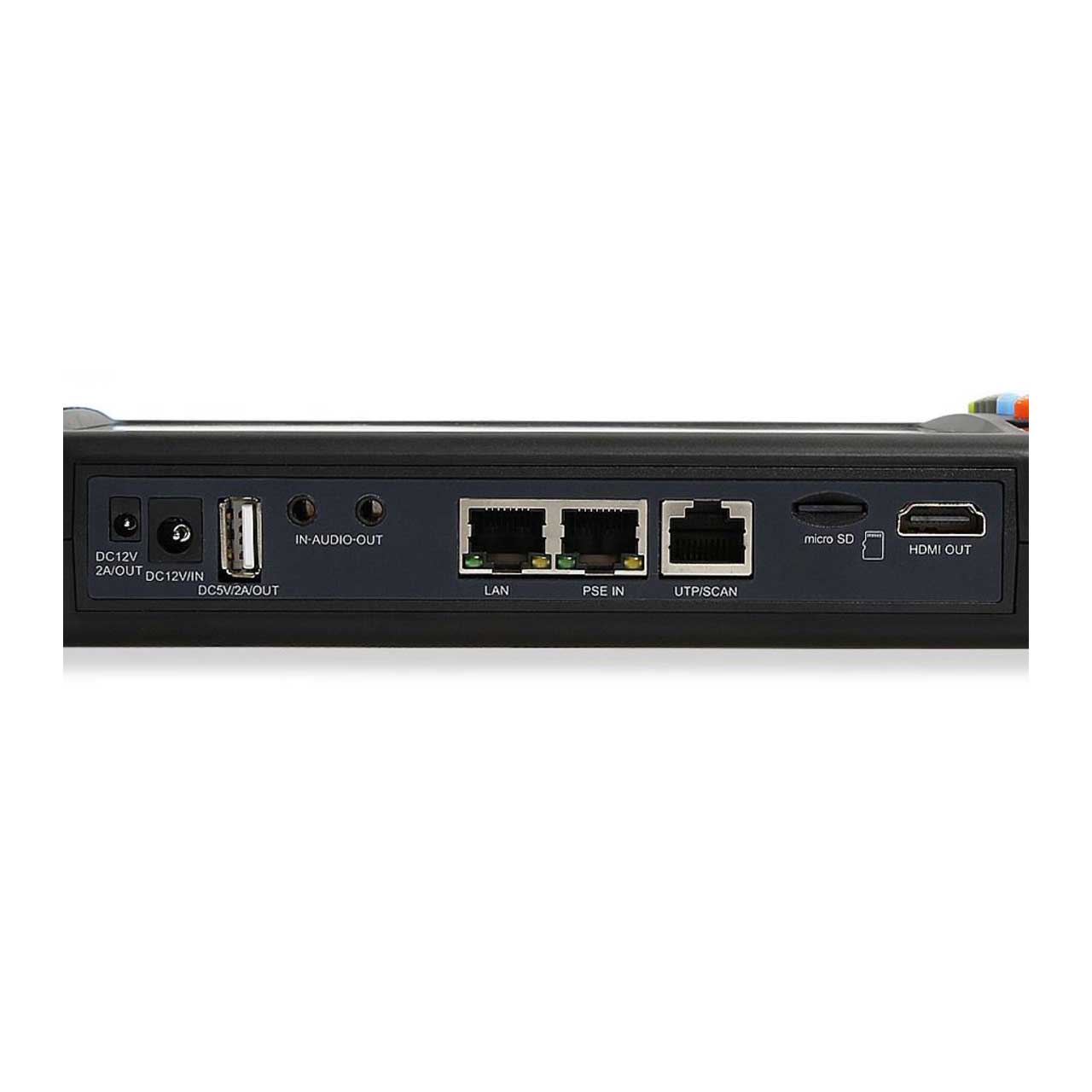

    • Connectivity: 1x RJ45 IP/LAN port; 1x RJ45 PSE port (Ethernet power test); Wireless 802.11 b/g/n with ability to create hotspot
    • IP Port: 1x RJ45 Input; RTSP and ONVIF

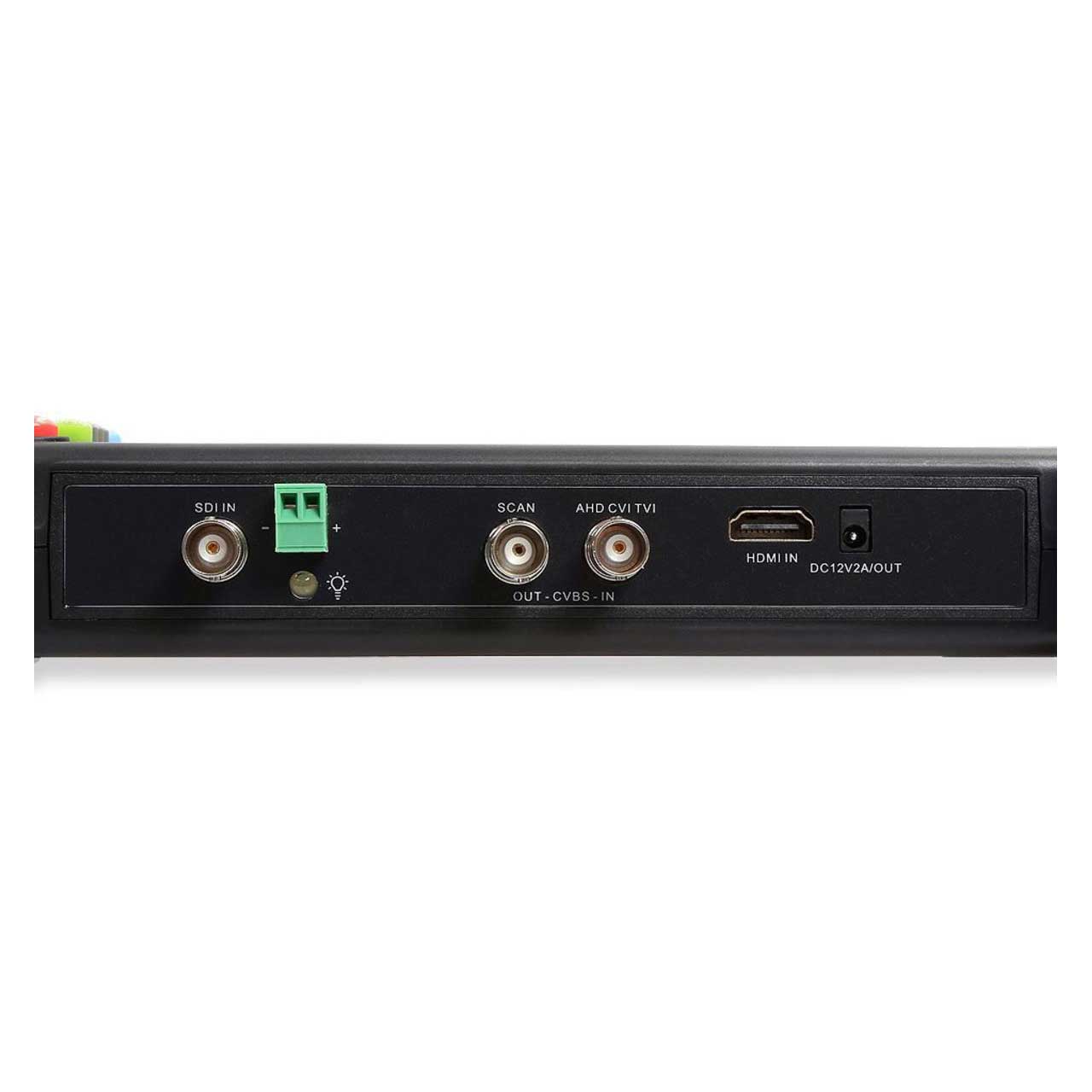

    • CVBS (analog) Port: 1x BNC Input; 1x BNC Output (looping); PTZ control/RS485 control (baud 600 -115,200bps) support in over 30 protocols
    • HD Coaxial Port: 1x TVI/CVI/AHD Input (shared with CVBS); UTC control
    • HD-SDI/EX-SDI Port: 1x Input; supports 1080p 30fps (50/60Hz)
    • HDMI Port: 1x v1.4 Input; 1x Output; supports 1080p
    • PoE+ (Power over Ethernet) Port: 1x 48V Output; 24watts max power
    • USB Port: 1x port for 5V 2amp power only; does not transfer data


  • GTIN:

    0081651483114
